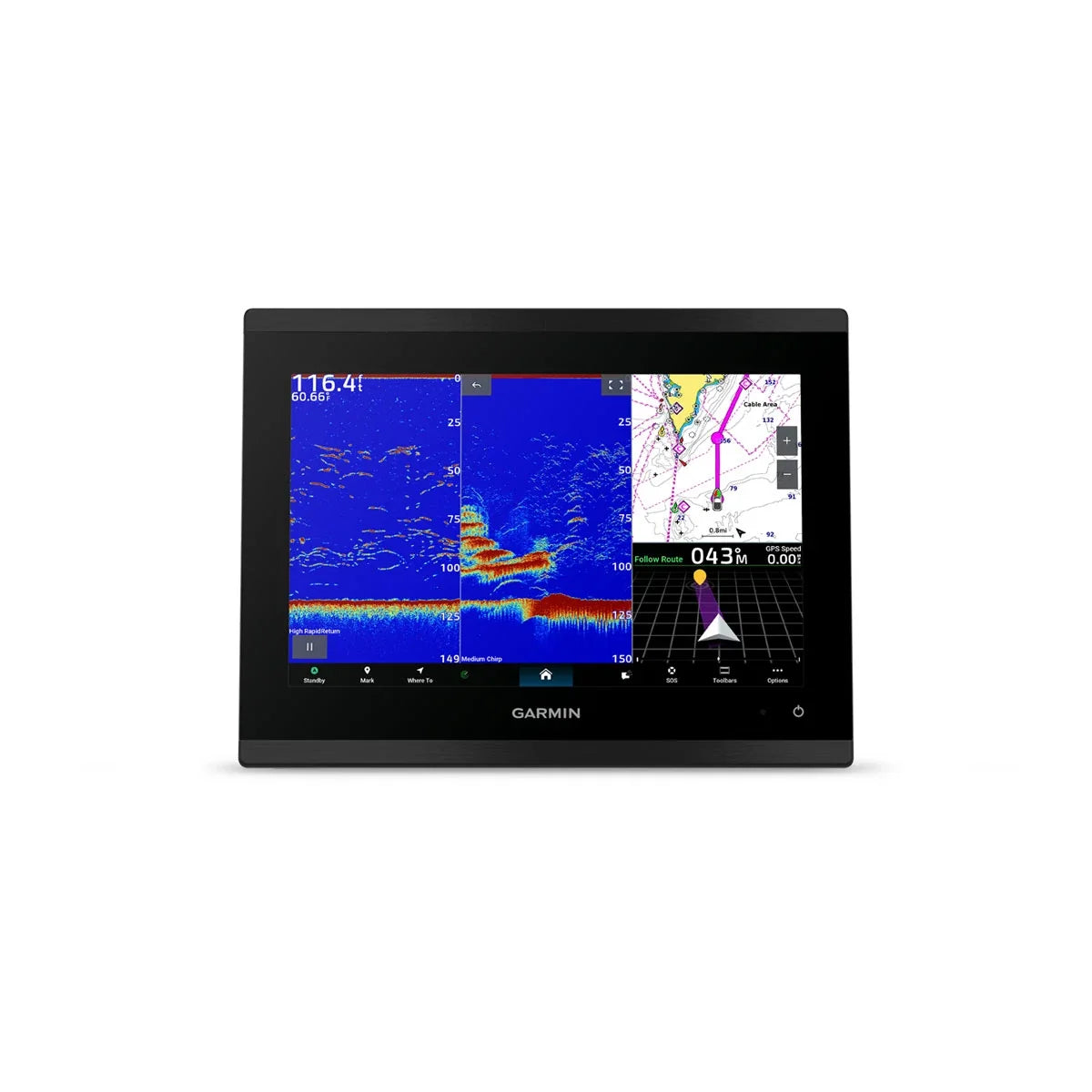

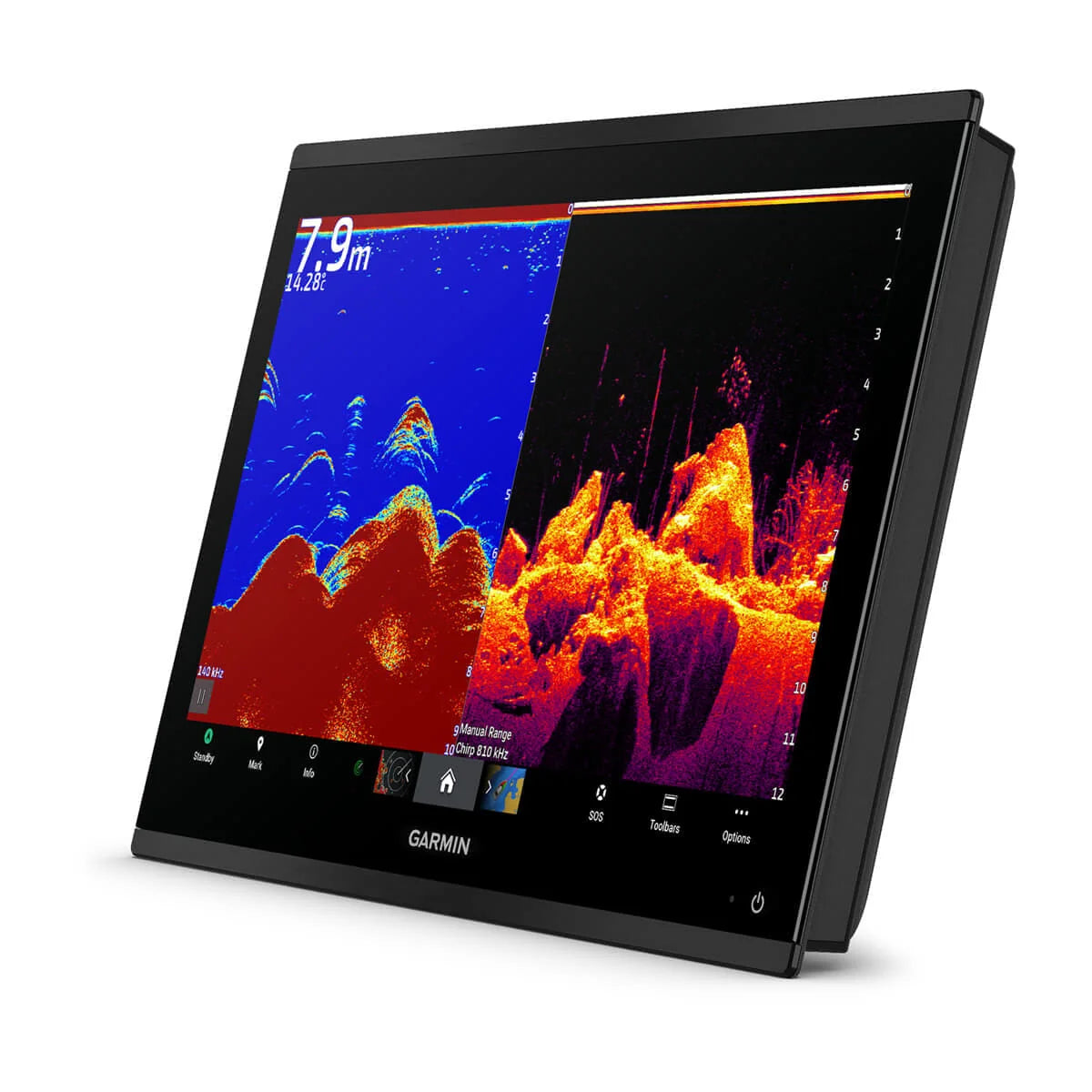

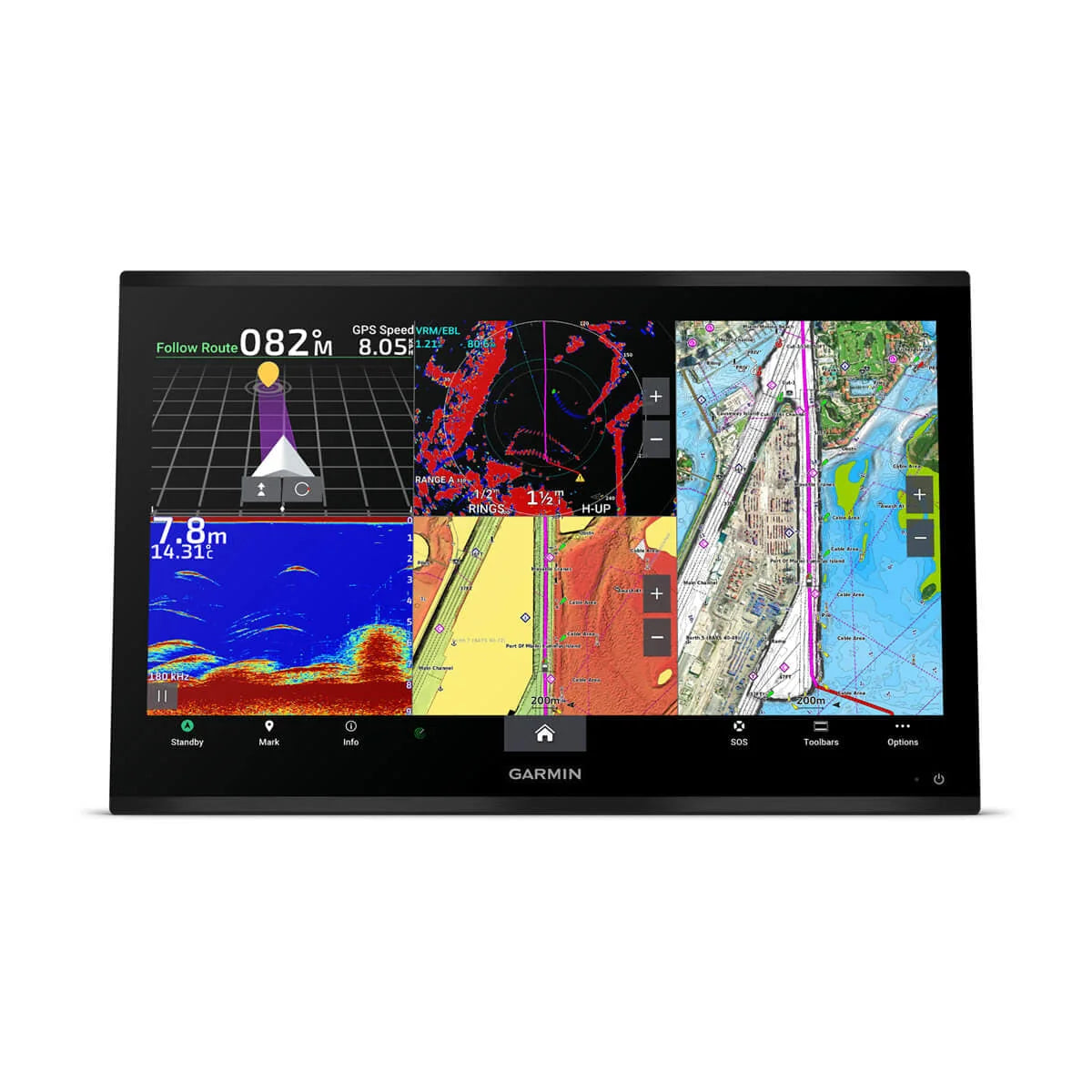

GPSMAP® 9010
GPSMAP® 9010
Overview
PLOT YOUR PARADISE
FROM YOUR PARADISE
SEE YOUR CHARTS, VIEW ENTERTAINMENT AND MORE IN UP TO 4K RESOLUTION
CLARITY, CONTROL AND LUXURY AT THE HELM
COMPLETELY INTEGRATED
BUILD AN EXTENSIVE, TOP-OF-THE-LINE ECOSYSTEM
THE SPEED YOU NEED
UP TO 7 TIMES FASTER PROCESSING POWER AND GIGABIT SPEEDS ON THE GARMIN BLUENET™ NETWORK
PARADISE STARTS HERE
It's the integrated high-resolution touchscreen chartplotter for captains and anglers who demand the best. Enjoy edge-to-edge clarity and luxury on a glass helm with premium design and materials.
PREMIUM IPS SUNLIGHT-READABLE TOUCHSCREEN DISPLAY
UP TO 7 TIMES FASTER PROCESSING POWER THAN PREVIOUS GENERATIONS
GET CLARITY LIKE NEVER BEFORE ON A HIGH-RESOLUTION DISPLAY
SUPPORTS GARMIN NAVIONICS+™ CHARTS WITH AUTO GUIDANCE+™ TECHNOLOGY1
GIGABIT SPEEDS ON THE GARMIN BLUENET™ NETWORK
NETWORK WITH MULTIPLE CHARTPLOTTERS, CAMERAS AND MORE
WHAT YOU'LL LOVE
PREMIUM CHARTPLOTTER
The HD IPS sunlight-readable touchscreen display and edge-to-edge design provide a seamless and luxurious modern look.
FASTER. MUCH FASTER.
Processing power is 7 times faster than previous generations for superior performance; draw charts quickly, and calculate Auto Guidance+ routes1 with lightning speed with an optional Garmin Navionics+ subscription.
GARMIN BLUENET NETWORK

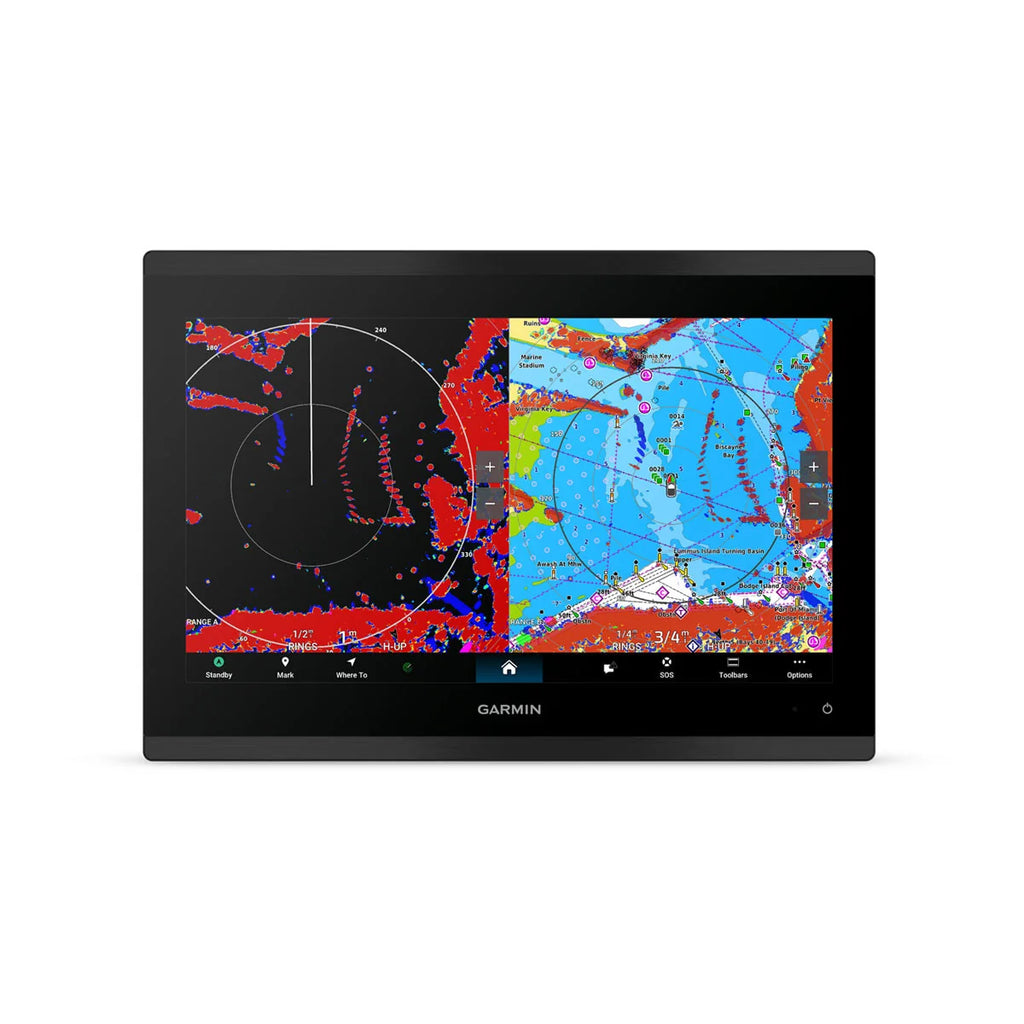

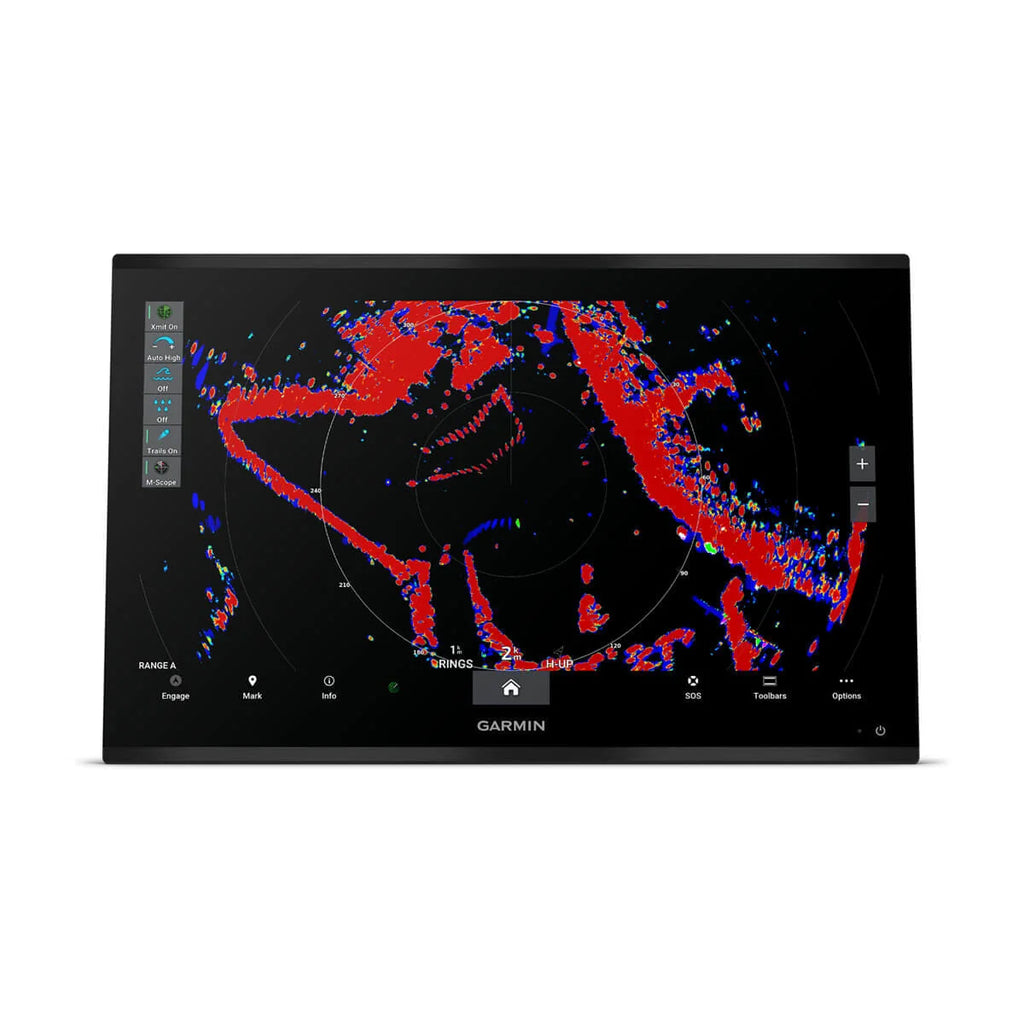

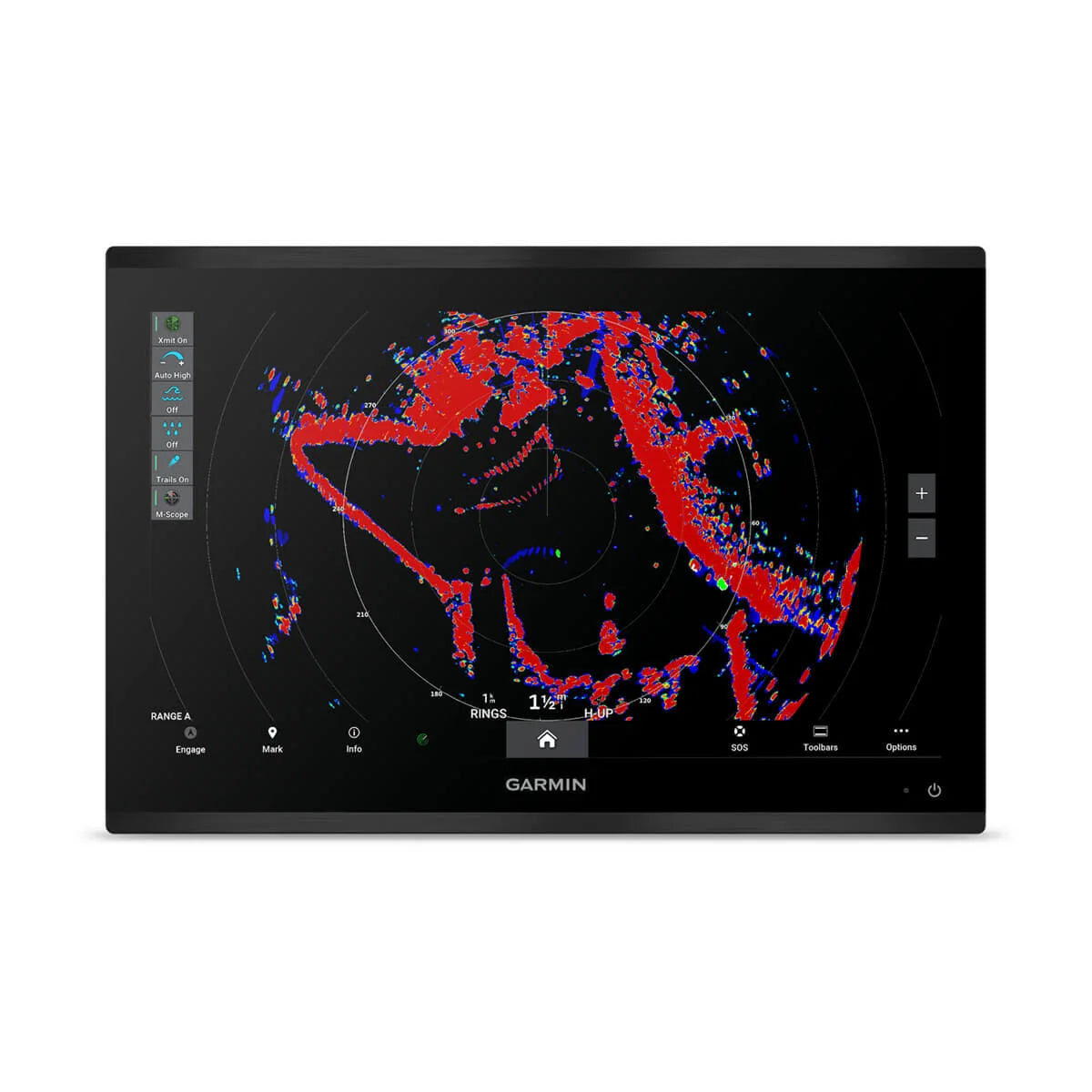

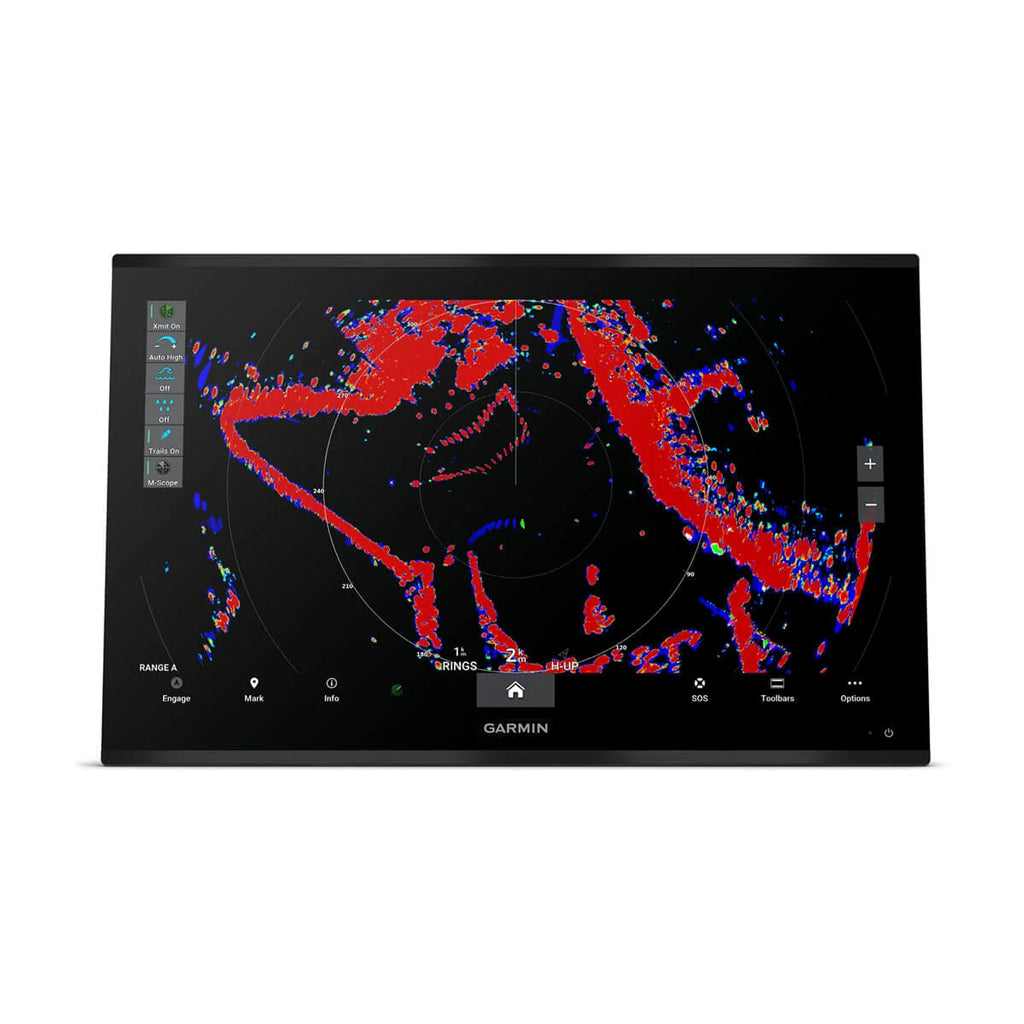

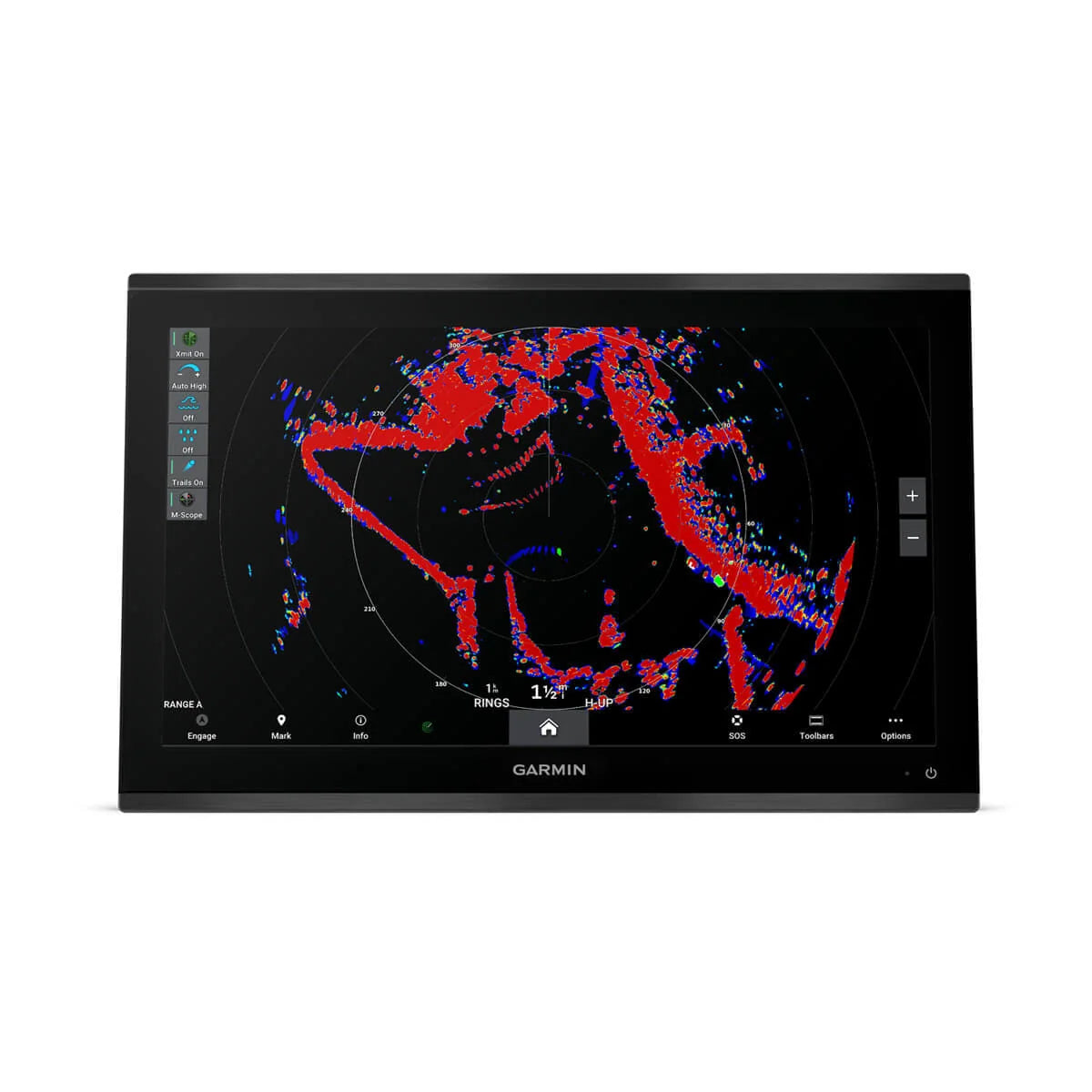

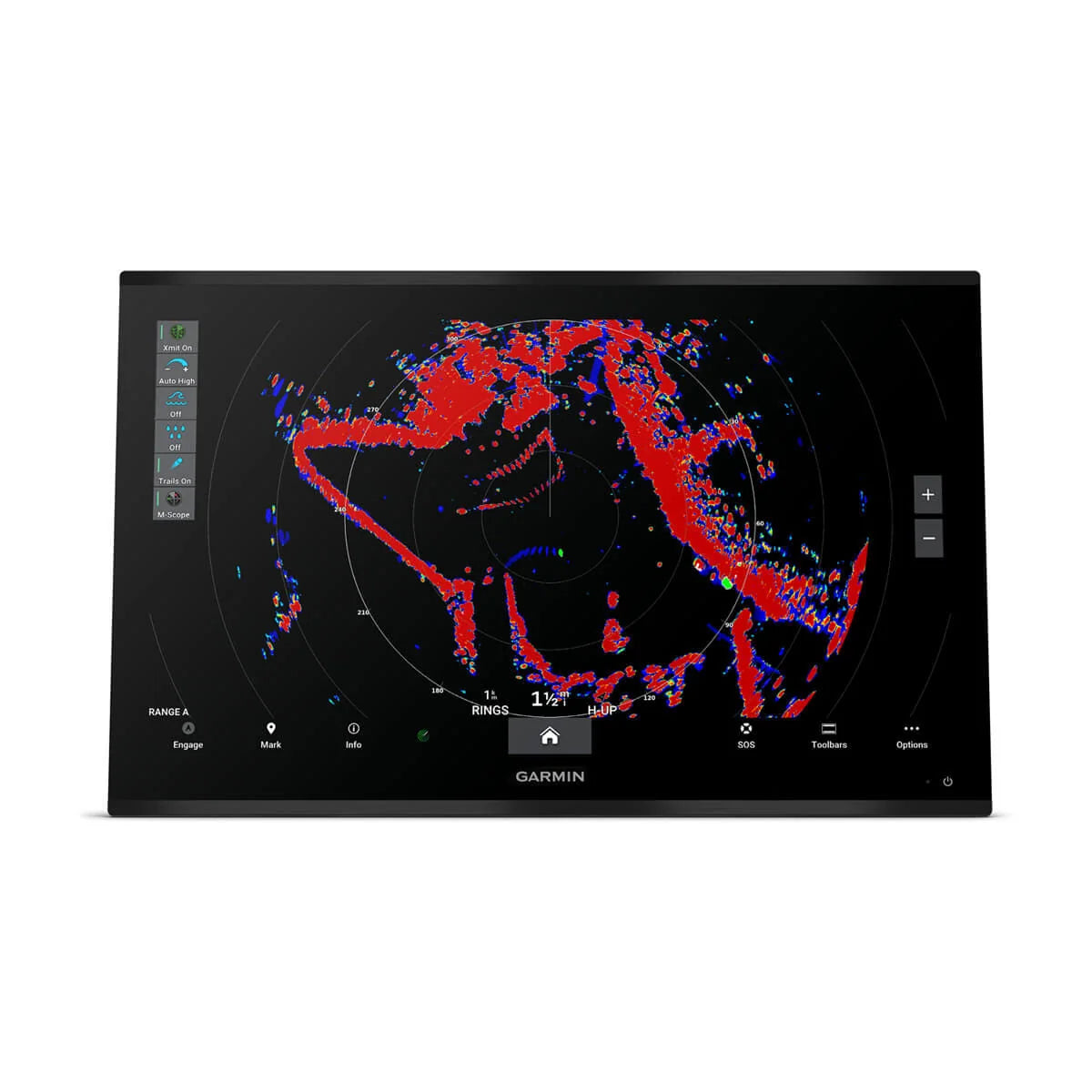

Build extensive networks with multiple chartplotters, cameras, radars and sonars — and enjoy gigabit-speed networking.

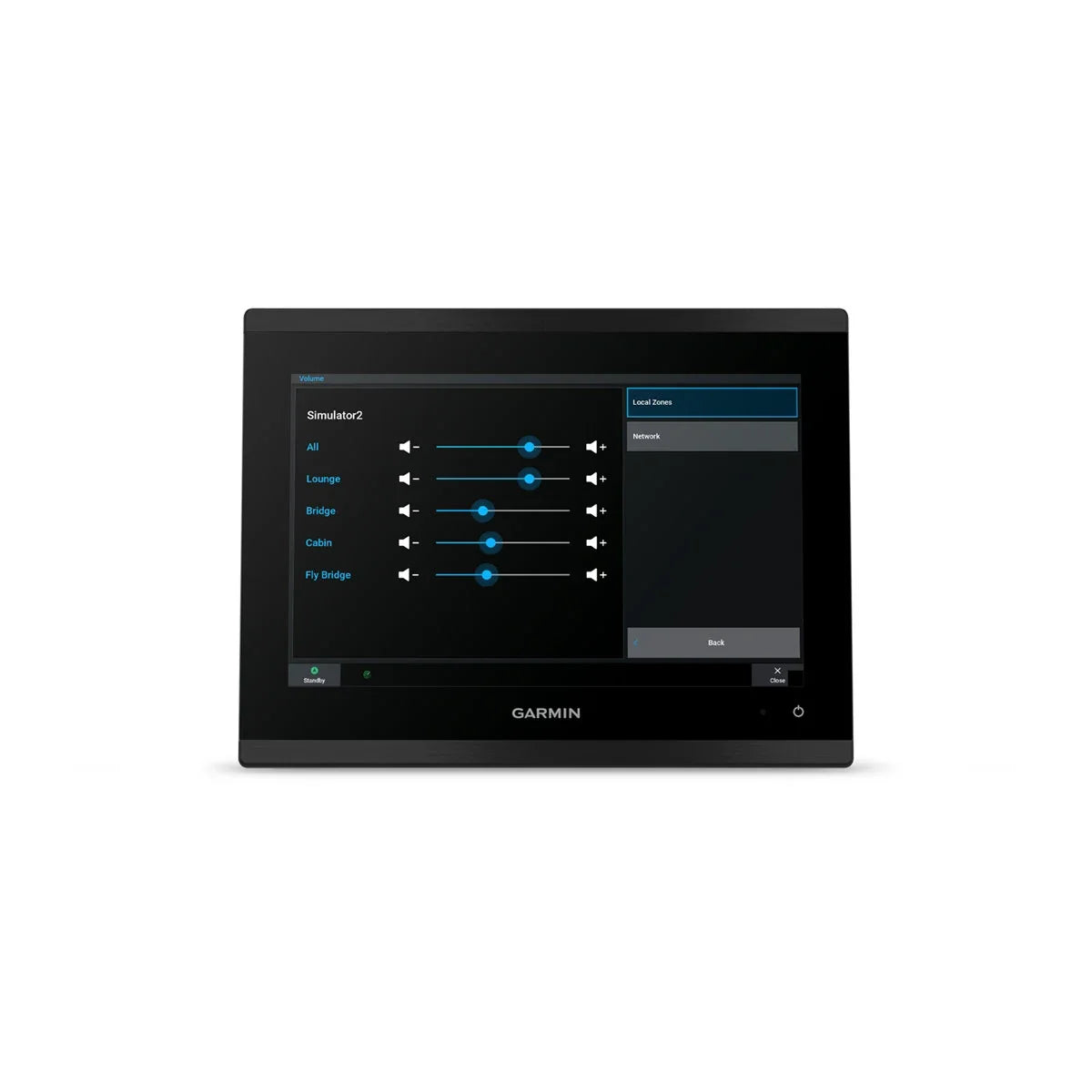

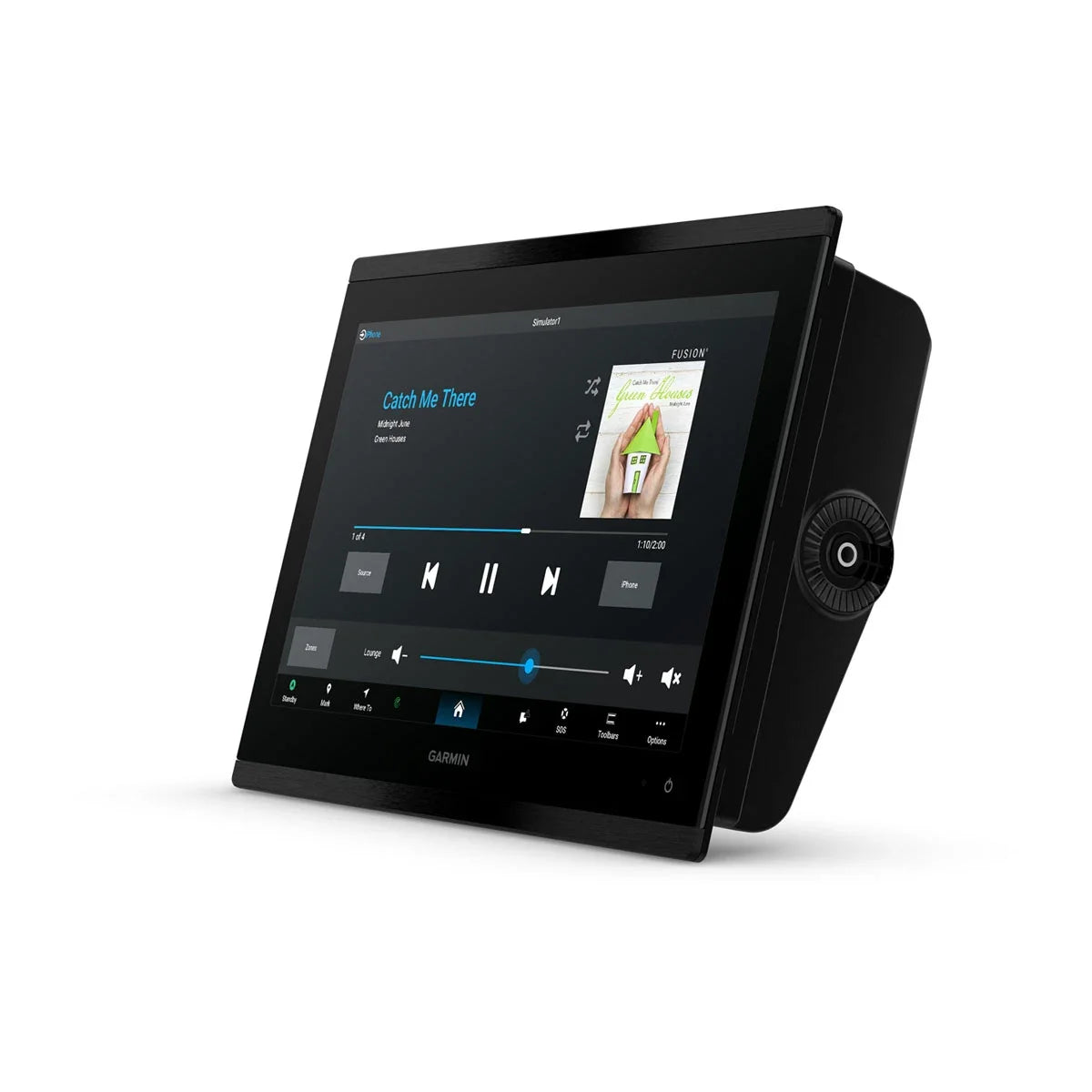

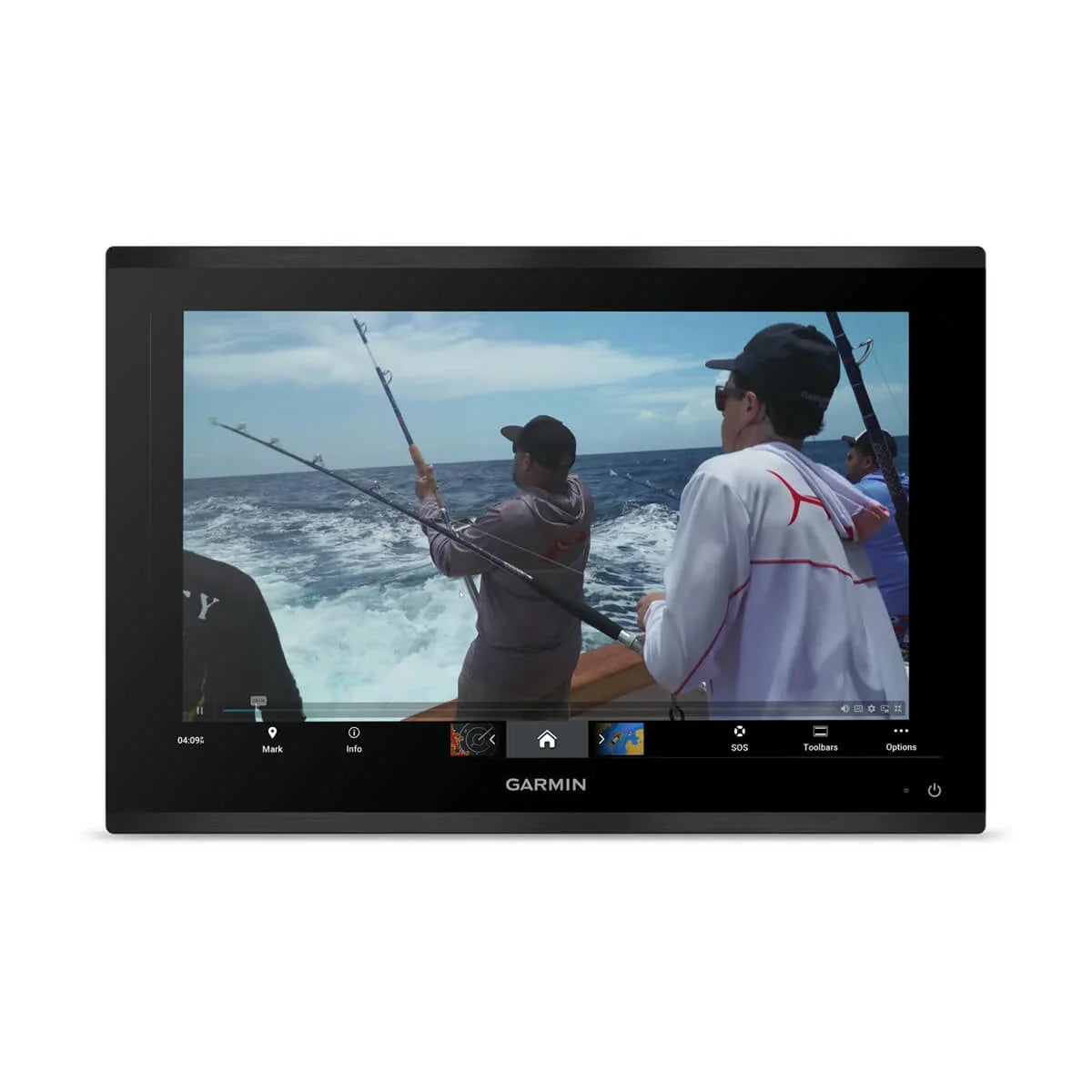

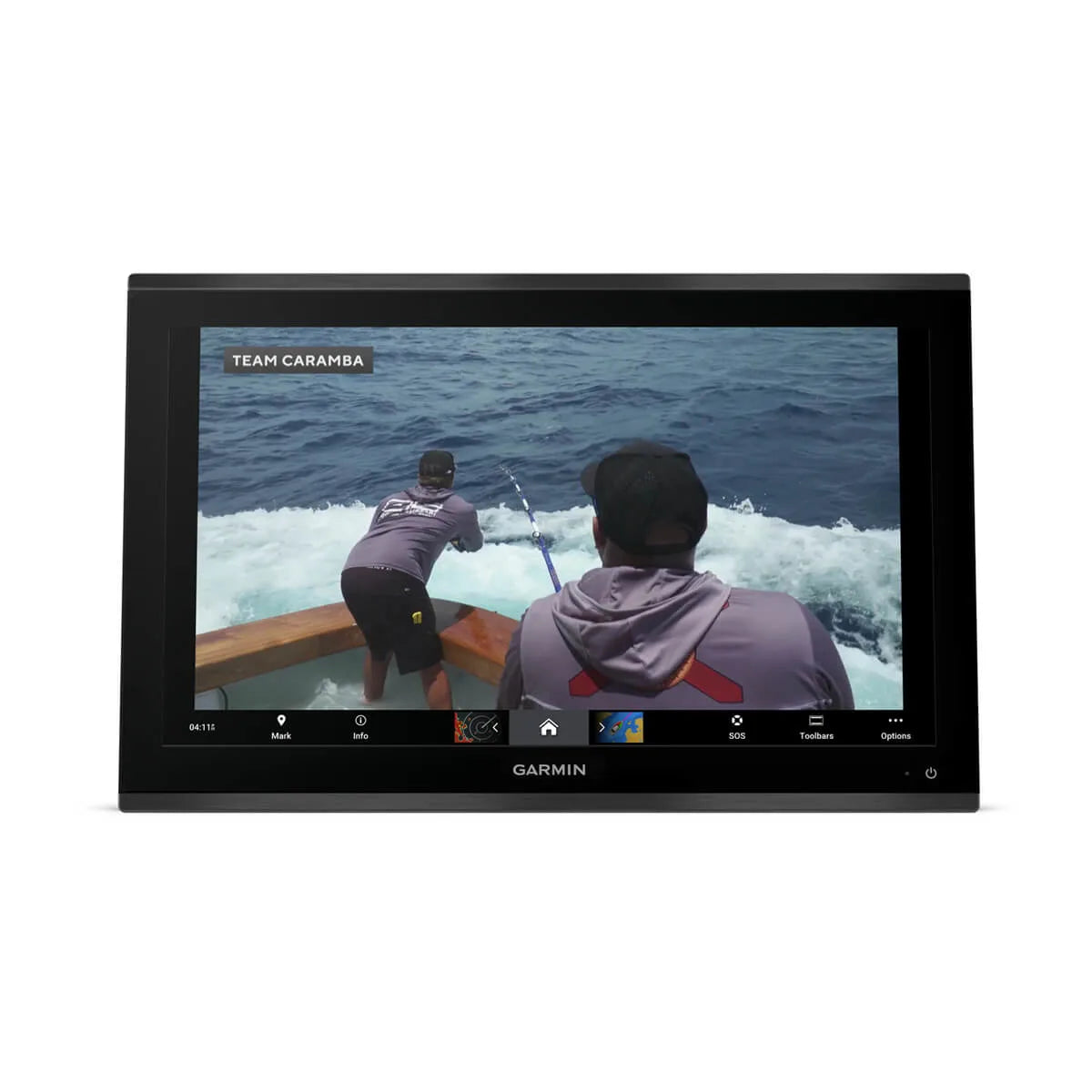

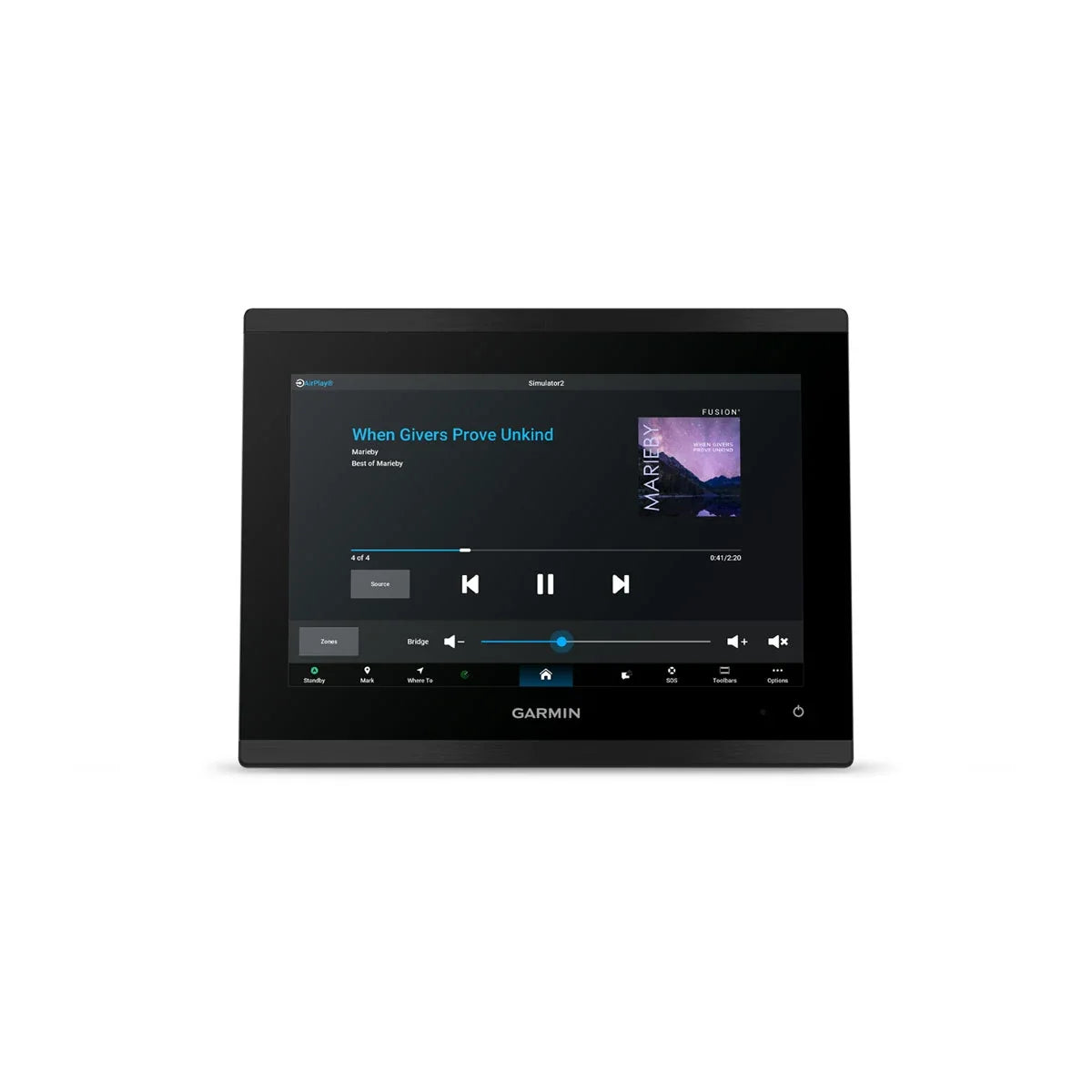

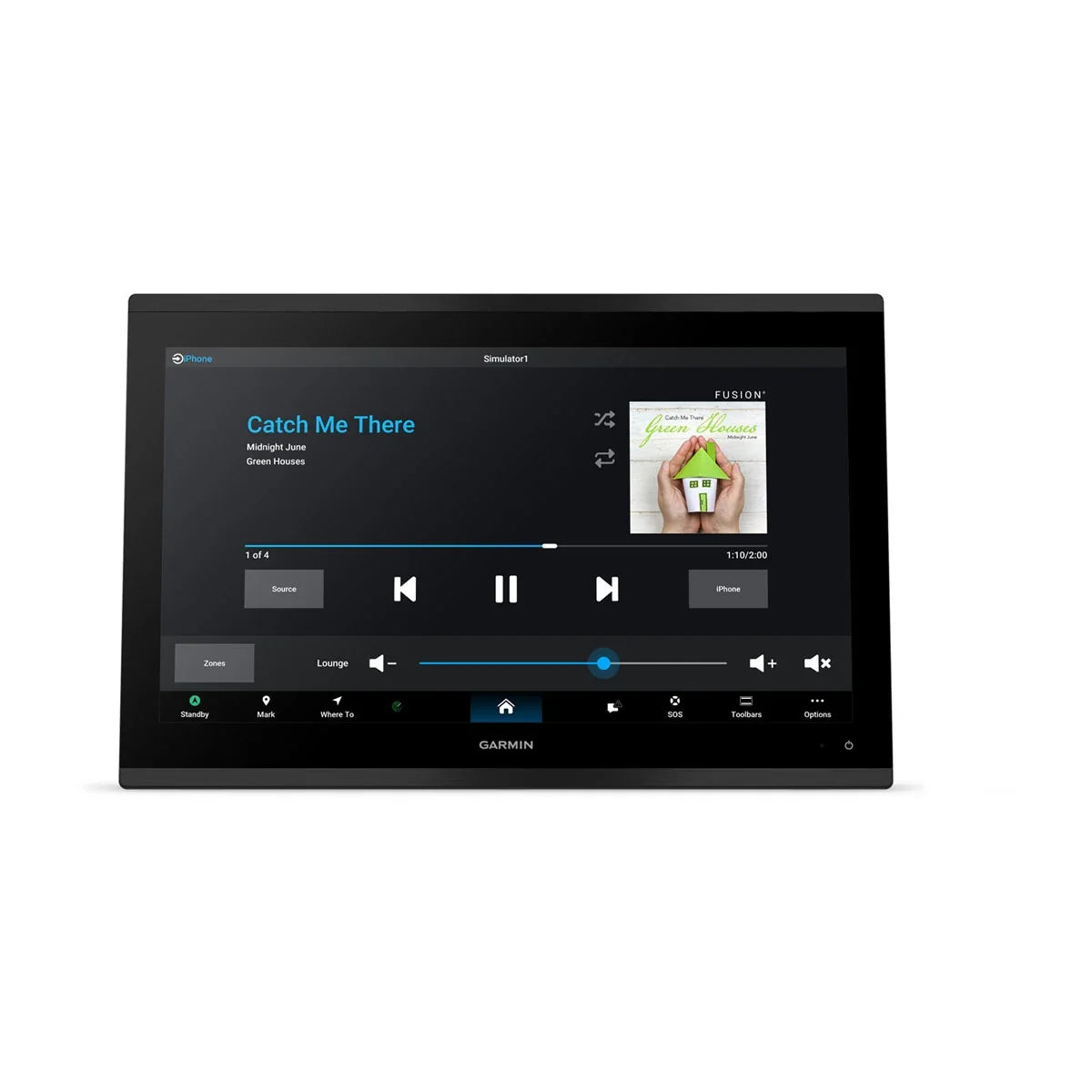

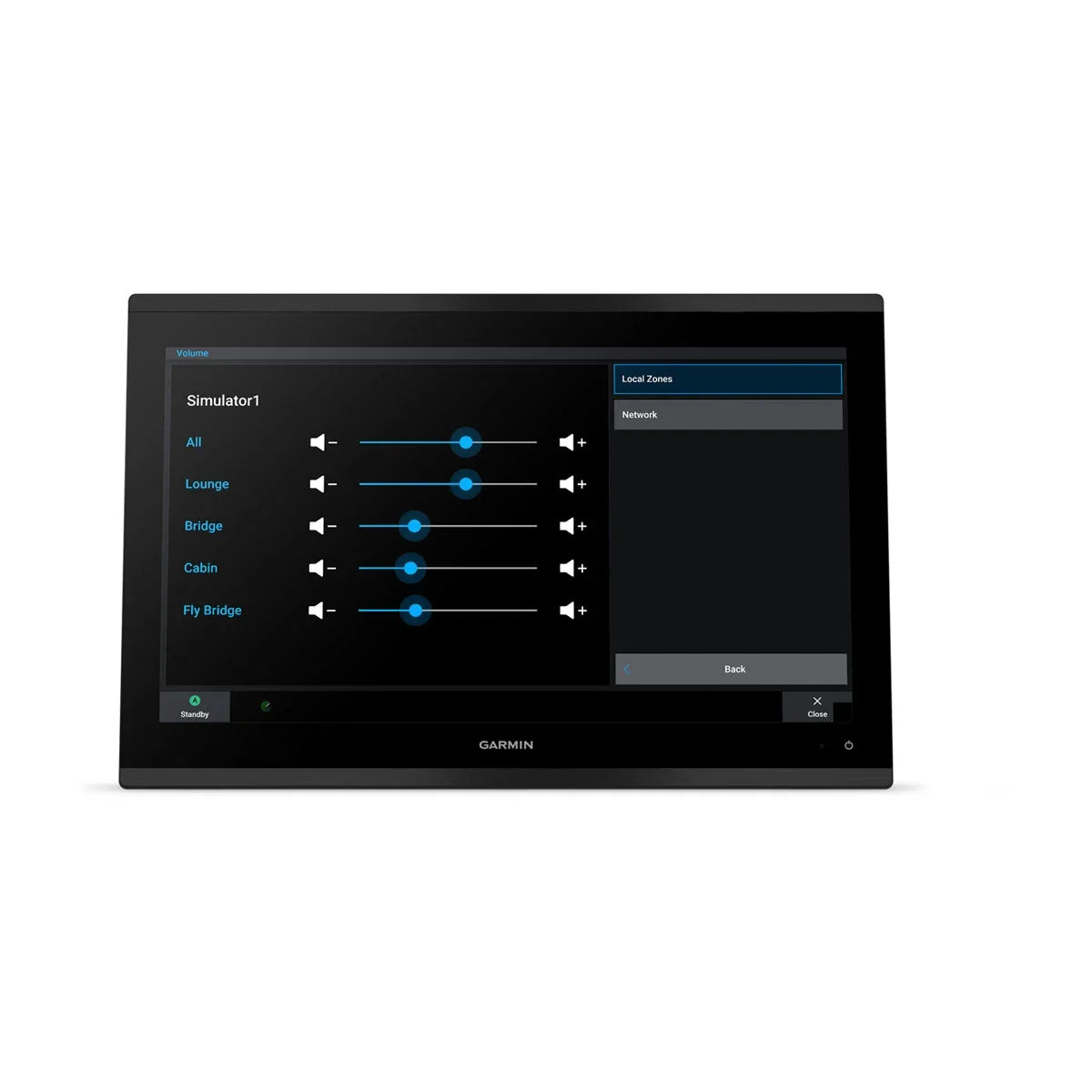

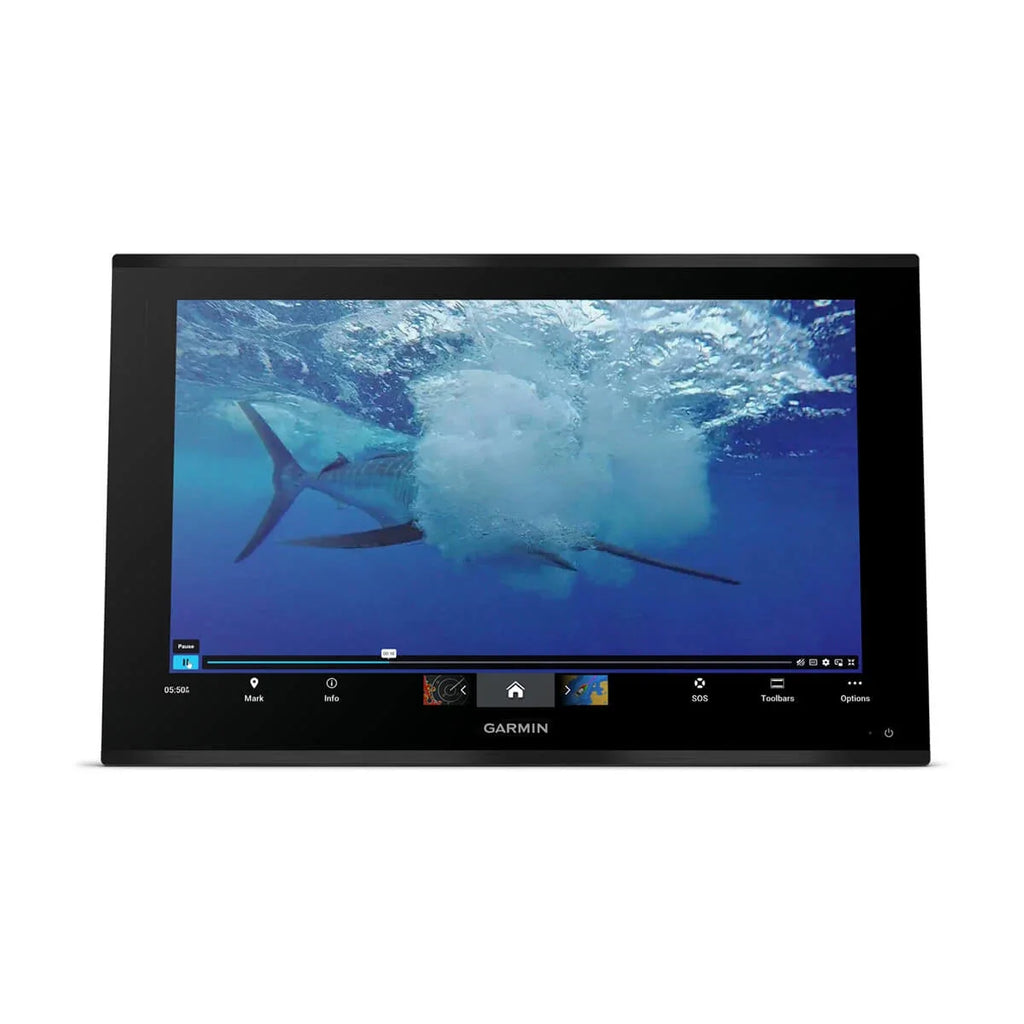

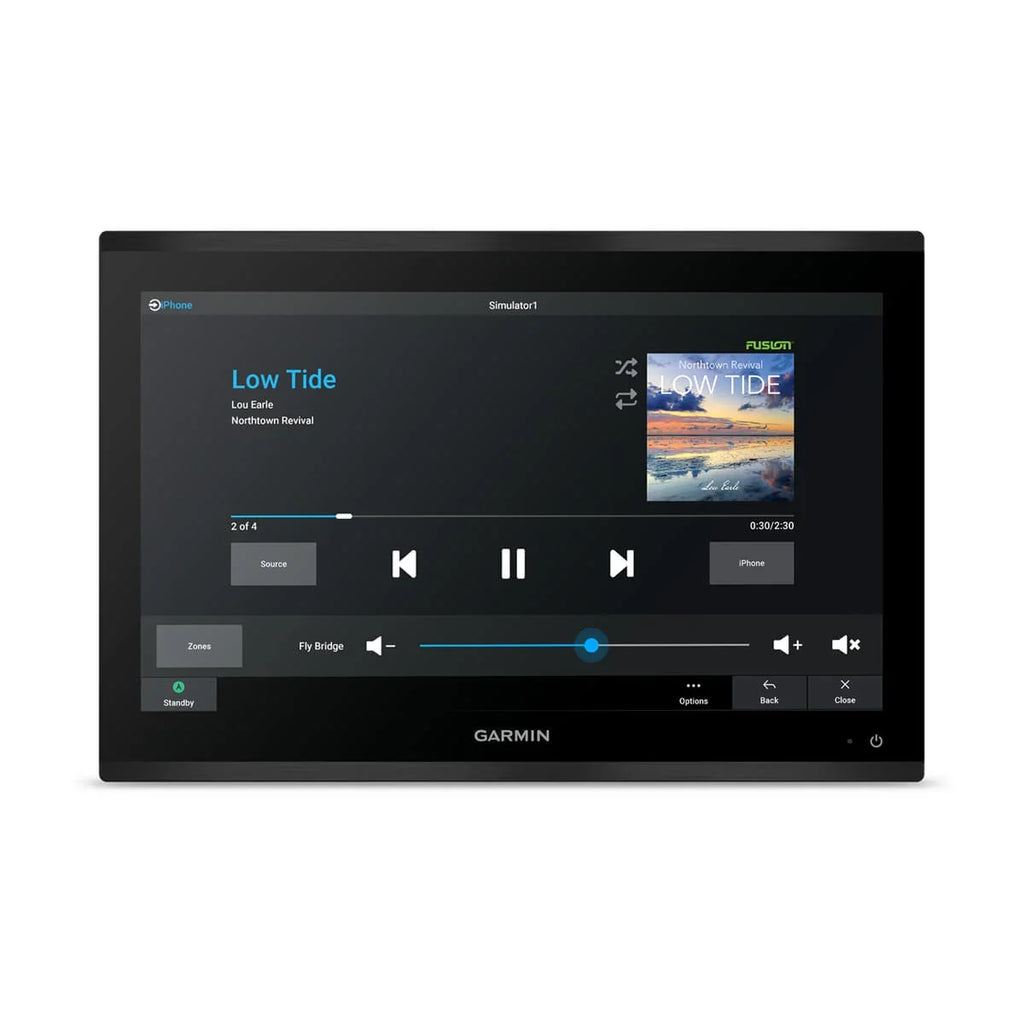

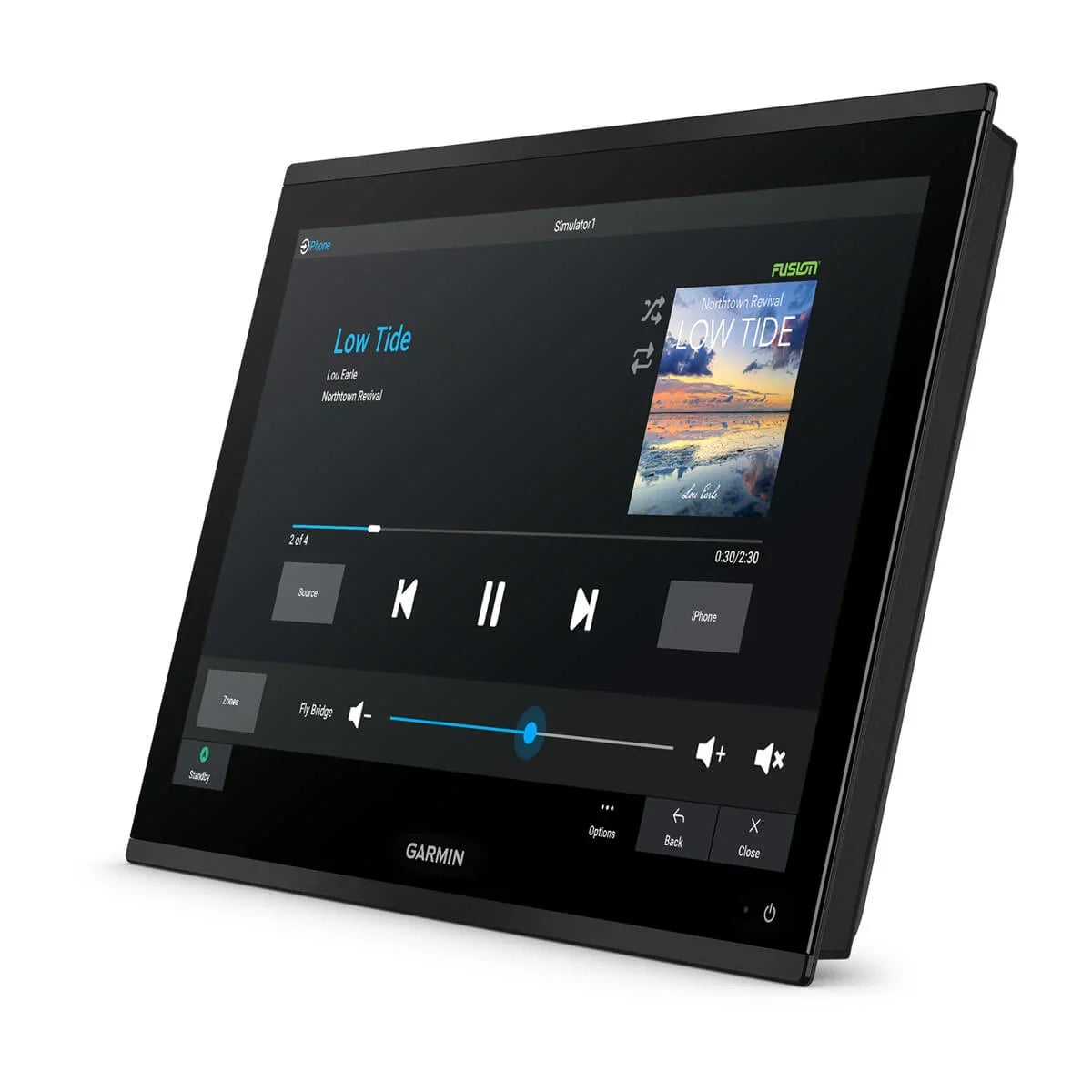

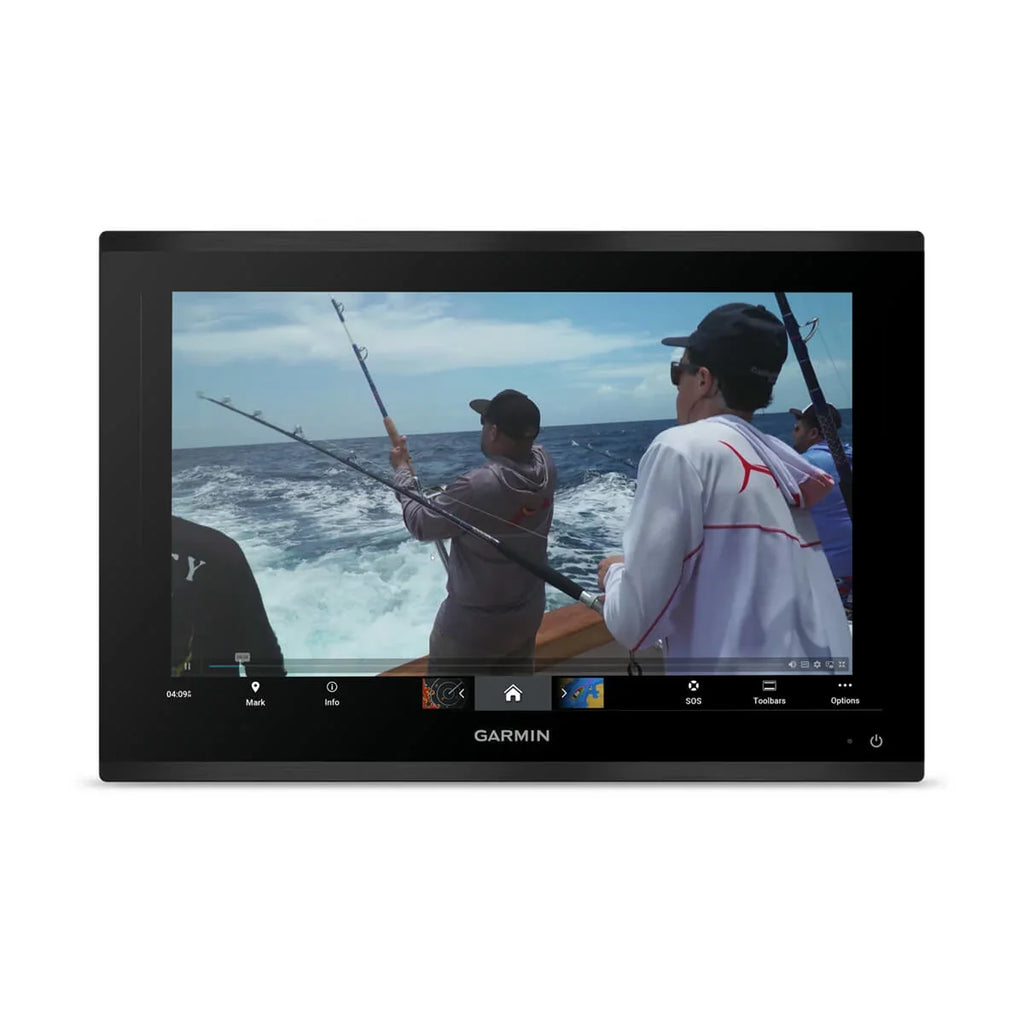

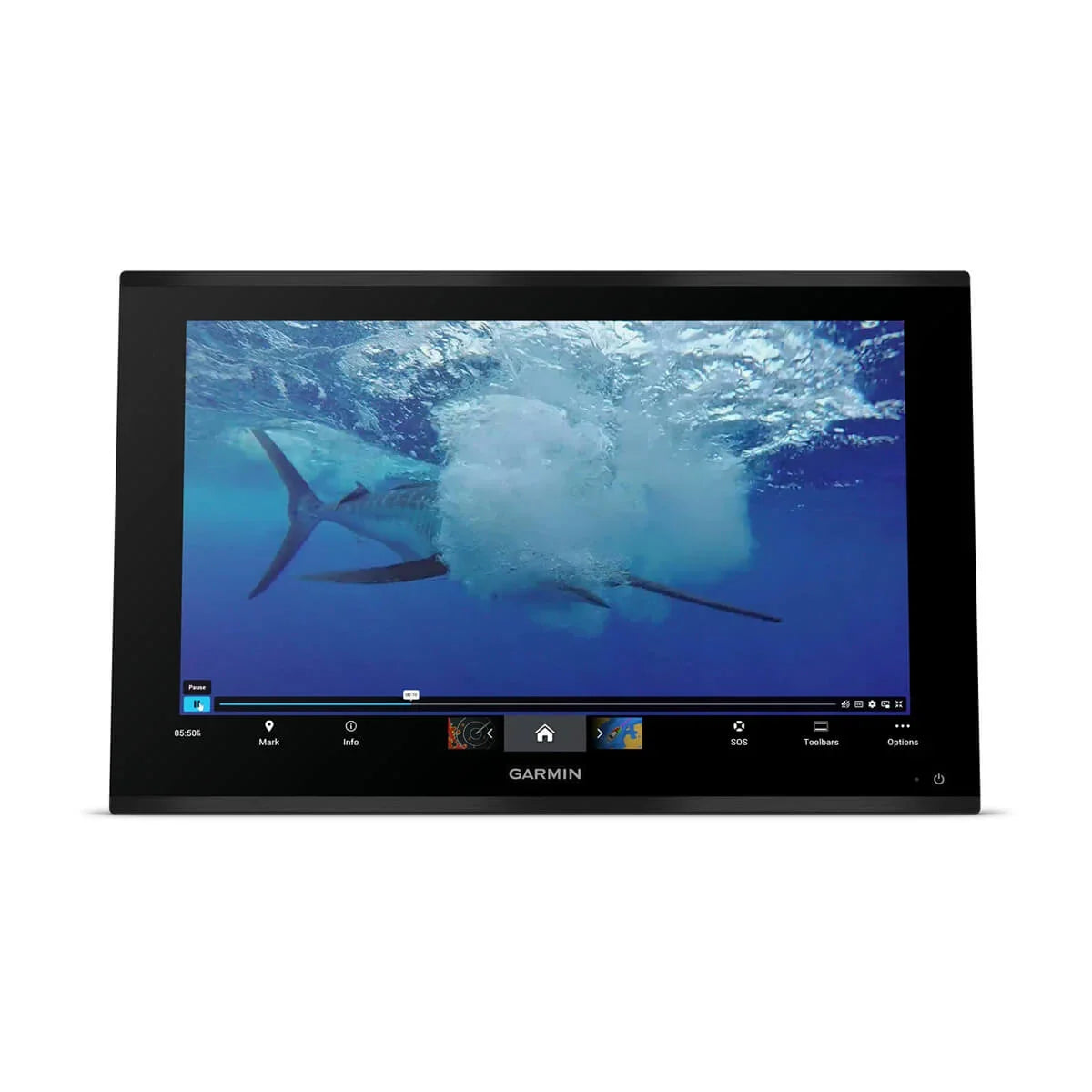

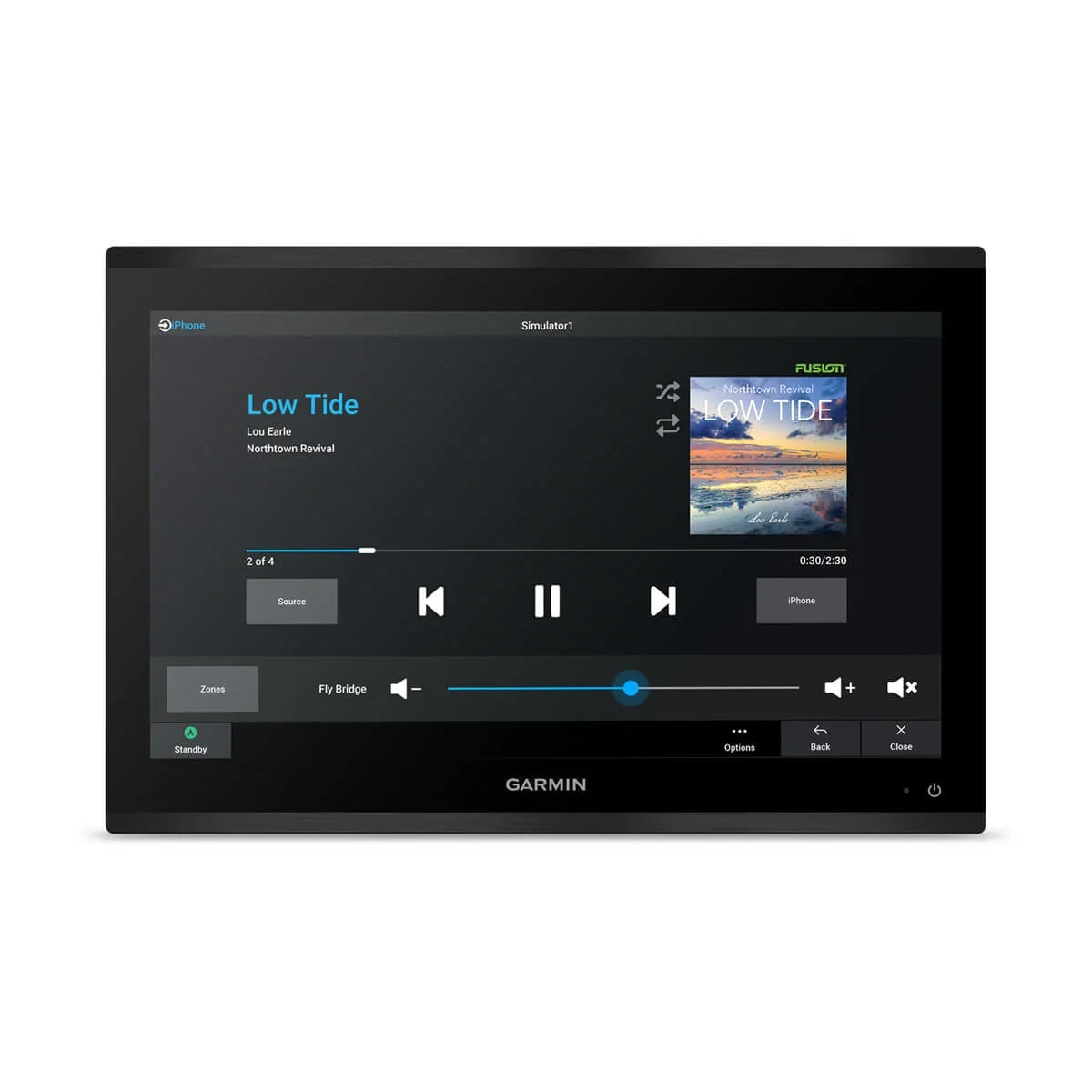

ENTERTAINMENT OPTIONS
Enjoy audio and video integrations that allow you to show and hear the same video throughout the screens and speakers on your network.

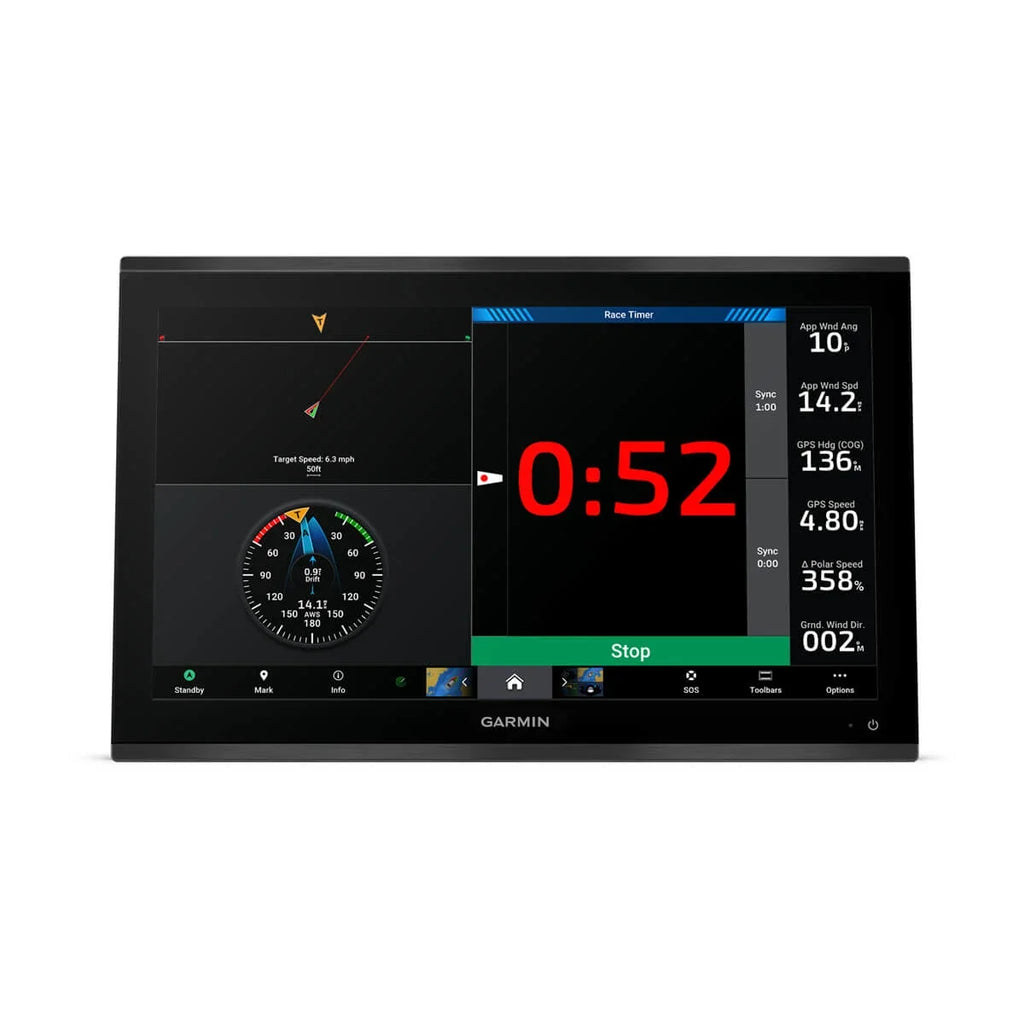

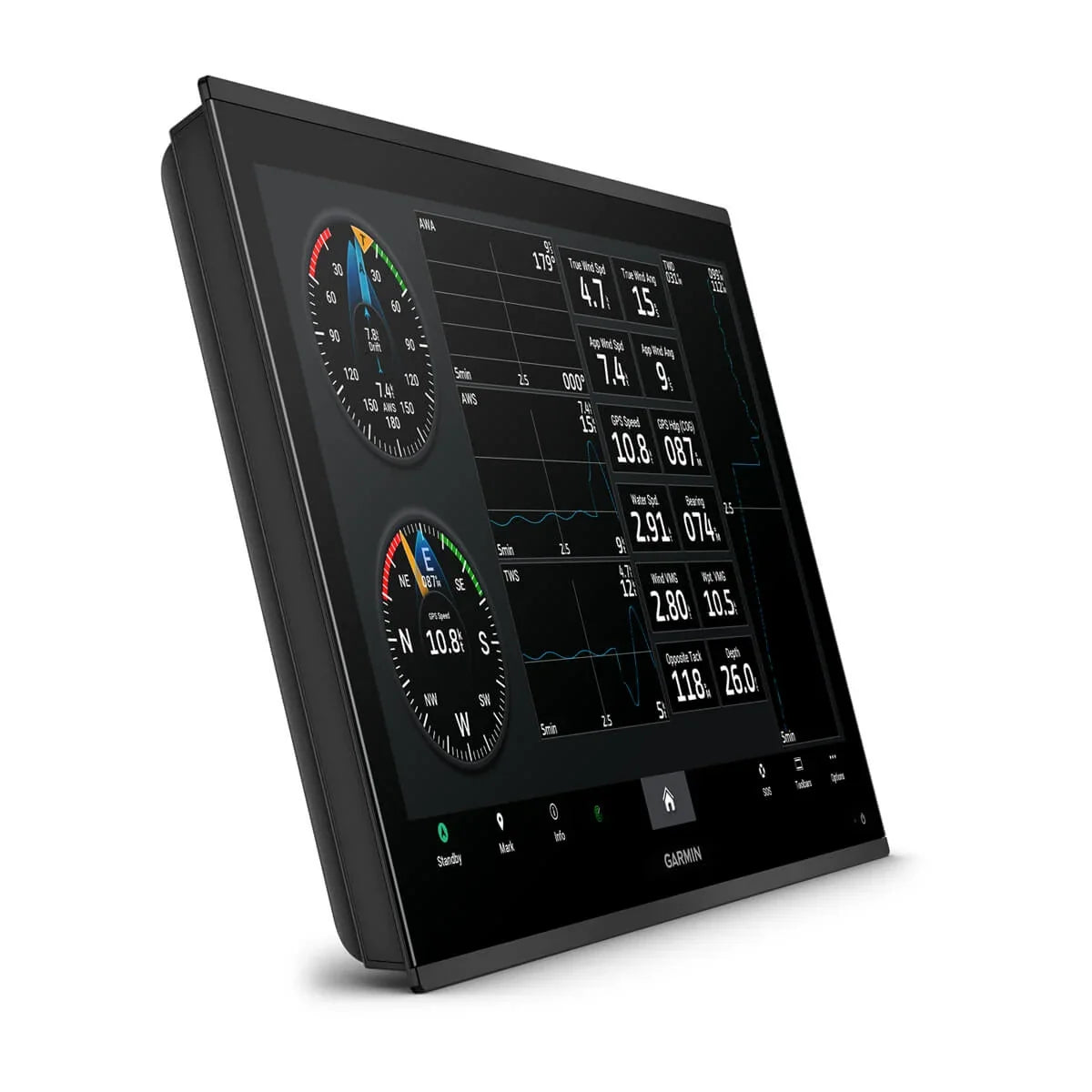

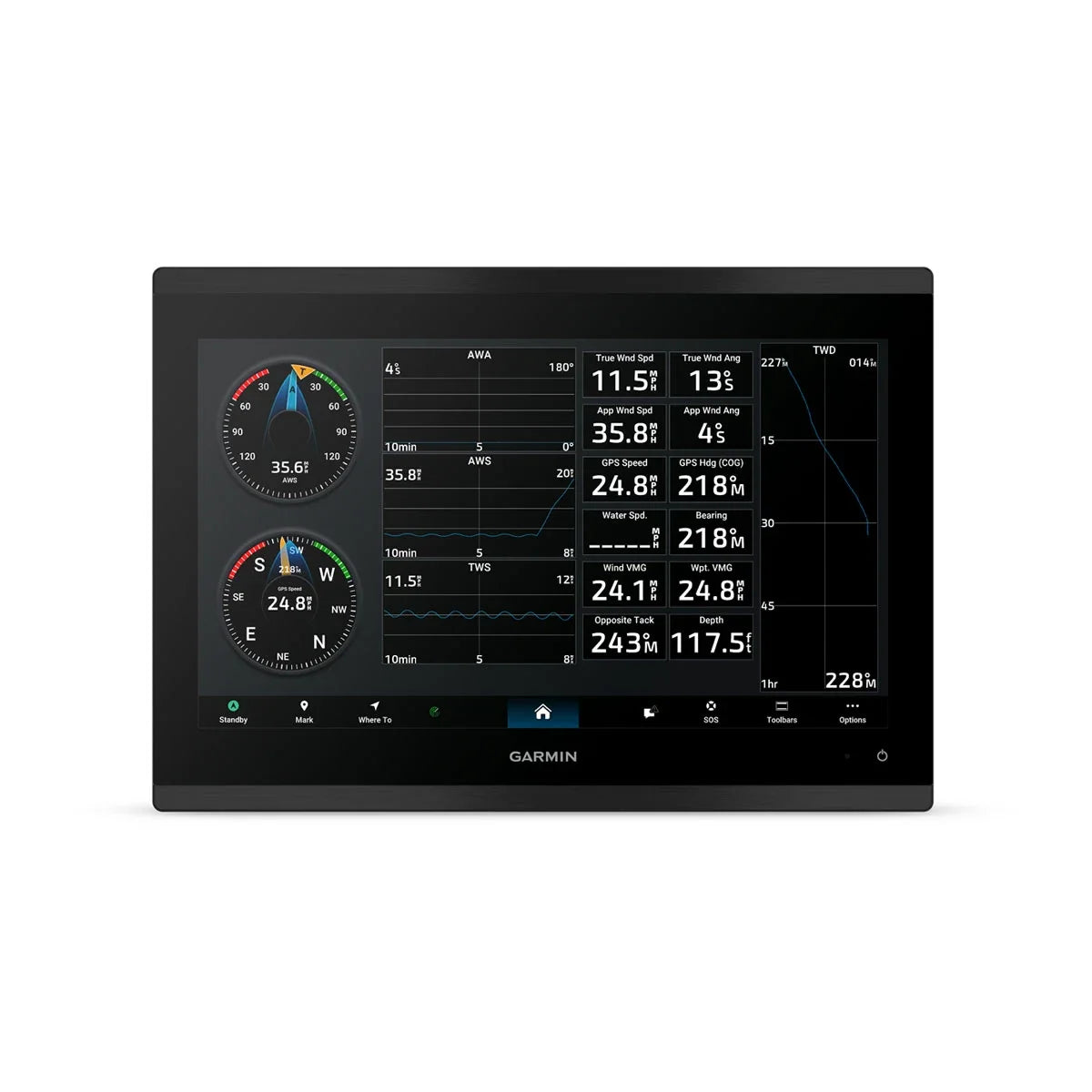

GARMIN SAILASSIST™ SAILING FEATURES AND SAILING POLARS
View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, and more. Plus the polar table shows key data, so you know whether you need to adjust sail trim.

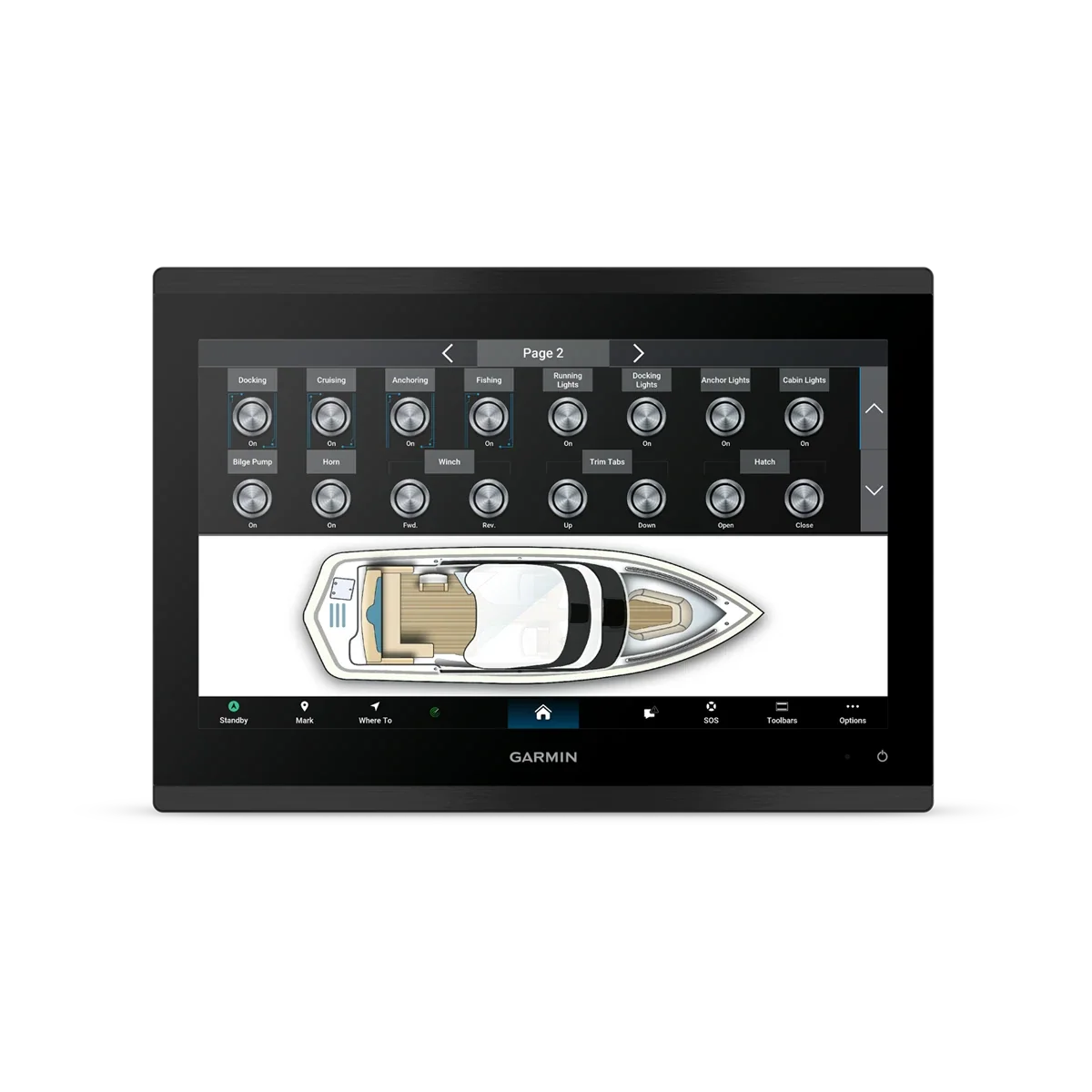

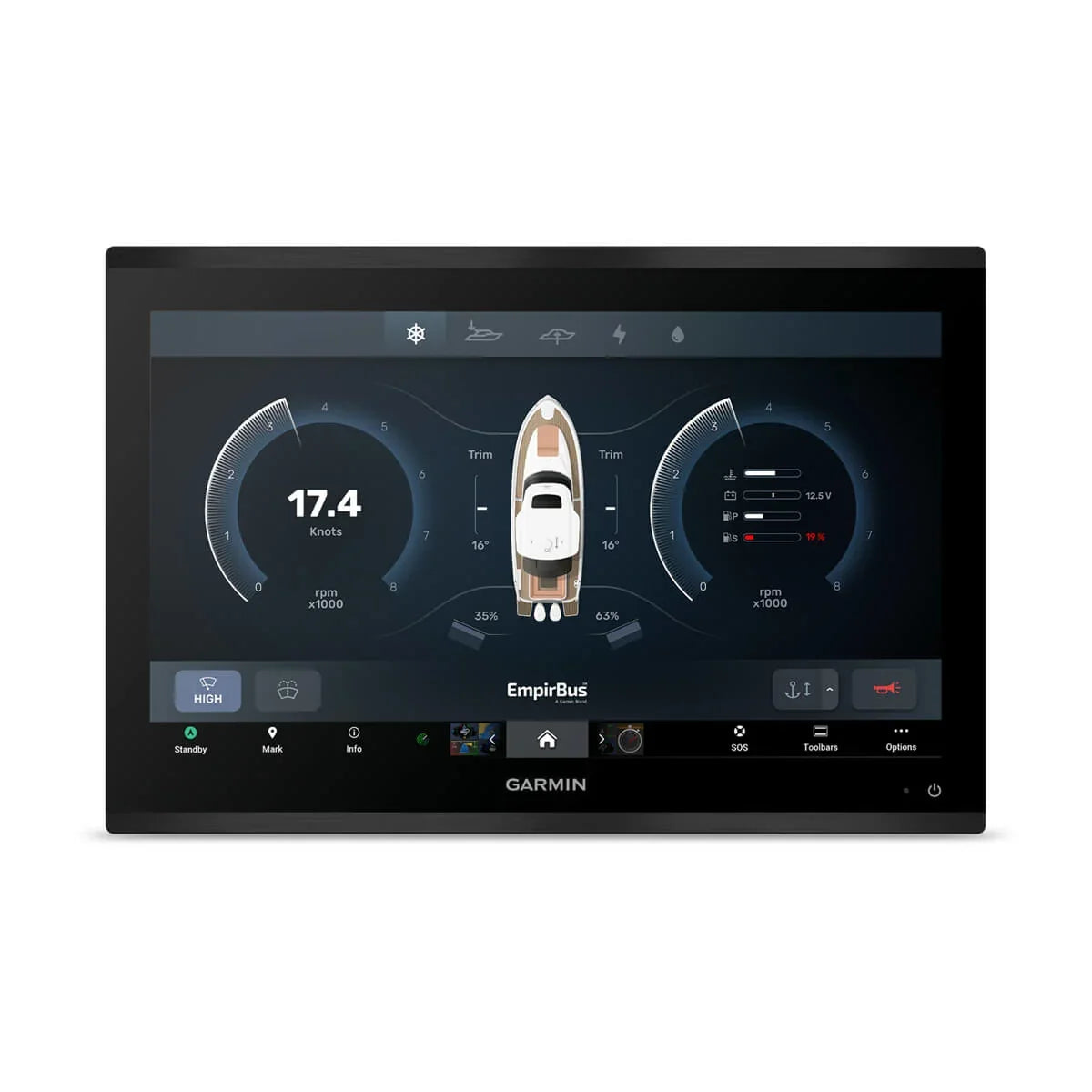

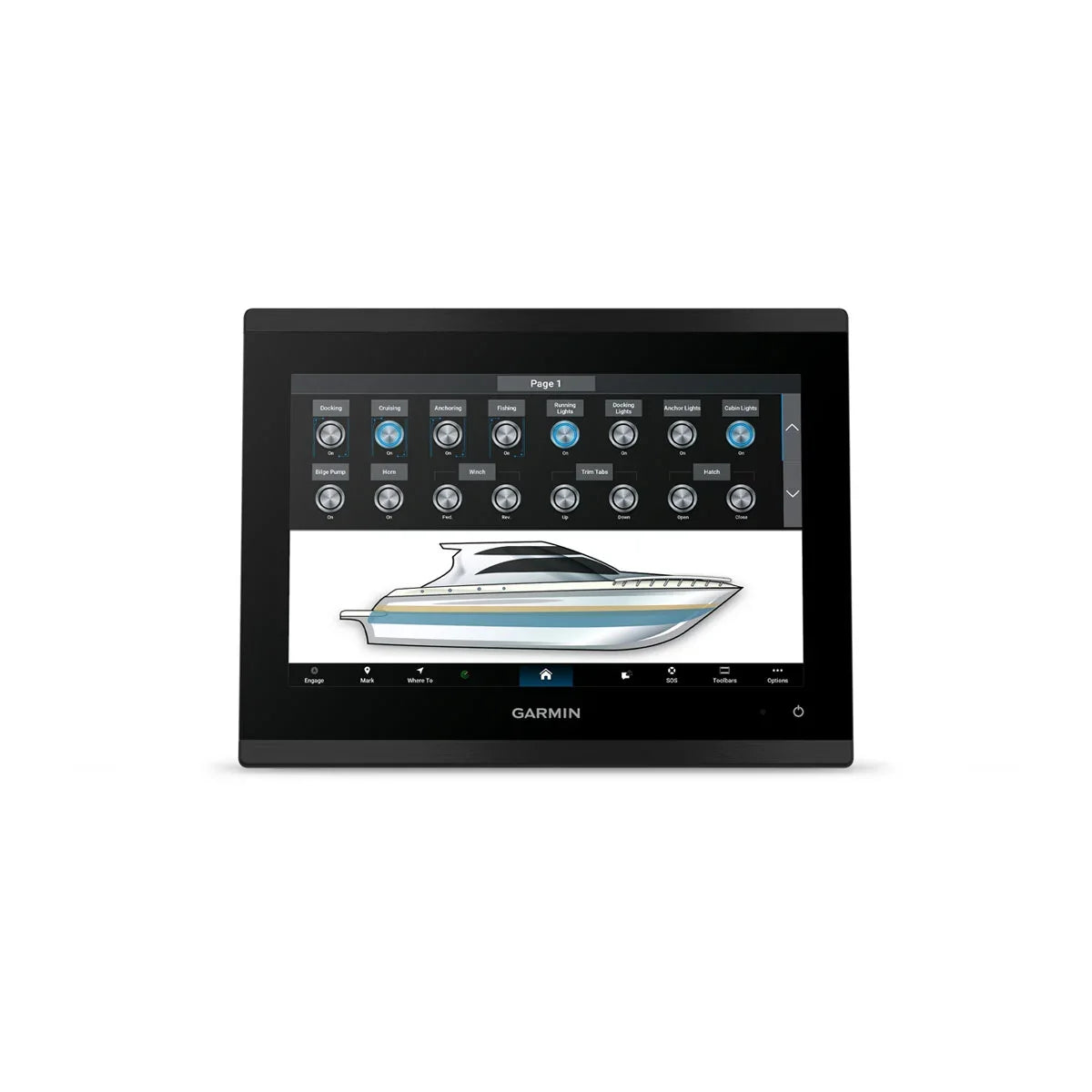

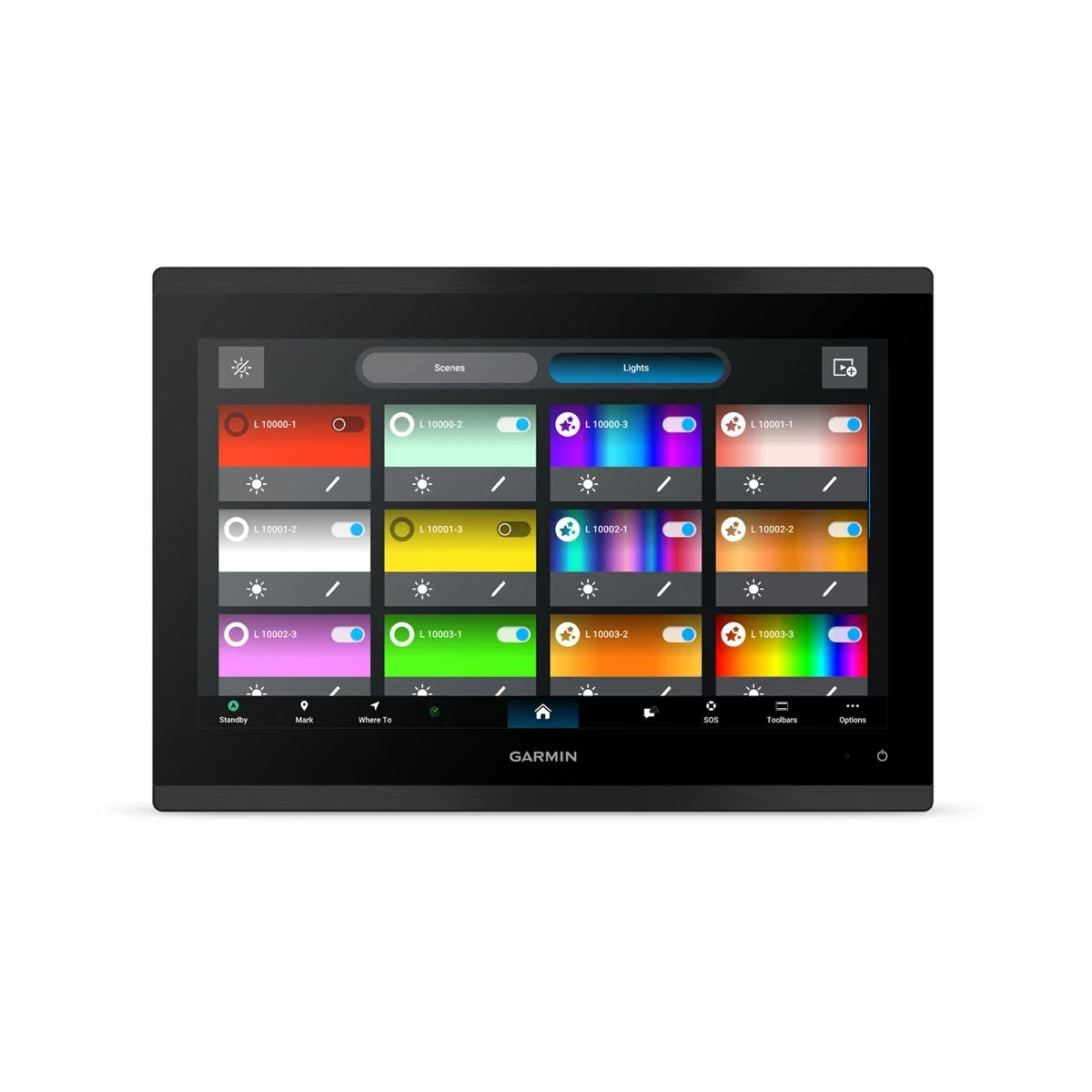

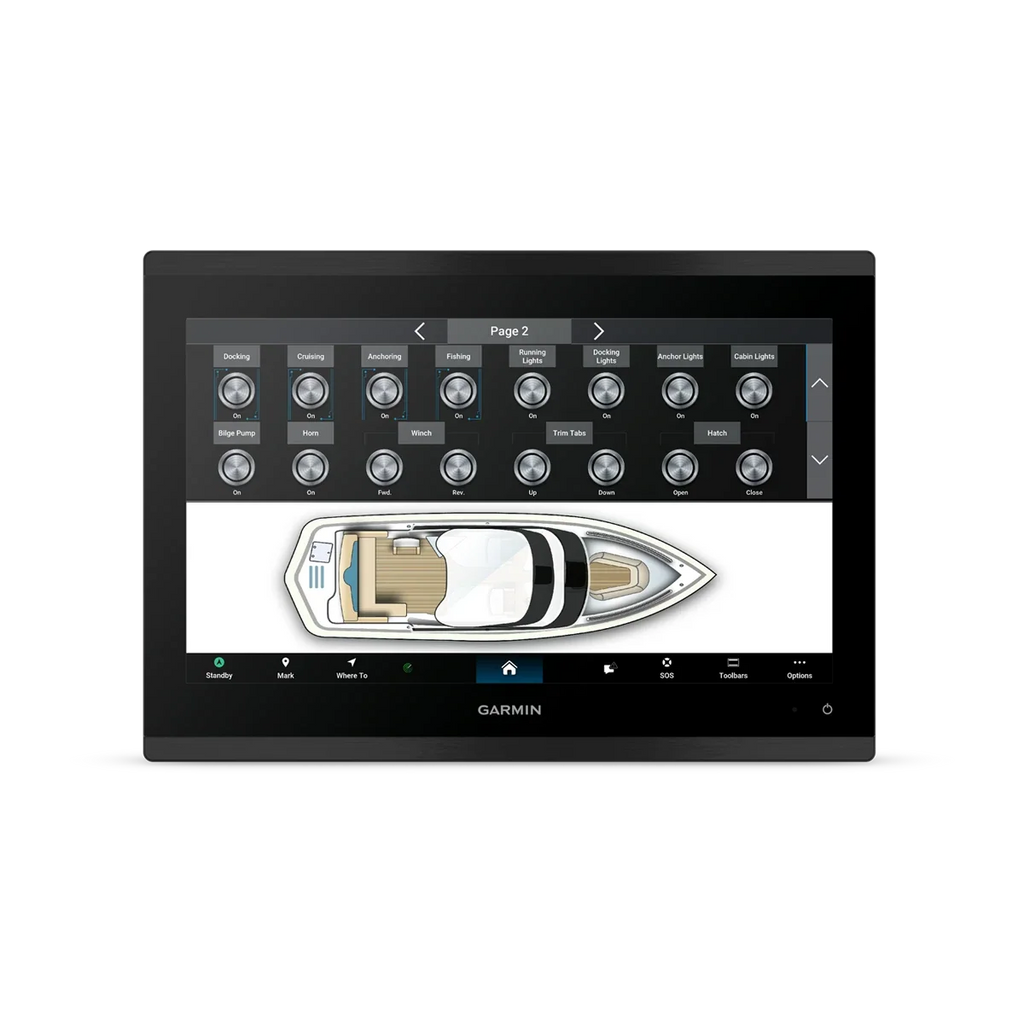

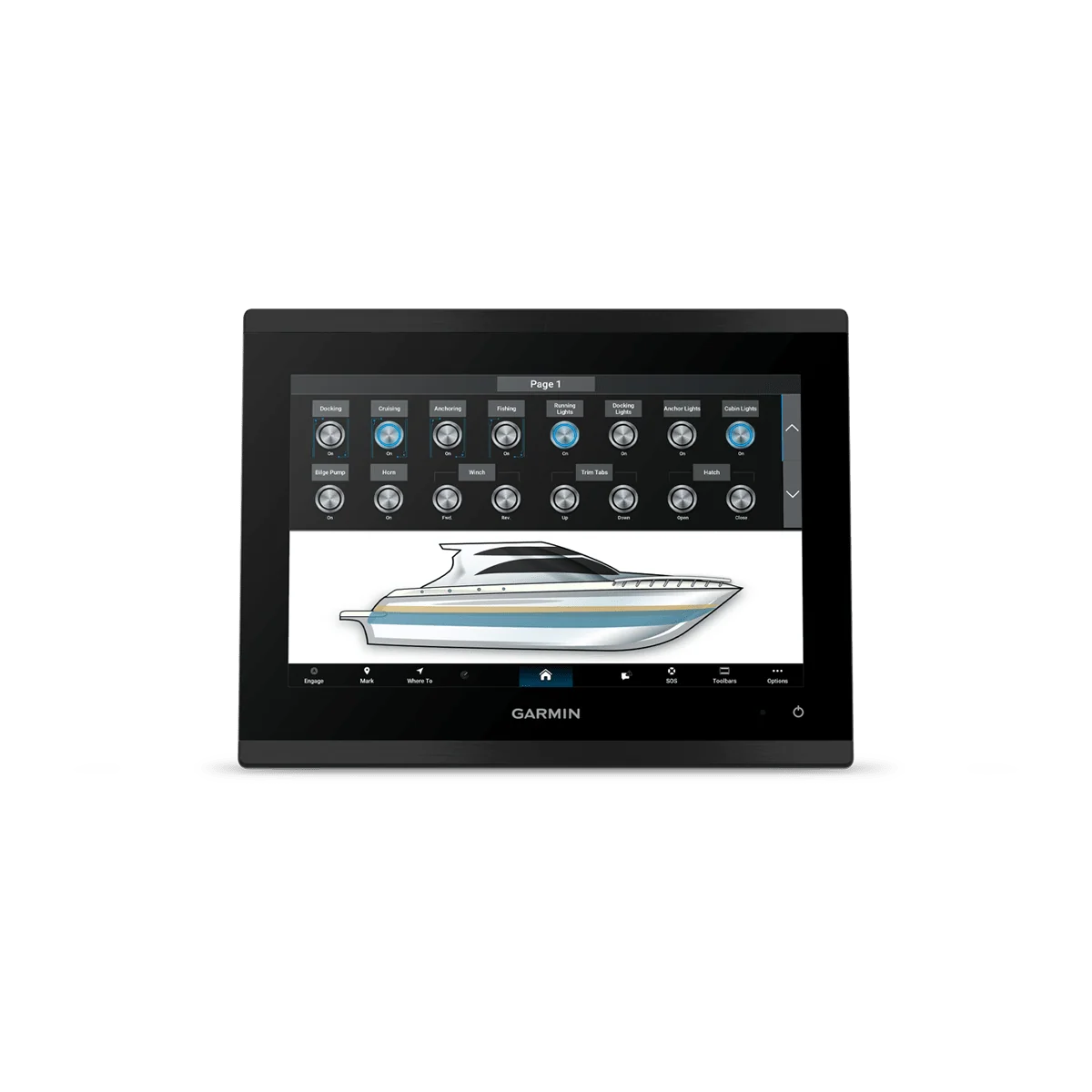

CONNECT YOUR ECOSYSTEM

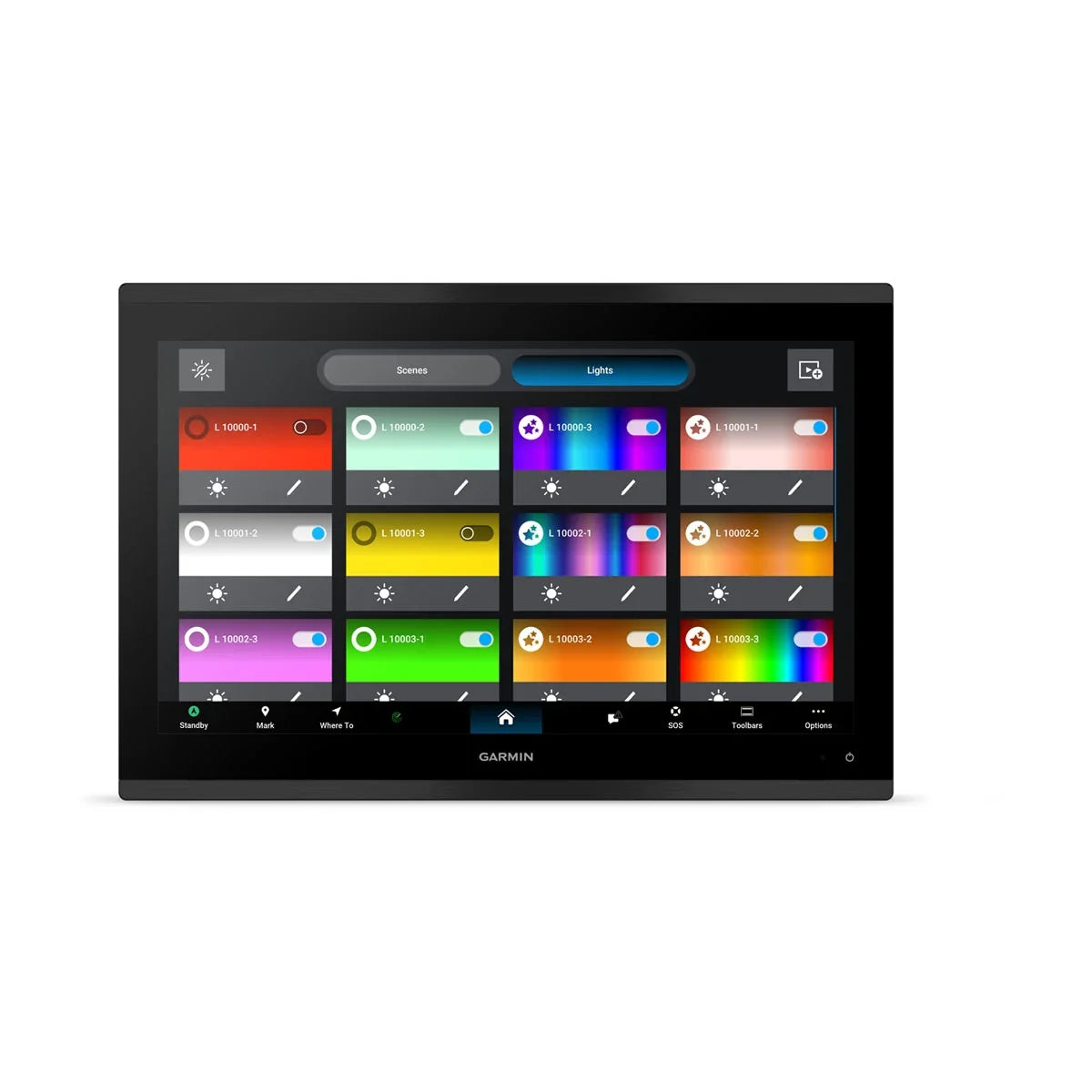

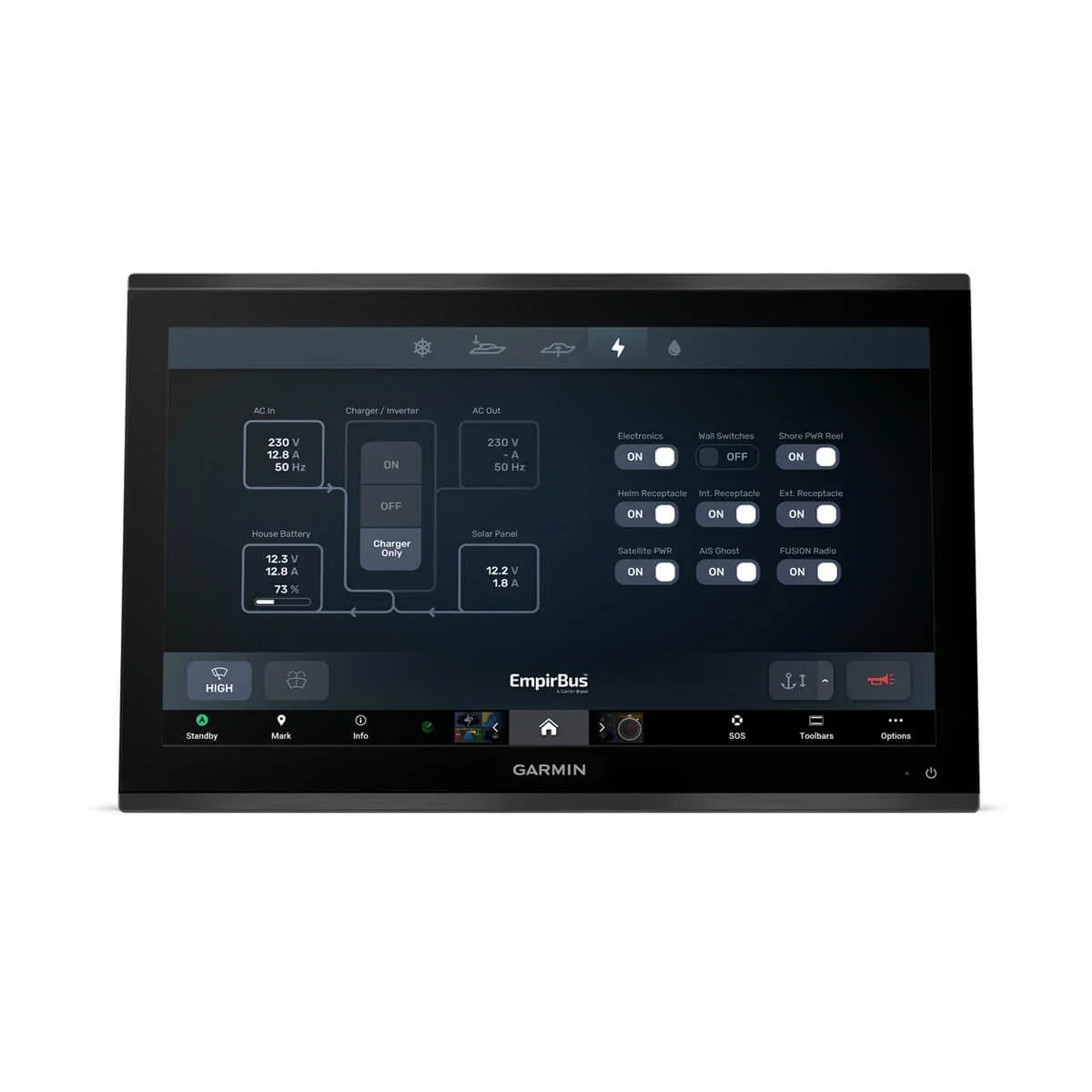

Take command through digital system integrations to monitor, automate and control your vessel. The chartplotter uses the NMEA 2000® network to connect to your compatible accessories.
LUXURY ON YOUR HELM
CONNECT
SOFTWARE UPDATES
Get wireless software updates via the ActiveCaptain® app with your compatible smartphone or tablet.

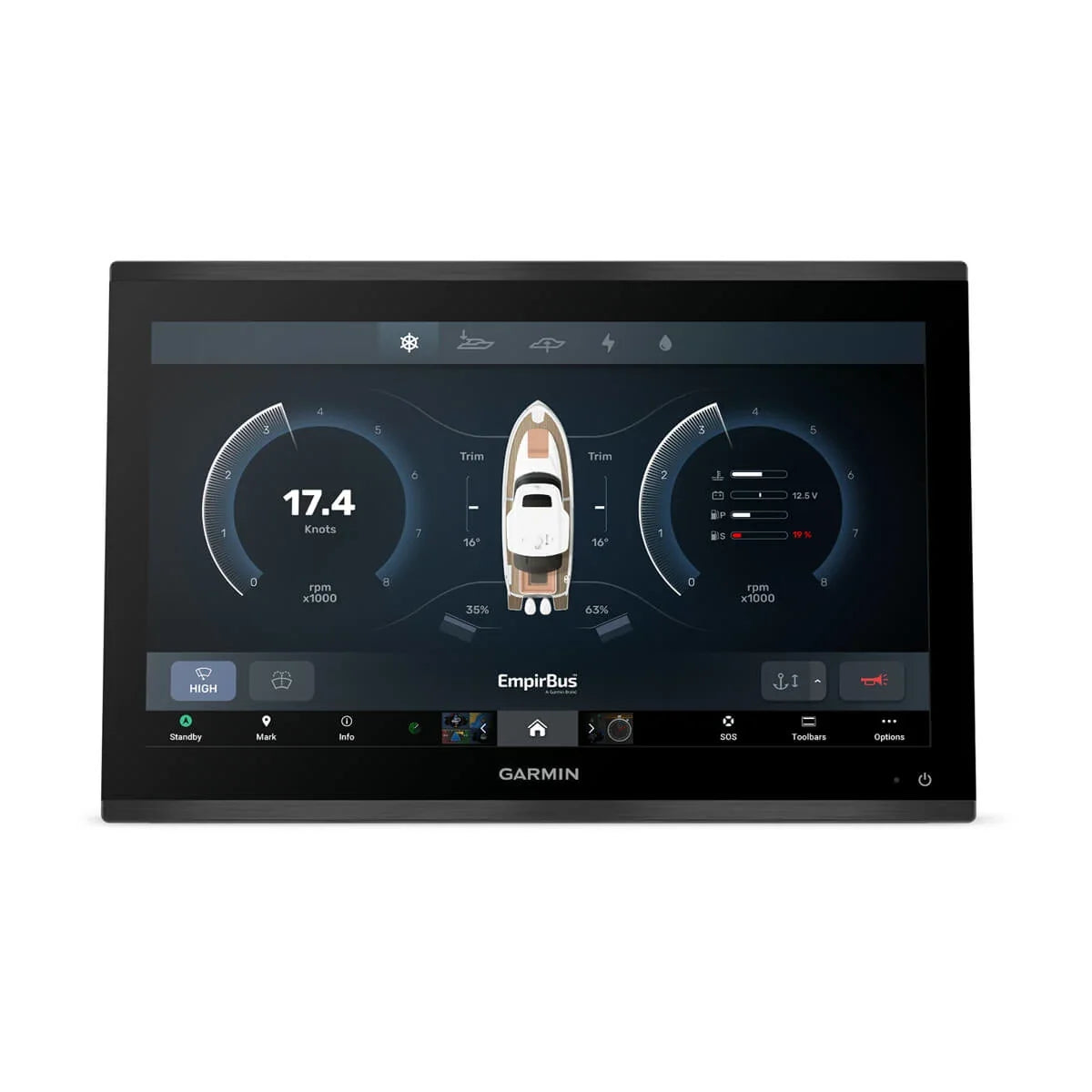

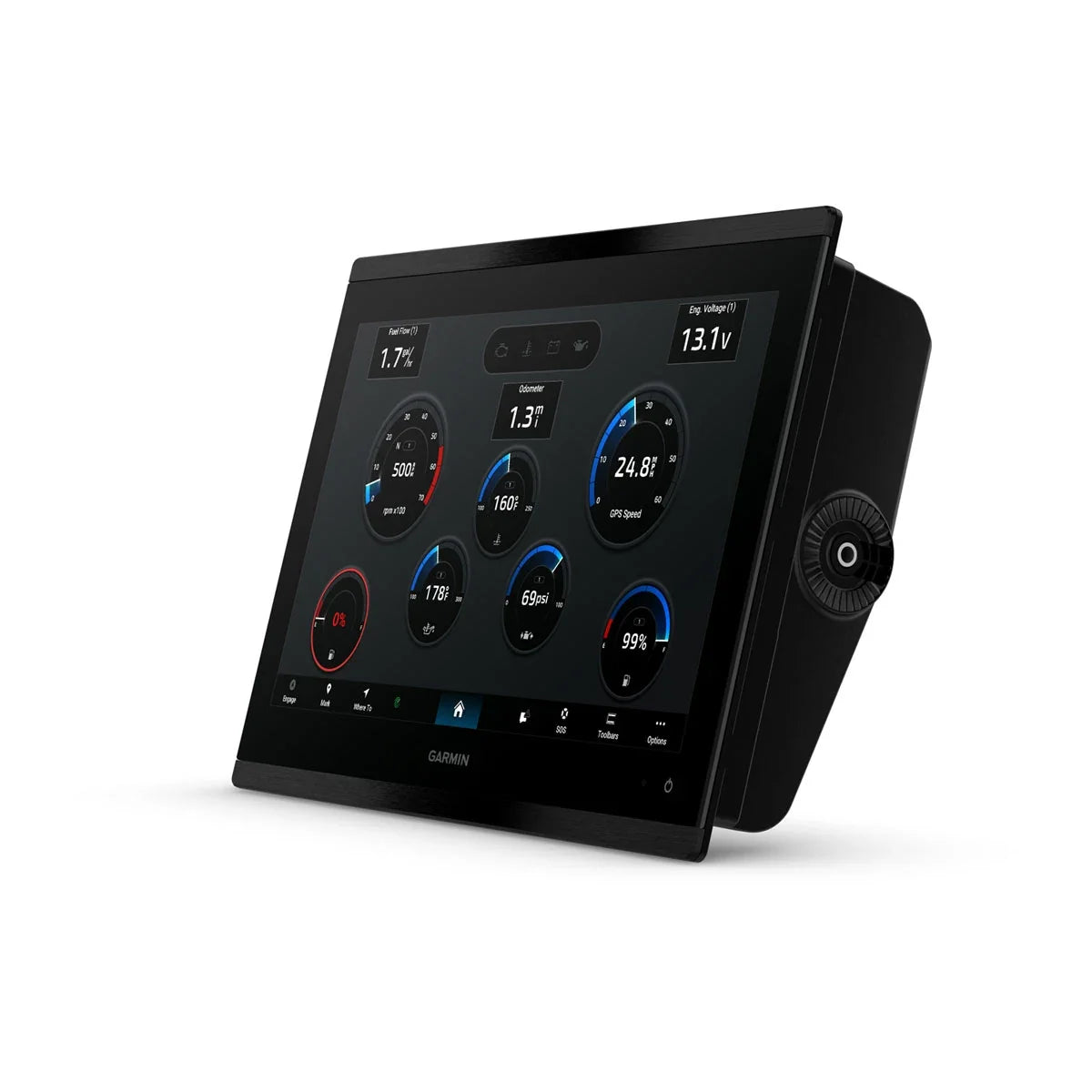

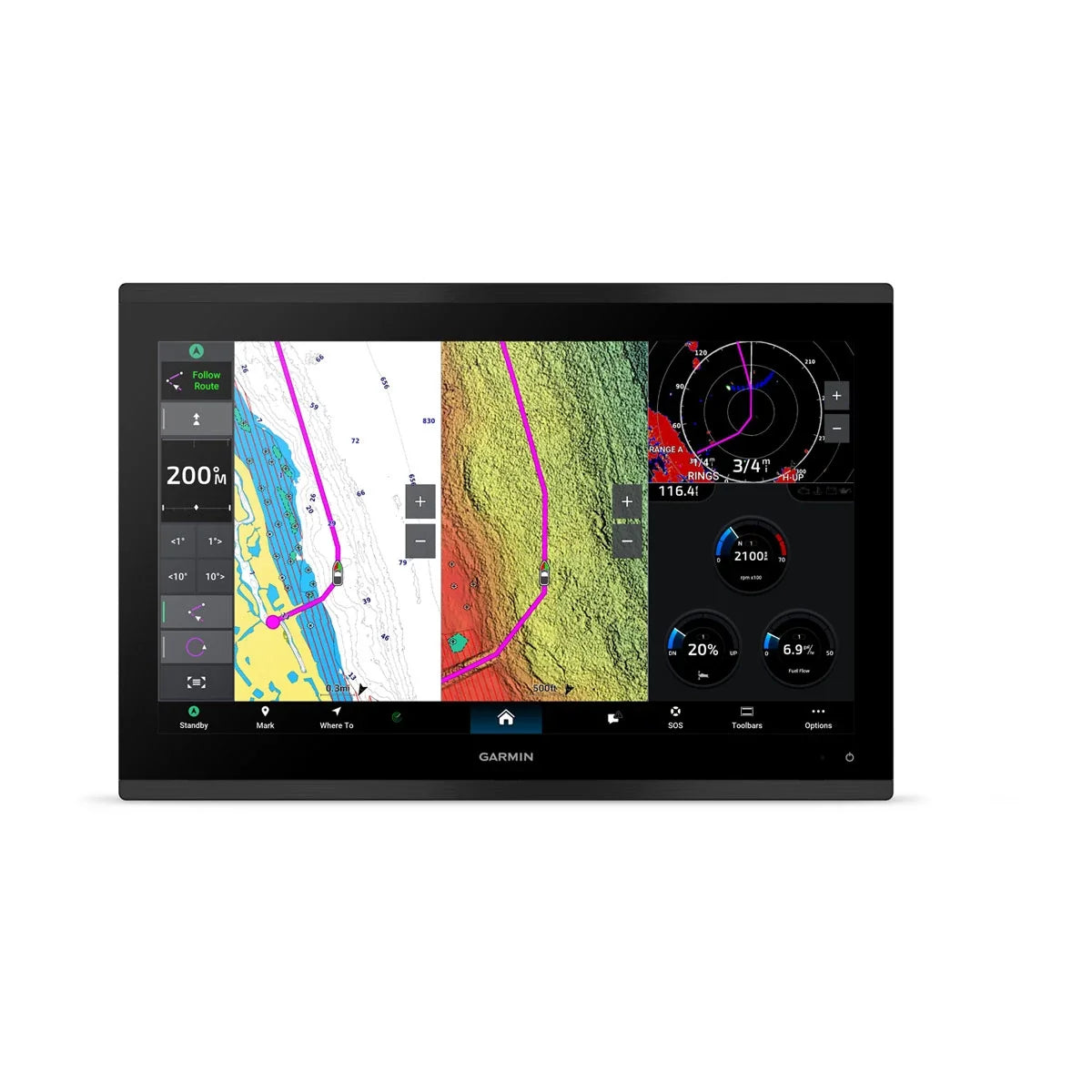

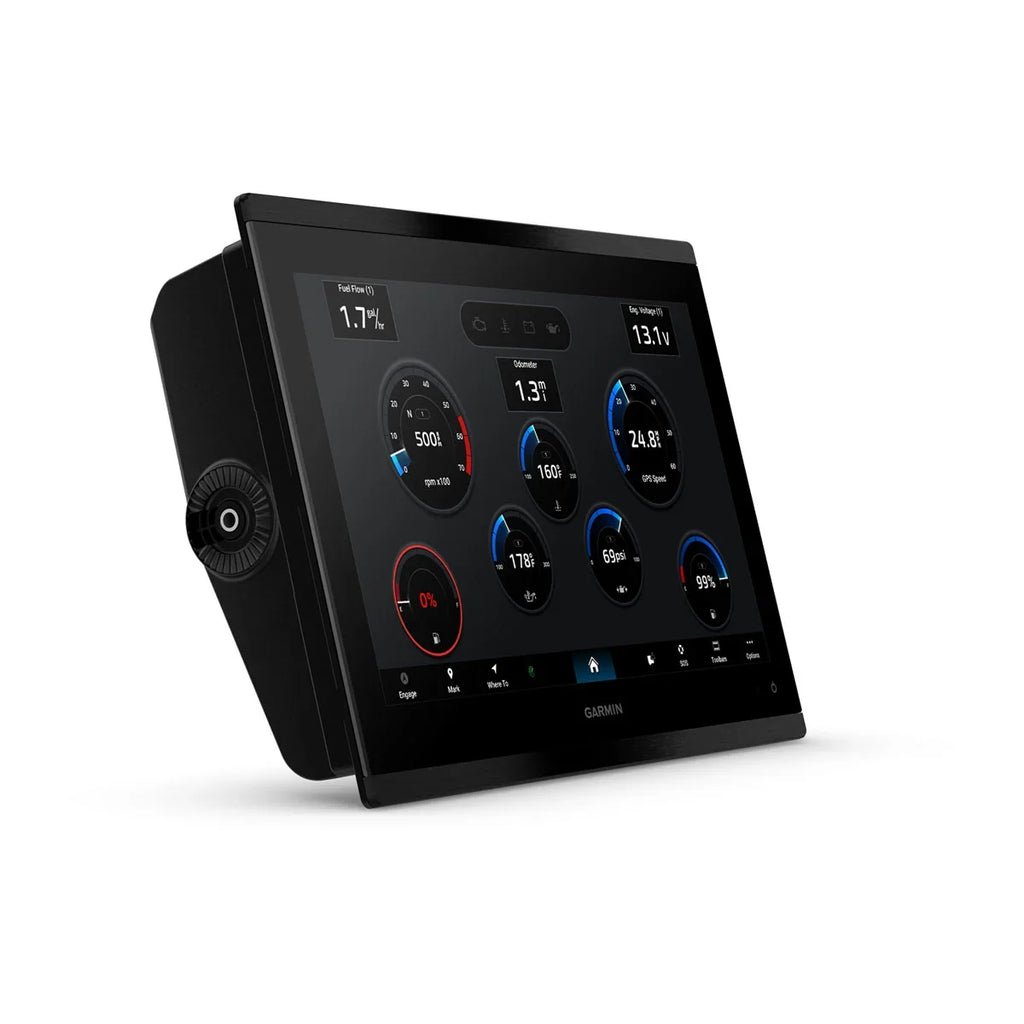

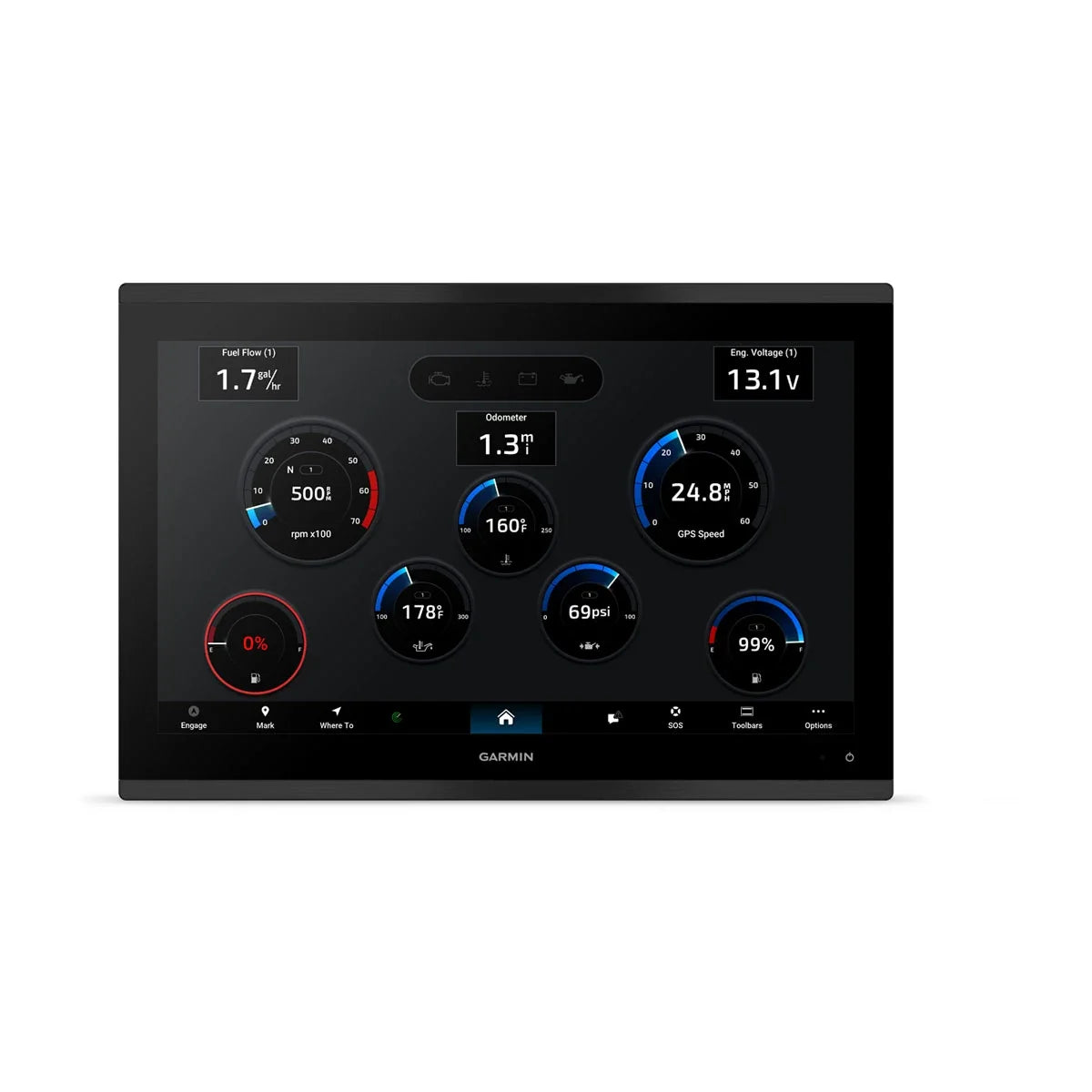

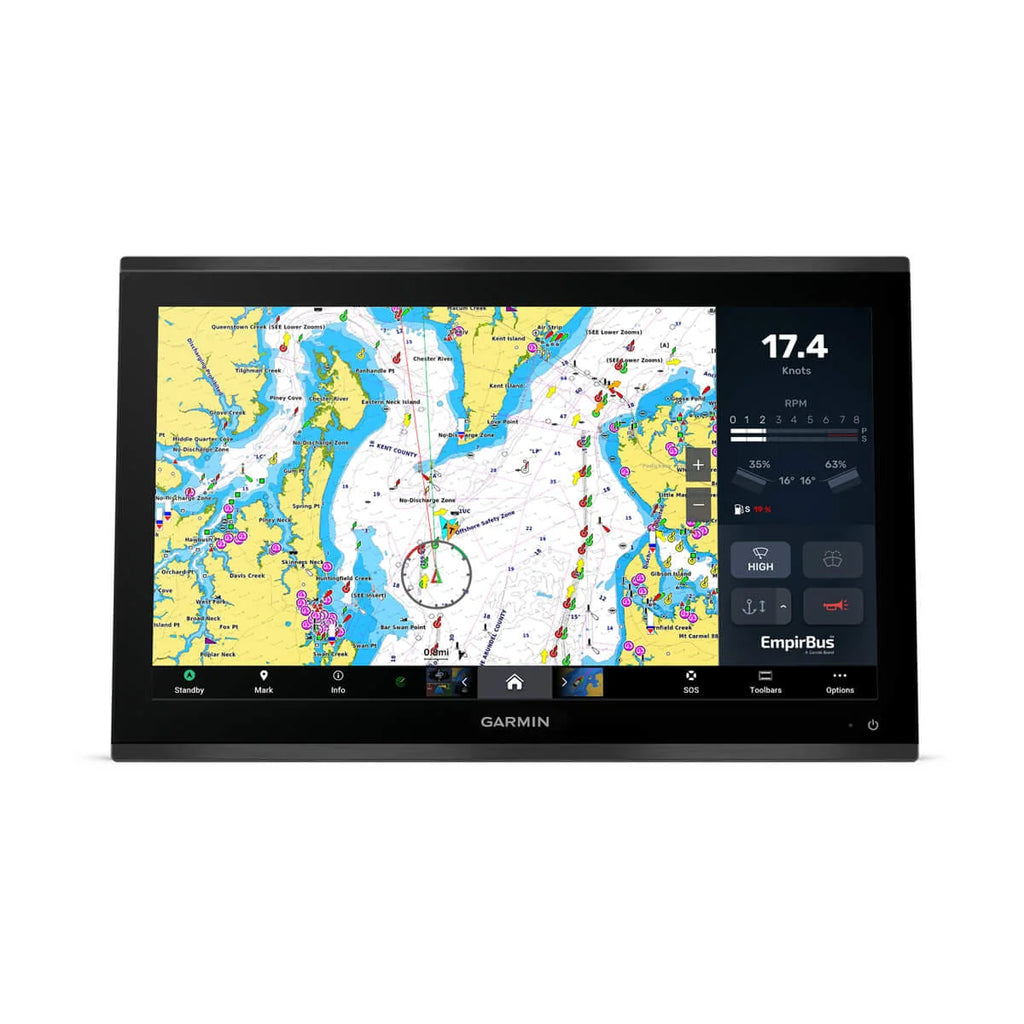

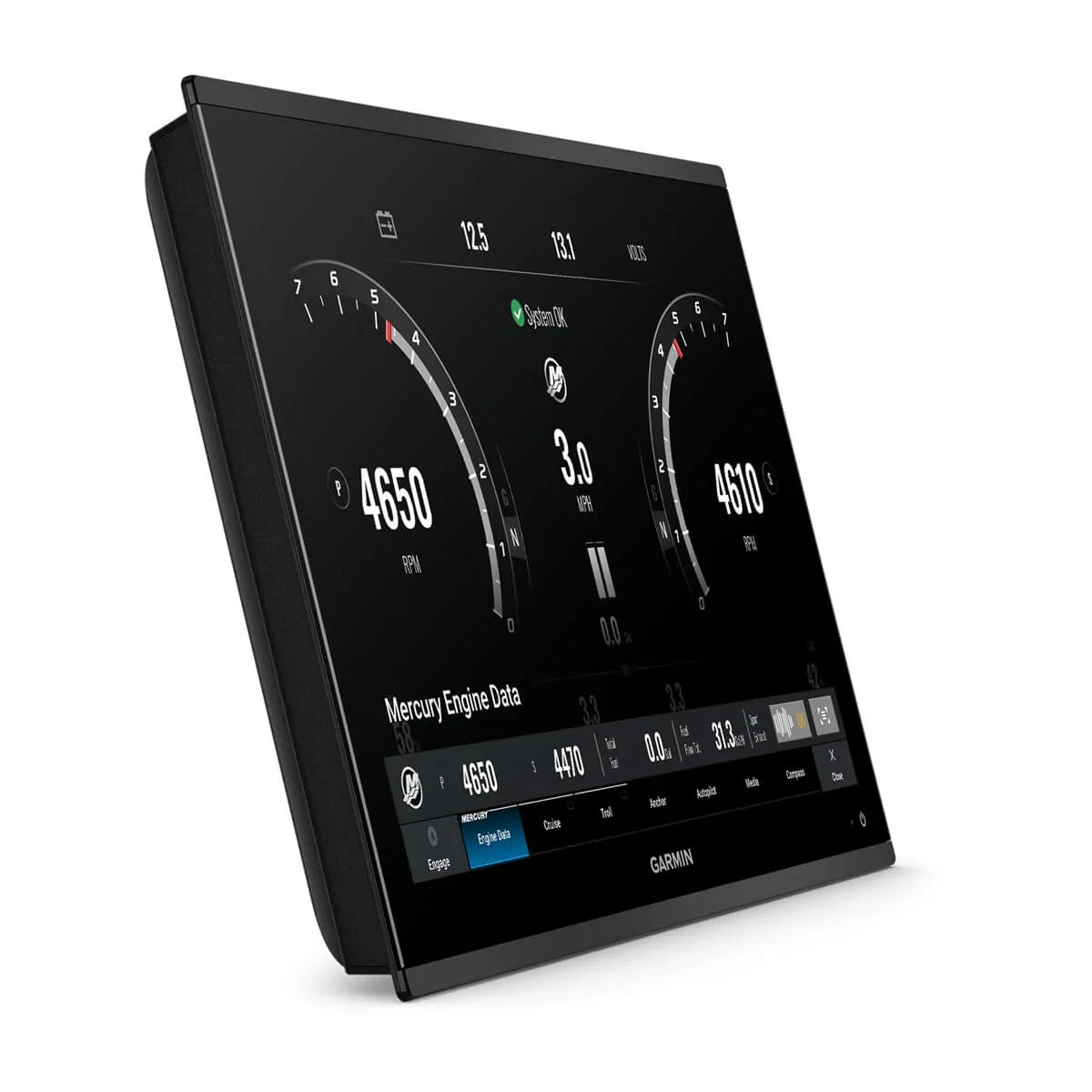

ENGINE MONITORING

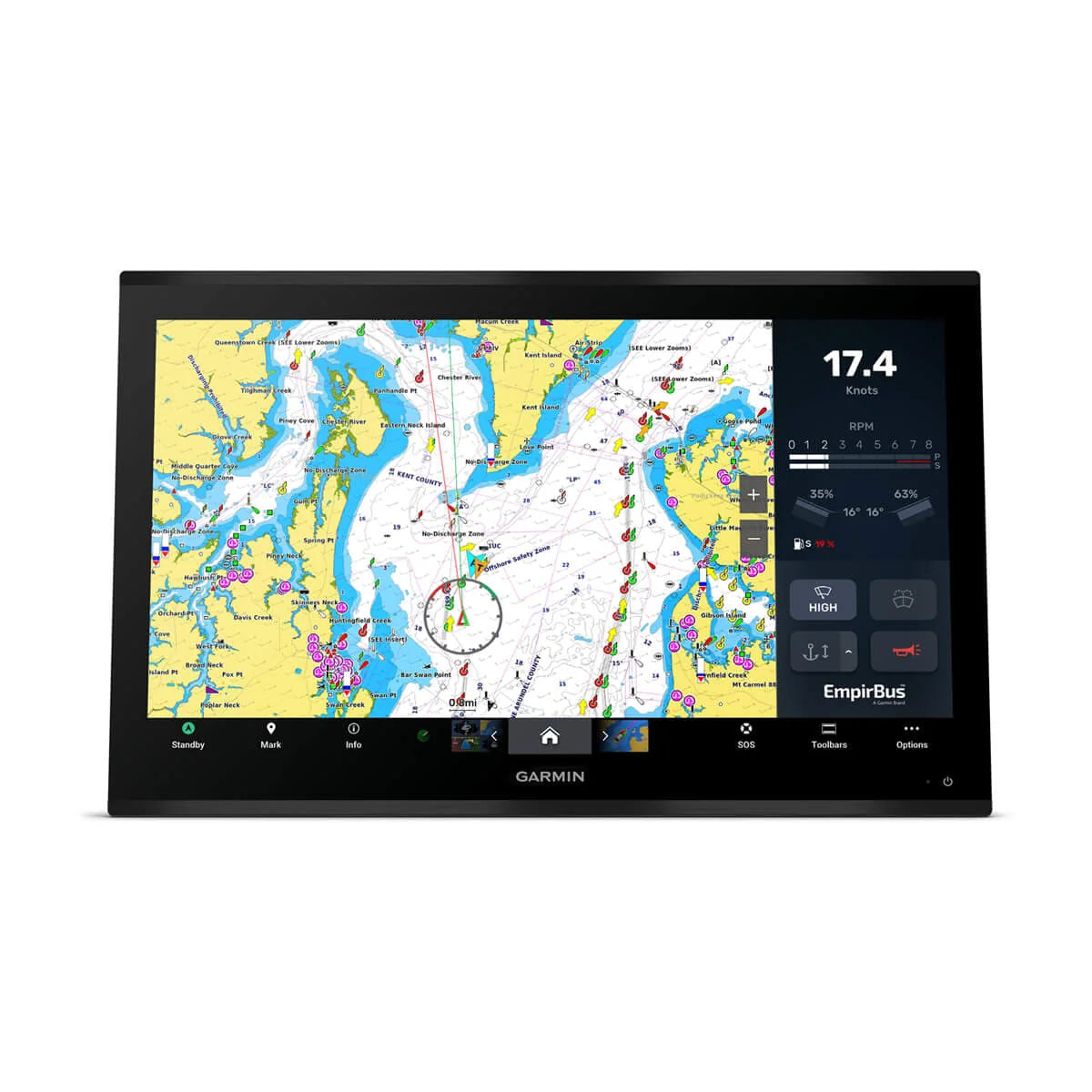

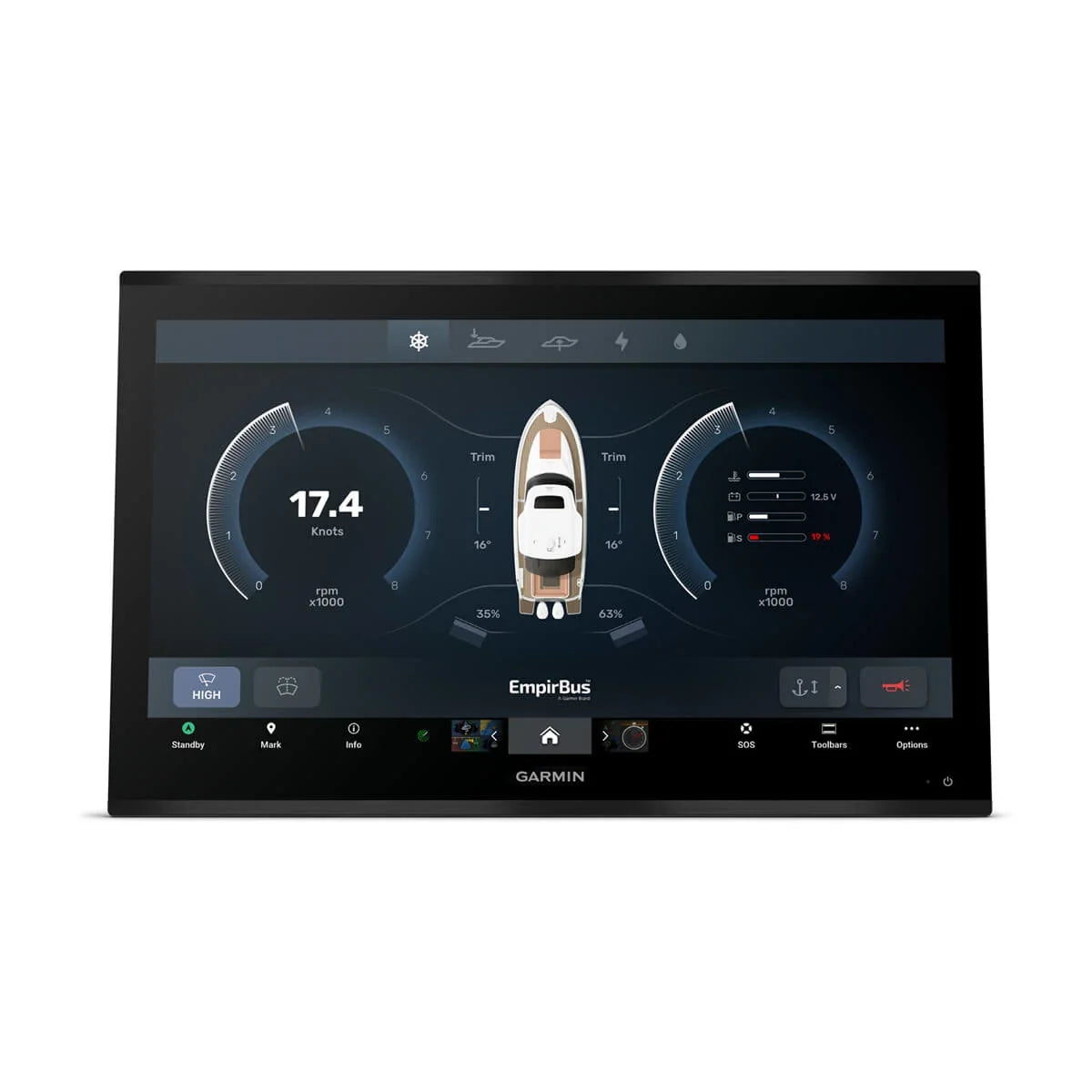

Keep tabs on engine performance with extensive engine integration.
CUSTOM LOOK
Manufacturers can customize the homepage layout and splash screen for a brand tailored experience.

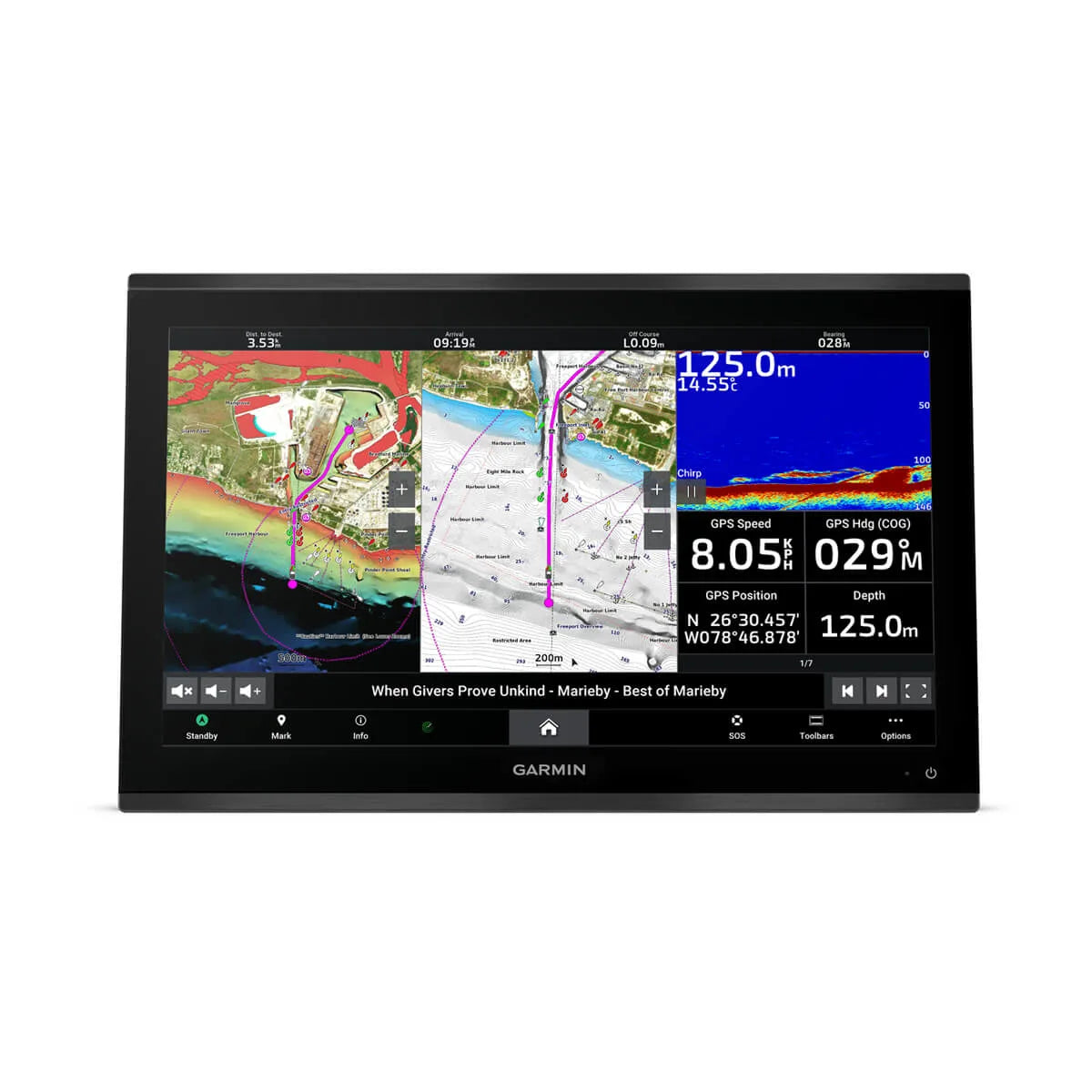

NAVIGATE

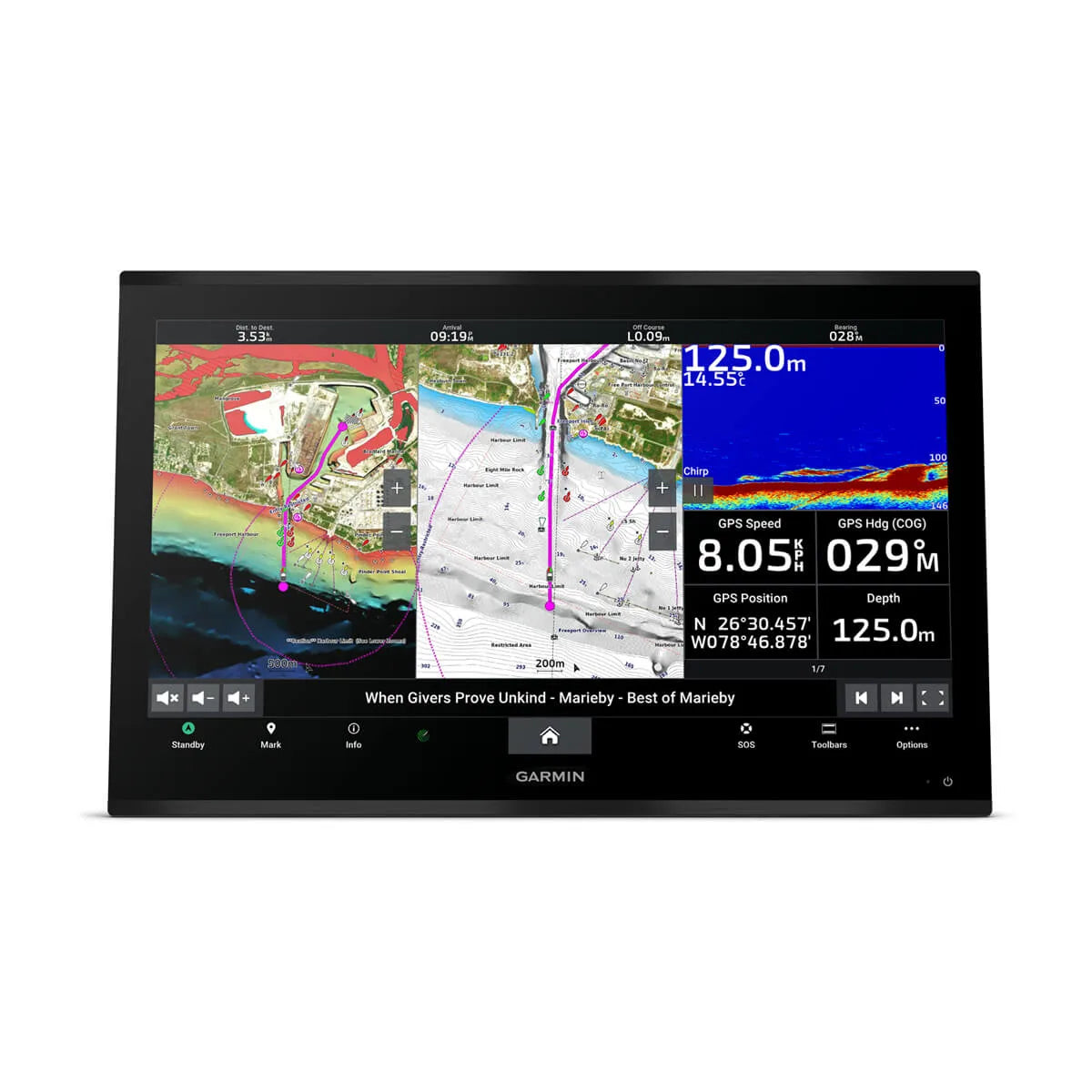

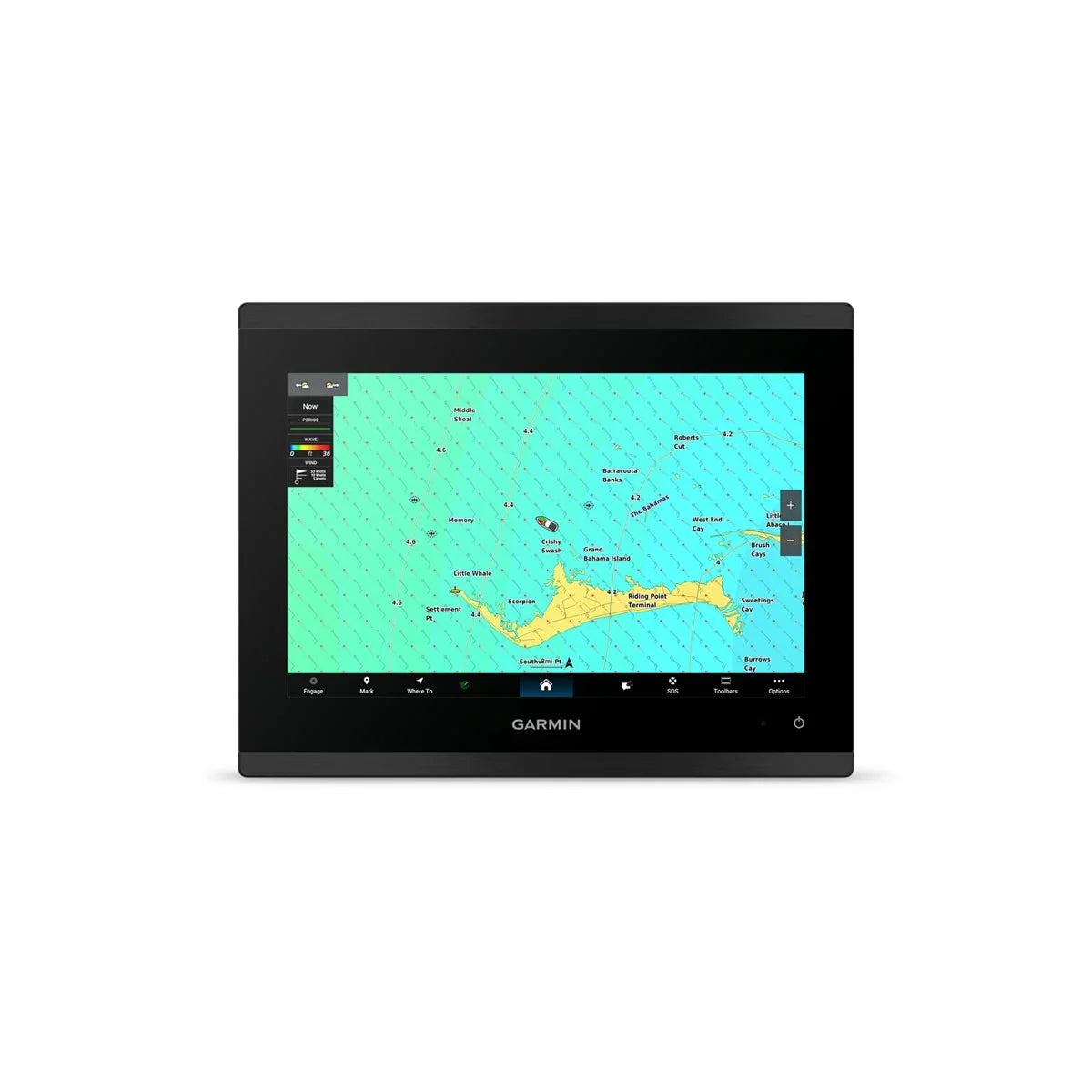

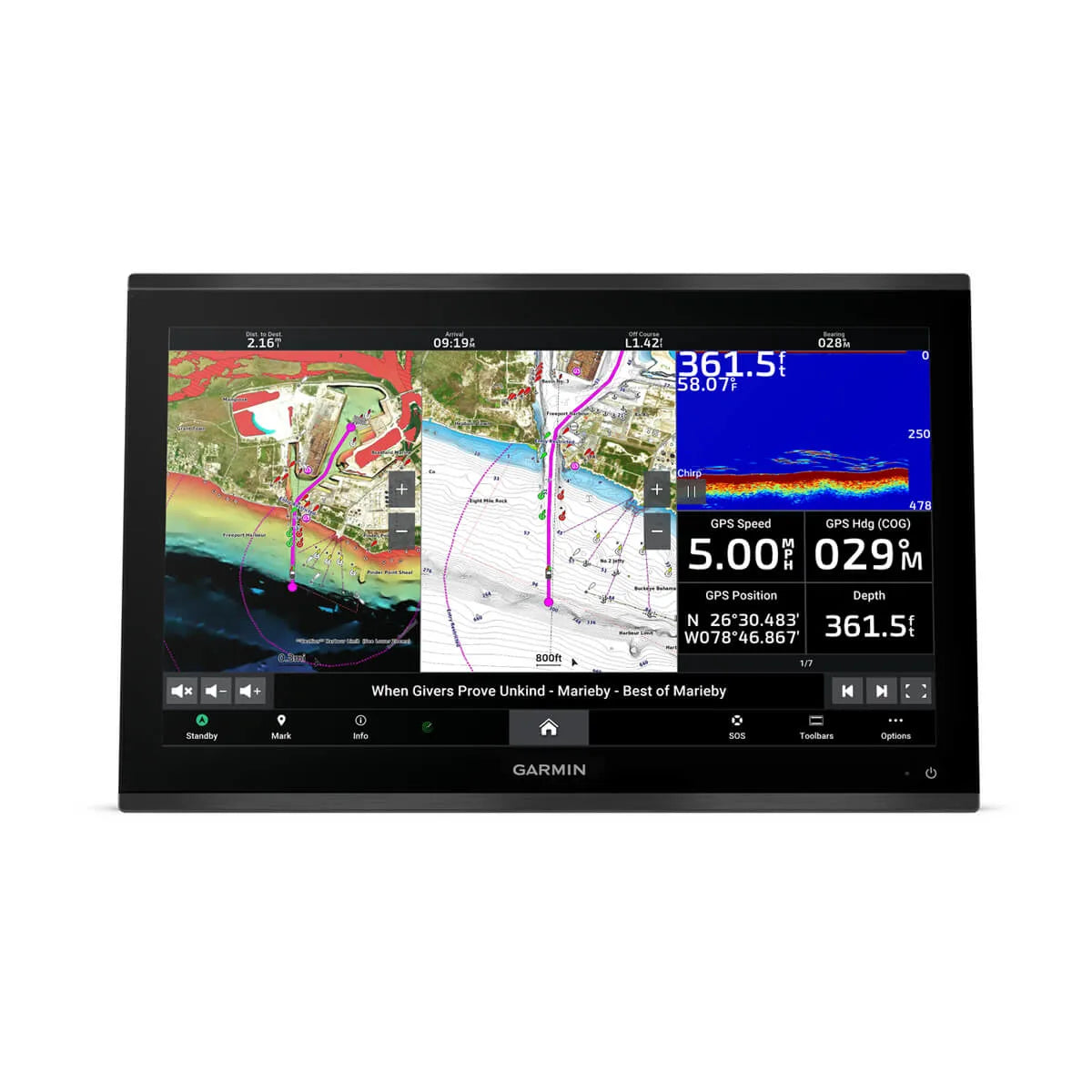

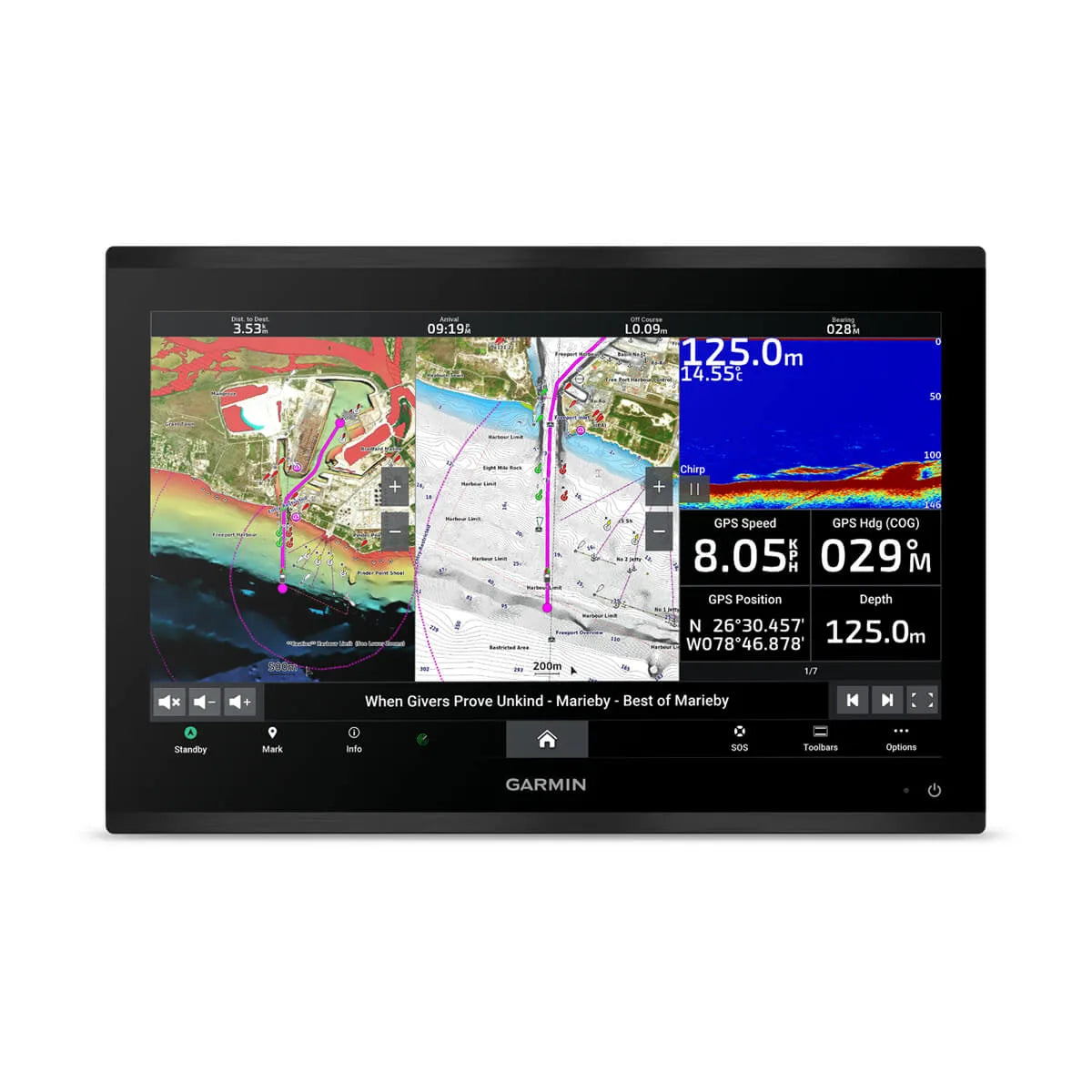

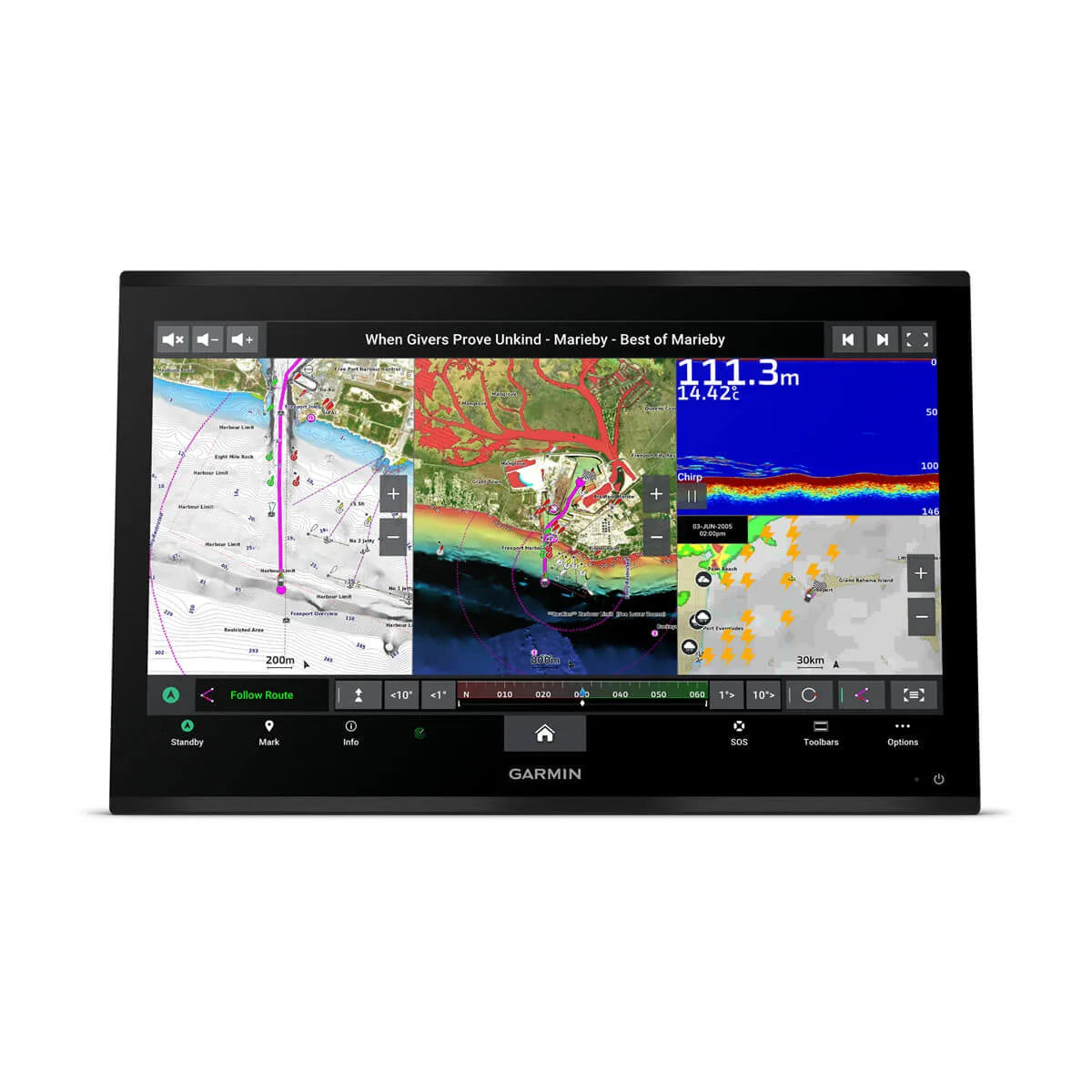

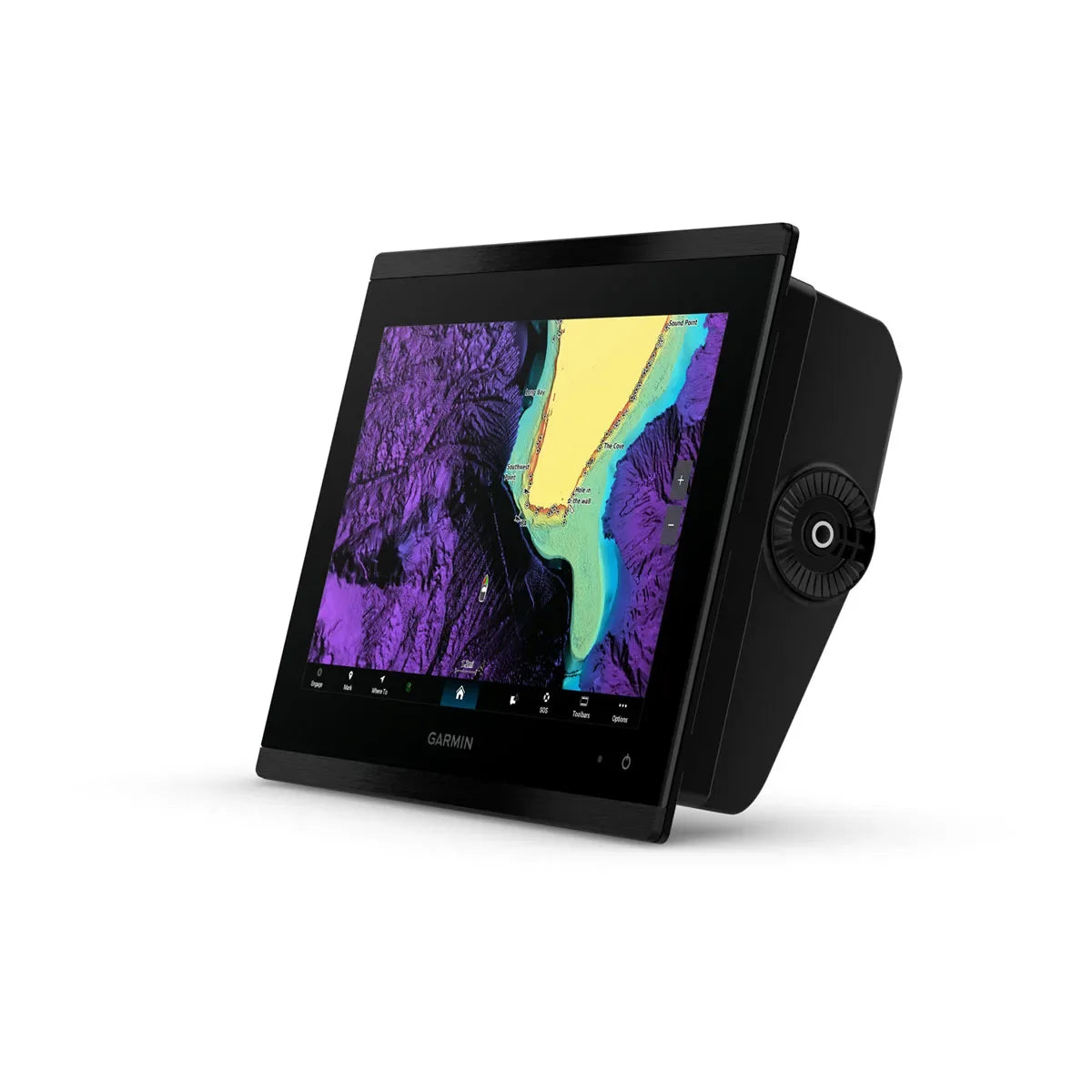

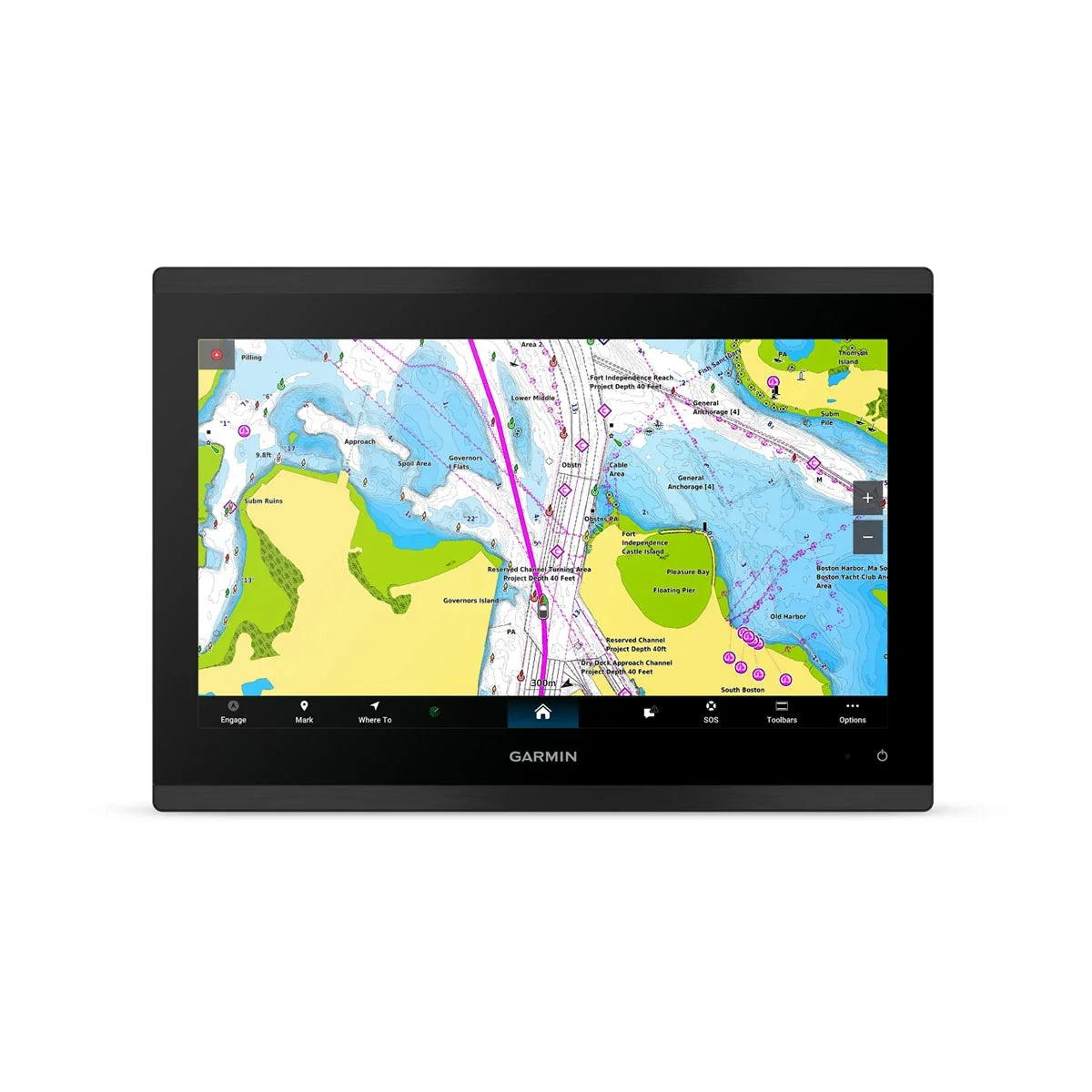

MAPPING

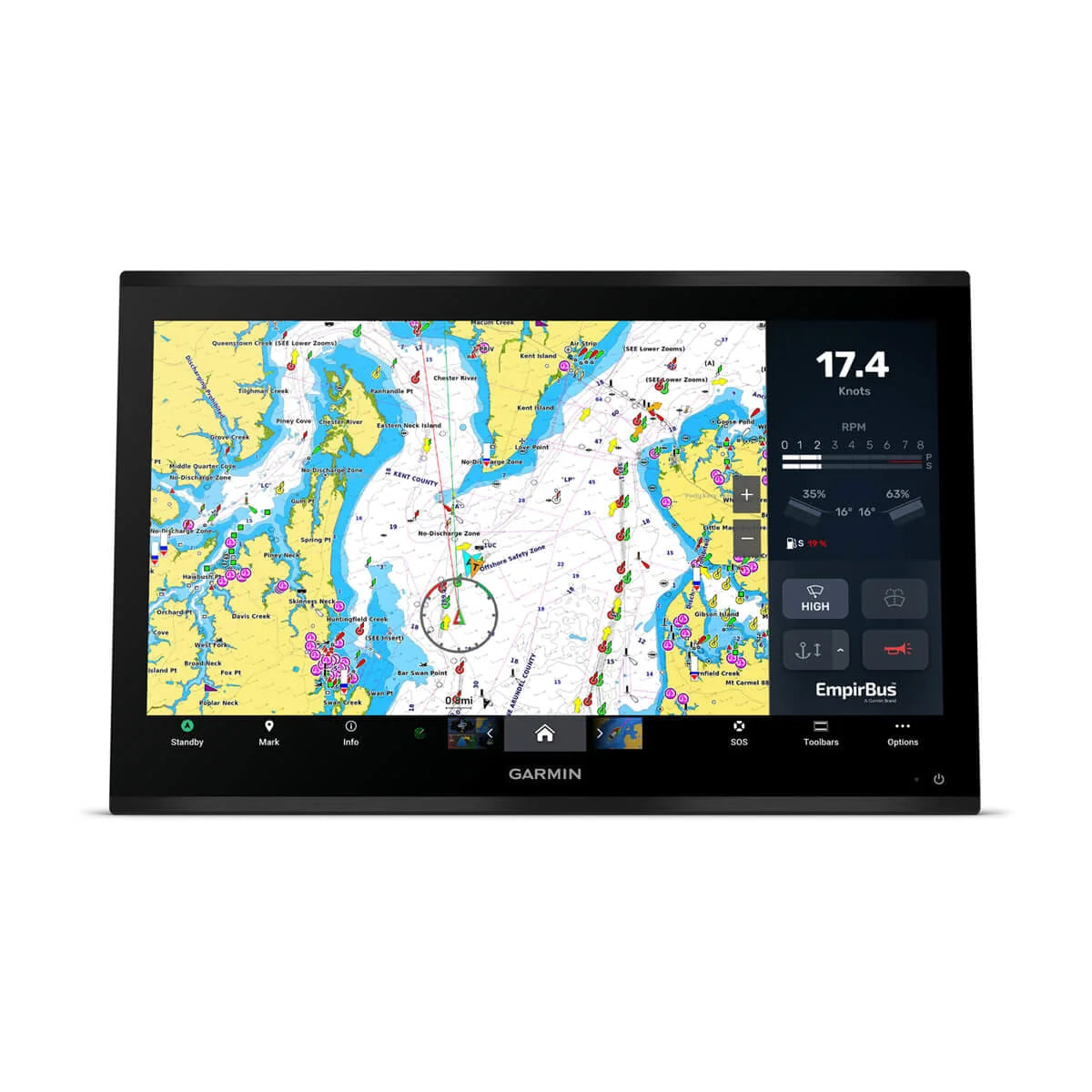

Navigate with optional Garmin Navionics+ charts that include Auto Guidance+ technology, daily updates and more1 (subscription required).

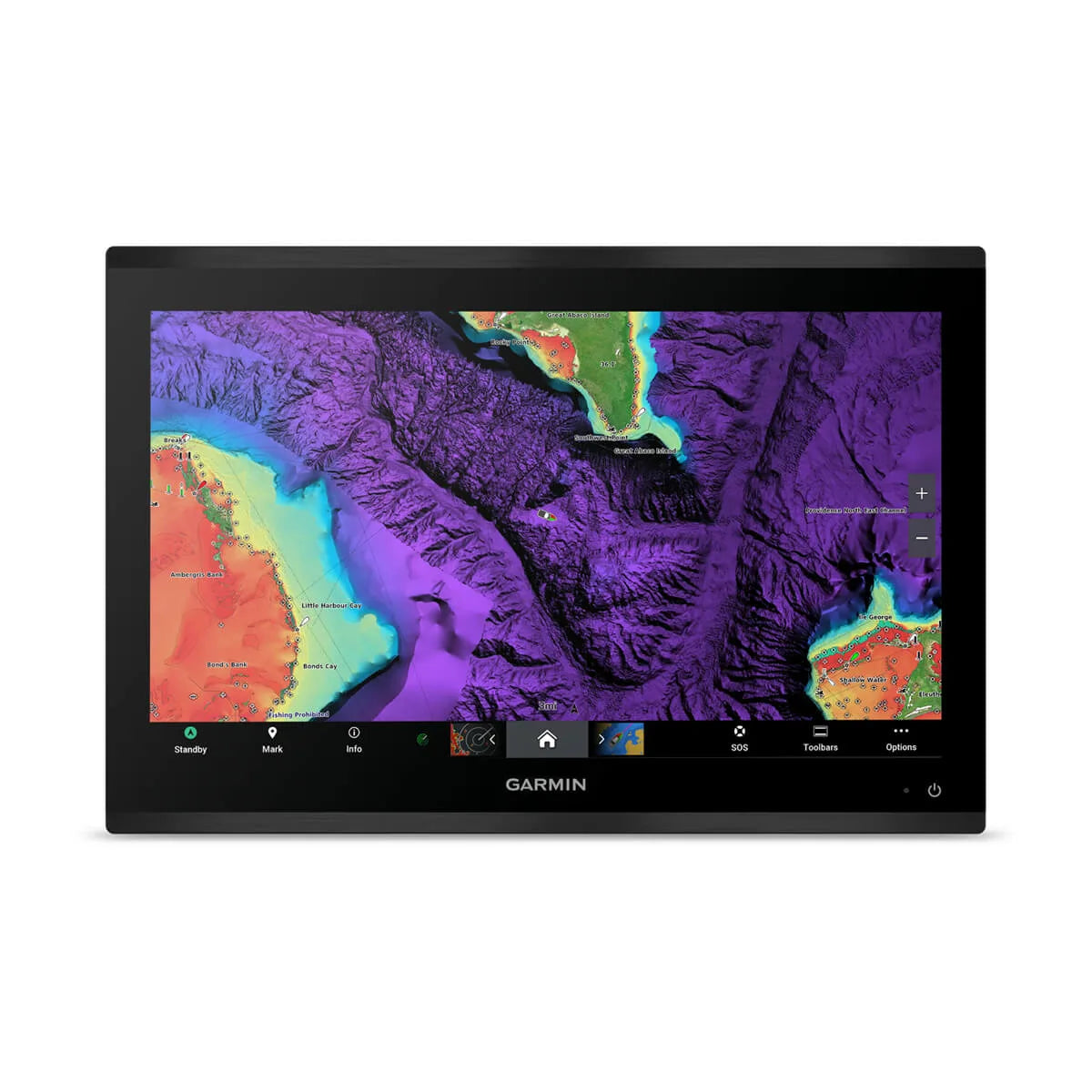

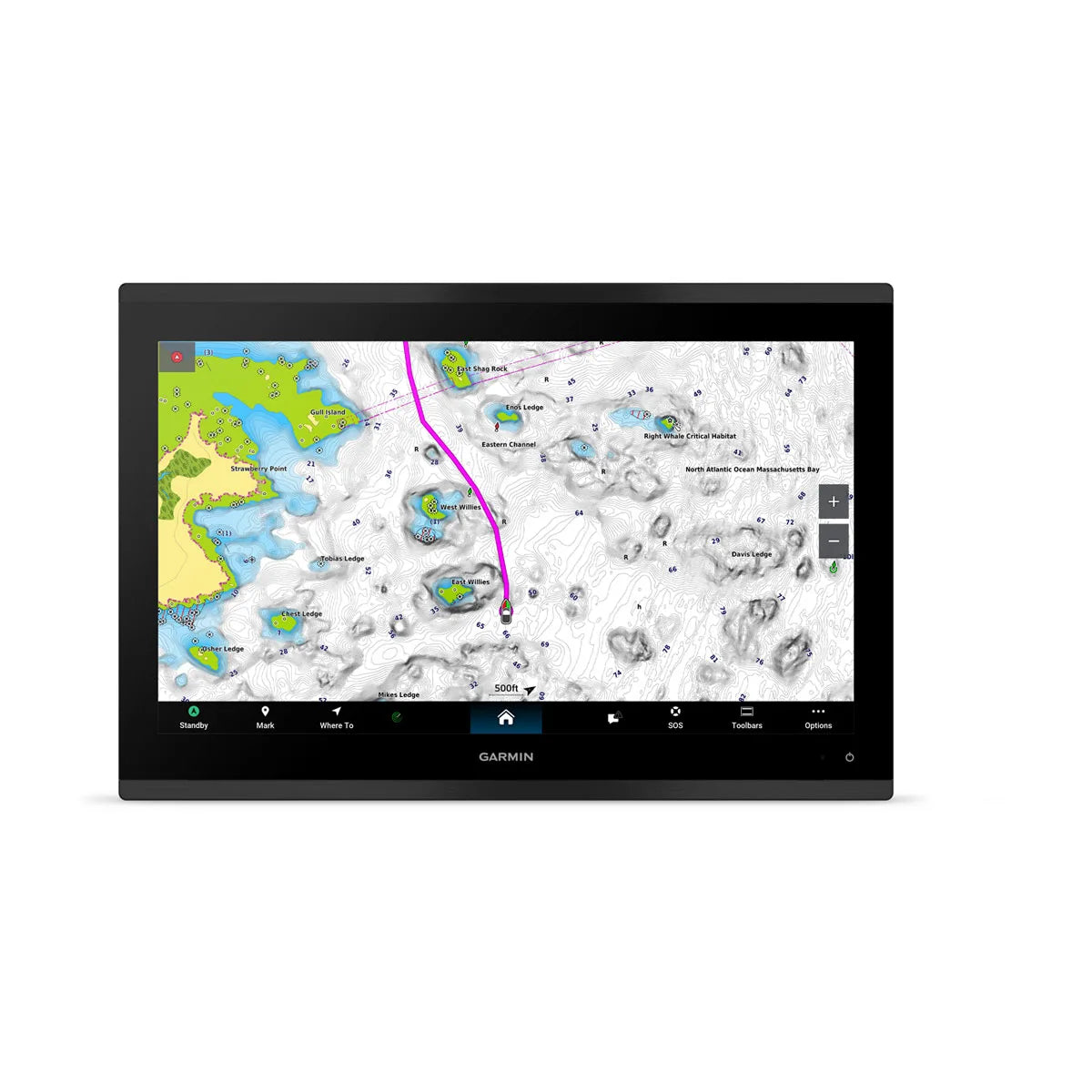

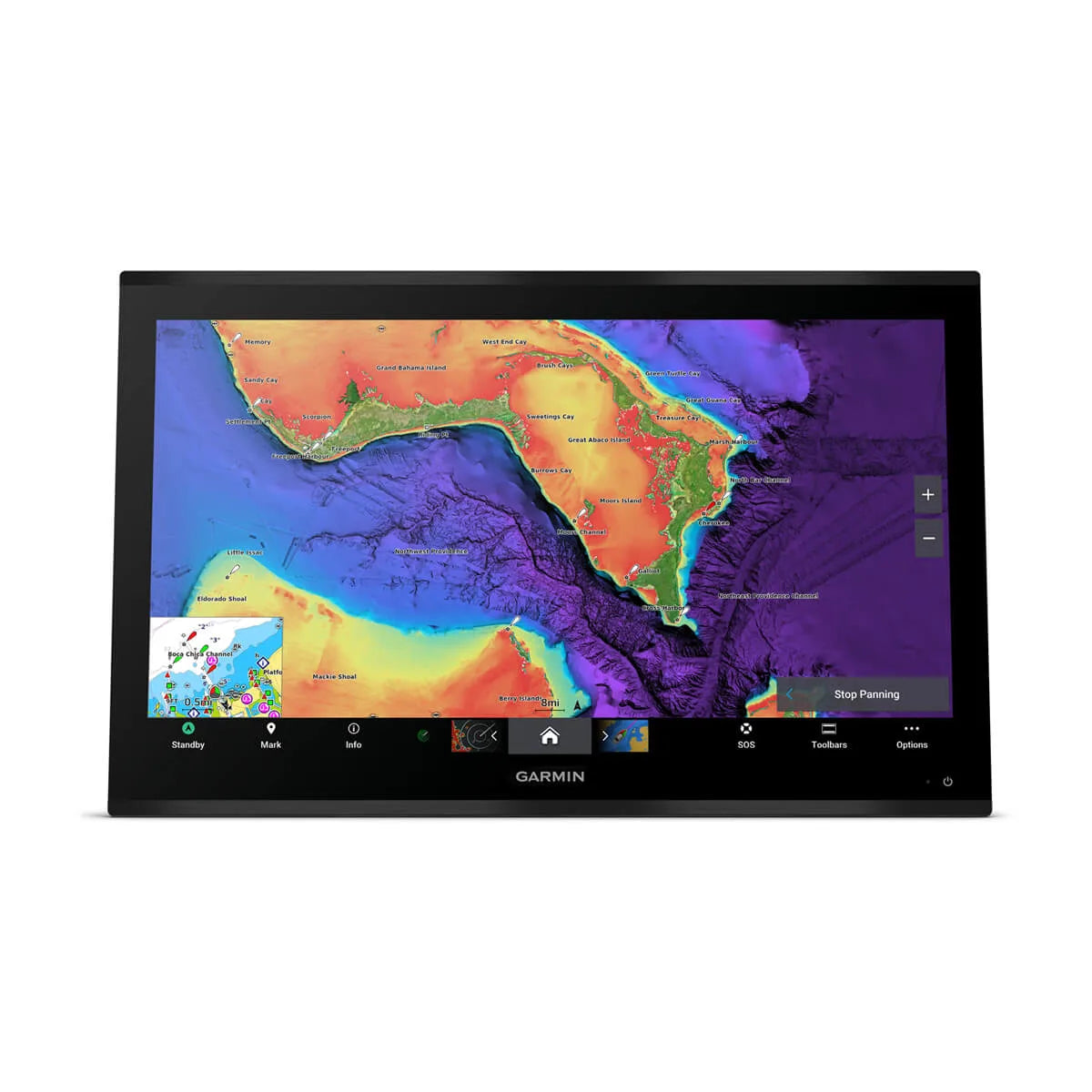

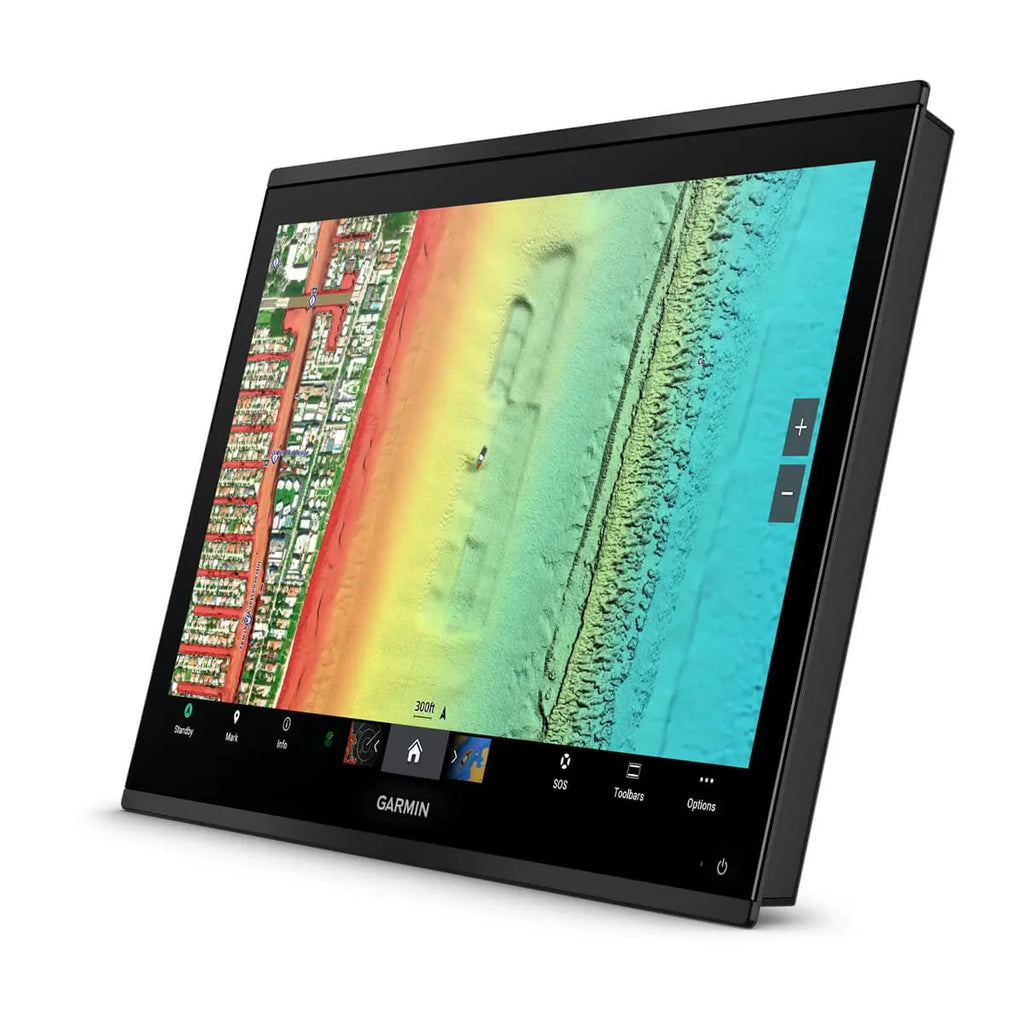

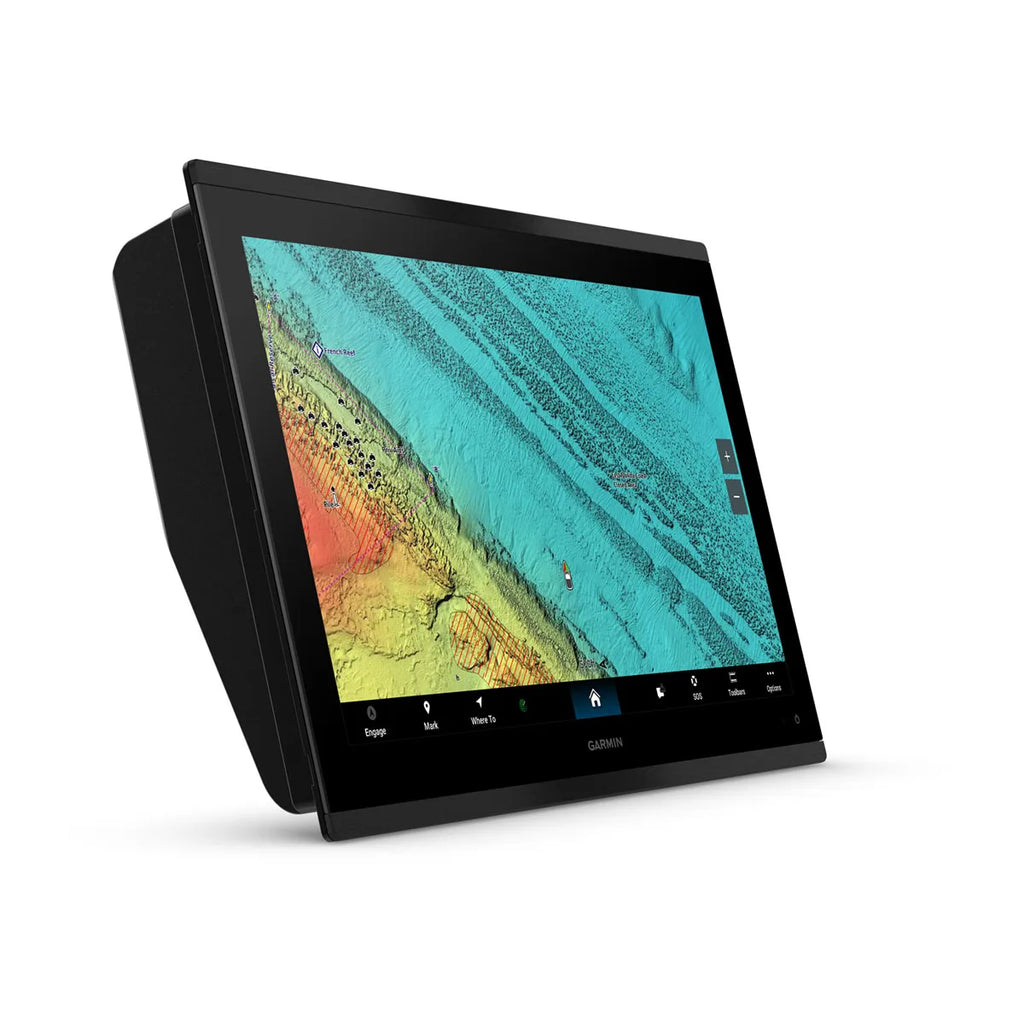

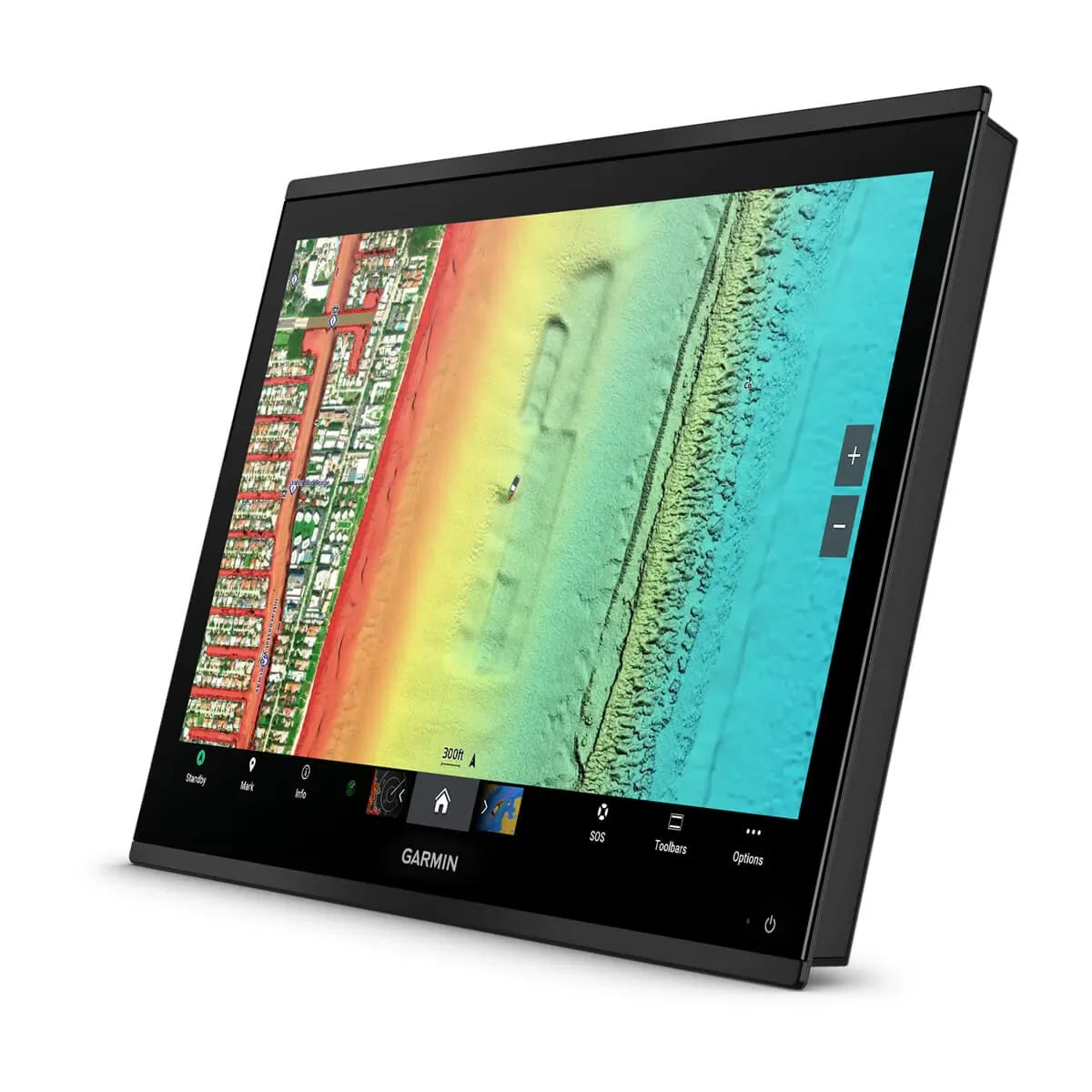

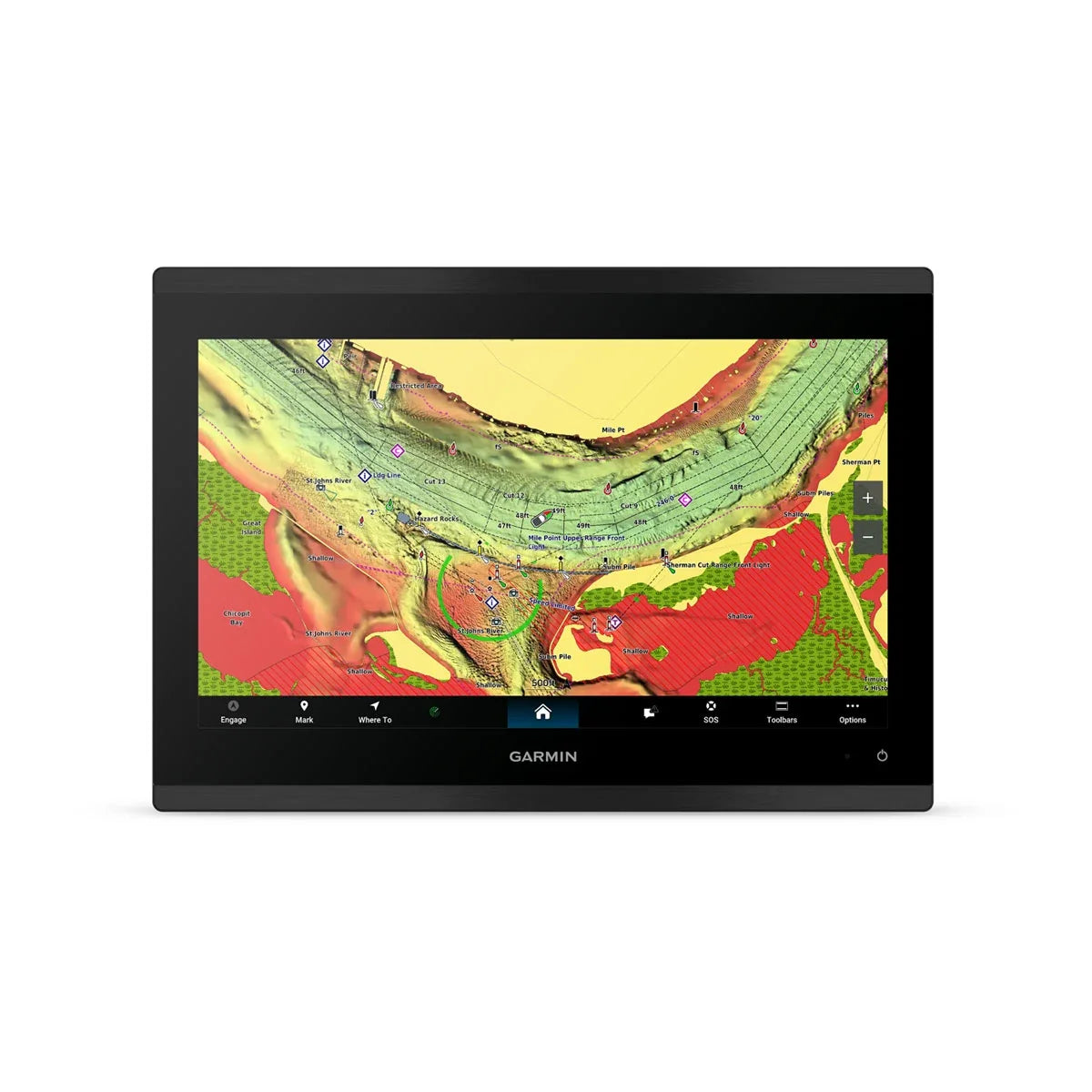

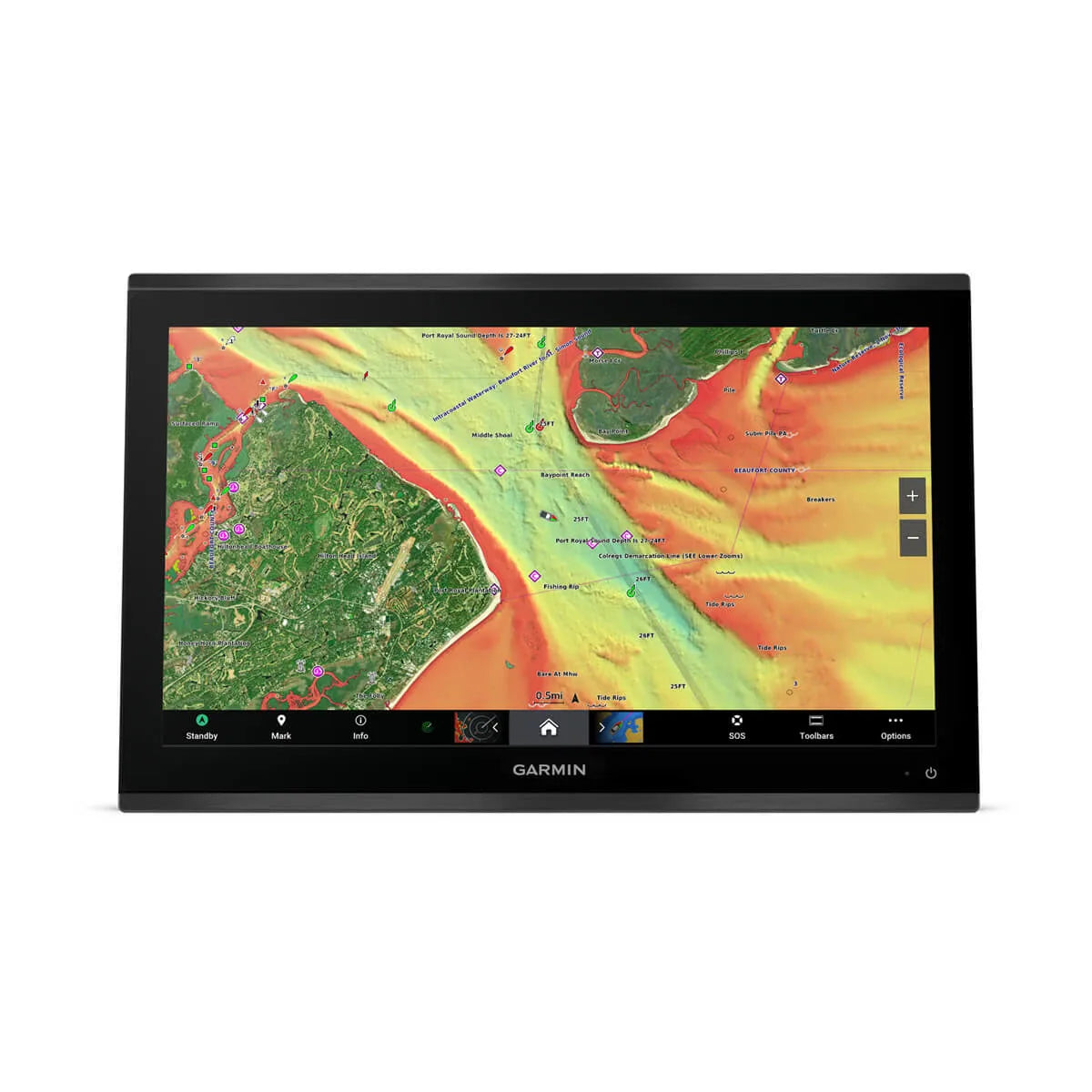

PREMIUM CHARTS

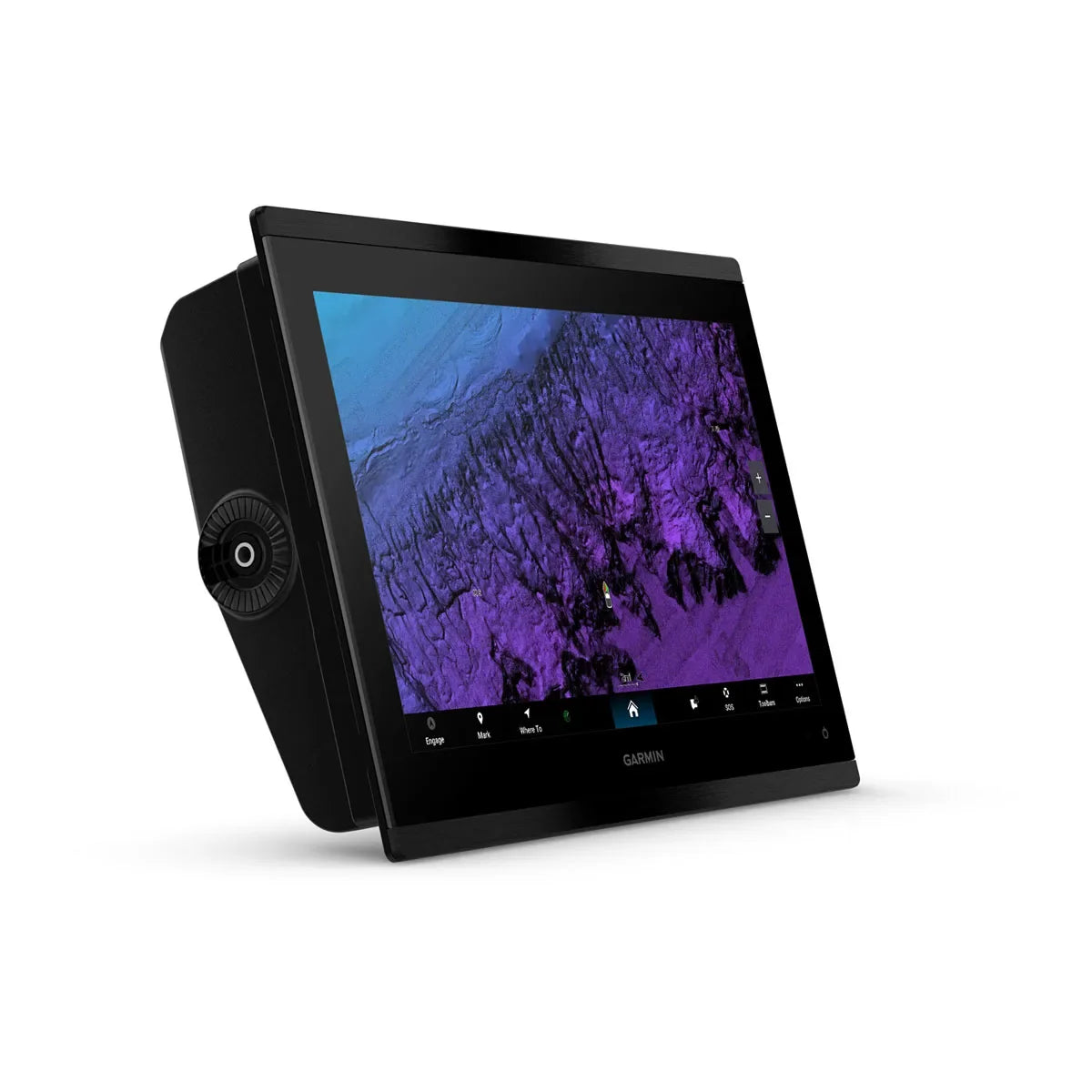

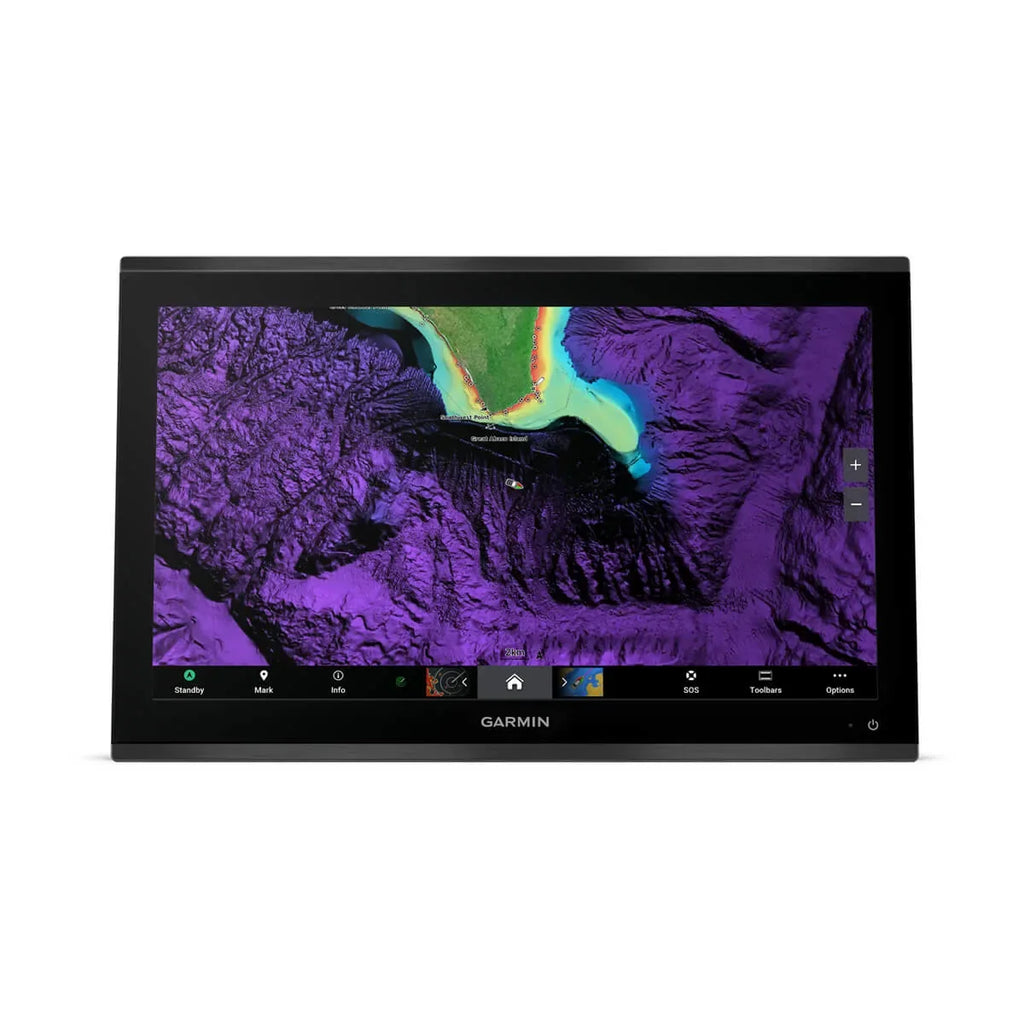

Get support for Garmin Navionics Vision+™ charts with premium relief shading and satellite imagery.
KNOW WHERE YOU ARE
Get your precise location with the built-in dual-frequency 10 Hz GPS.
AUTOPILOT

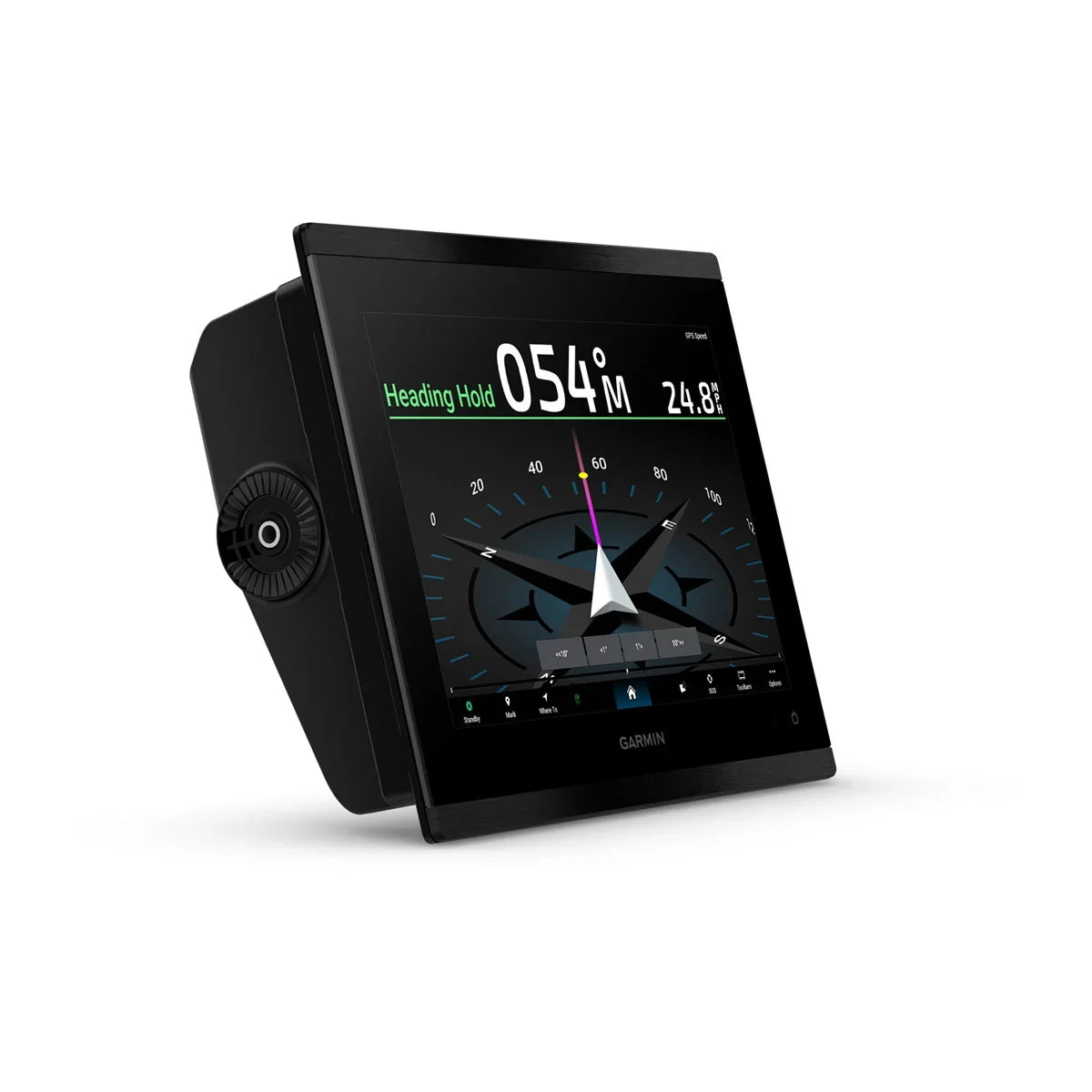

Control the autopilot with any compatible chartplotter on the network with autopilot integration.
INTEGRATE

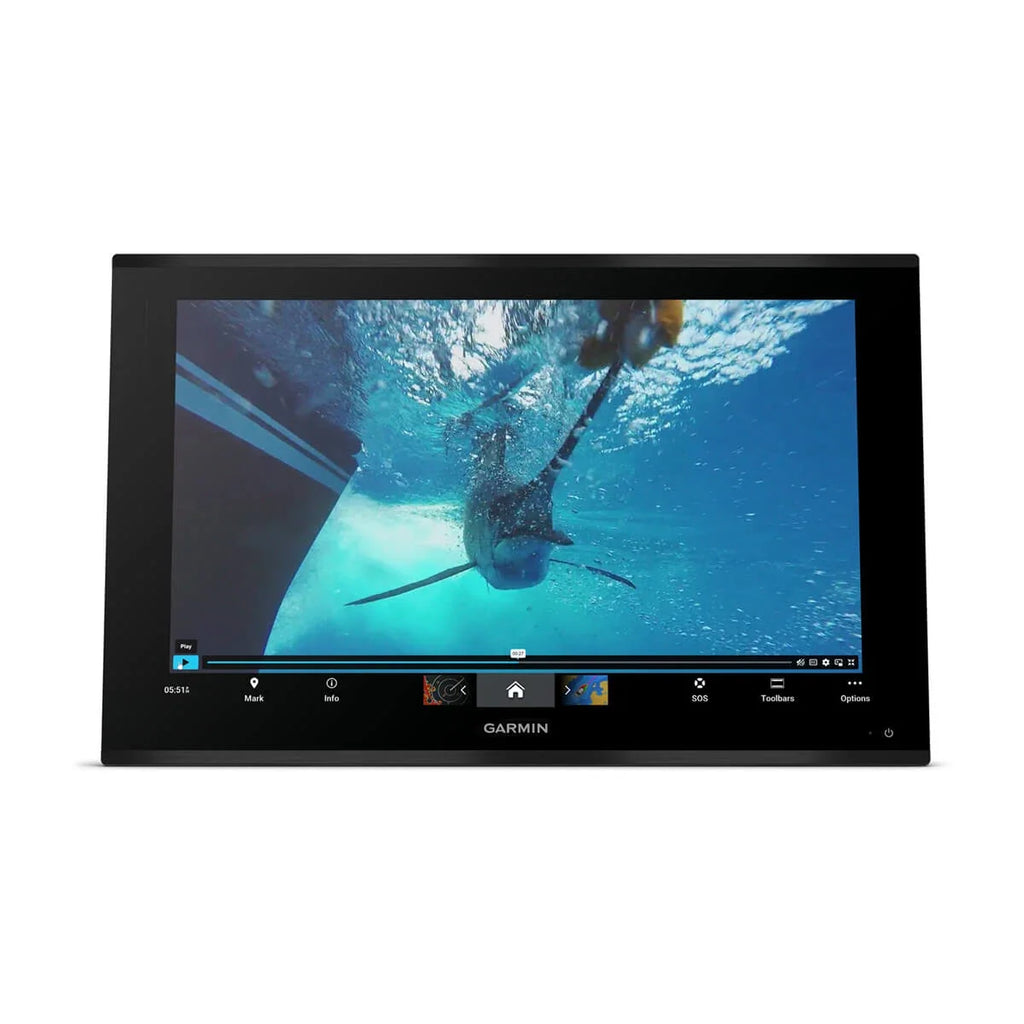

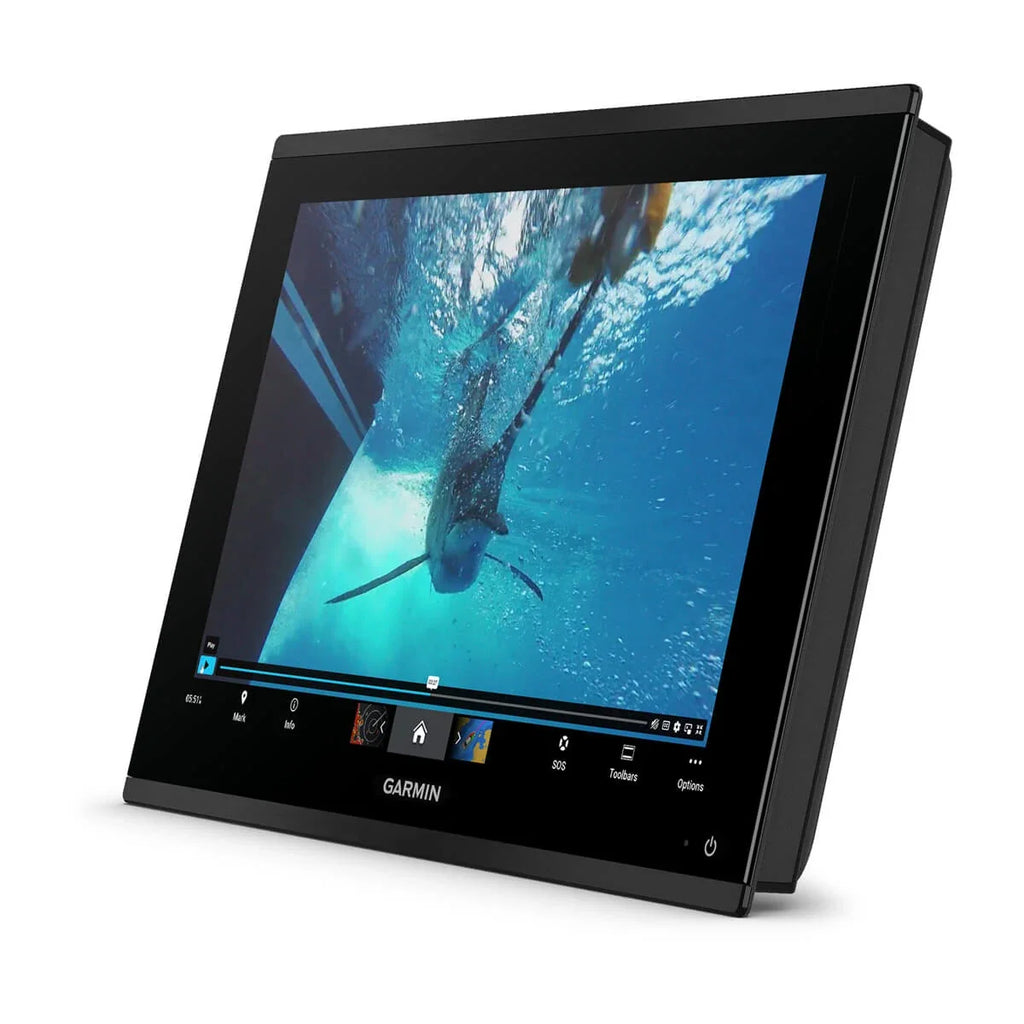

CONNECT CAMERAS
Get extensive camera support and control to see footage directly on the chartplotter.
CONTROL WITH YOUR WATCH
Connect to your chartplotter with your compatible Garmin smartwatch.
WIRELESS CONNECTIVITY
Connect compatible devices with integrated Bluetooth® and ANT® technologies.
FISH MAPPING
Get comprehensive fishing data with the Fish Mapping™ feature from SiriusXM® Radio (accessory purchase and subscription required).
VERBAL COMMANDS
Use spoken commands to control the chartplotter through your compatible headset or quatix® smartwatch.
WEATHER-RESISTANT
The GPSMAP 9000 chartplotter is built for harsh marine conditions with an IPX7 water-resistance rating.
- Auto Guidance+ is for planning purposes only and does not replace safe navigation operations
Maps
Maps for New Regions
Need maps for regions other than the ones that came on your device? See all maps that are compatible with your device.
Need a map update?
Update the maps that came with your device for the best navigation experience.
Check for Updates
In the Box
- GPSMAP 9010 premium chartplotter
- Power cable
- Backbone/drop cable (2 meters) and T-connector for the NMEA 2000® Network

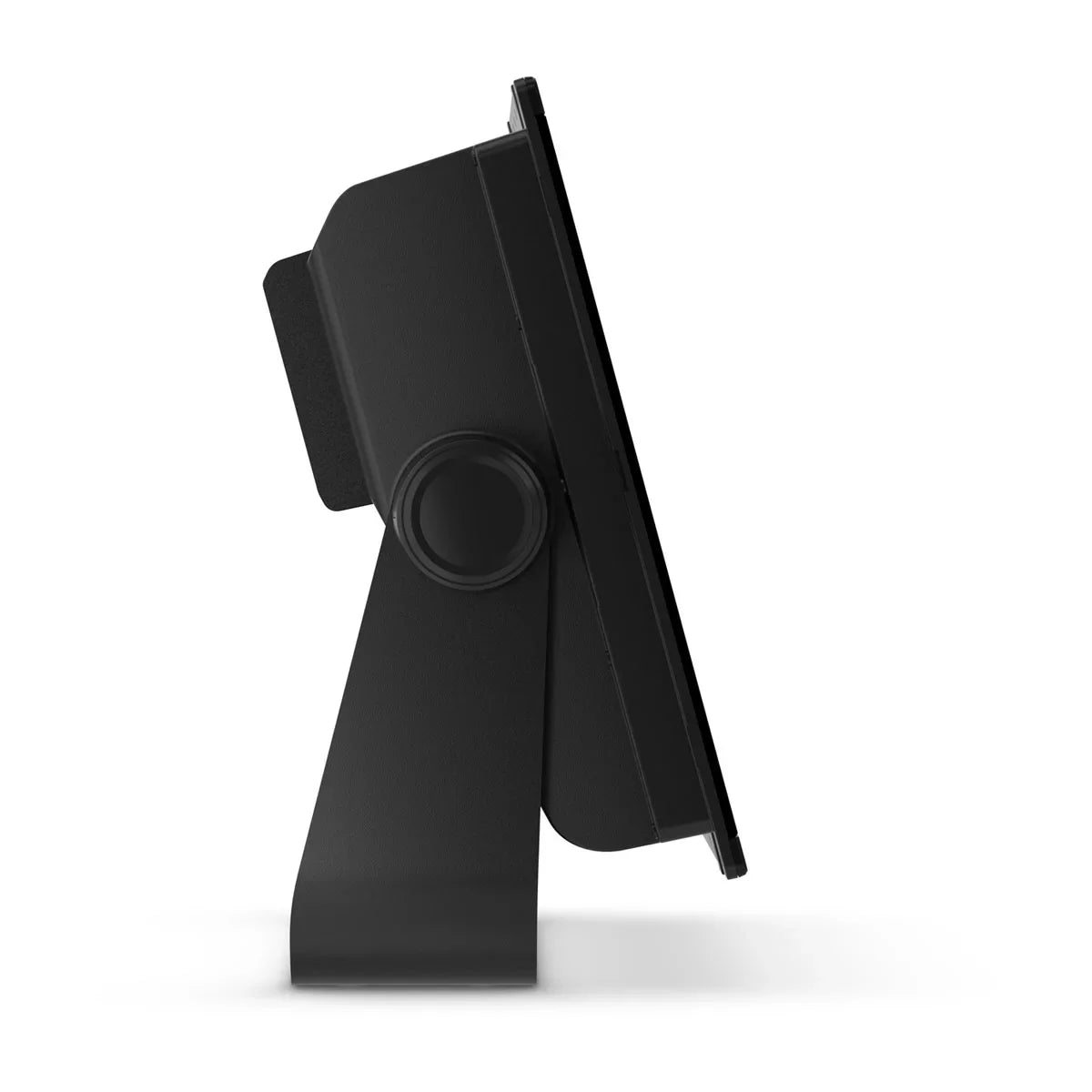

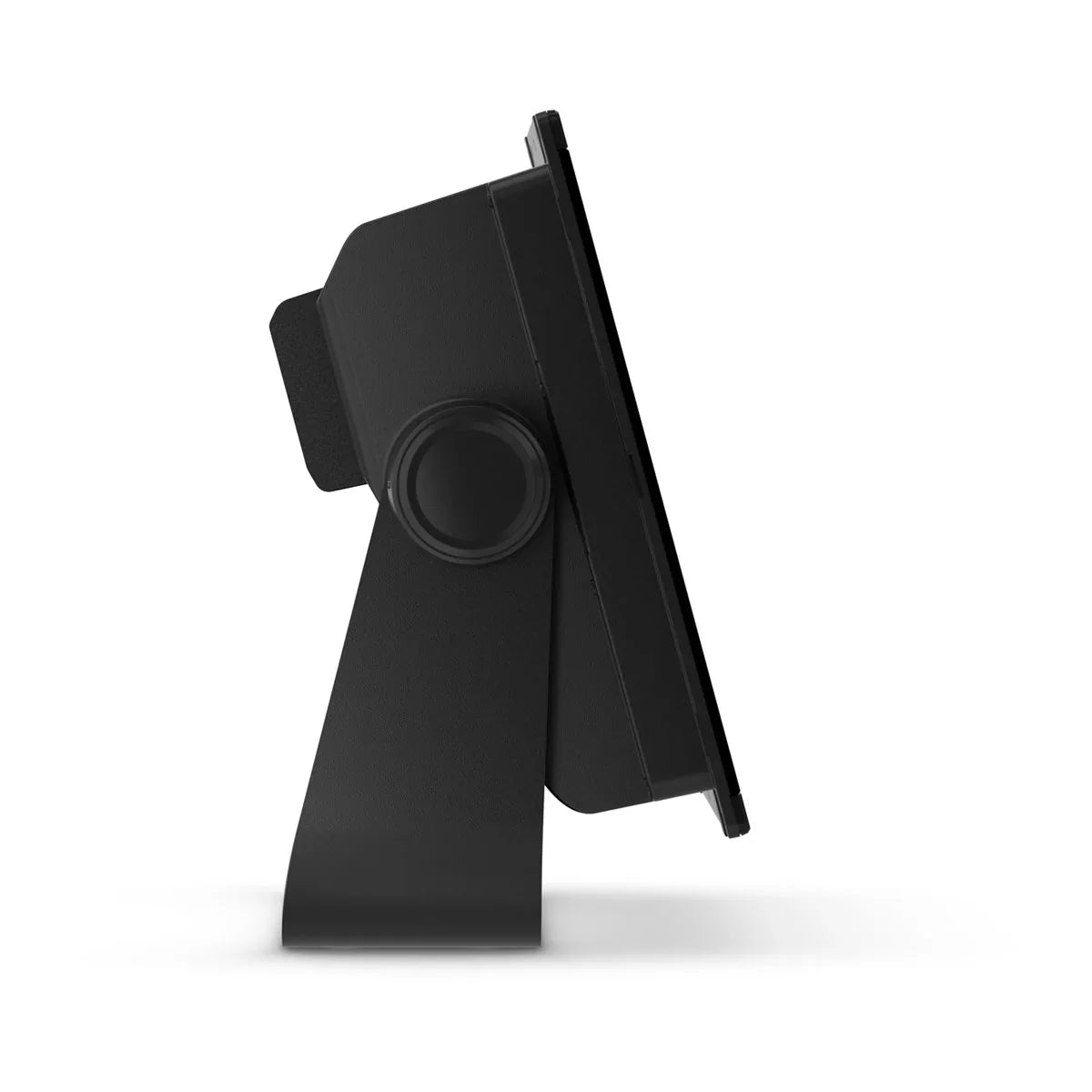

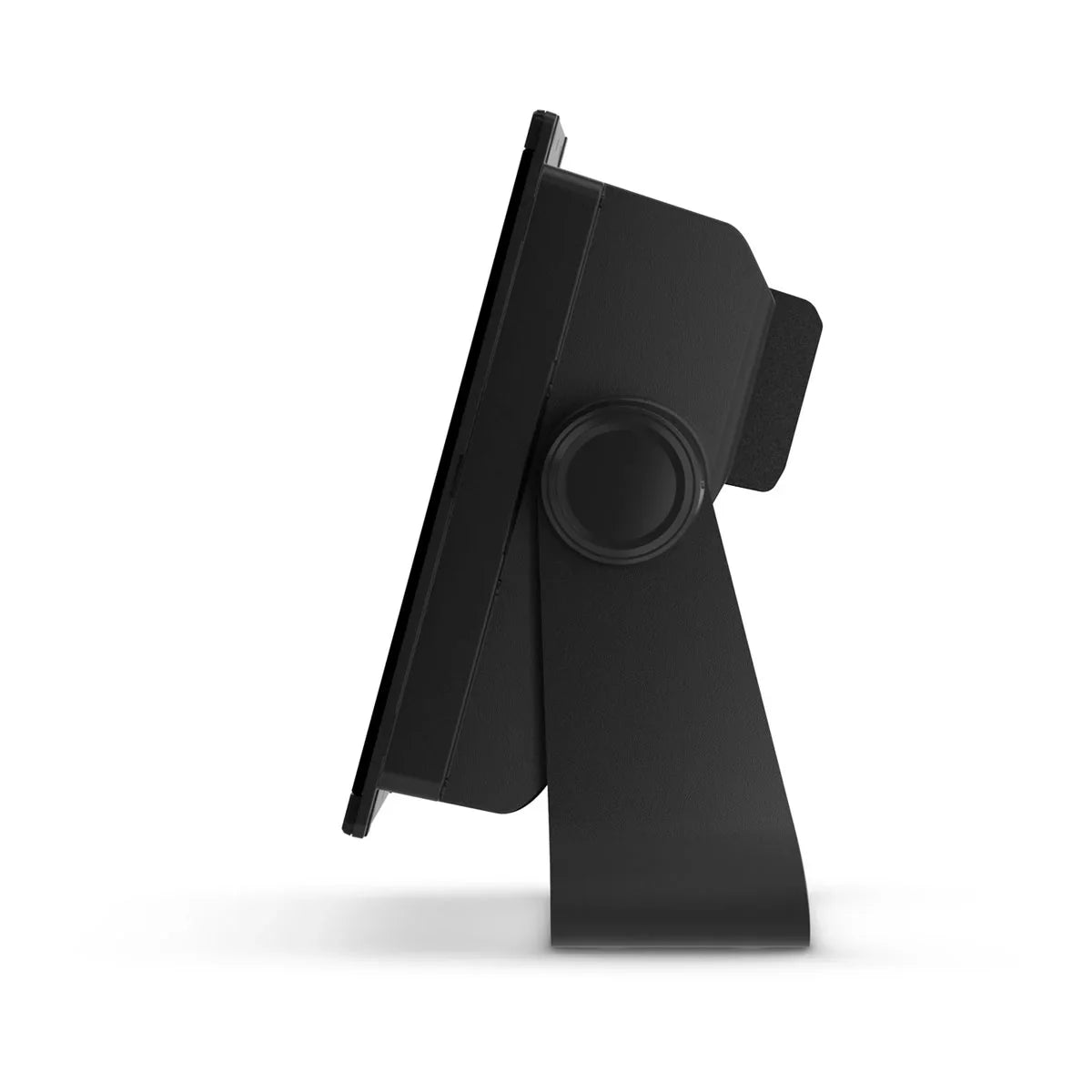

- Bail mount with knobs

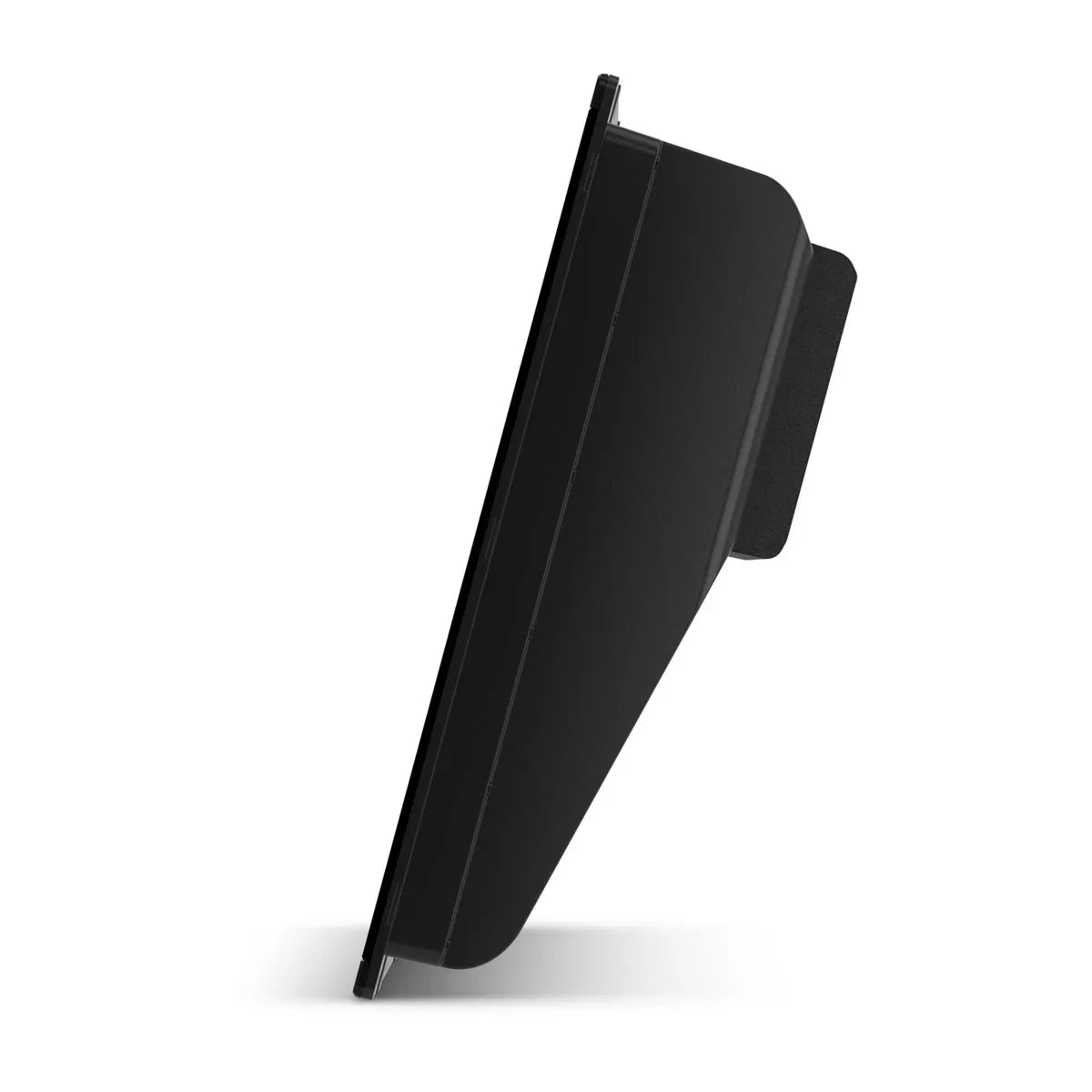

- Flush mount kit
- Protective cover
- Trim piece snap covers
- Documentation
Specs
General | |
| Dimension | 10.24" x 7.87" x 3.54" (26 cm x 20 cm x 9.1 cm) |
|---|---|
| Weight | 5.55 lbs (2.52 kg) |
| Water rating | IPX7 |
| Touchscreen | yes |
| Display Type | WUXGA, IPS; Edge Lit backlight |
| Display Size | 8.54" x 5.34" x 10.1" diagonal (21.7 cm x 13.6 cm x 25.6 cm diagonal) |
| Display resolution | 1920 x 1200 pixels |
| Mounting Options | Bail, flat or flush |
| Input | Touchscreen |
| Polarized lens viewability | yes |
Maps & Memory | |
| Accepts Data Cards | 2 microSD™ cards (on rear of product) |
|---|---|
| Waypoints | 5,000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors | |
| GPS | yes |
|---|---|
| GLONASS | yes |
| Galileo | yes |
| BeiDou | yes |
| Has built-in receiver | yes |
| Receiver | 10 Hz |
| NMEA 2000 Compatible | yes |
| NMEA 0183 Compatible | yes |
| Supports WAAS | yes |
| Supports multi-band, multi-constellation GPS | yes |
Optional Map Support | |
| BlueChart g3 | yes |
|---|---|
| BlueChart g3 Vision | yes |
| LakeVü g3 | yes |
| LakeVü g3 Ultra | yes |
| Garmin Navionics+™ | yes |
| Garmin Navionics Vision+™ | yes |
| TOPO 100K | yes |
| Standard mapping | yes |
| Garmin Quickdraw Contours | yes |
| Raster chart support | yes |
Chartplotter Features | |
| Smart Mode Compatible | yes |
|---|---|
| AIS | yes |
| DSC | yes |
| Supports Fusion-Link™ compatible radios | yes |
| GCV black box sonar support | yes |
| ActiveCaptain® compatible | yes |
| Supports voice commands | yes |
| GRID (Garmin Remote Input Device) compatible | yes |
| GRID 20 compatible | yes |
| Wireless Remote Compatible | yes |
| Sailing features | yes |
| Spoken audio alerts | yes |
| OneHelm support | yes |
Electrical Features | |
| Power Input | 10 to 32 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 2.43 A |
| Maximum current draw at 12 Vdc | 2.8 A |
| Maximum power usage at 10 Vdc | 29 W |

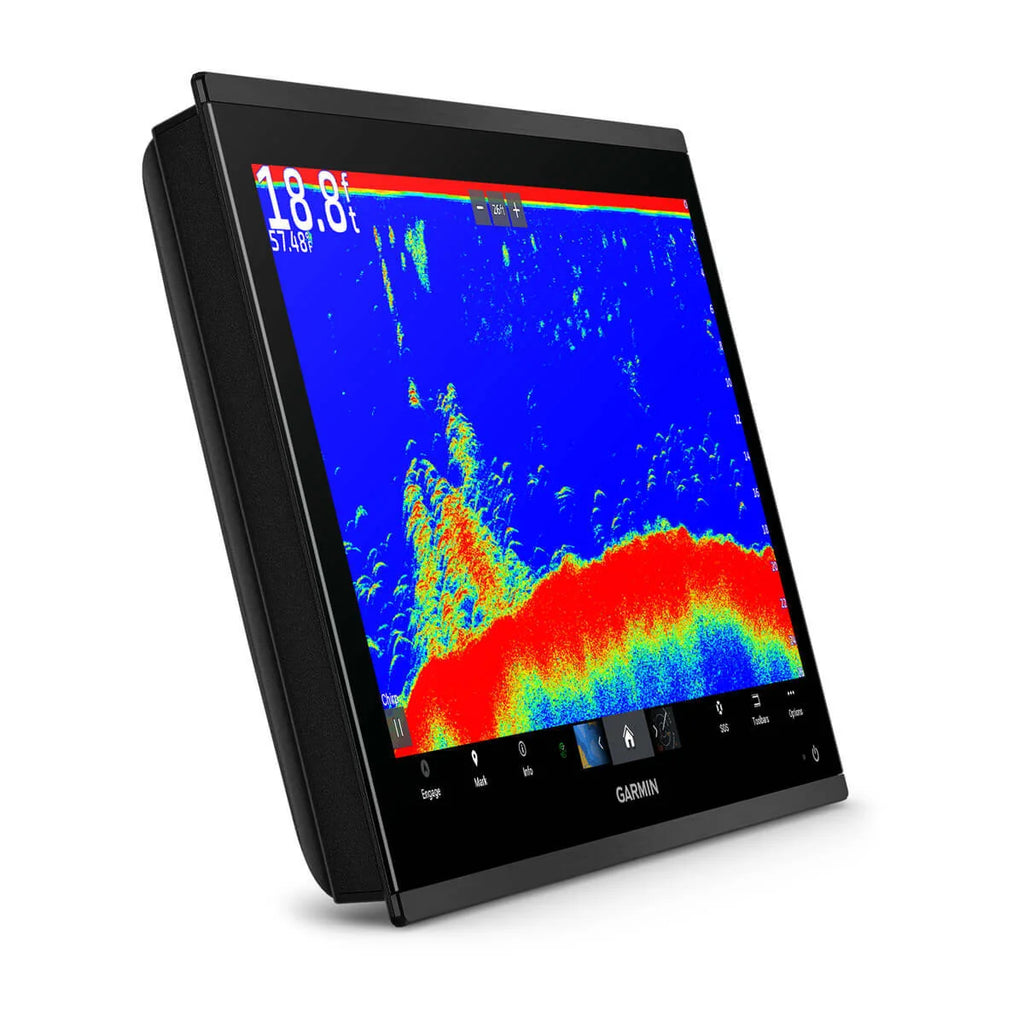

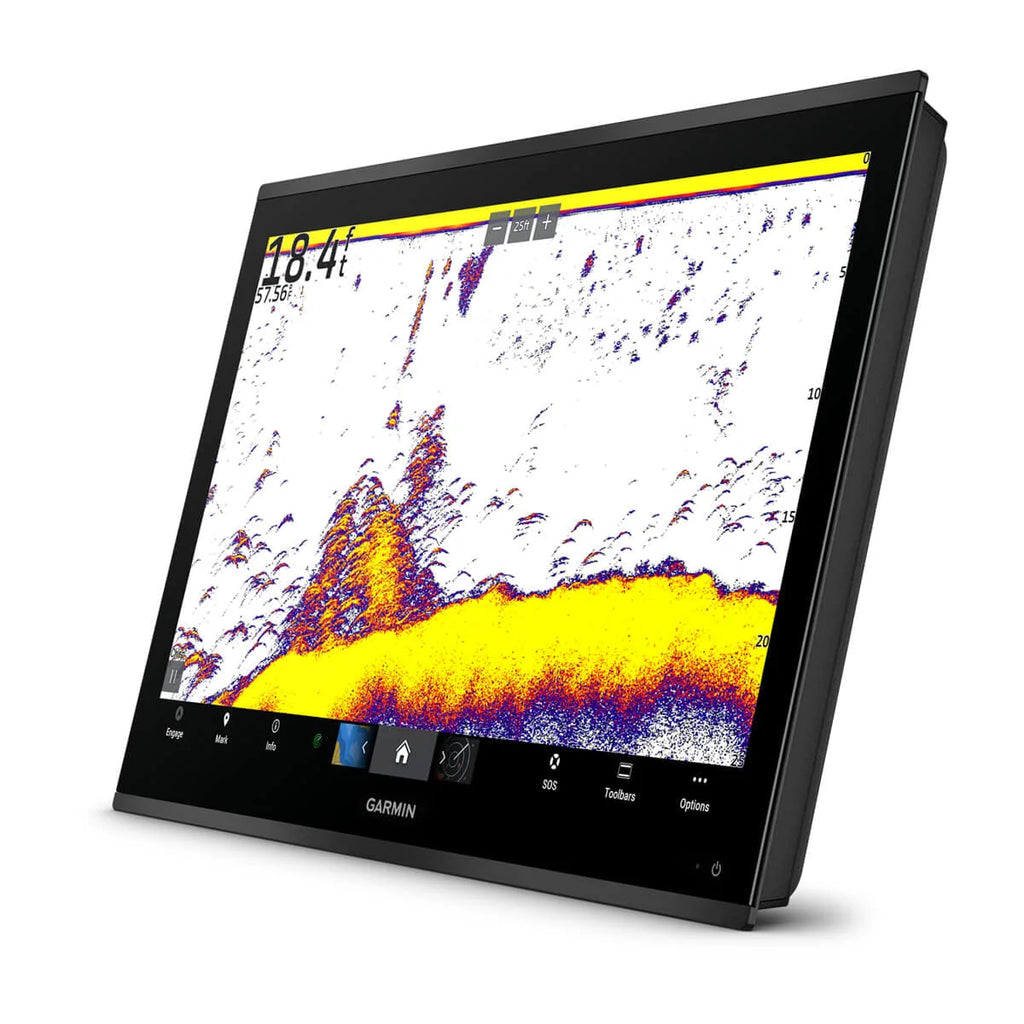

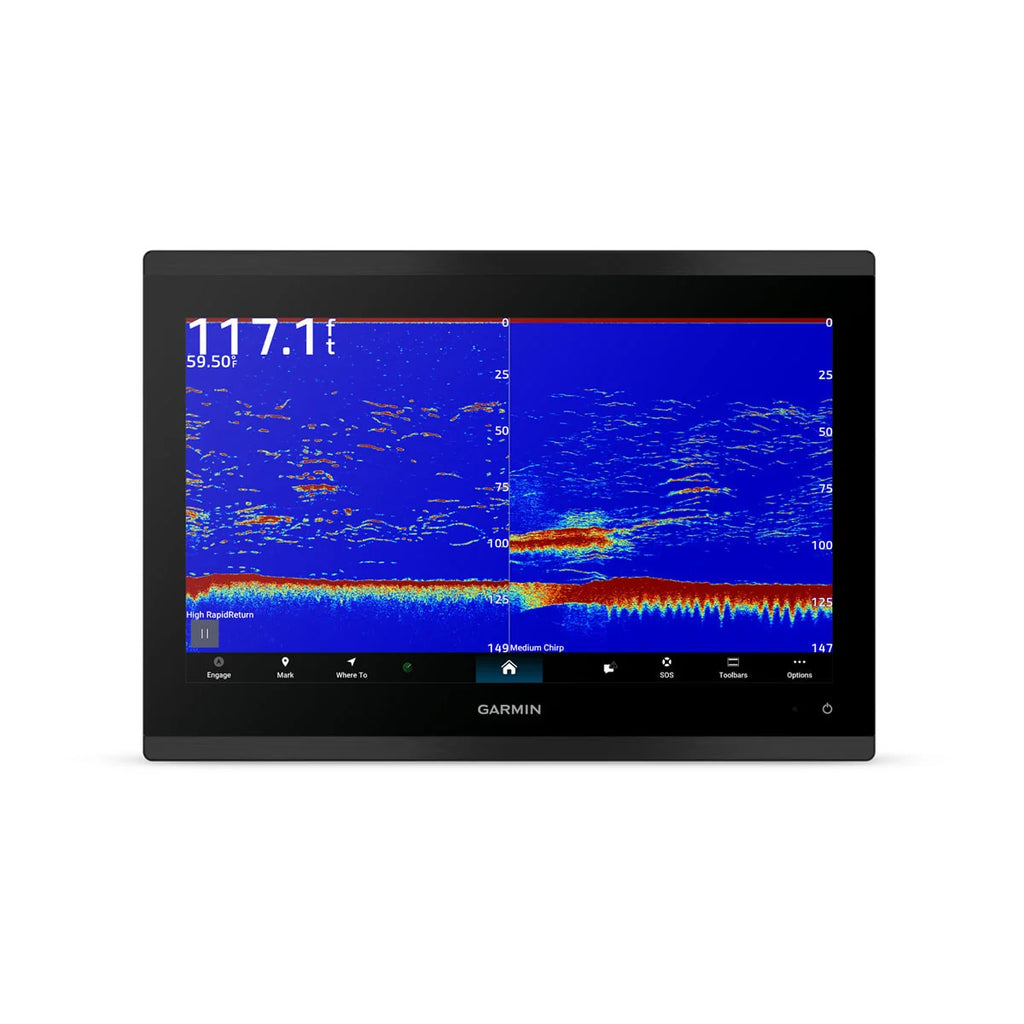

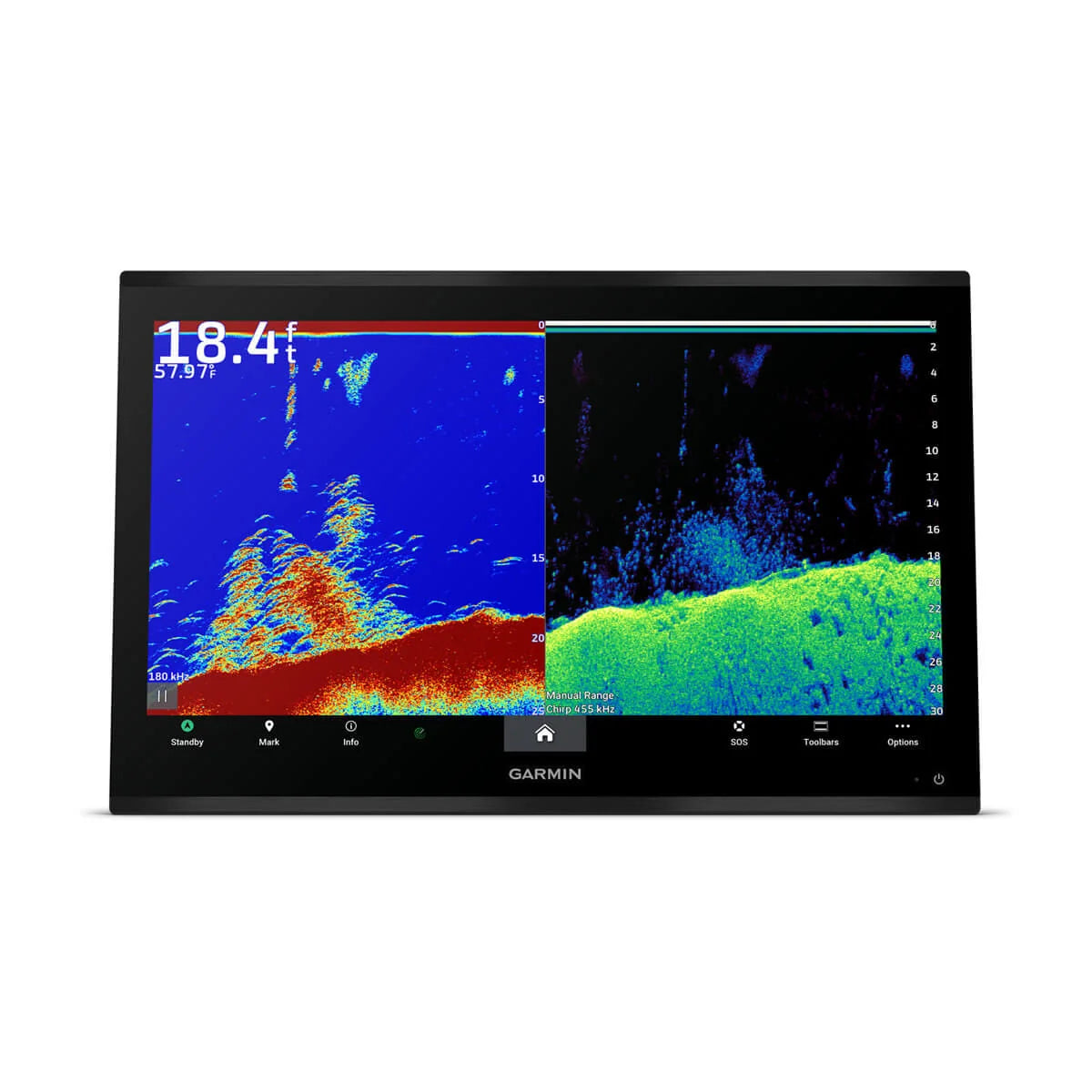

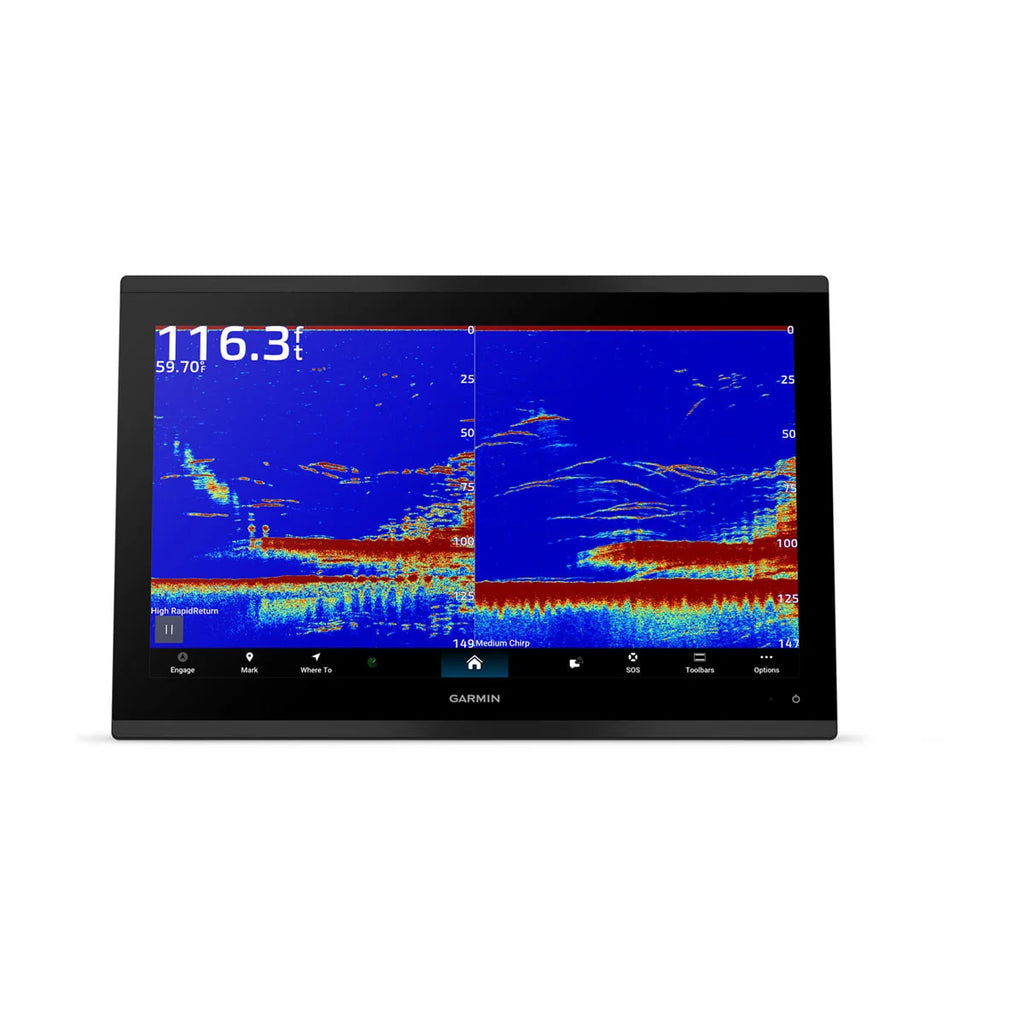

Sonar Features | |

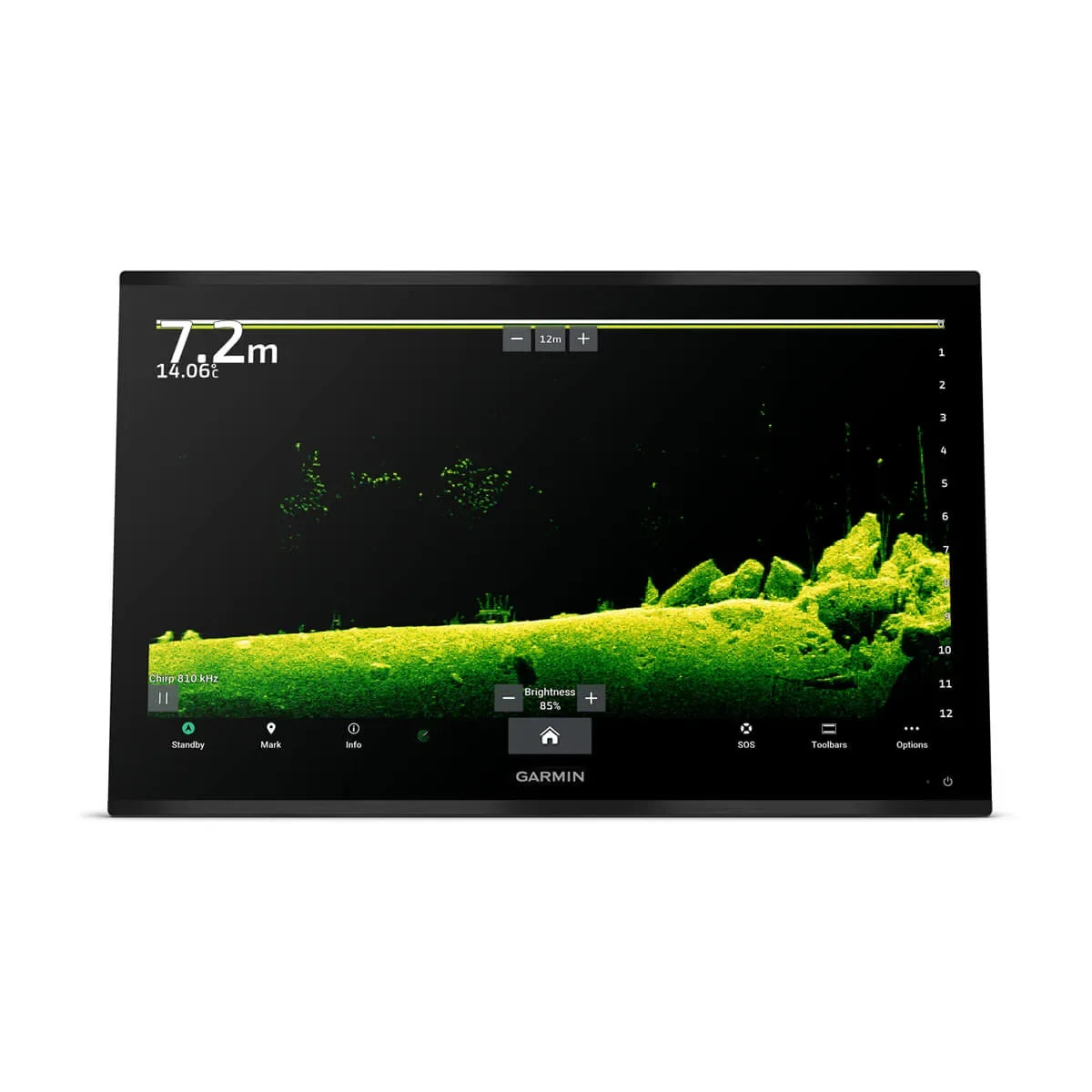

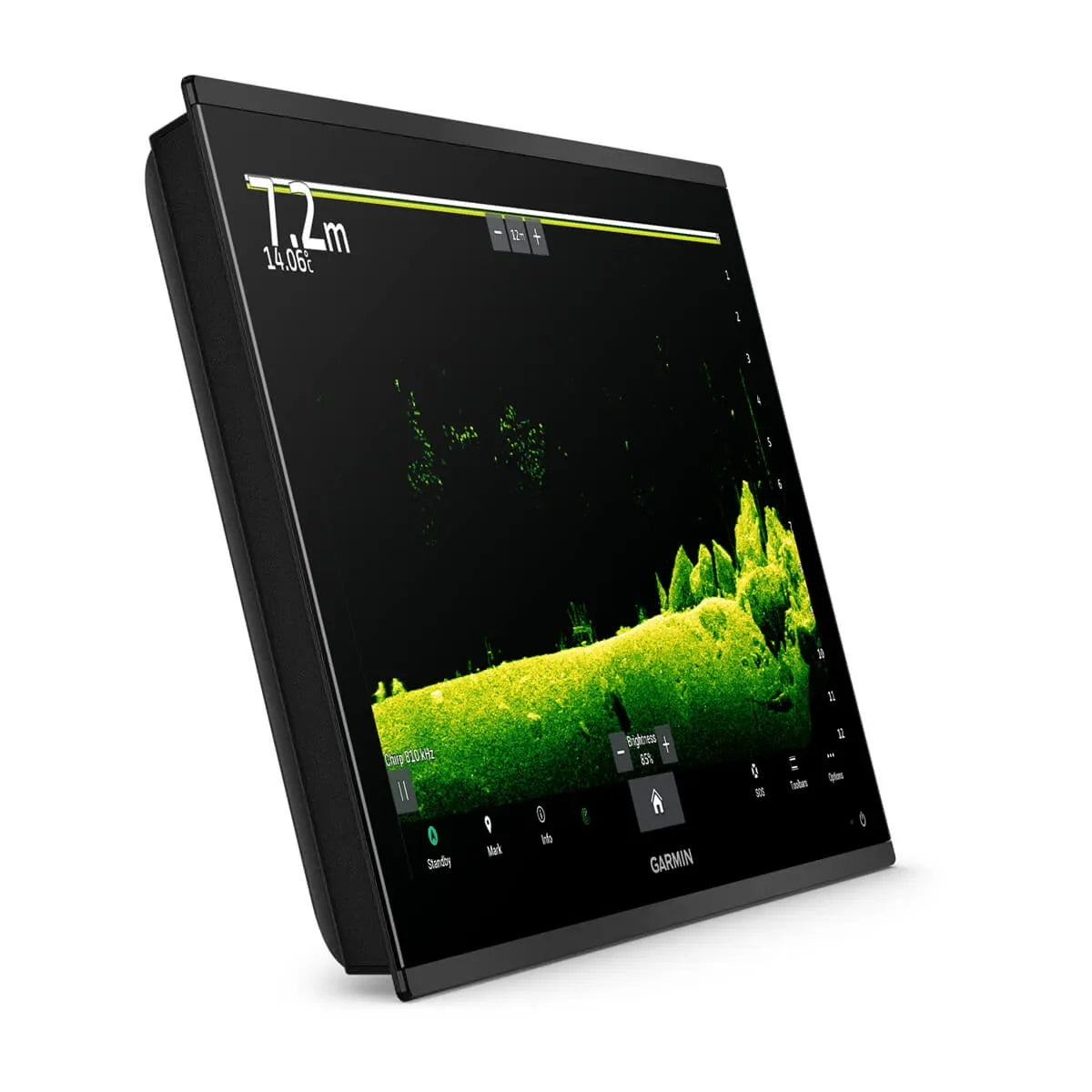

| Displays sonar | yes |
|---|---|
| Traditional sonar (dual frequency/beam) | yes (with GCV™ black box, sold separately) |
| Supports built-in xCHIRP | yes (with compatible black box sonar) |
| Supports built-in RapidReturn | yes (with compatible black box sonar) |
| ClearVü | yes (with compatible black box sonar) |

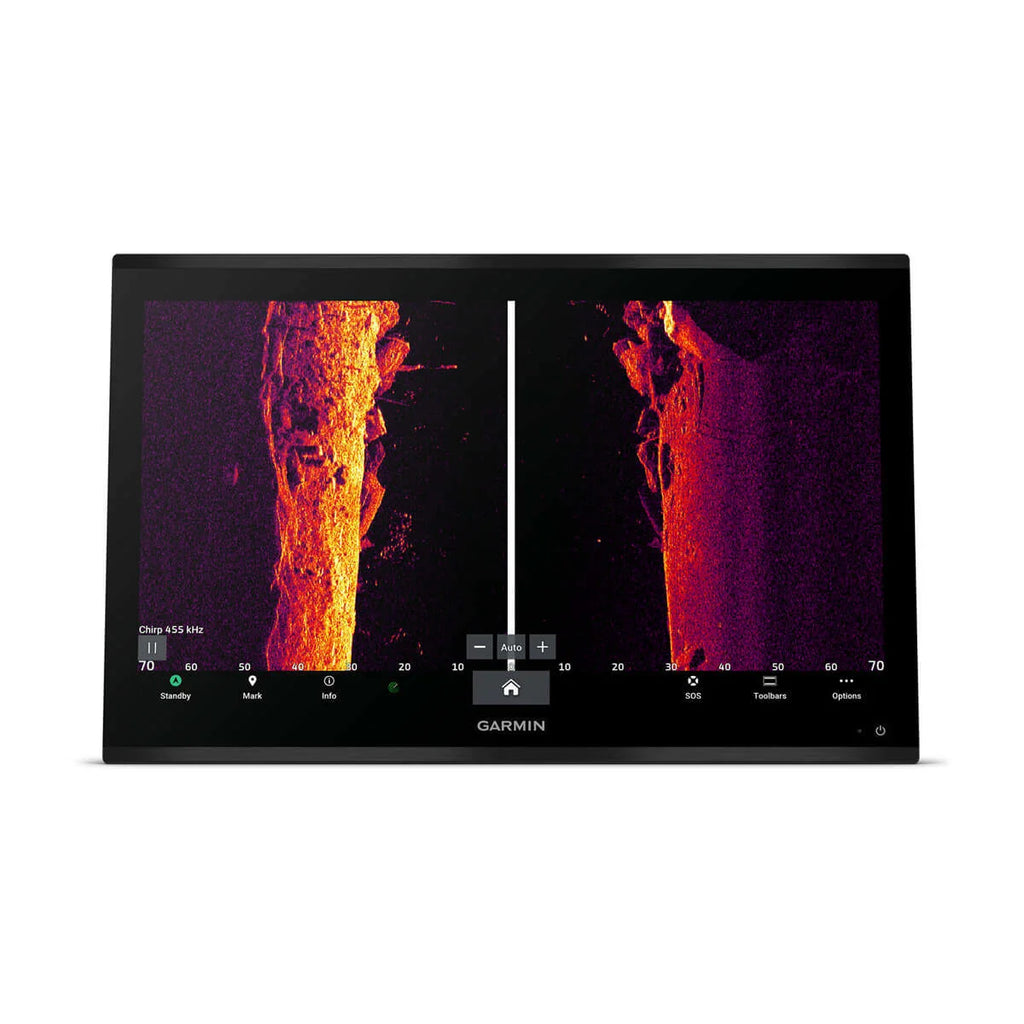

| SideVü | yes (with compatible black box sonar) |

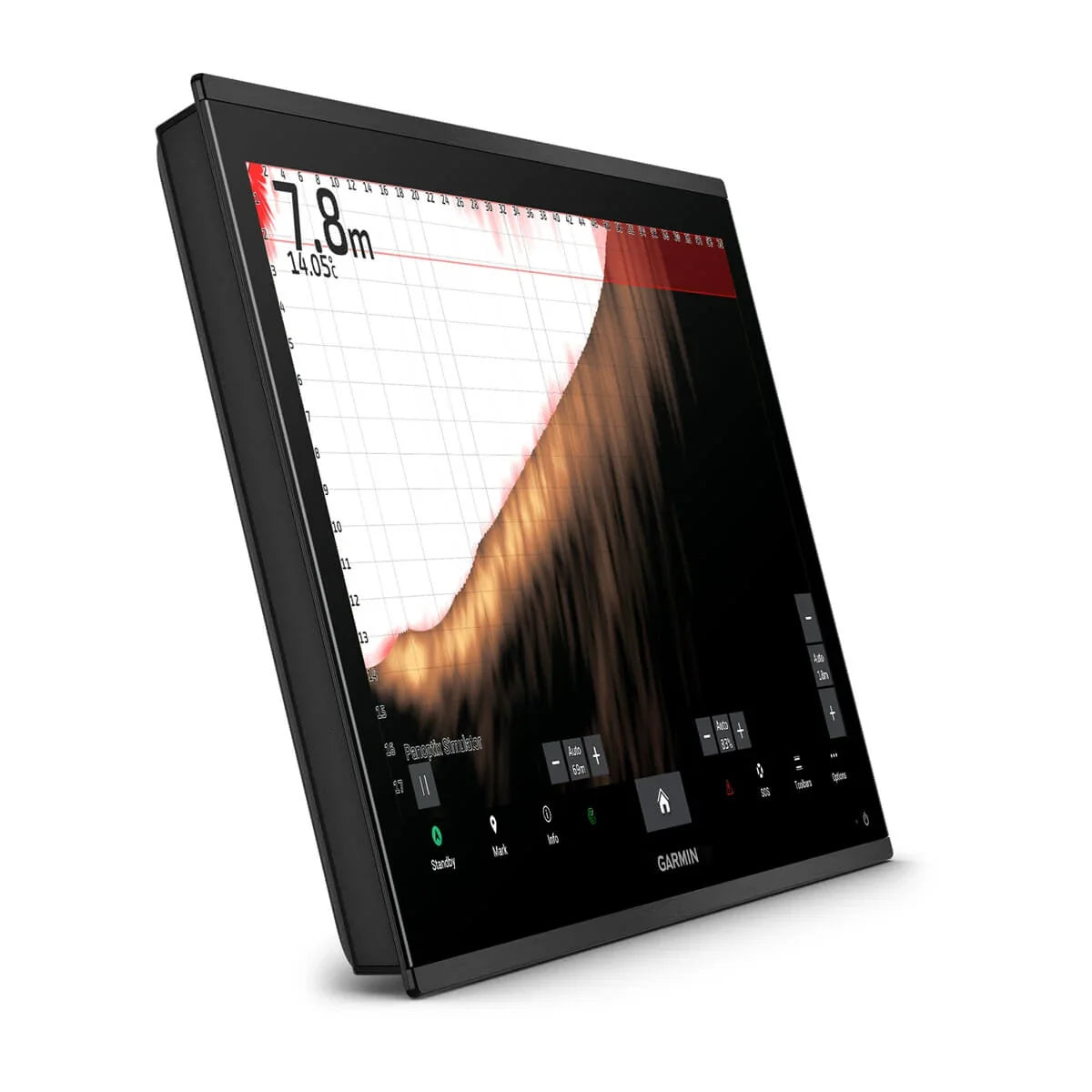

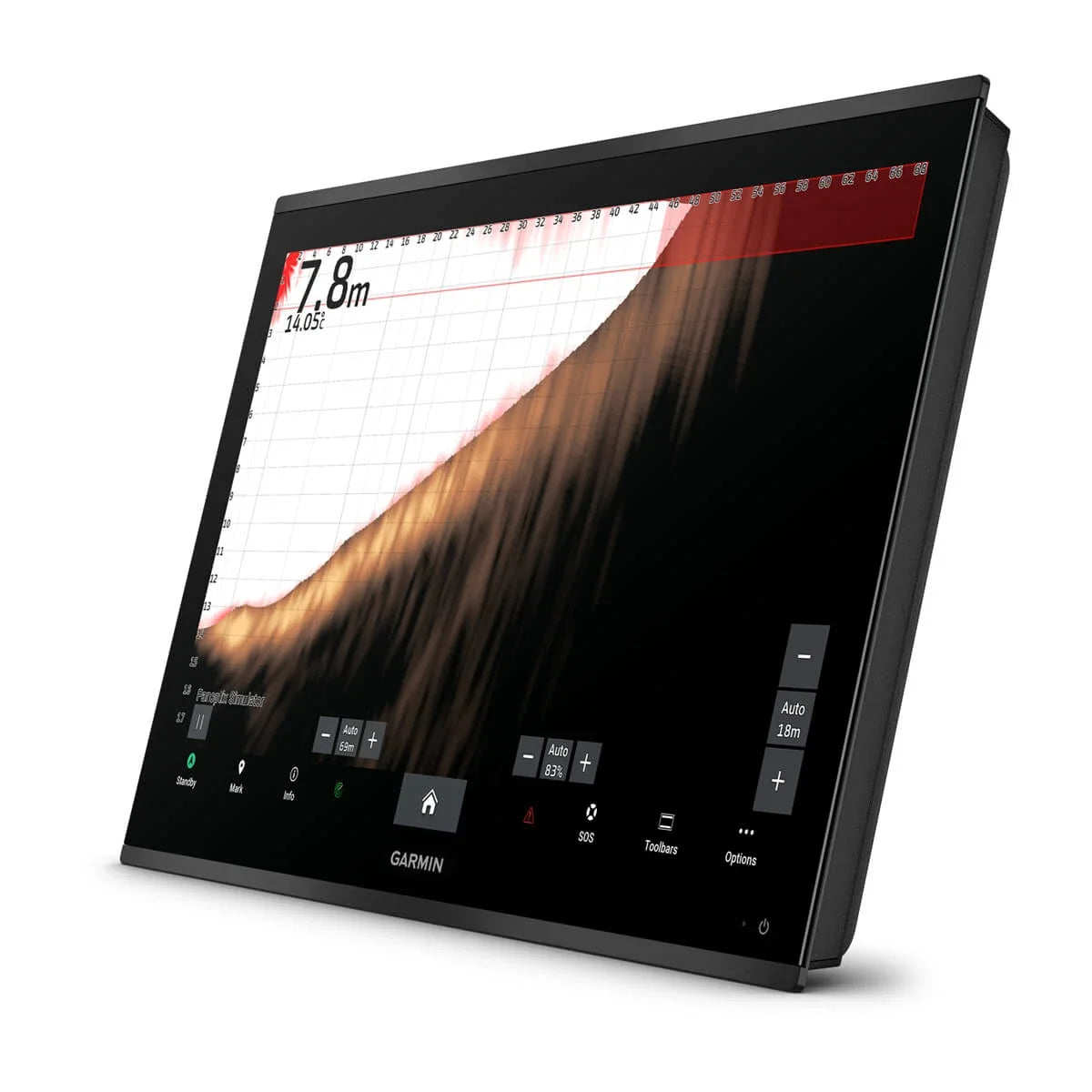

| Panoptix™ sonar | yes |

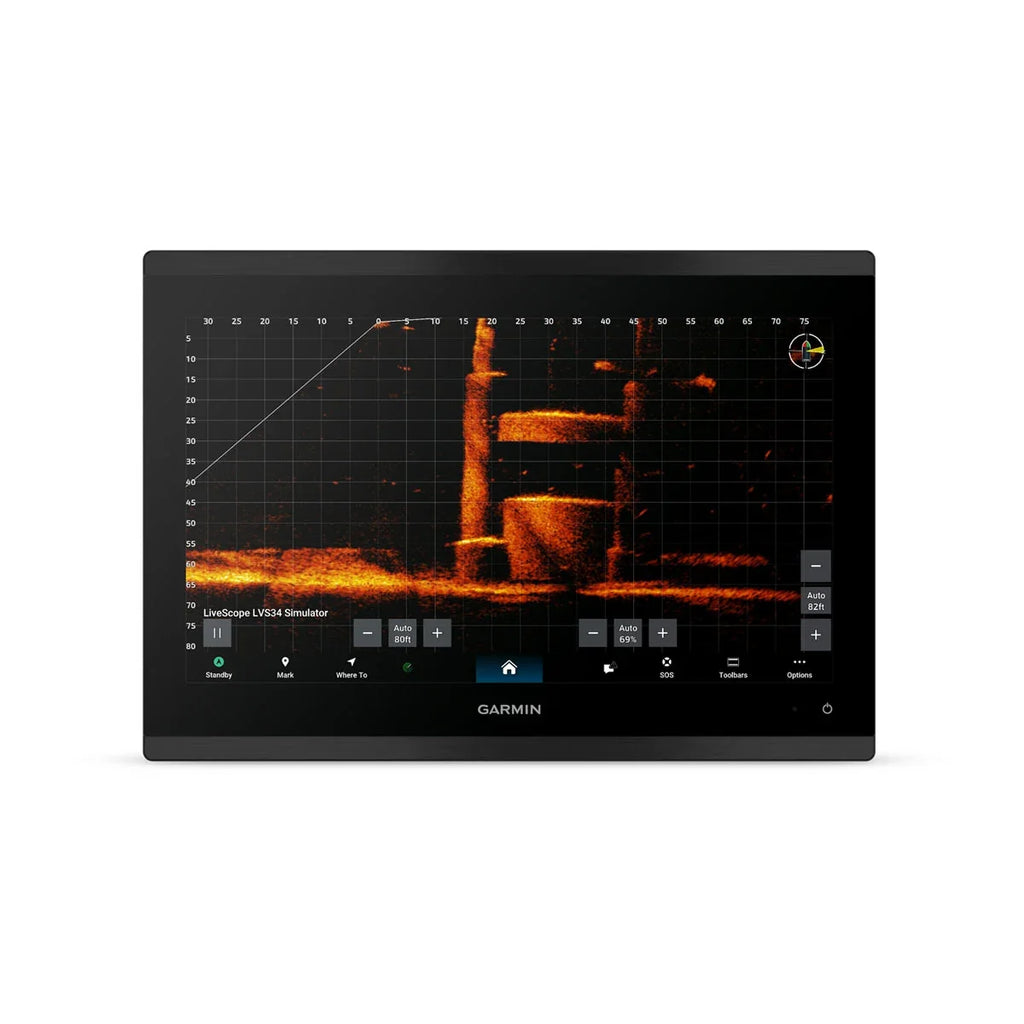

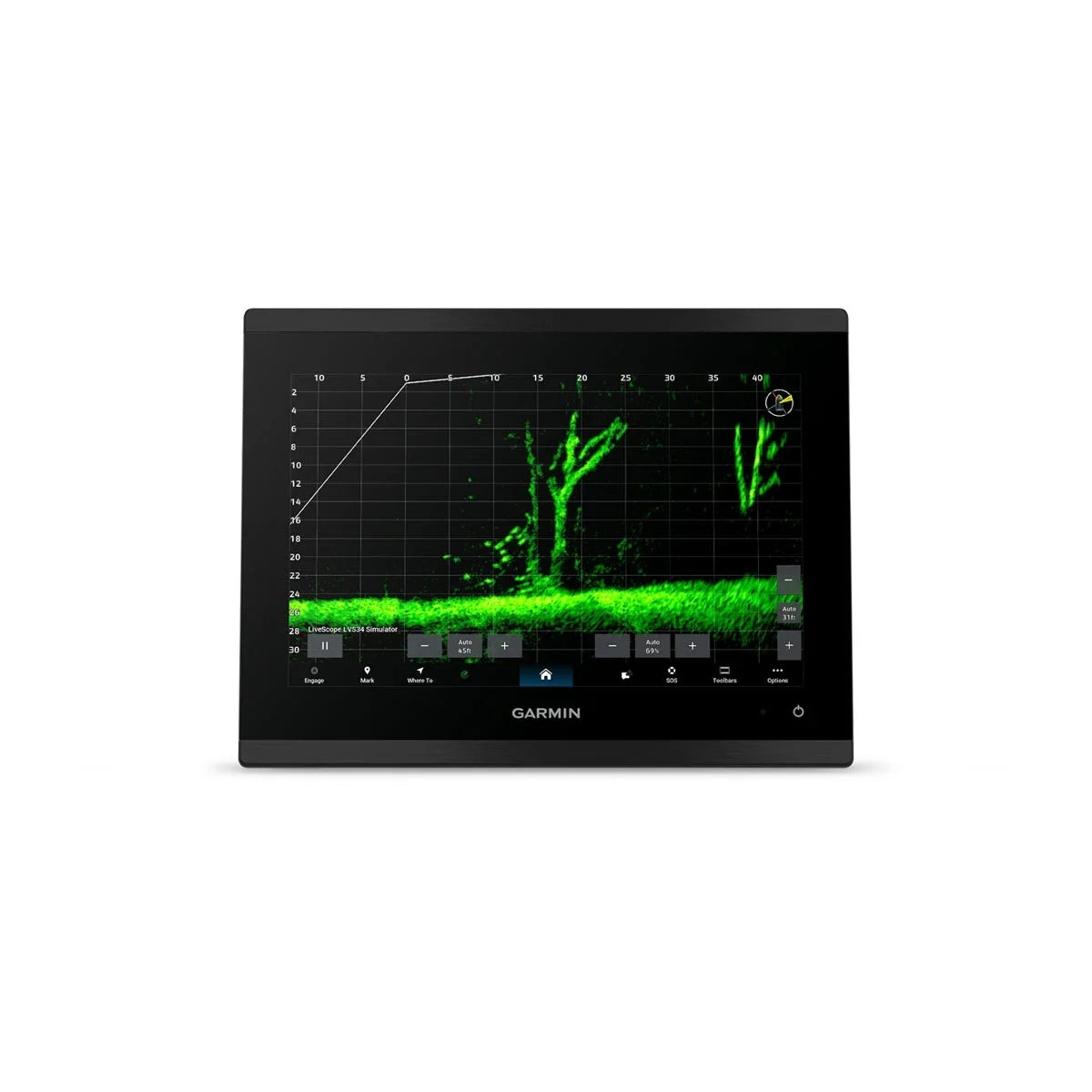

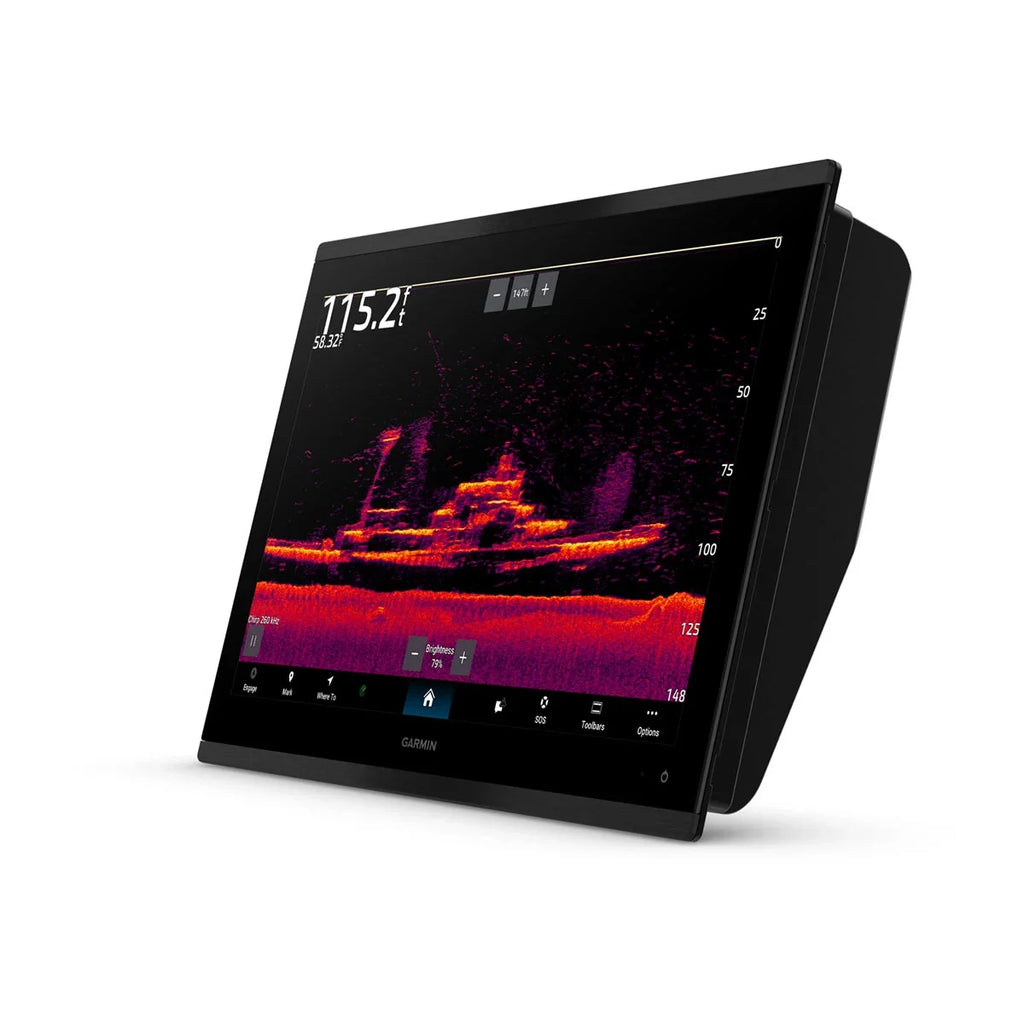

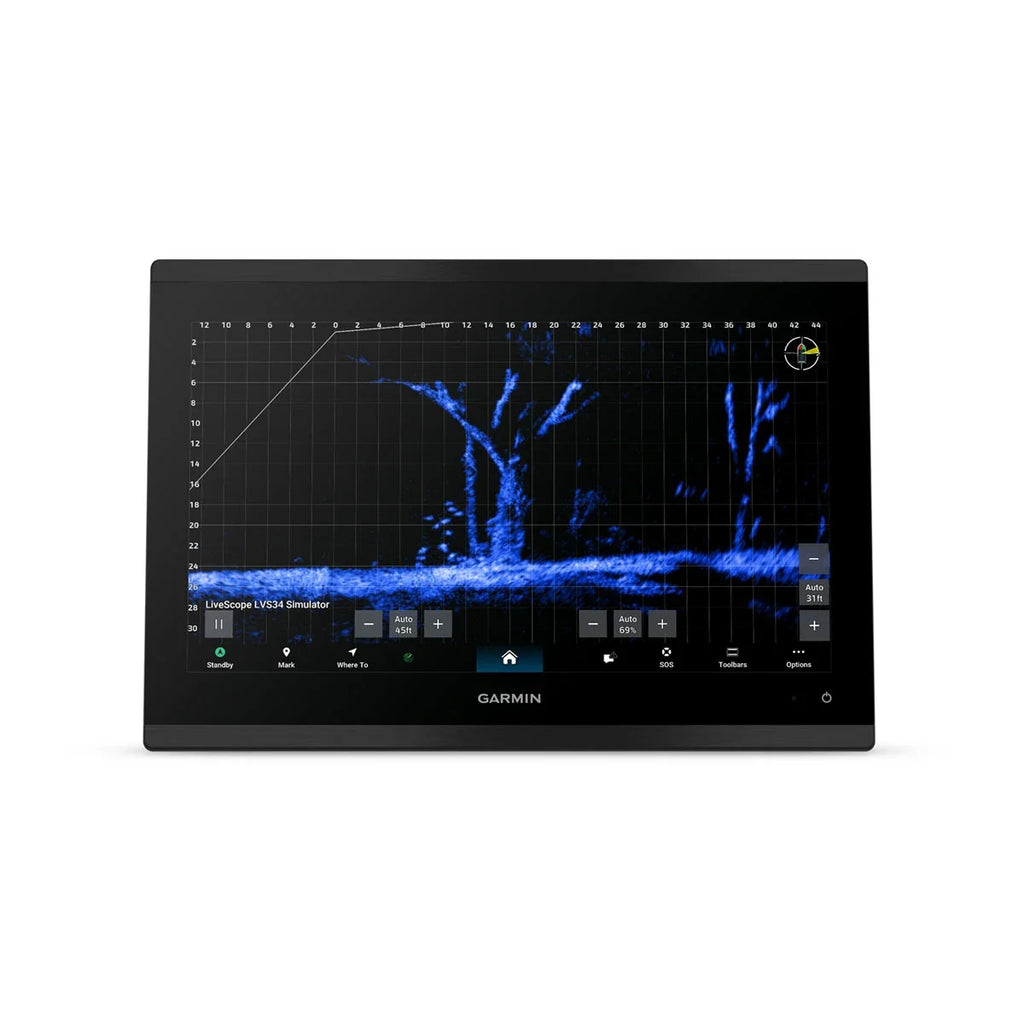

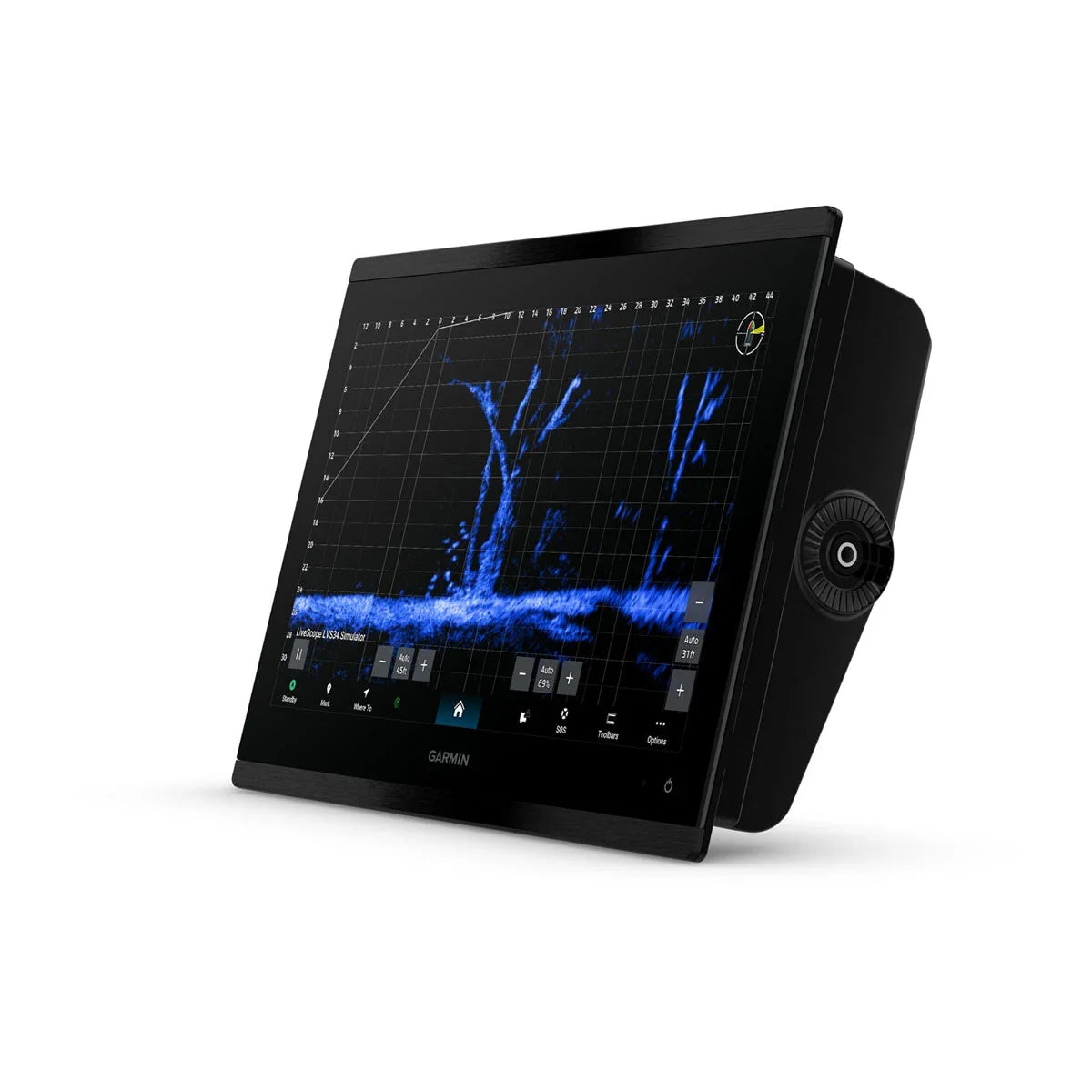

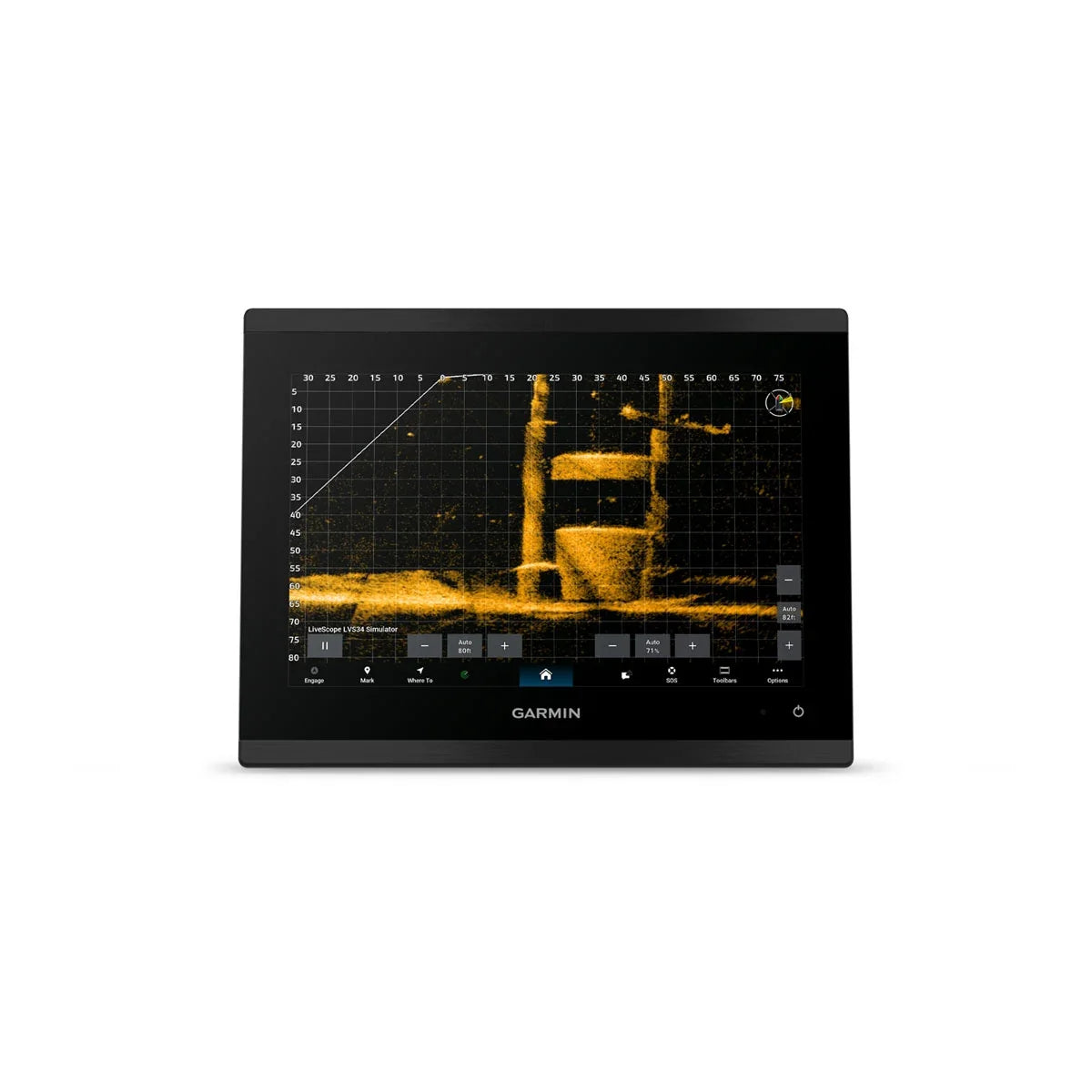

| LiveScope | yes |

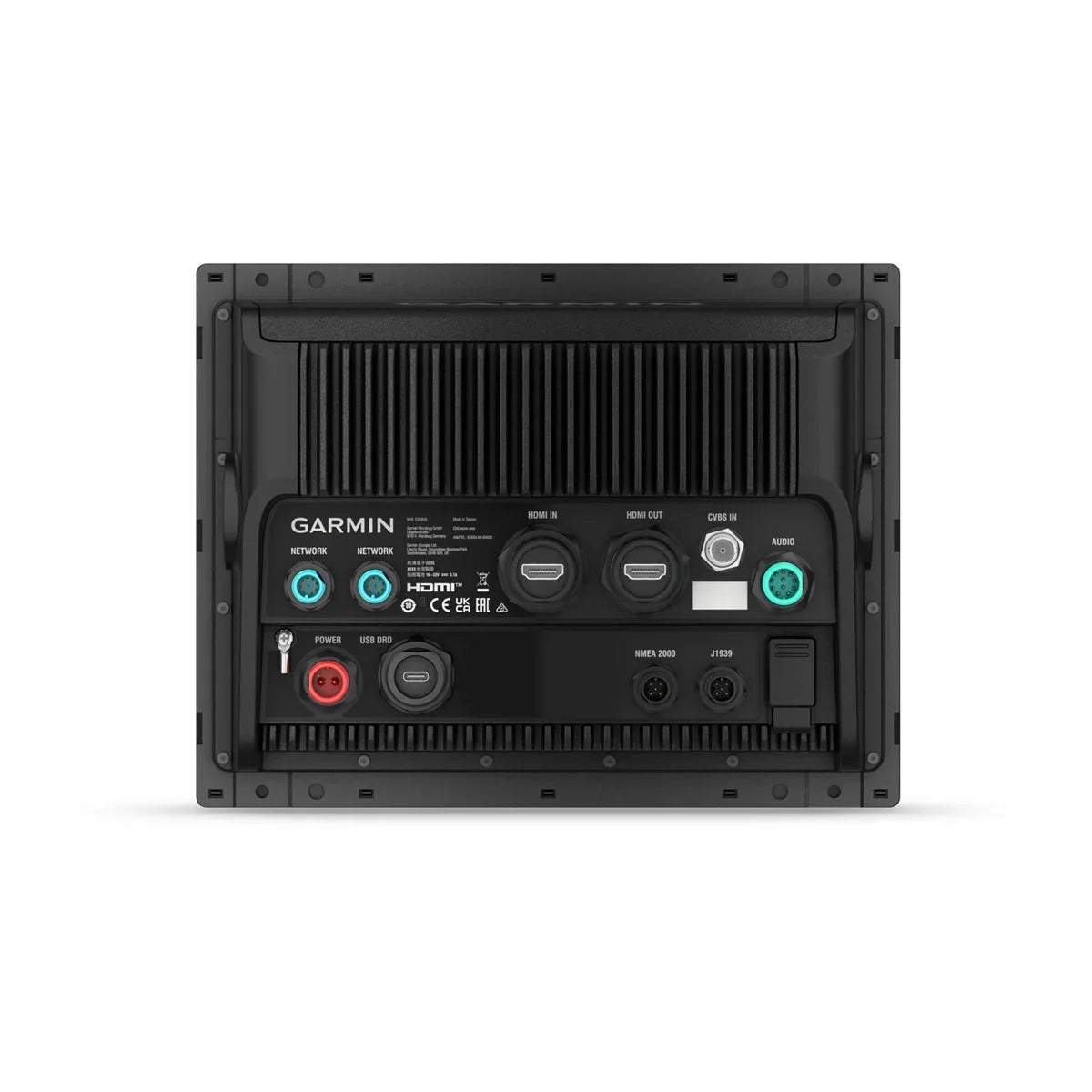

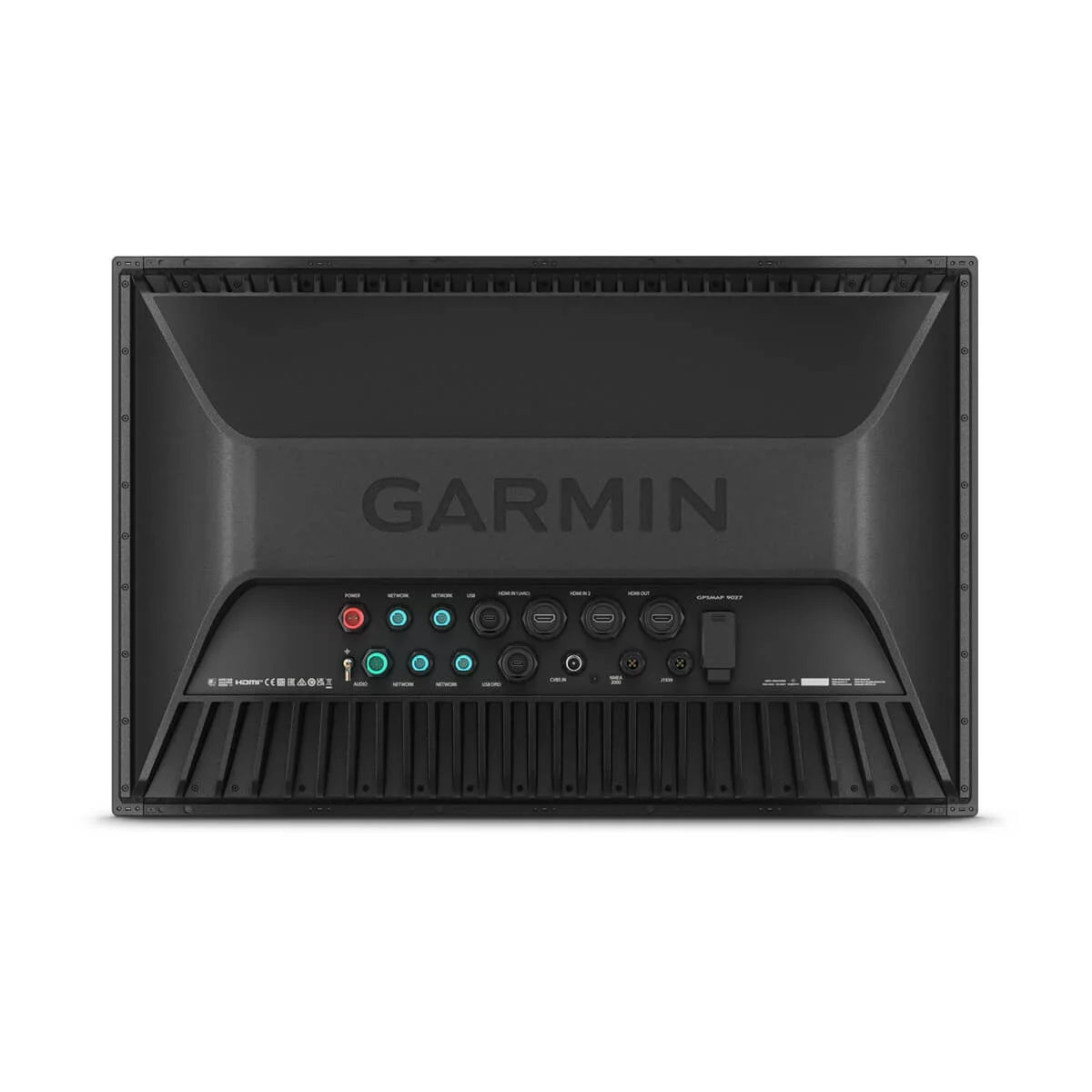

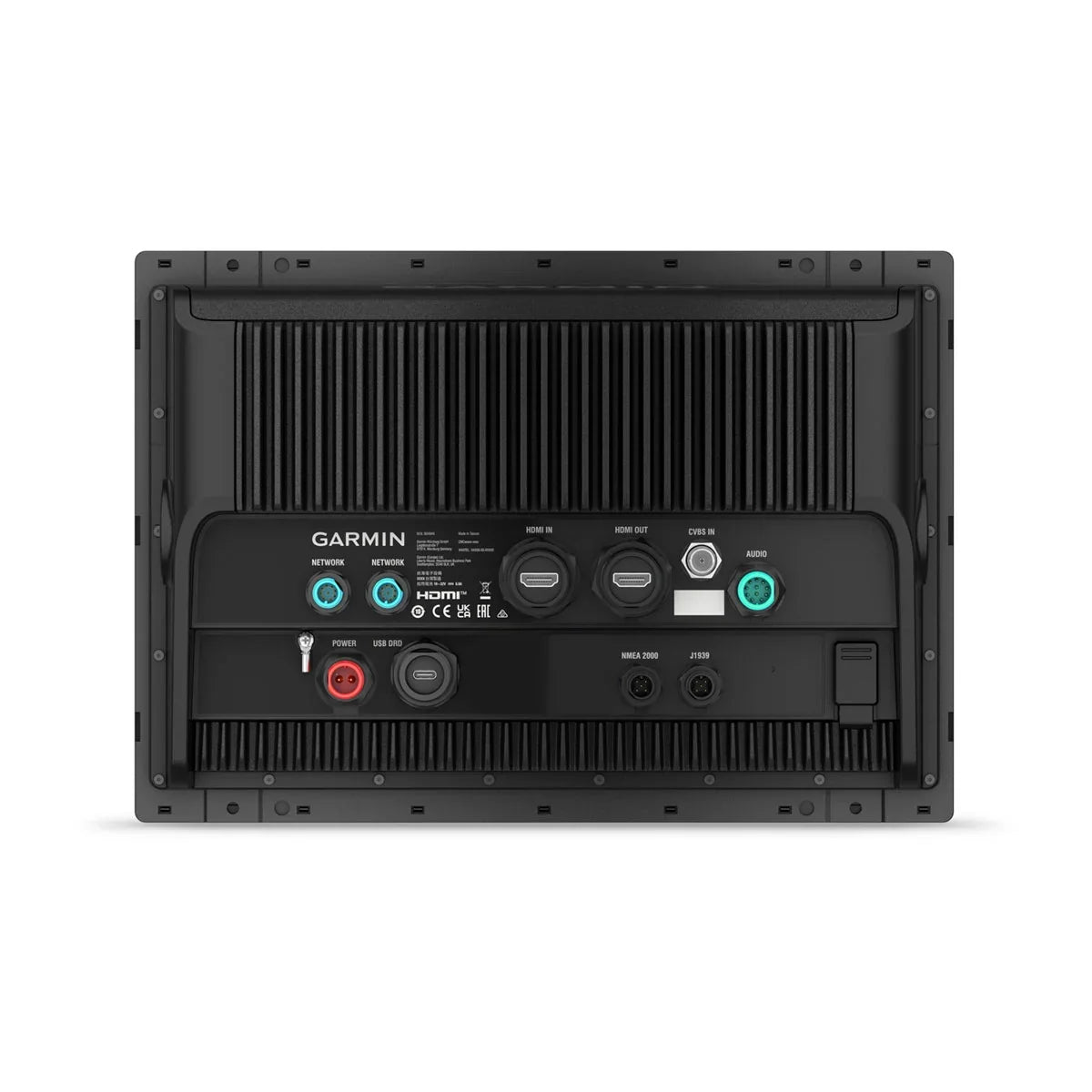

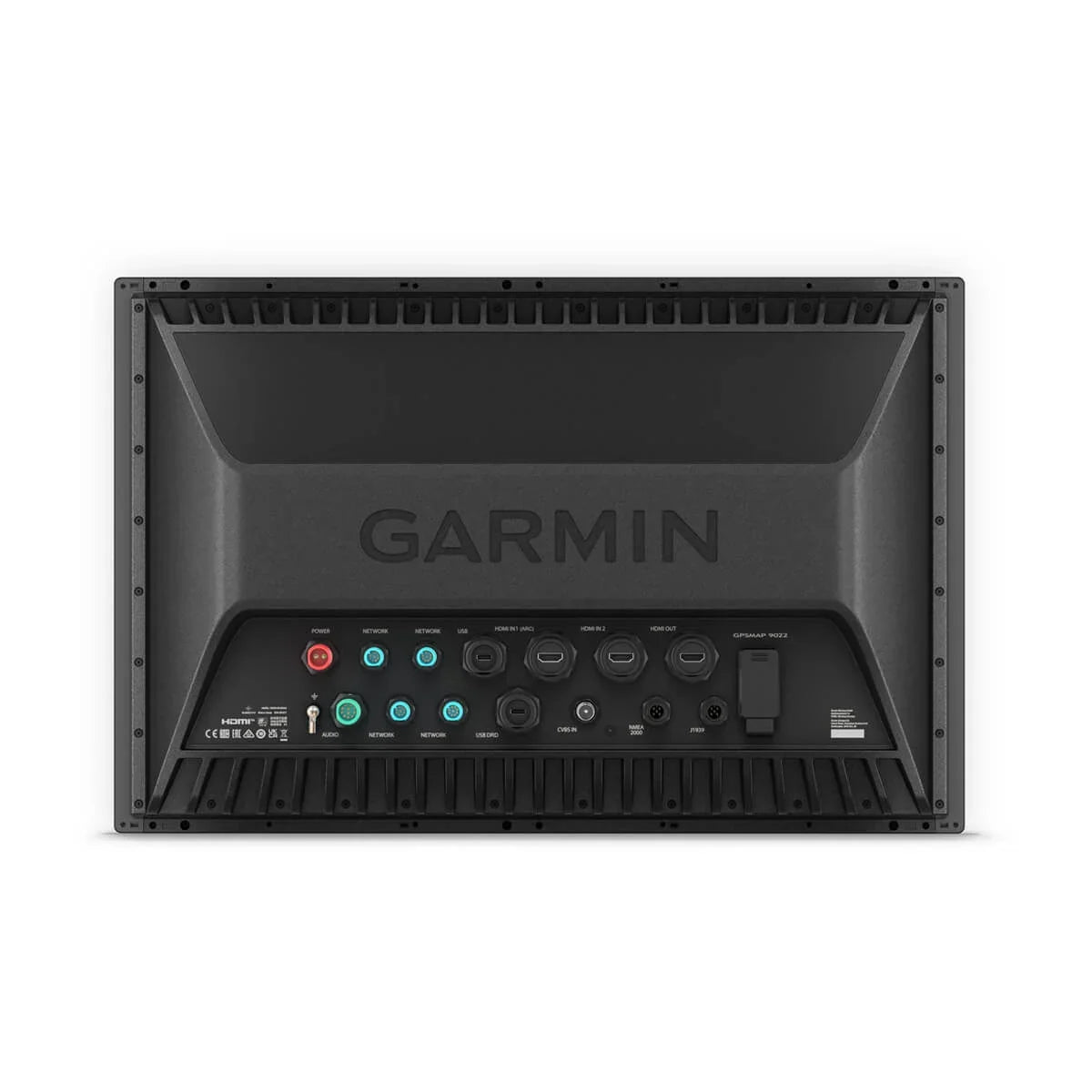

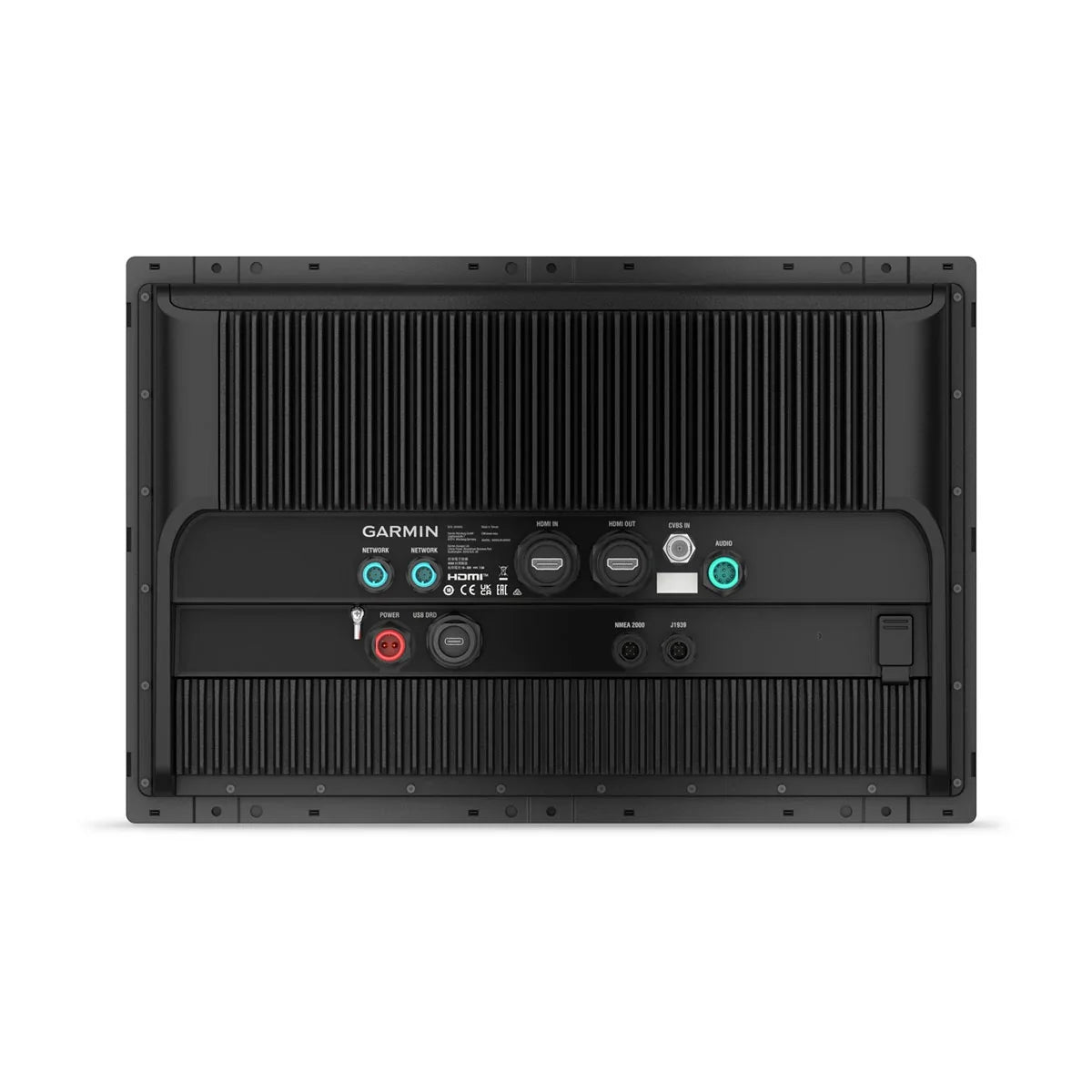

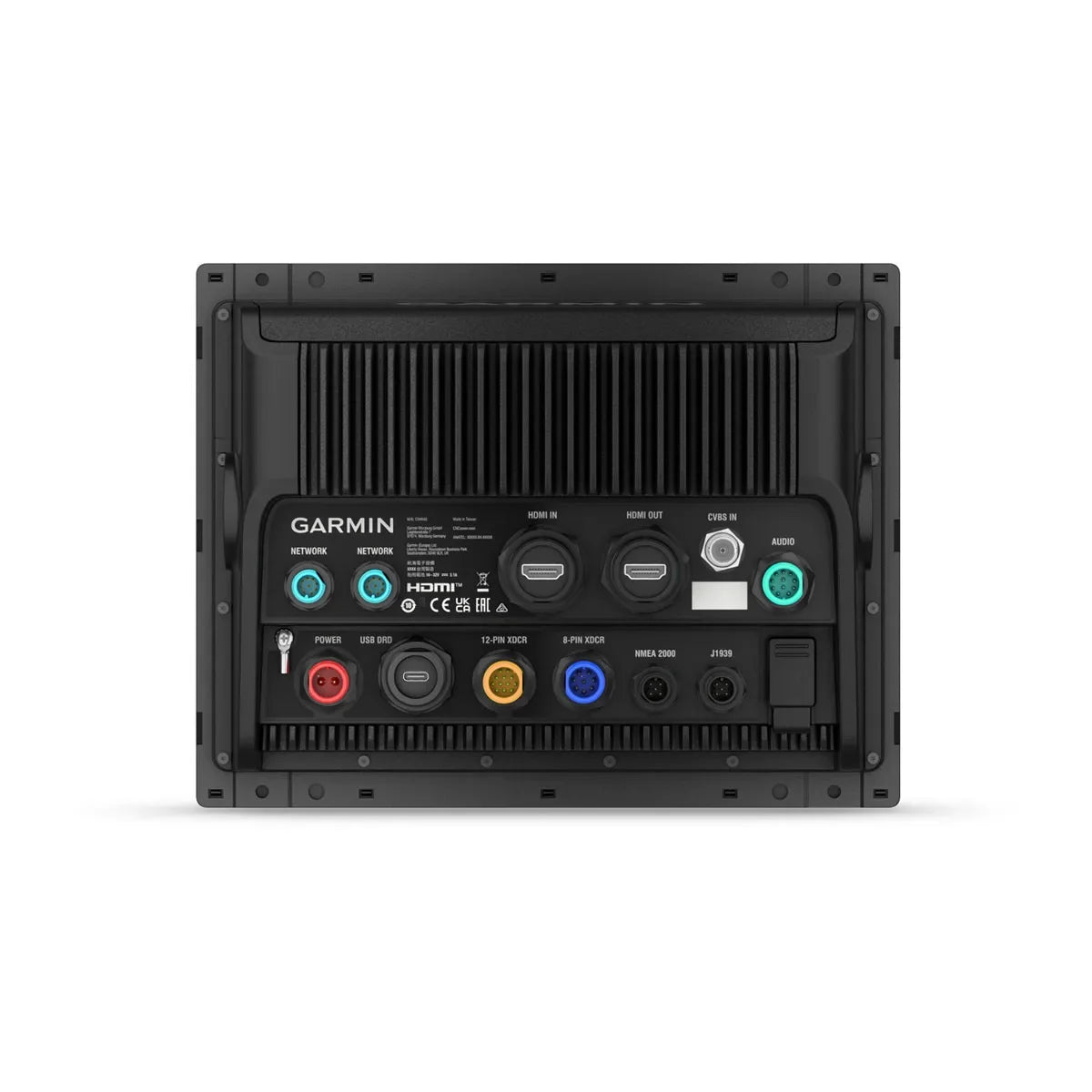

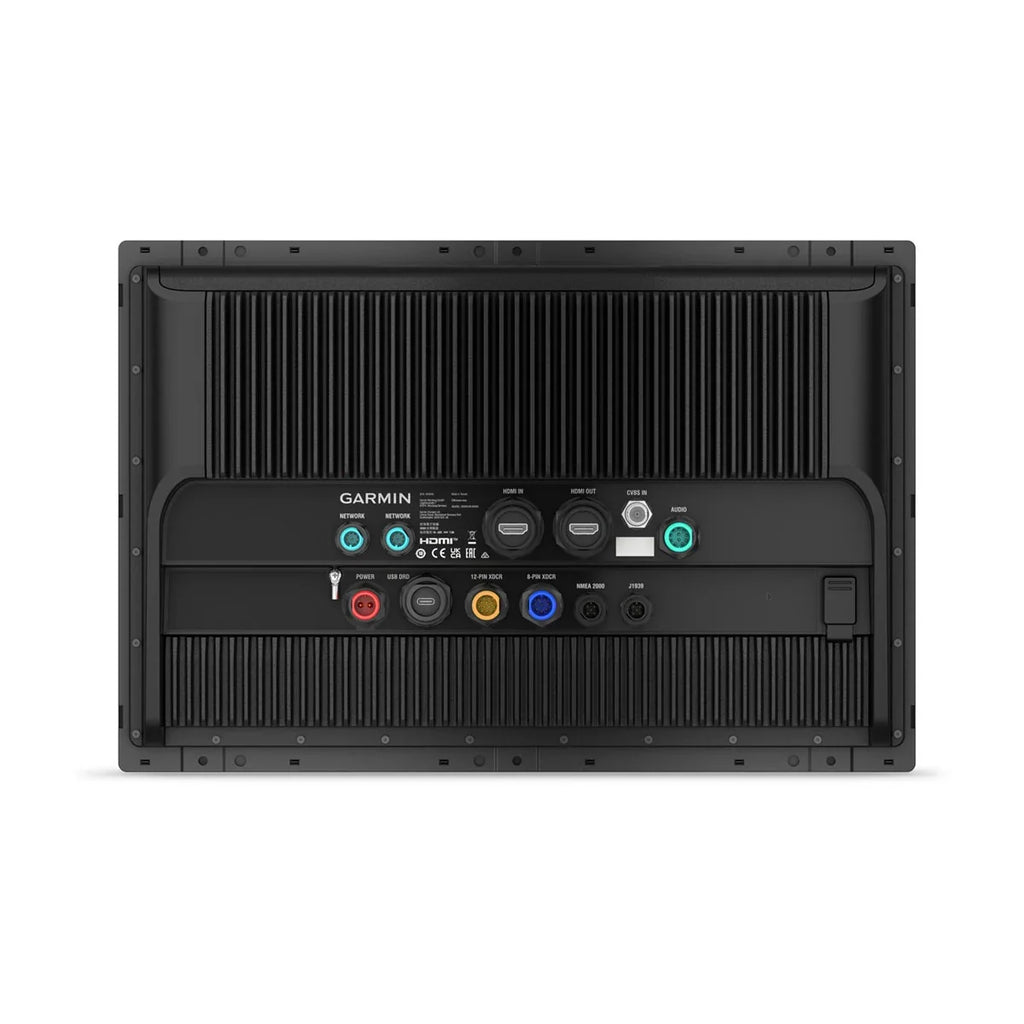

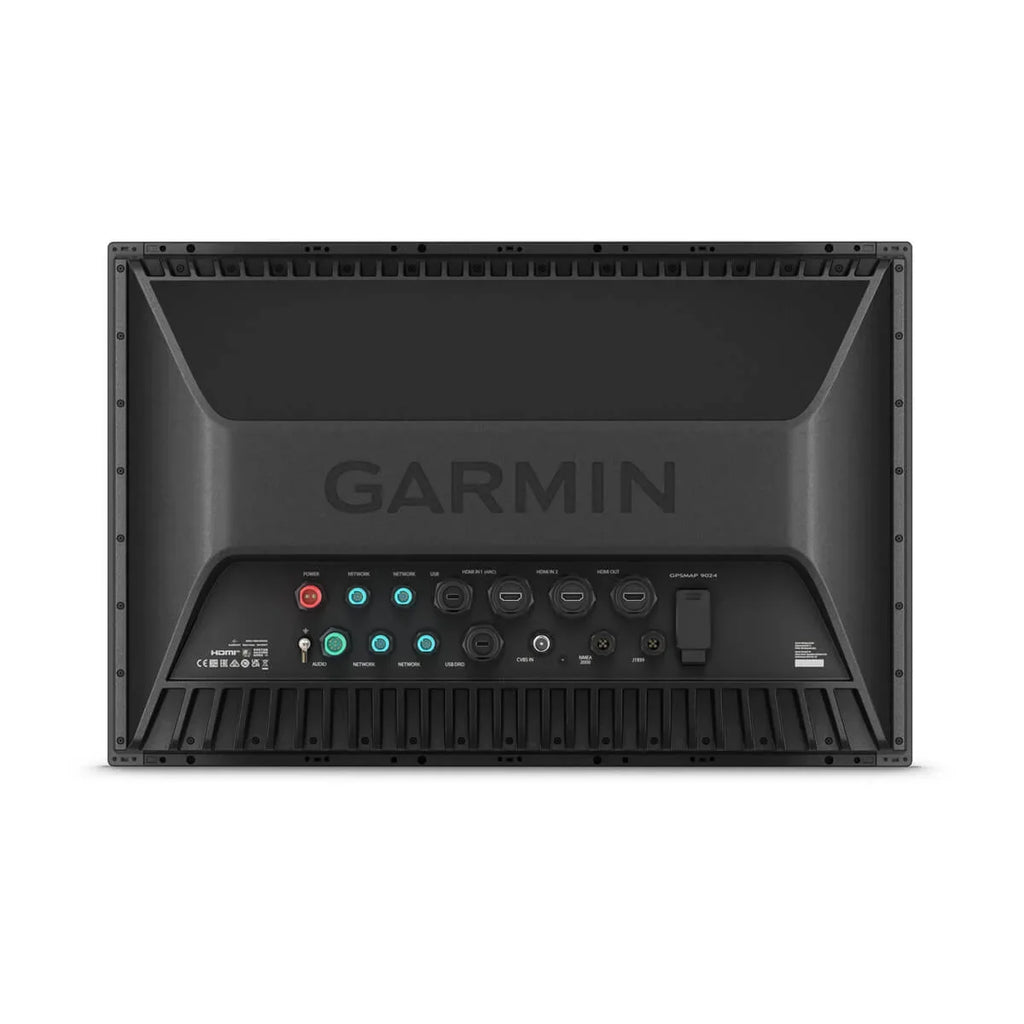

Networking & Connections | |
| NMEA 2000® ports | 1 |
|---|---|
| NMEA 0183 Input (Rx) Ports | 1 |
| NMEA 0183 output (Tx) ports | 1 |
| Video input ports | 1 (BNC composite); 1 HDMI (HDCP compliant) |
| Video output ports | 1 HDMI |
| J1939 ports | 1 |
| Garmin BlueNet network ports | 2 |
| USB ports | yes (1x USB-C) |
| Bluetooth® pairing | yes |
| ANT® (connectivity) | yes |
| Garmin Wi-Fi network (local connection) | yes |
| Wi-Fi frequency bands | 2.4 GHz & 5 GHz |
| Audio output | yes |
