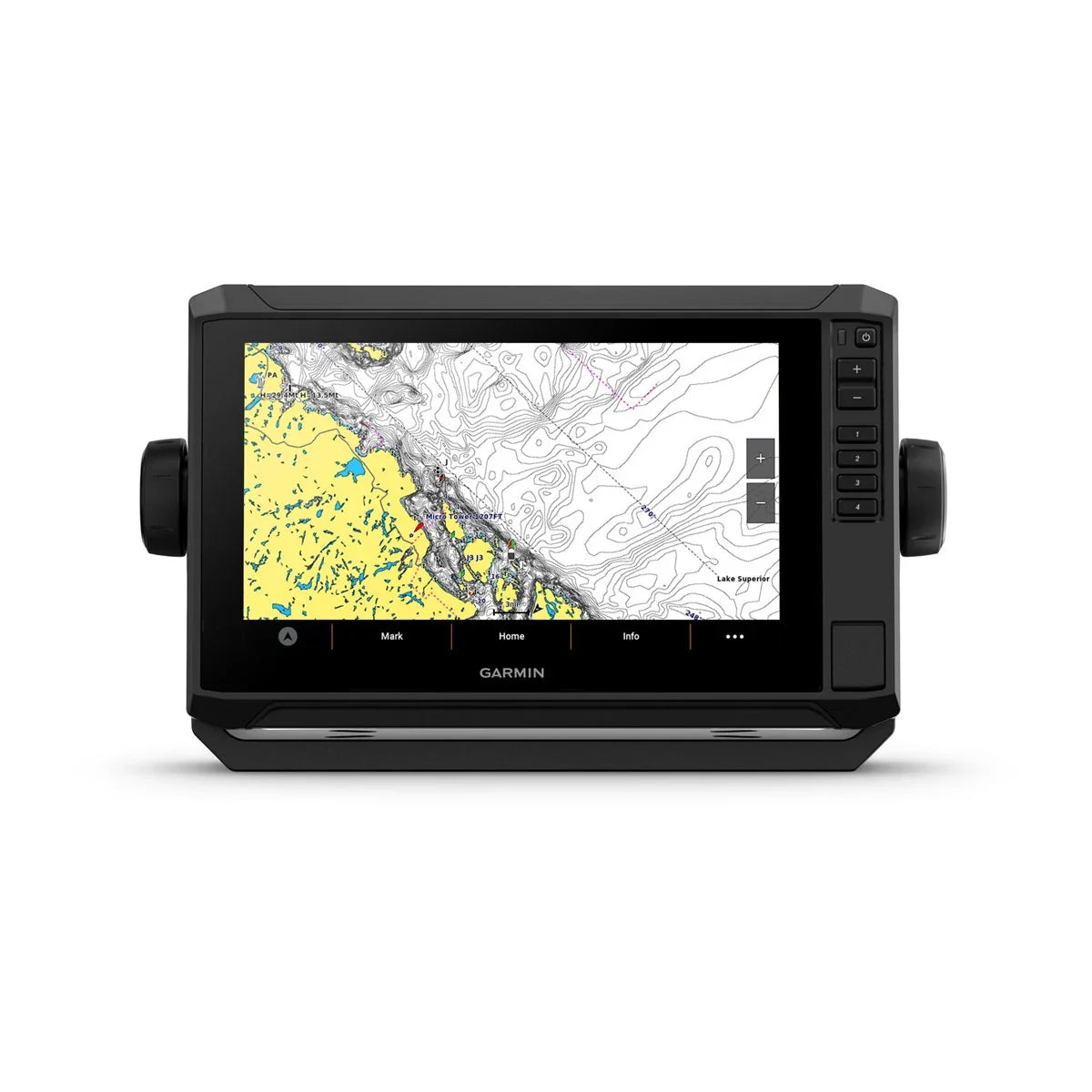

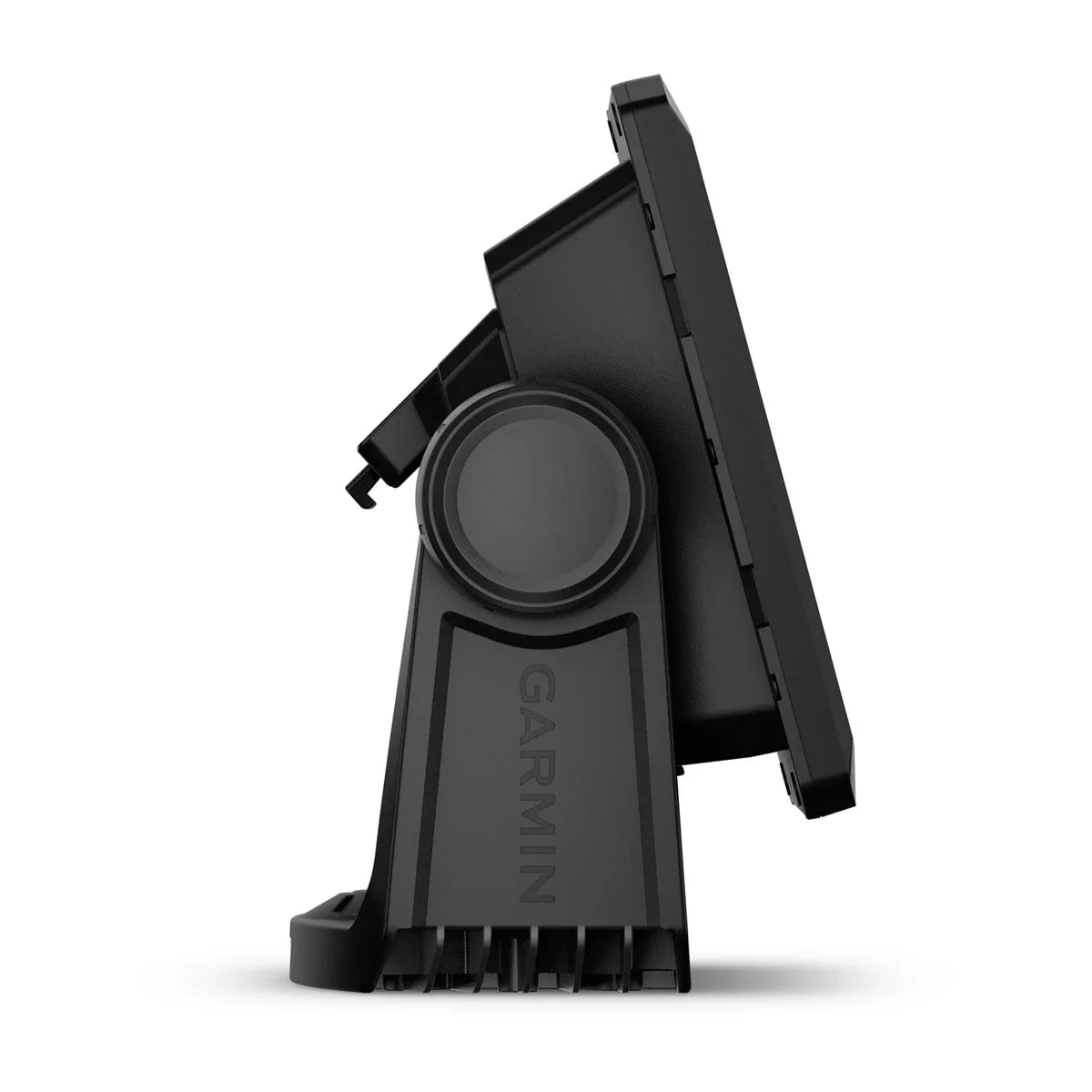

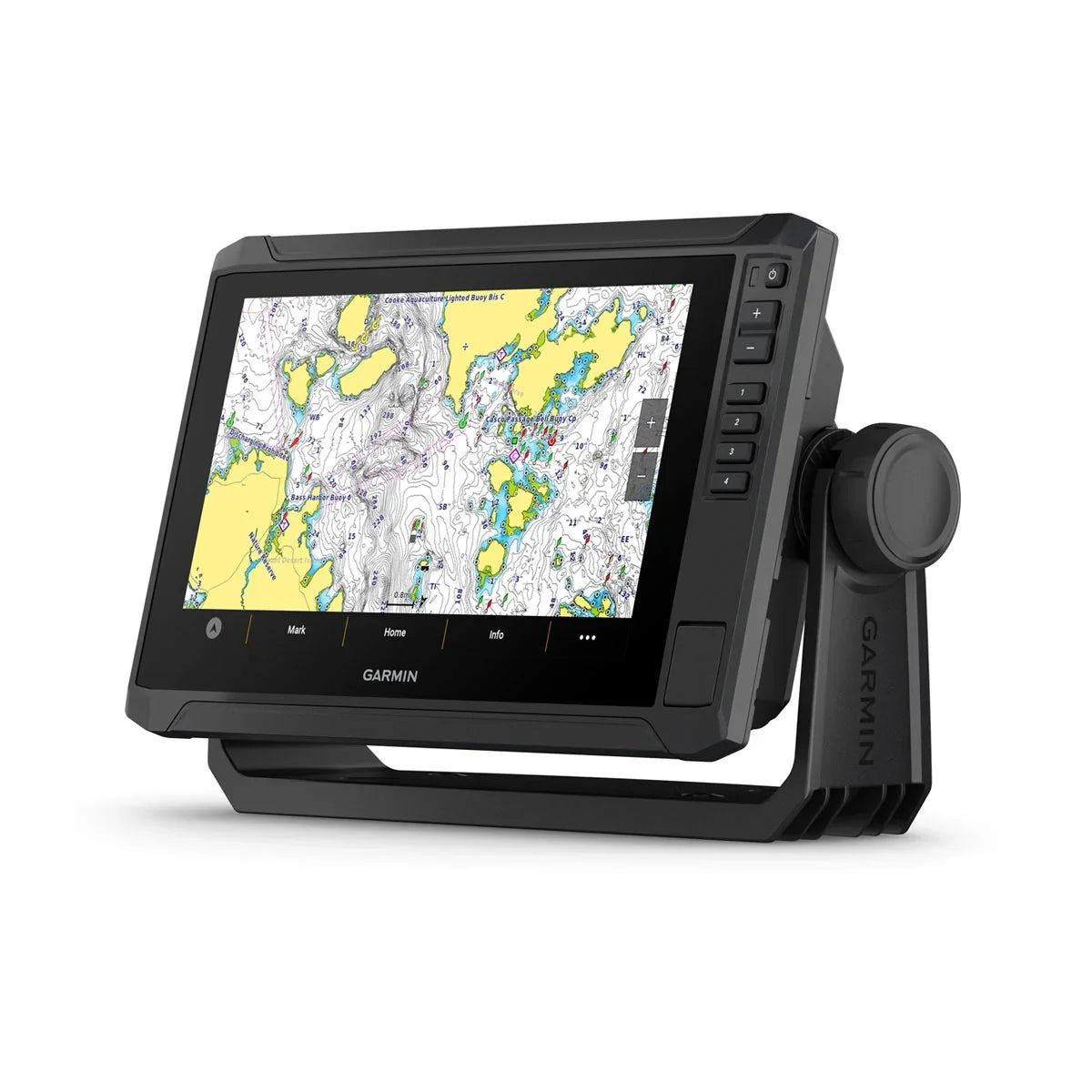

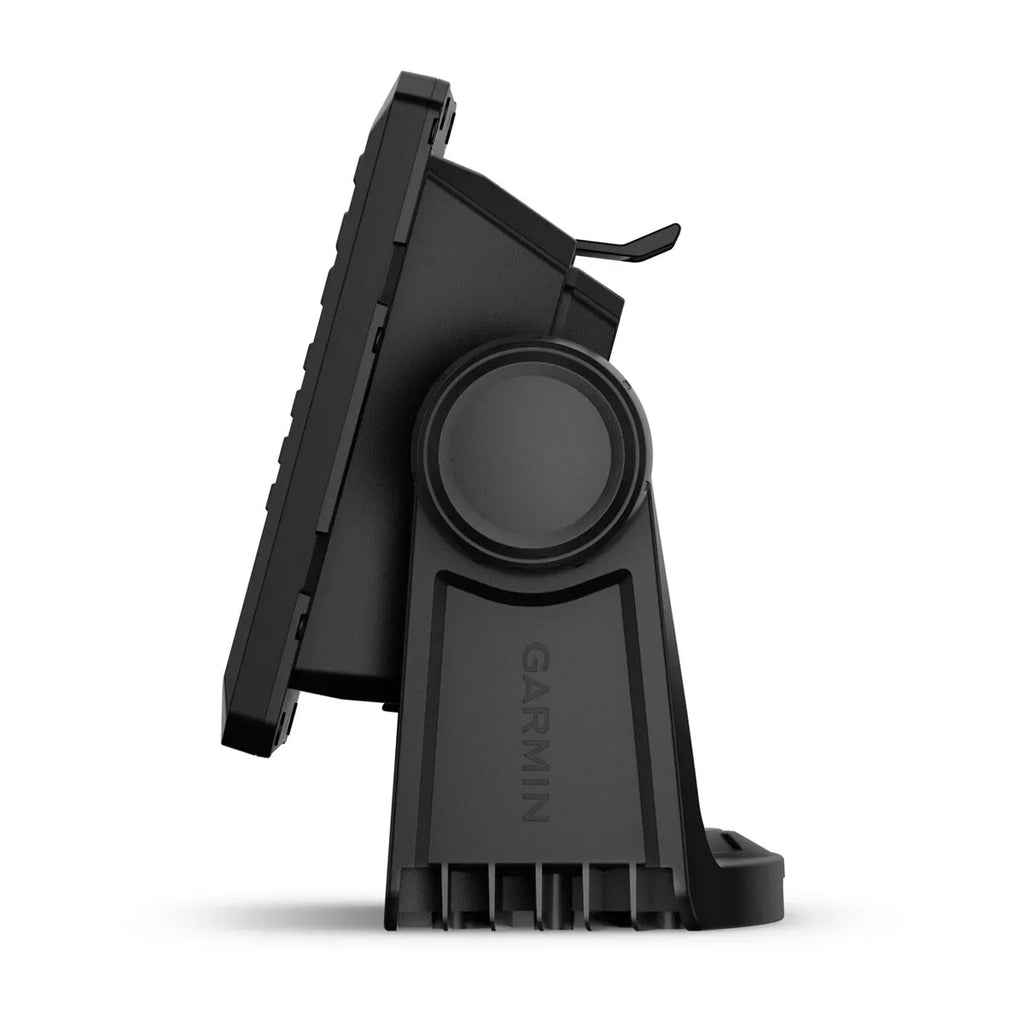

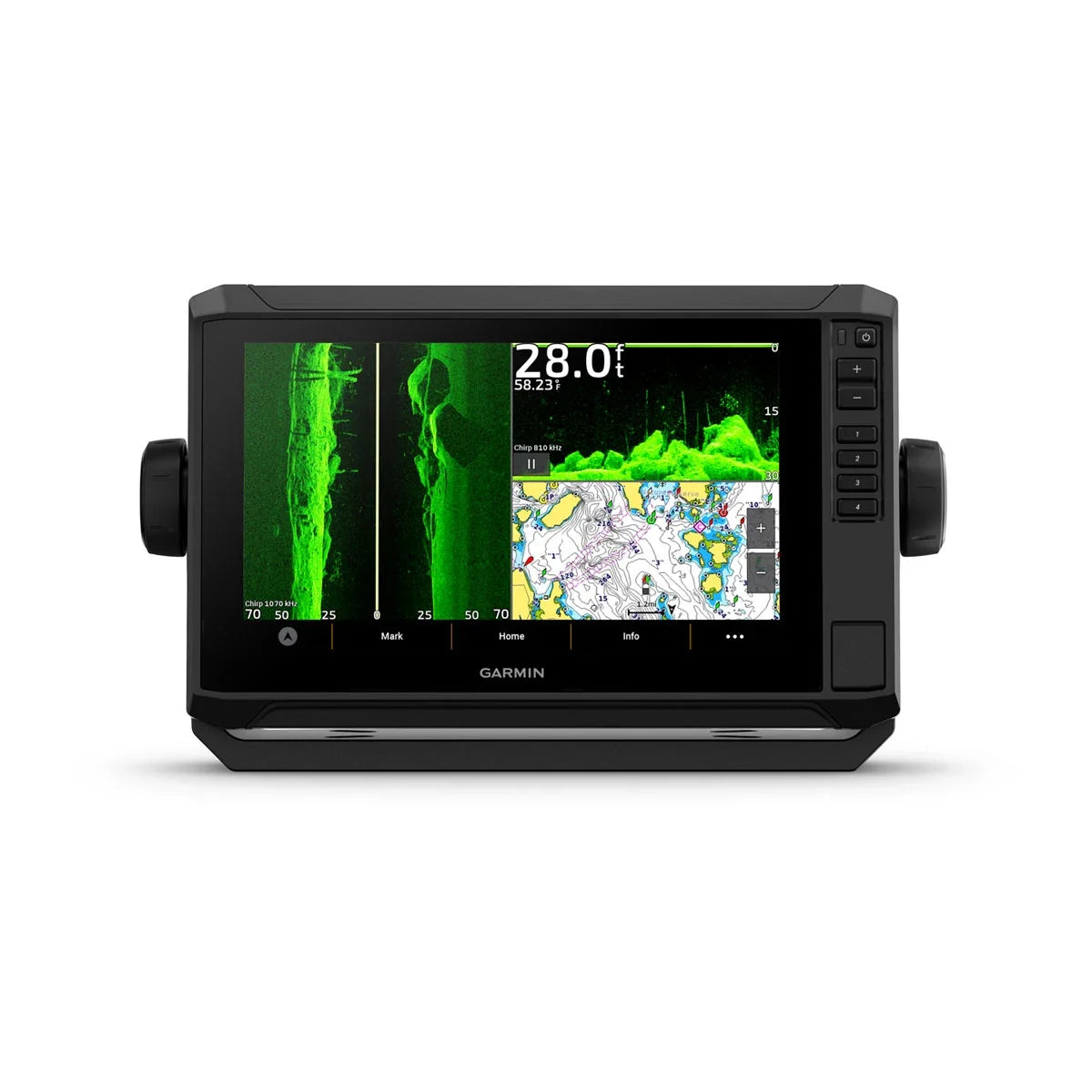

ECHOMAP™ UHD2 5" cv Chartplotters
ECHOMAP™ UHD2 5" cv Chartplotters
Overview
WHY TALK TO A LOCAL WHEN YOU CAN FISH LIKE ONE?
They say locals know best. But anyone who says that hasn't fished with the ECHOMAP UHD2 5” and 7” chartplotters with clear, crisp sonar and mapping.
The bright 5” or 7” keyed display is made for convenience.

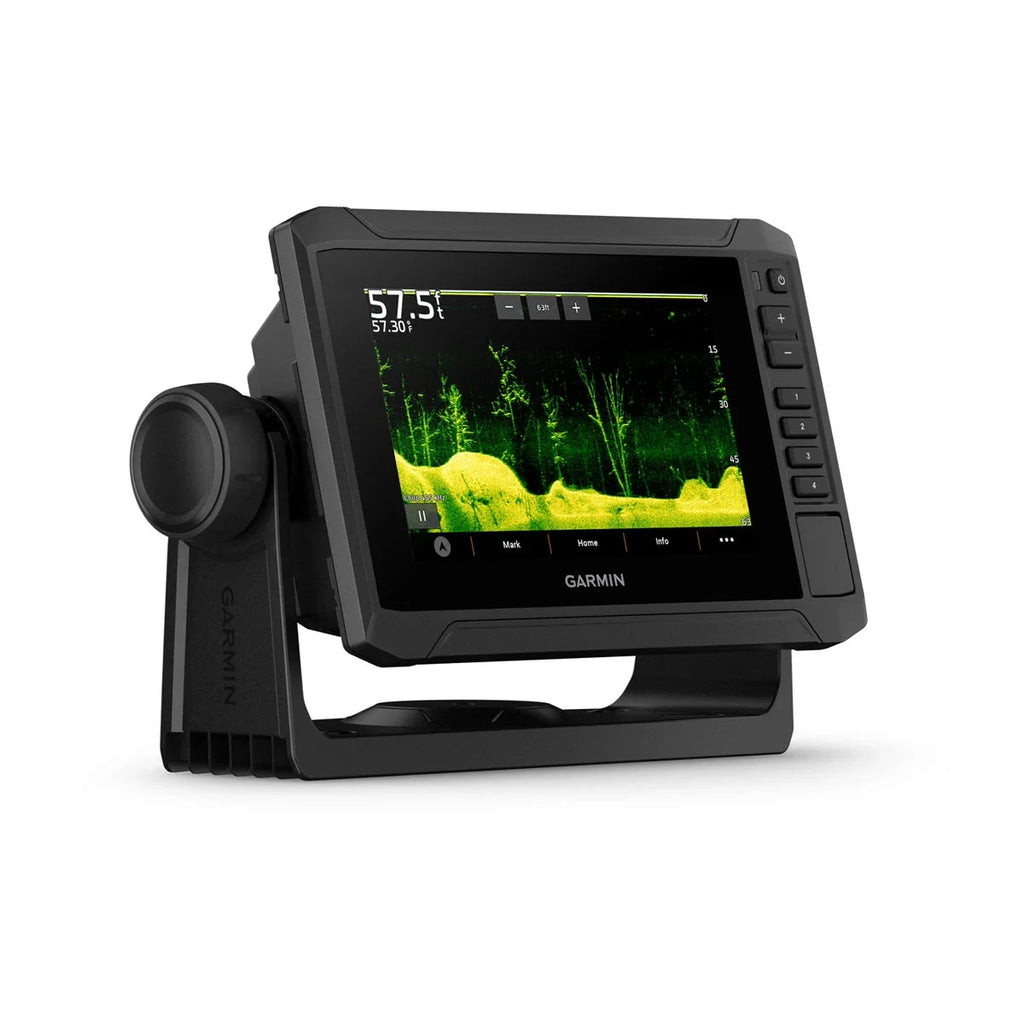

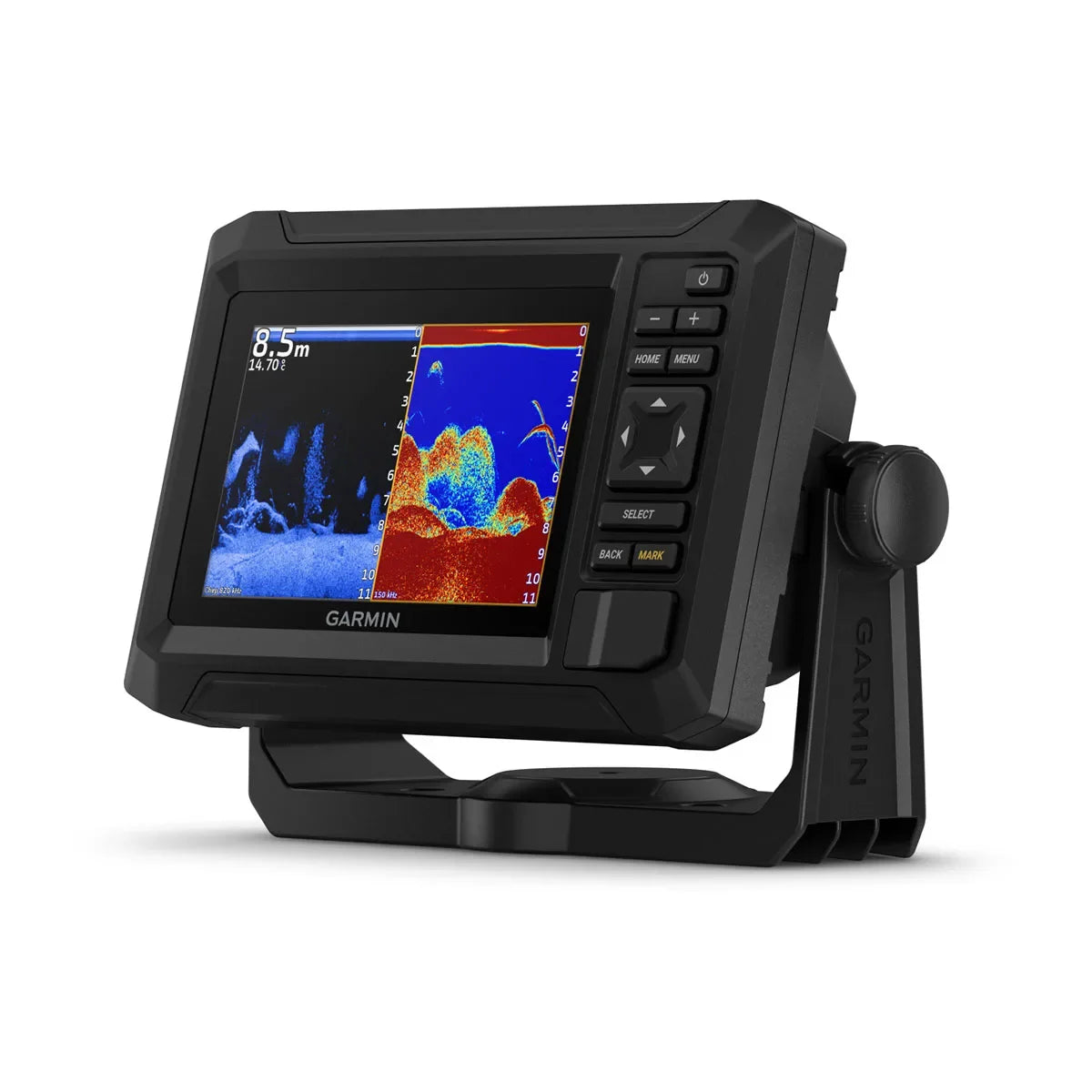

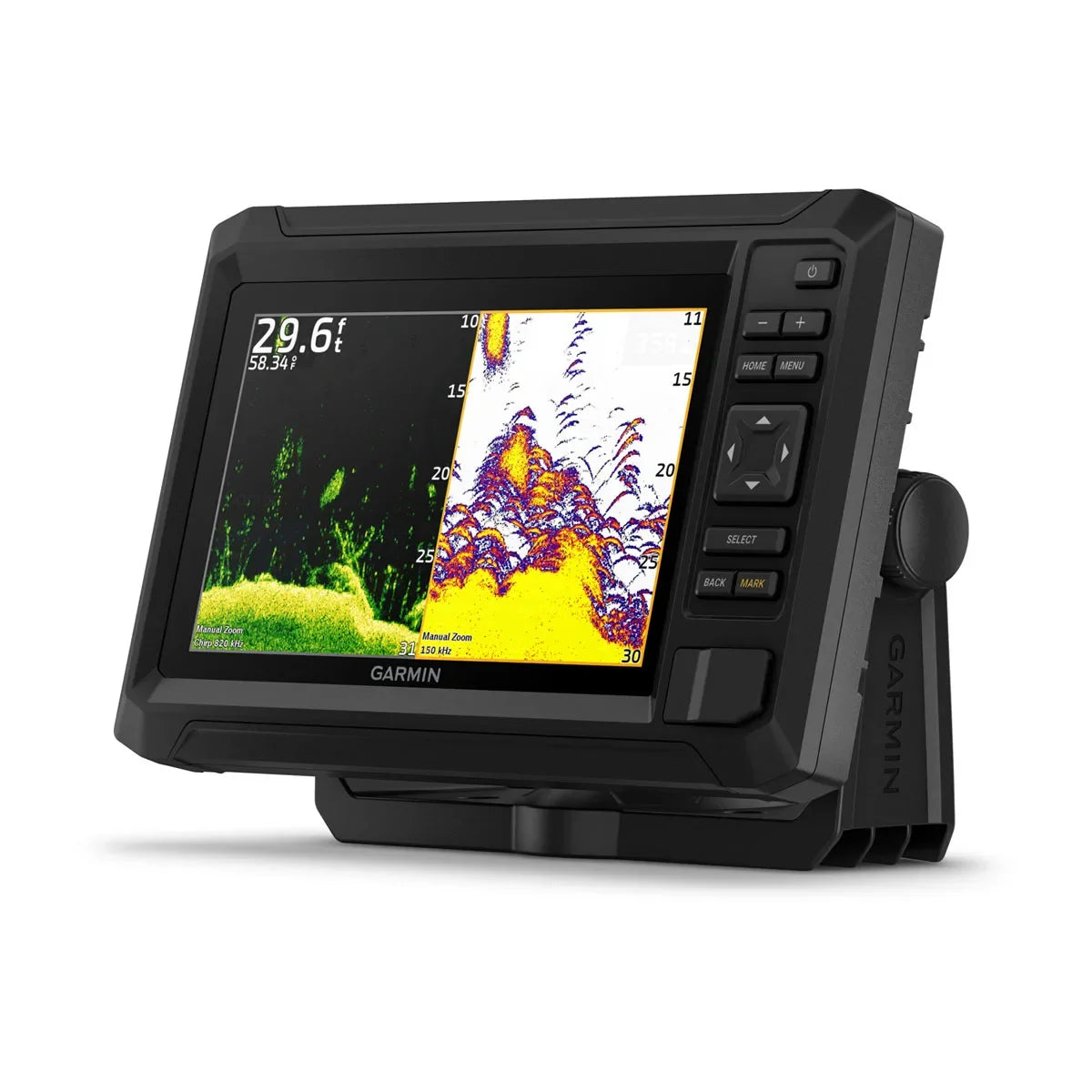

Get double the views1 with Garmin CHIRP traditional and ClearVü scanning sonars.
What's under the water looks even better with high-contrast vivid color palettes.
Wi-Fi® connectivity2 between compatible chartplotters makes it easy to share info.
Enjoy No. 1 in mapping3 with Garmin Navionics+™ inland and coastal content.
Know the waters, catch more fish.

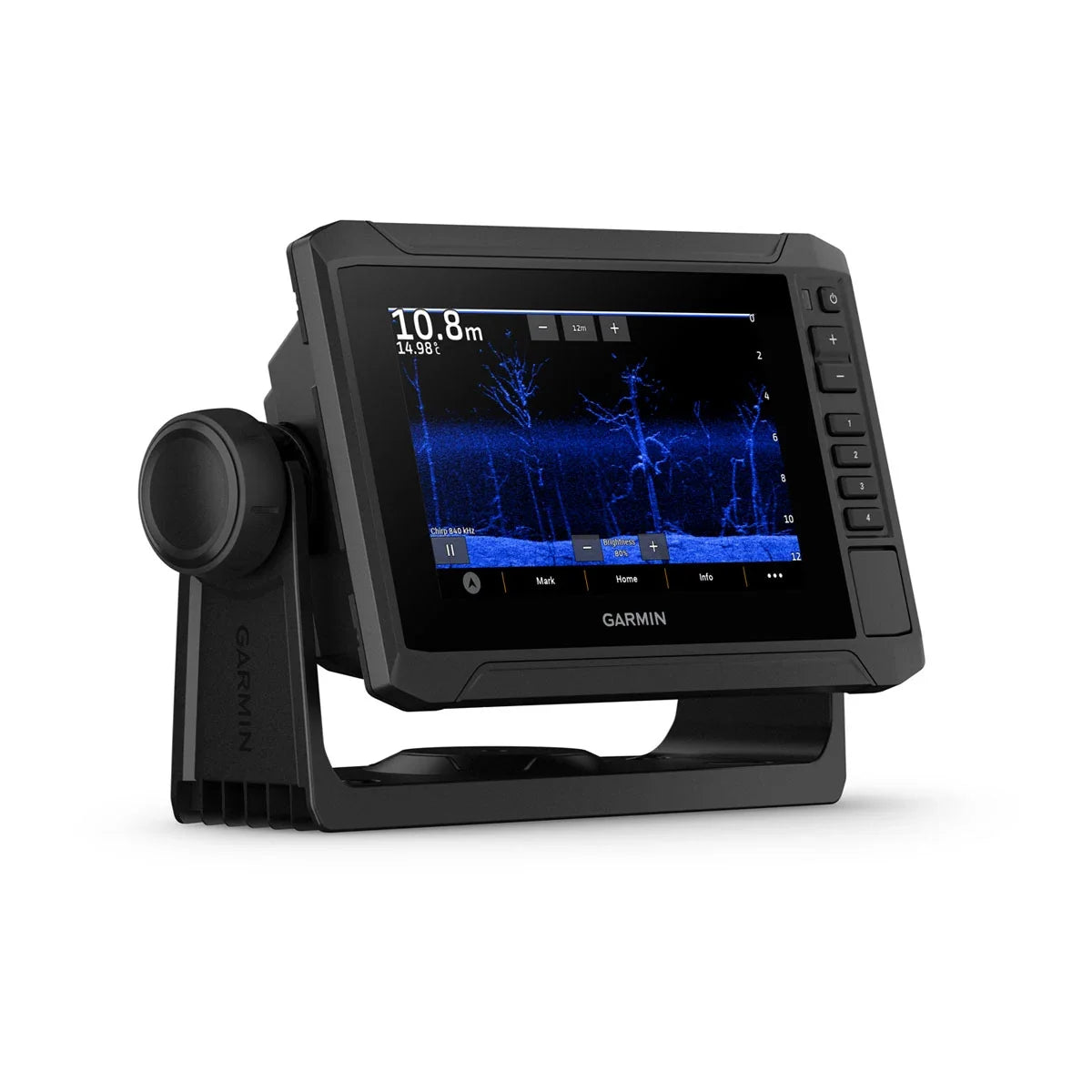

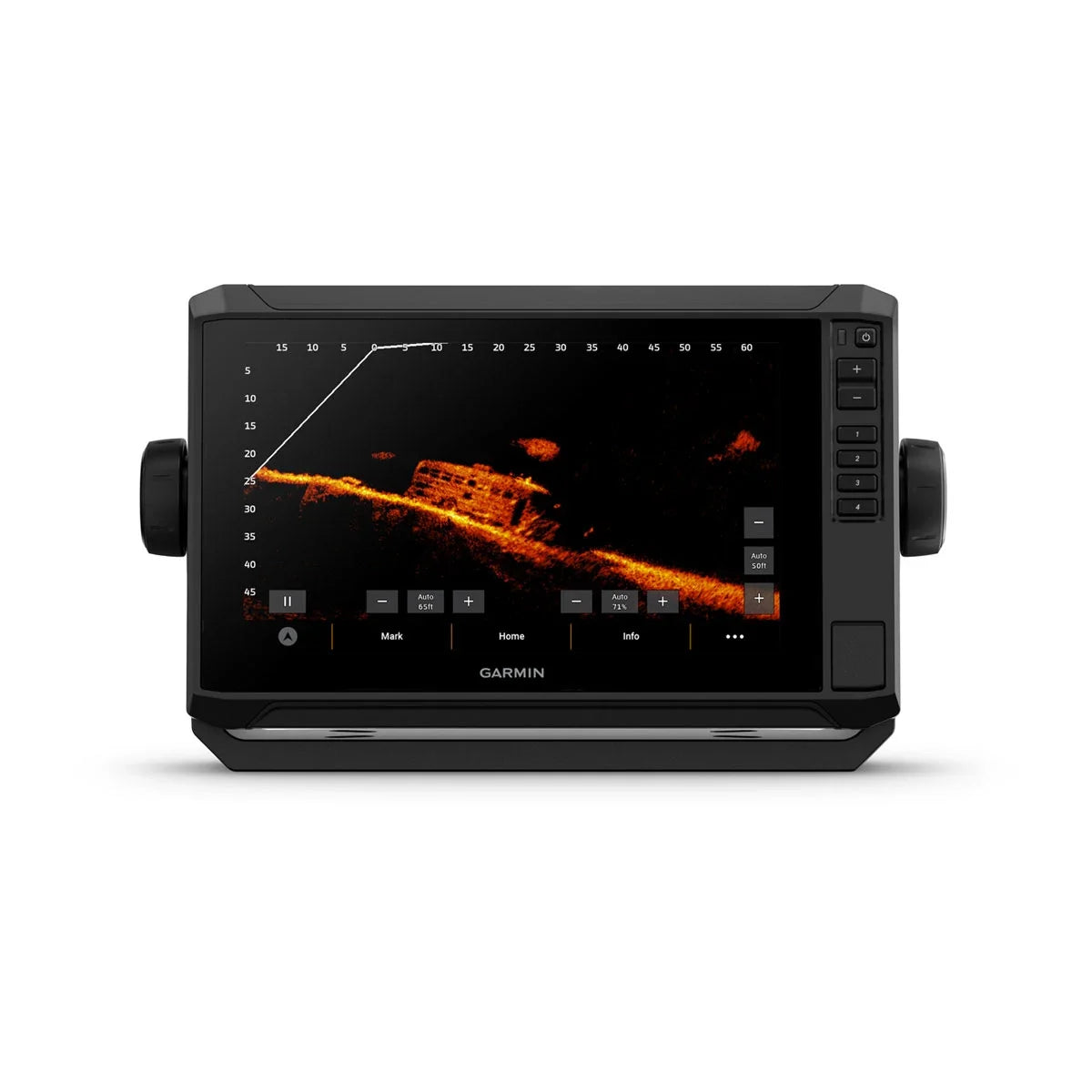

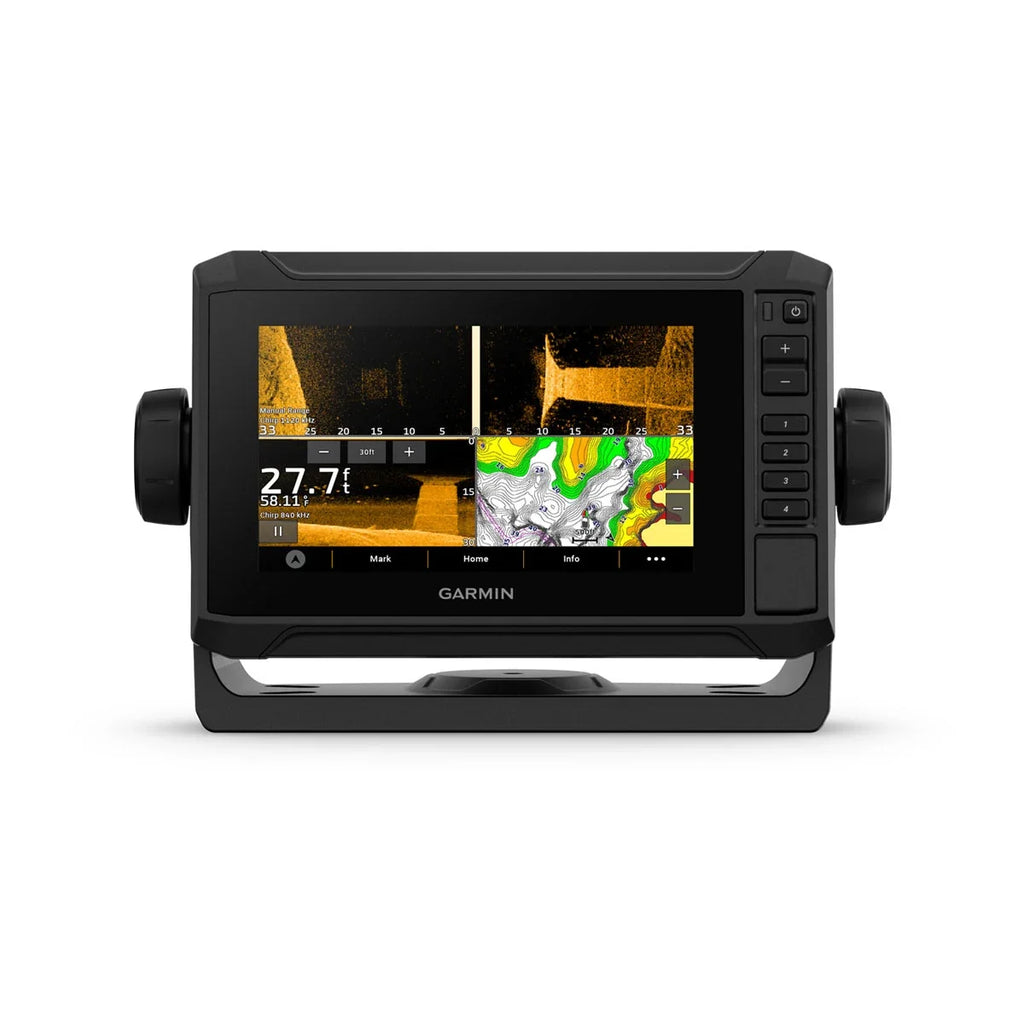

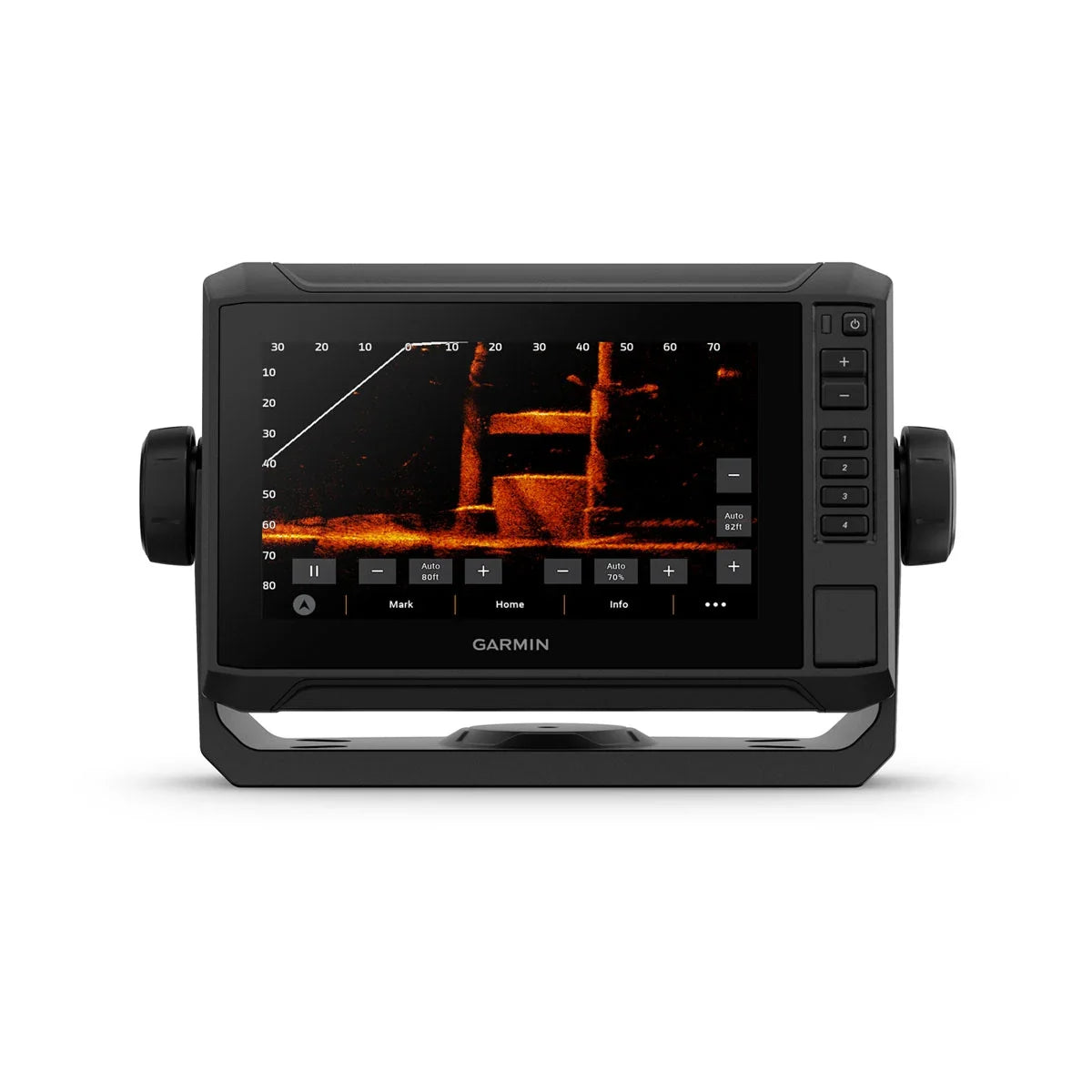

SONAR SUPPORT

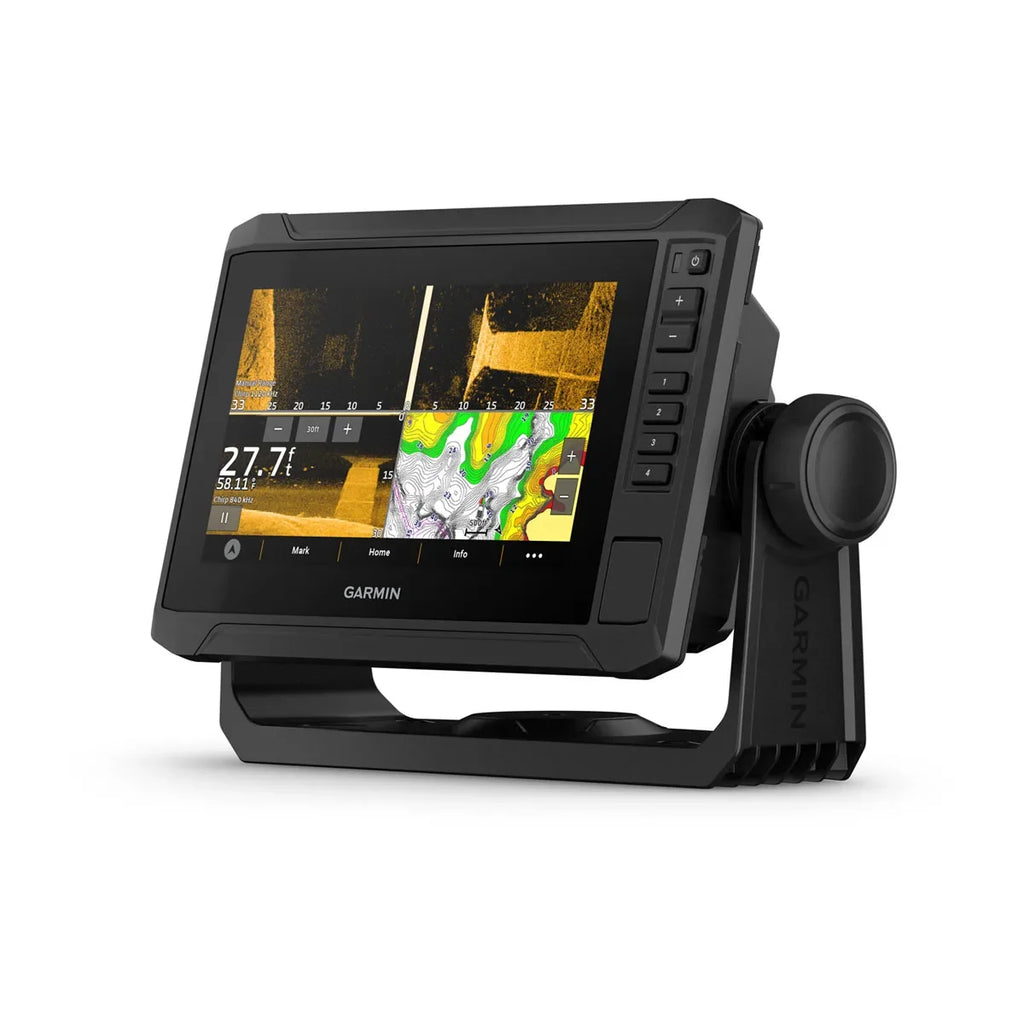

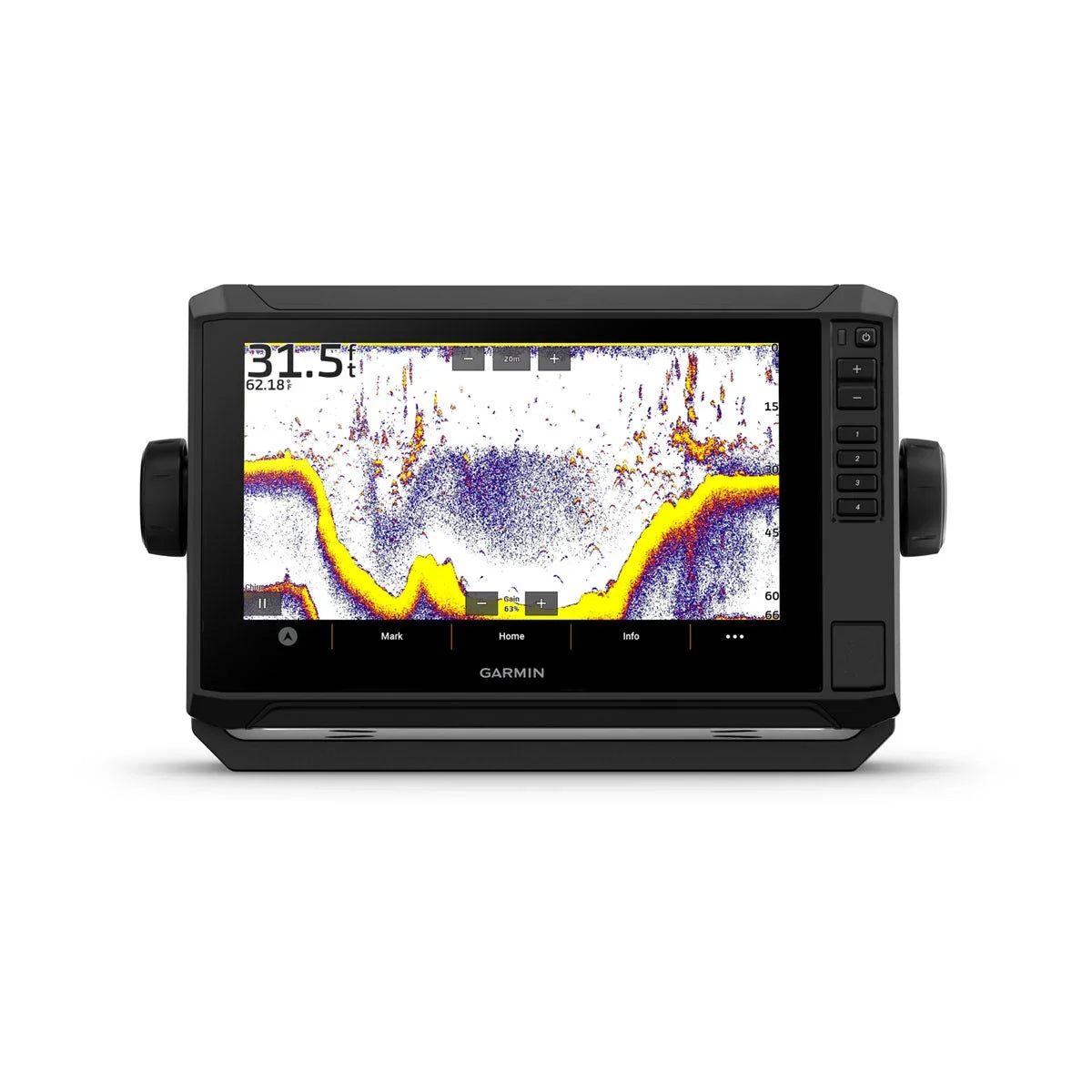

With crisp, clear traditional sonar and brilliant ClearVü sonar, the fish will have nowhere to hide.

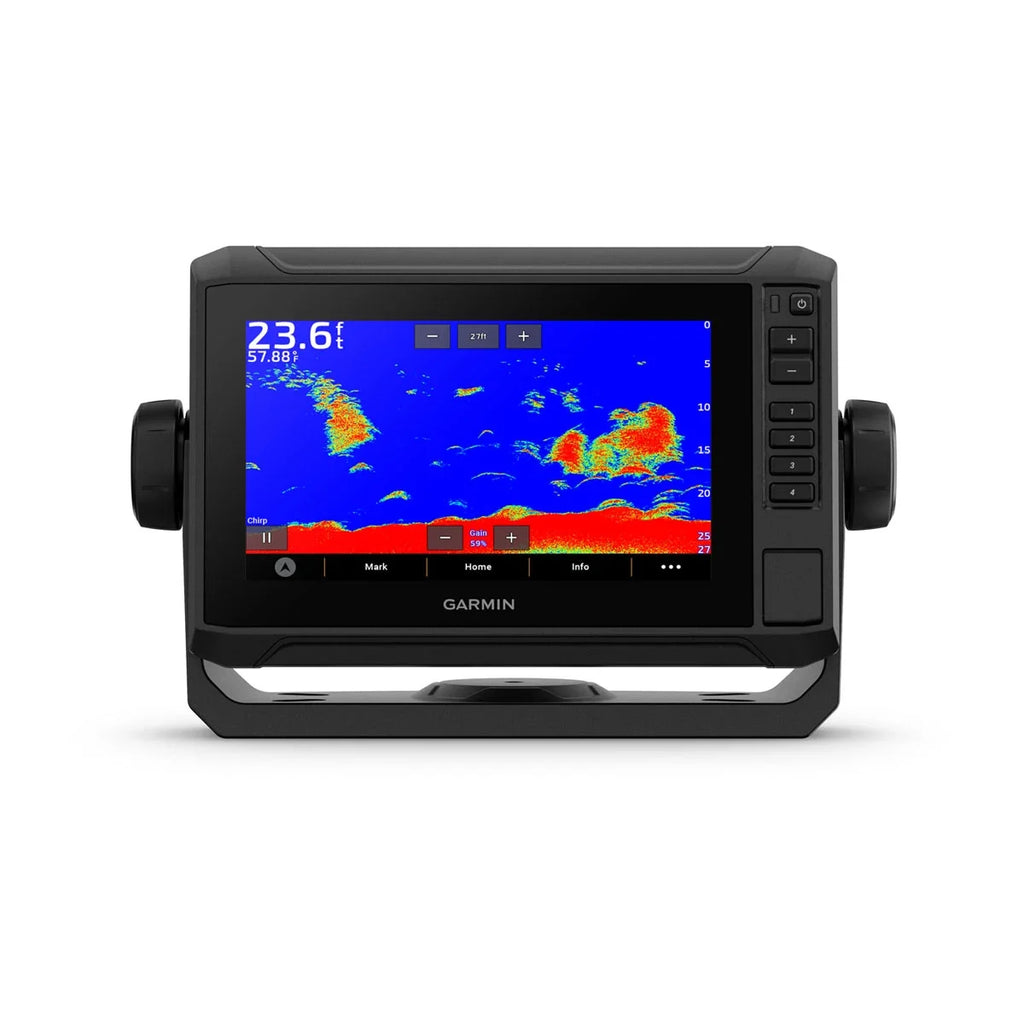

VIVID COLOR PALETTES

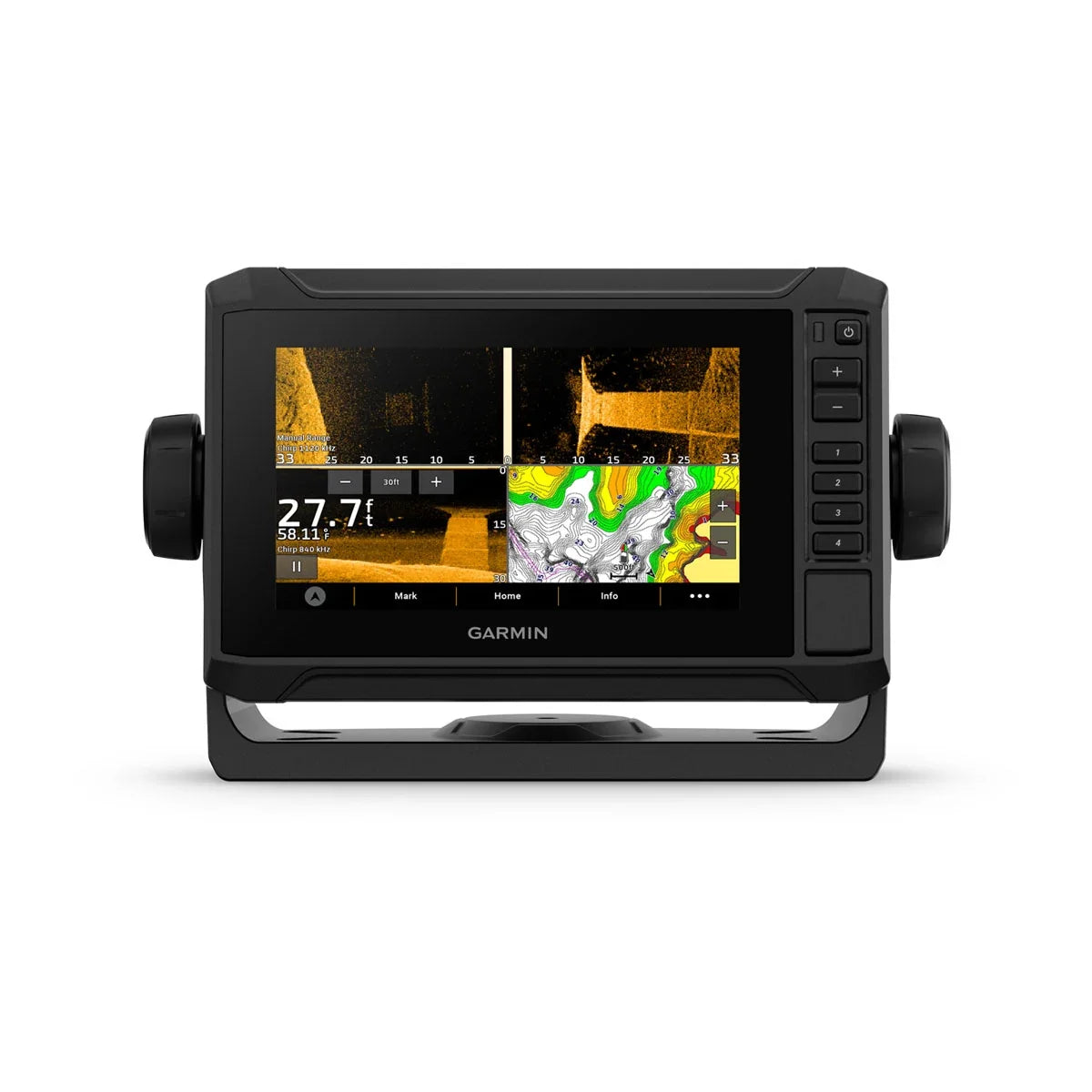

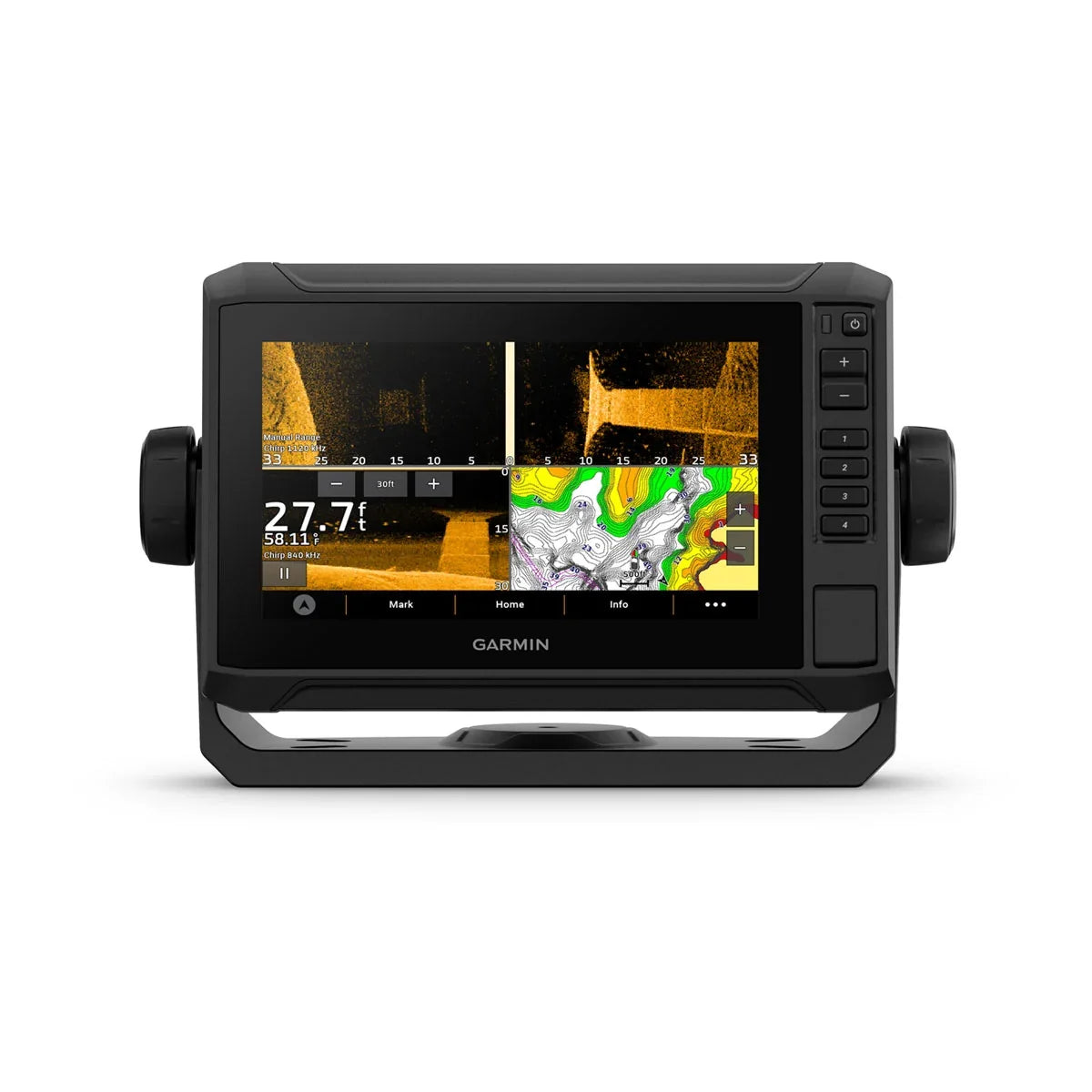

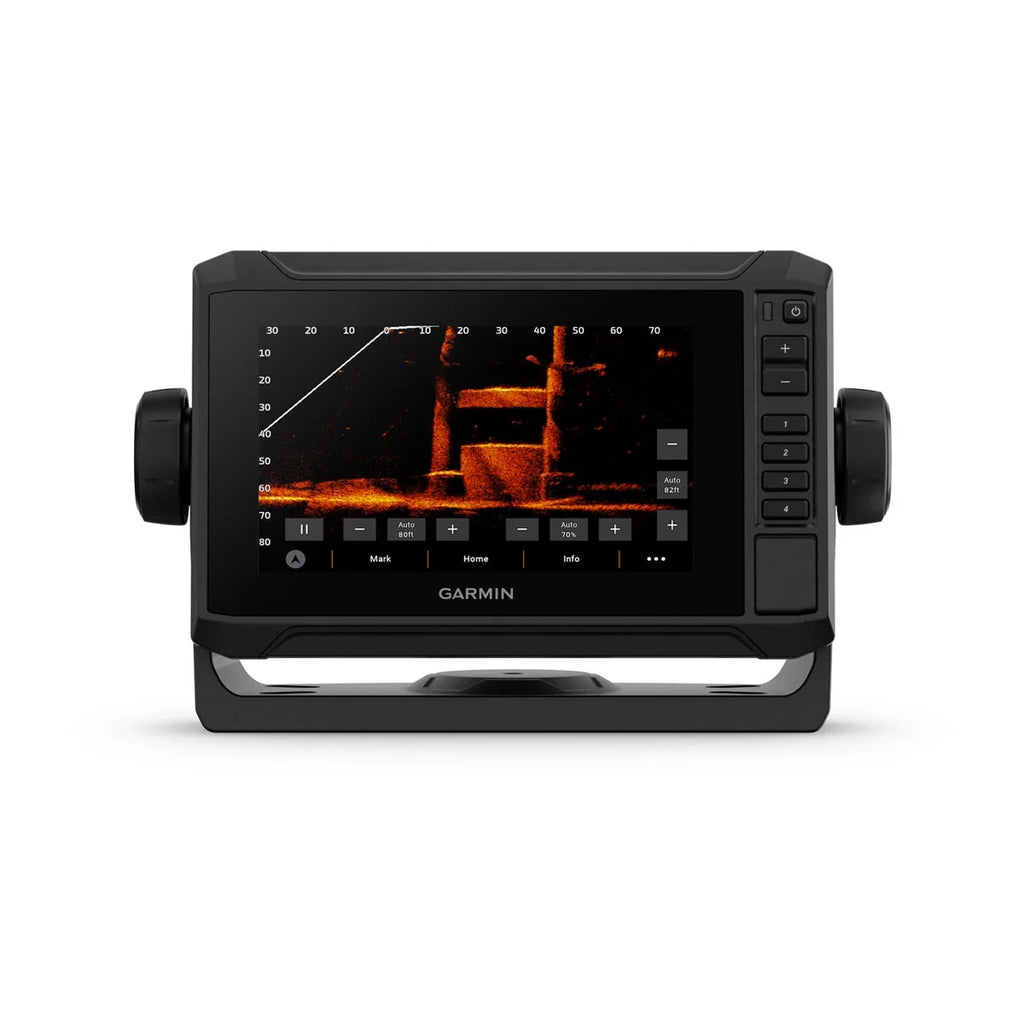

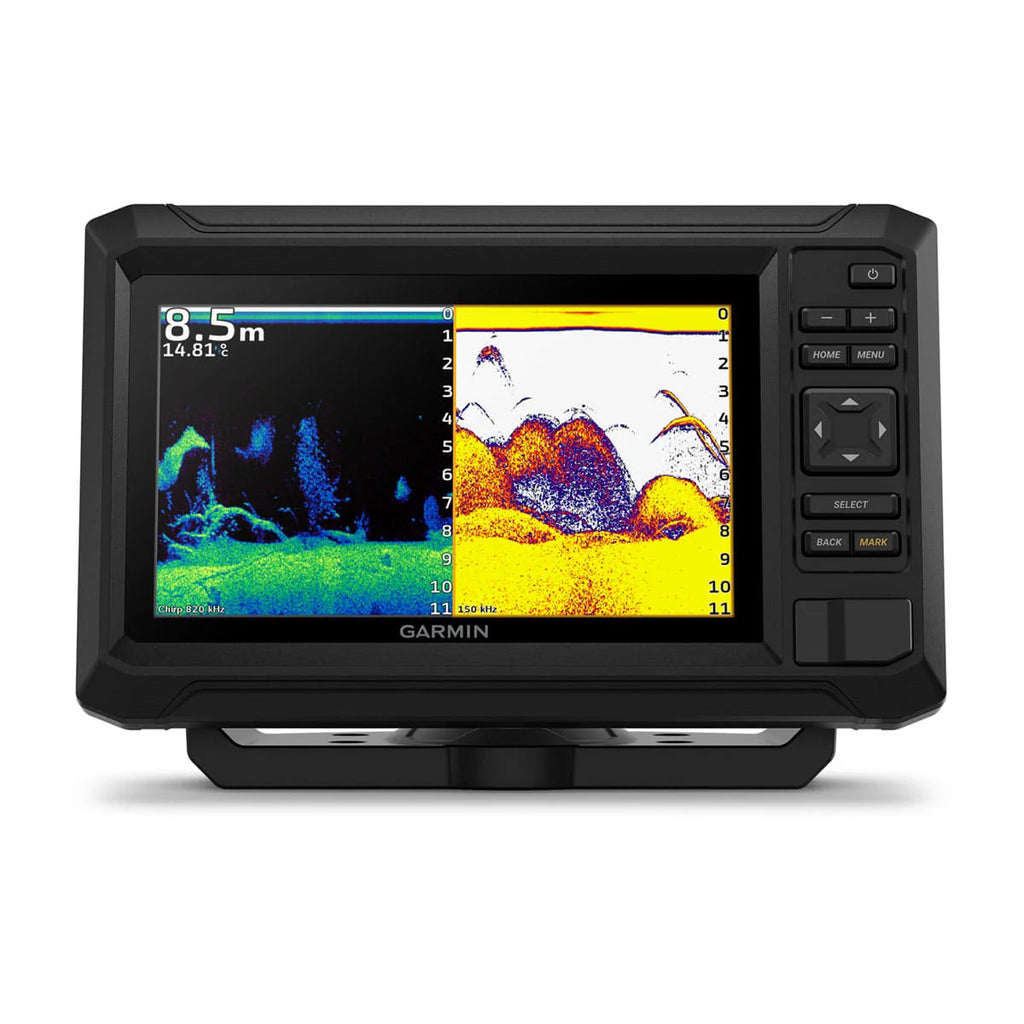

High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
BUNDLE YOUR TRANSDUCER
Your ECHOMAP UHD2 device supports a variety of Garmin transducers for two types of sonar: Garmin traditional and ClearVü scanning sonars.
PRELOADED CHARTS
Know the waters you're in as if you grew up fishing them by using built-in Garmin Navionics+ coastal or inland mapping which includes a 1-year subscription for downloadable daily updates and more.
WIRELESS NETWORKING
If you have another compatible ECHOMAP UHD2 chartplotter on your boat, the 5” and 7” models can wirelessly share information — such as sonar, waypoints and routes — with them.
ACTIVECAPTAIN® APP
Built-in Wi-Fi connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, software updates, Garmin Quickdraw™ Community data and more2.
- Transducer required
- Requires the ActiveCaptain app on your compatible smartphone paired to the ECHOMAP UHD2 5” and 7” chartplotters
- Based on 2020 reported sales
Maps
Maps for New Regions

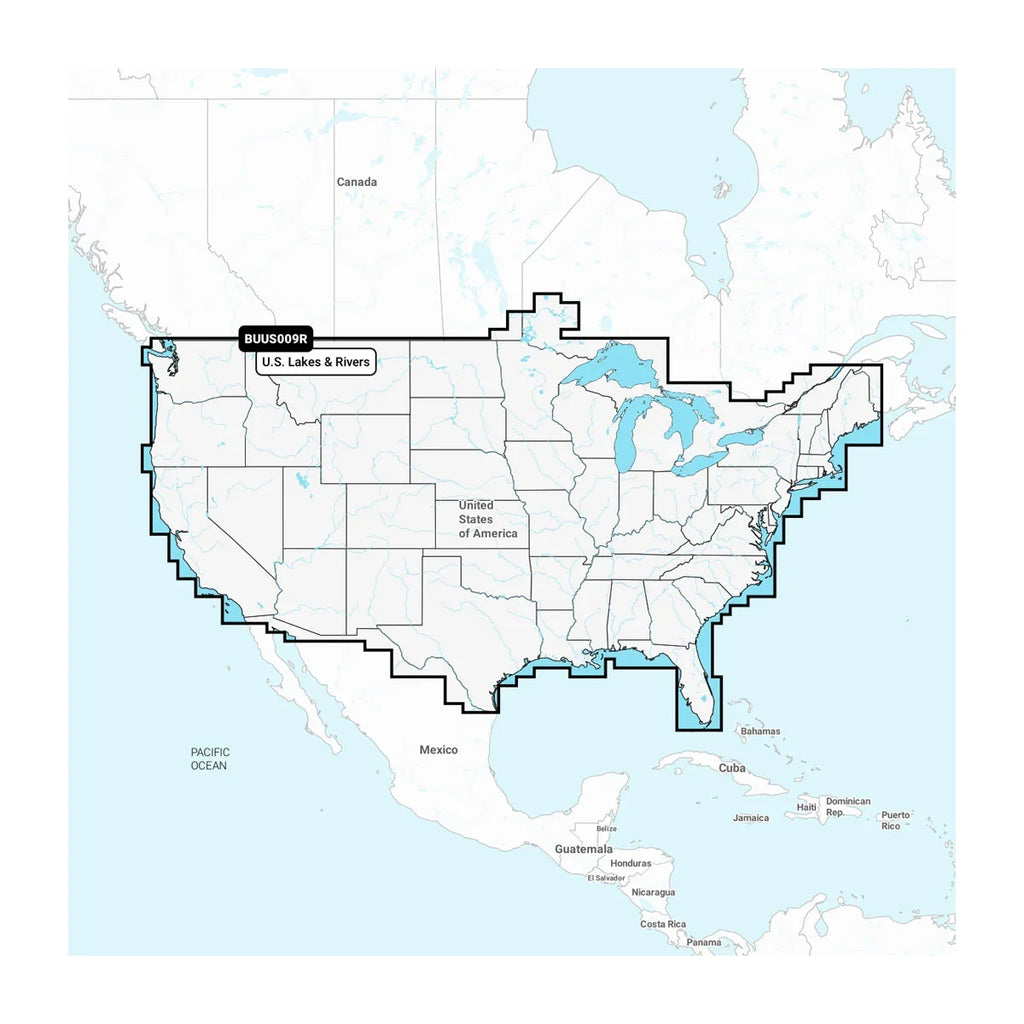

Need maps for regions other than the ones that came on your device? See all maps that are compatible with your device.
Need a map update?
Update the maps that came with your device for the best navigation experience.
Check for Updates
In the Box
With Transducer
- ECHOMAP UHD2 (device varies depending on selection)
- GT20-TM transducer
- Power/data cable
- Tilt mount
- Flush mount
- Hardware
- Documentation
Without Transducer
- ECHOMAP UHD2 (device will vary depending on selection)
- Power/data cable
- Tilt mount
- Flush mount
- Hardware
- Documentation
Specs

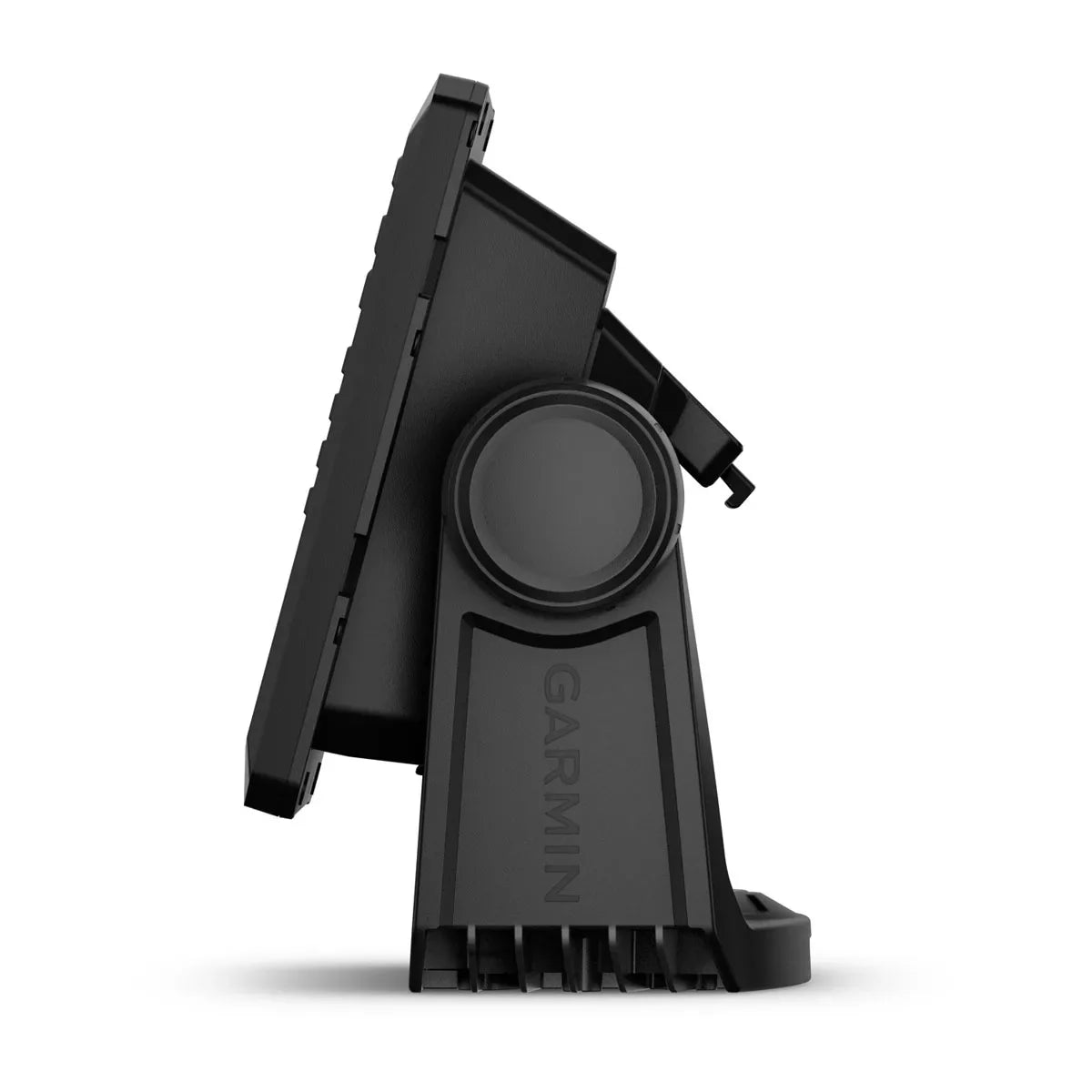

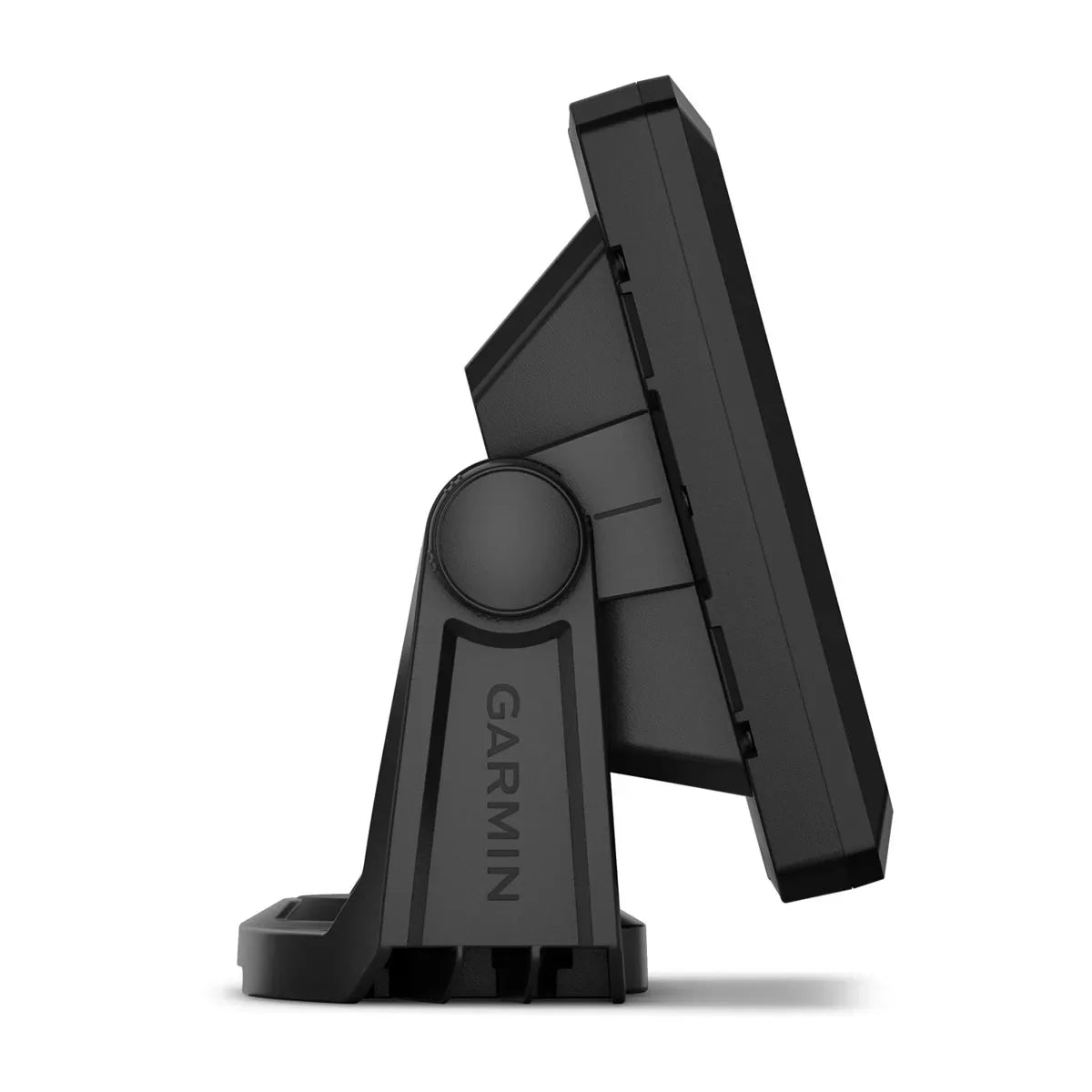

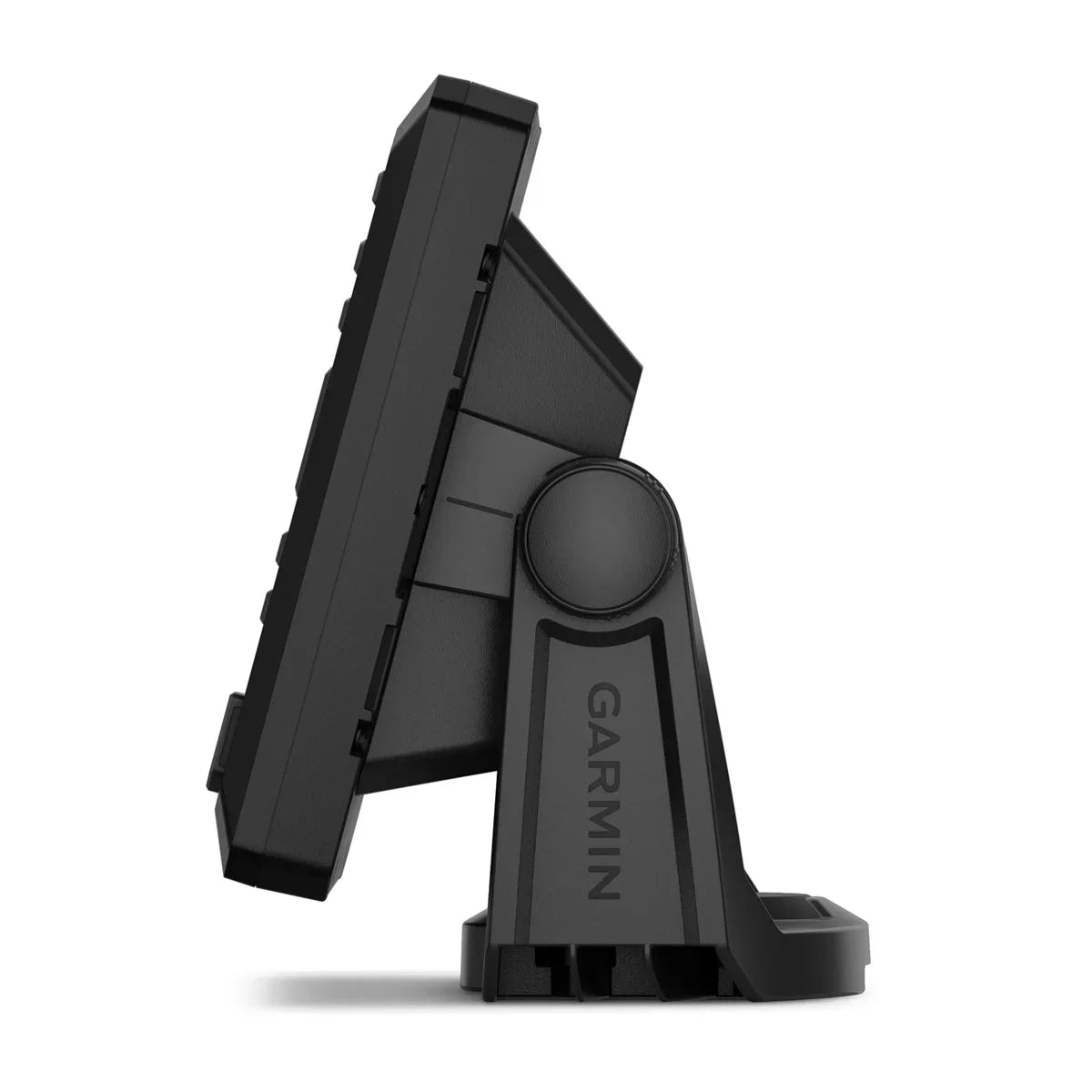

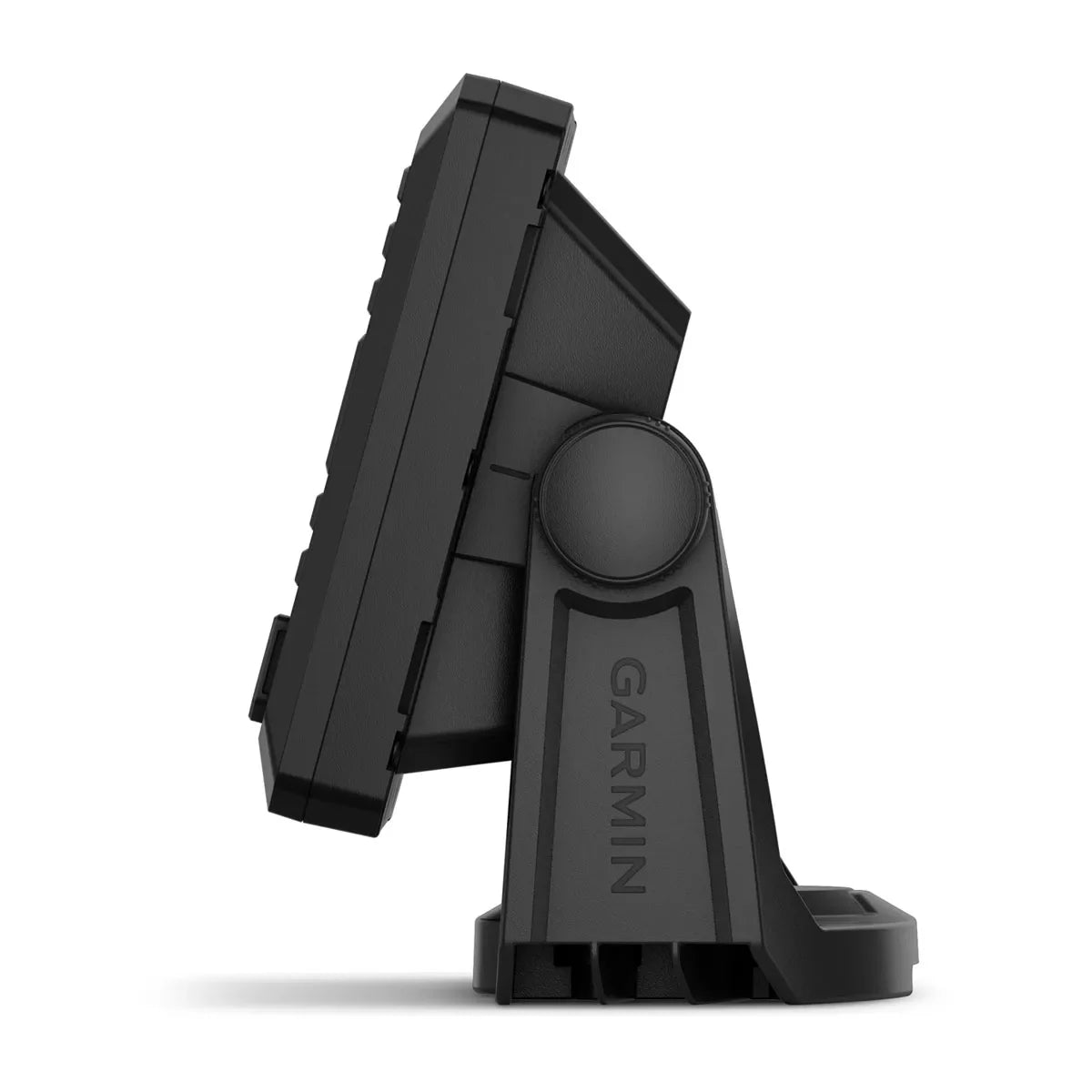

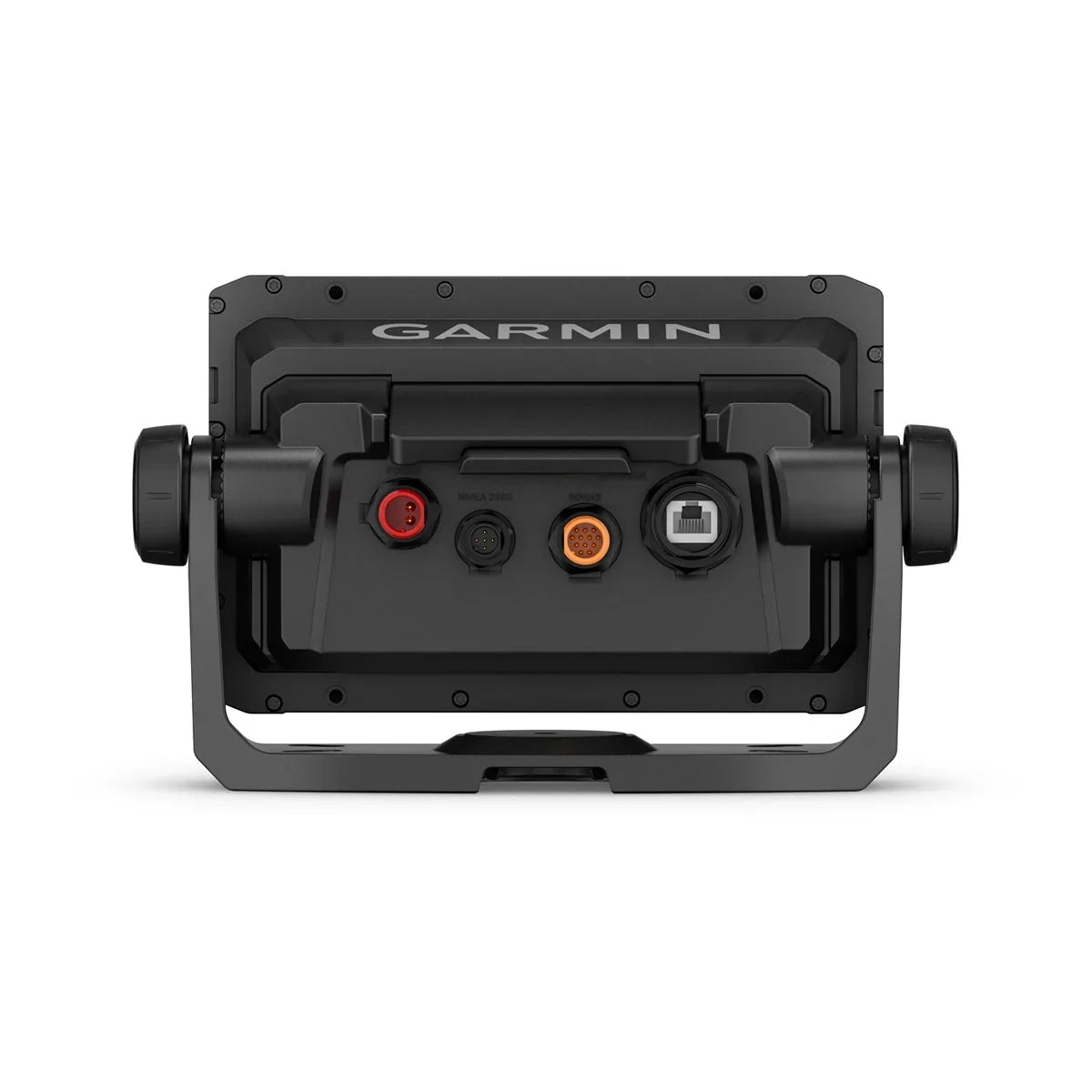

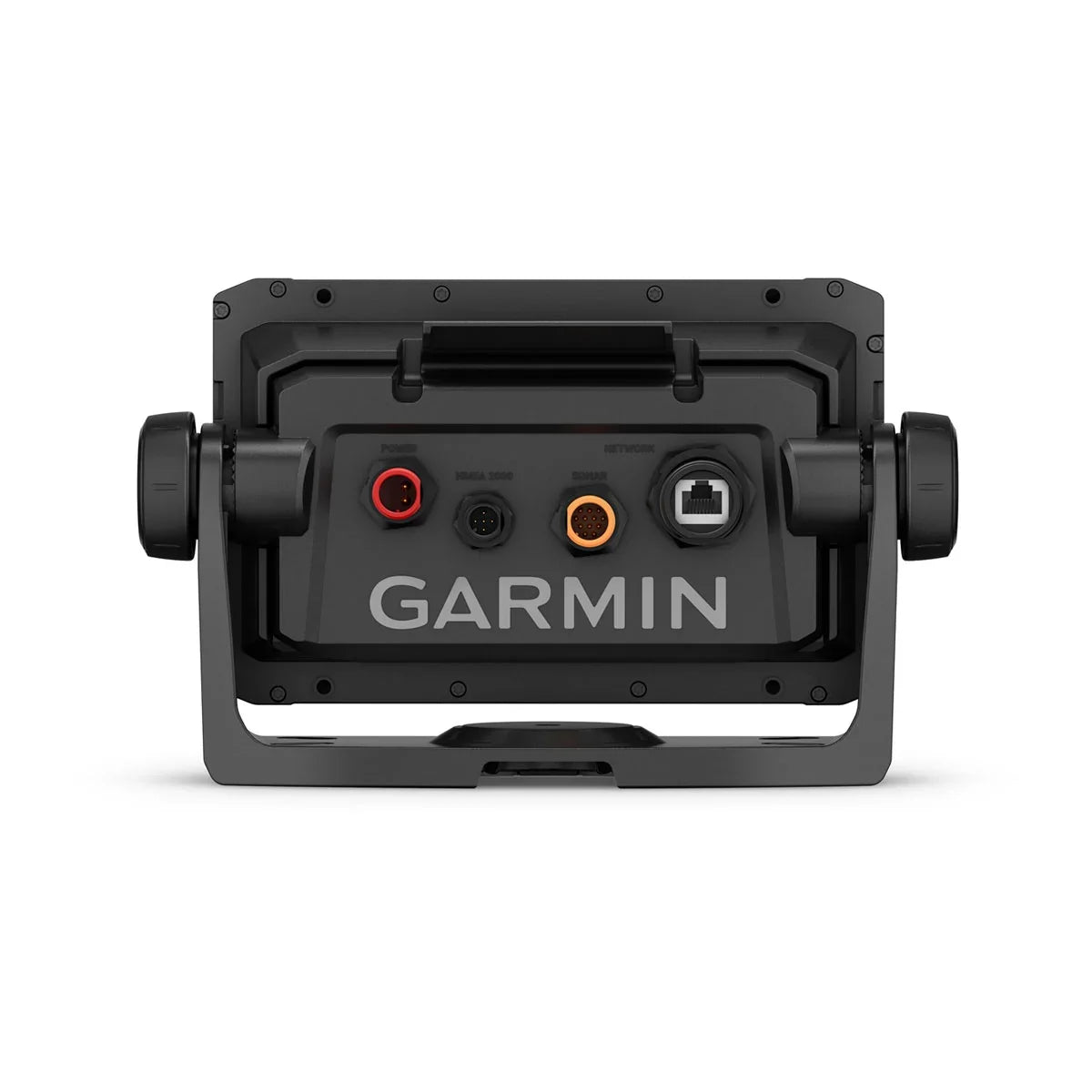

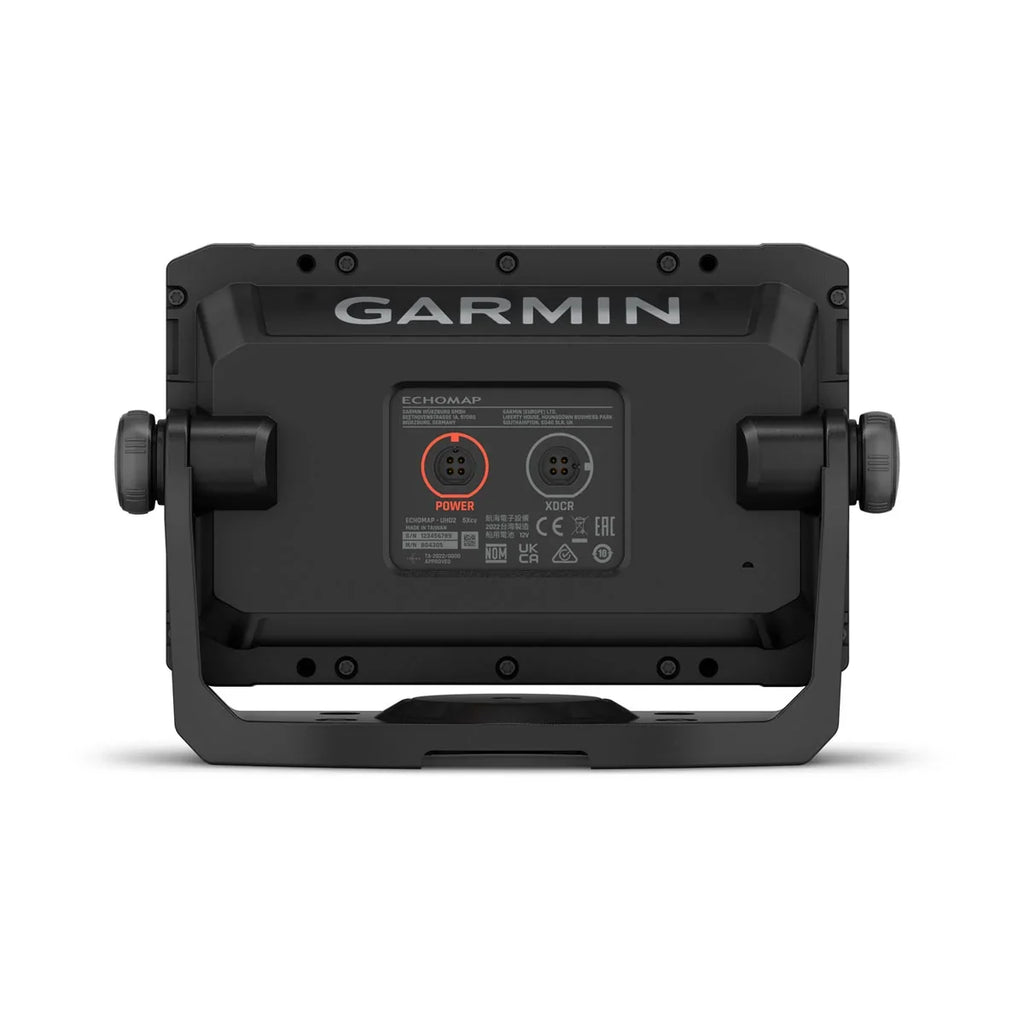

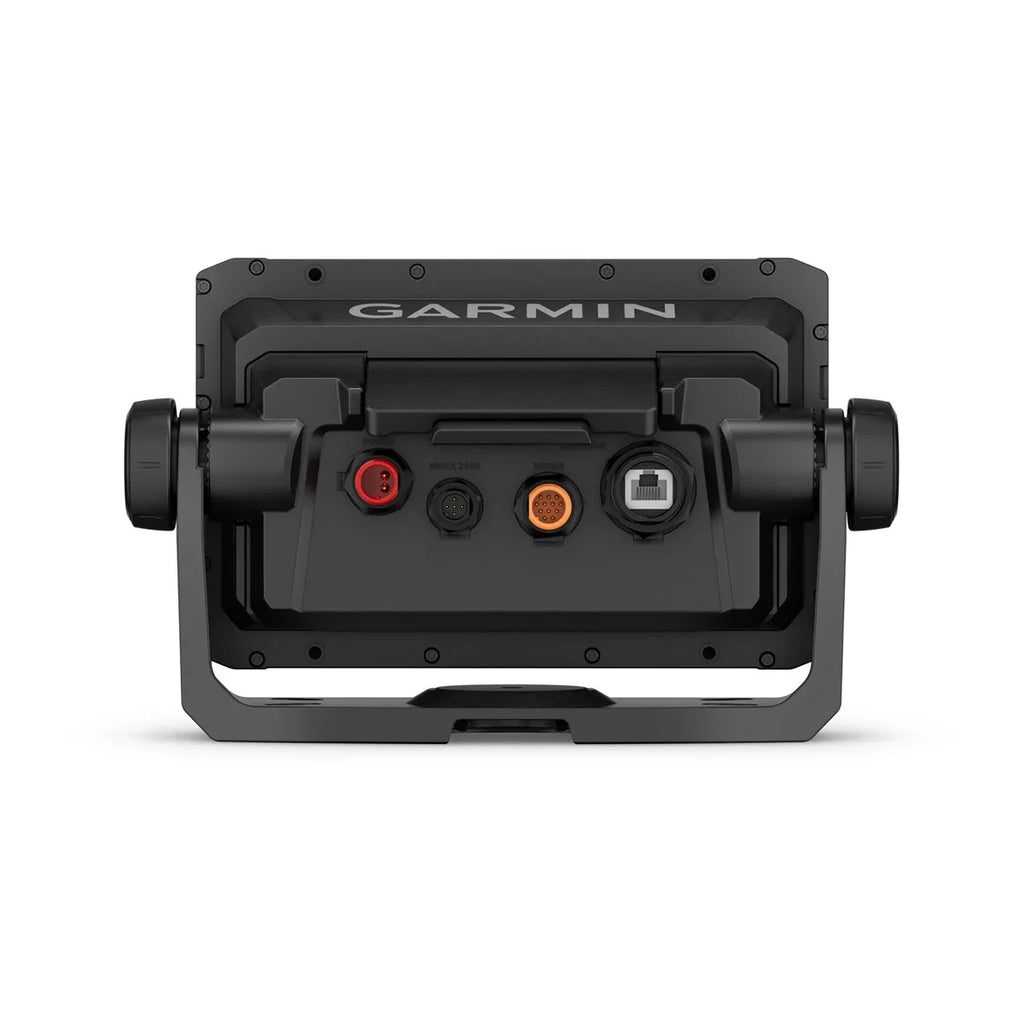

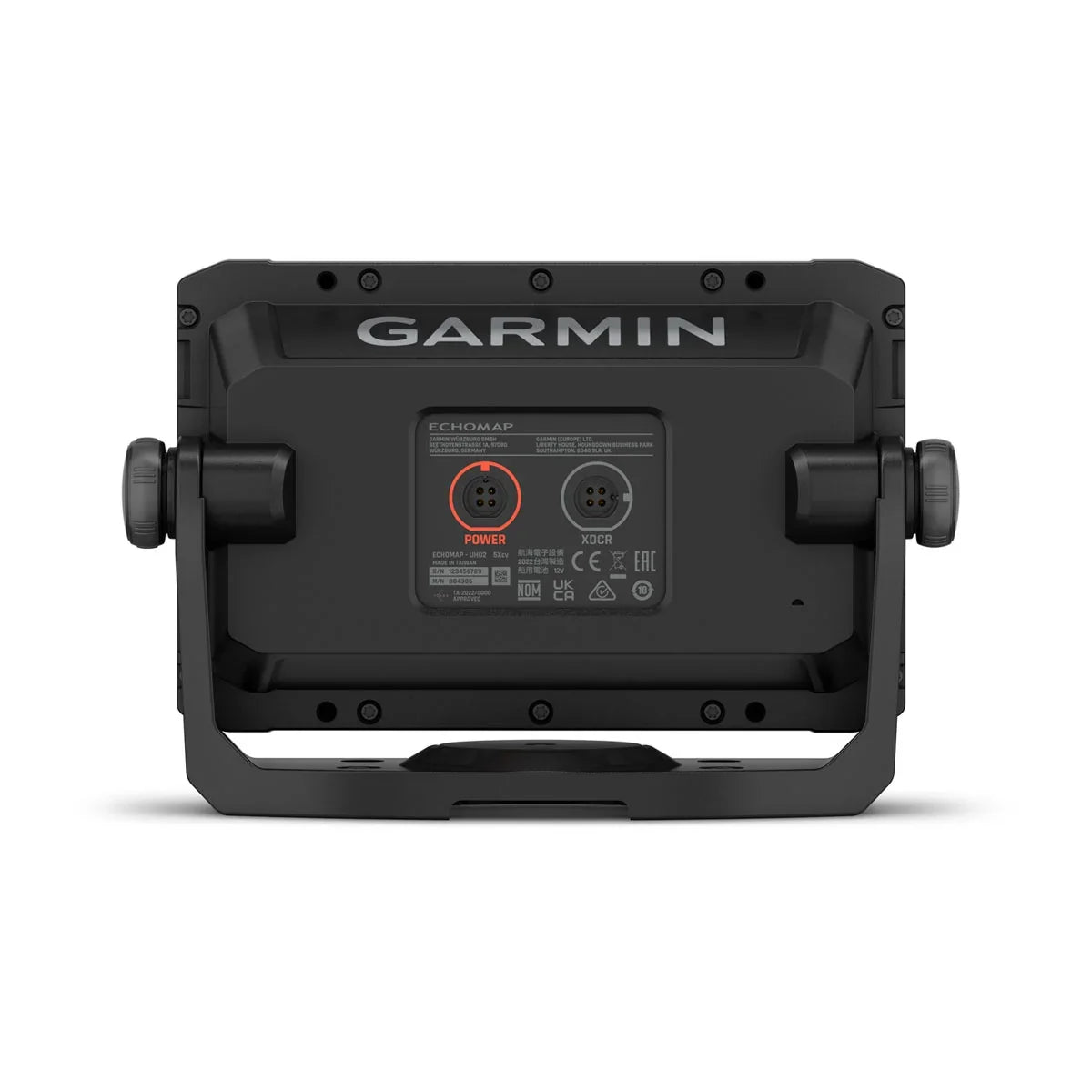

General | |
| Dimension | 7.4" x 4.8" x 2.4" (18.8 x 12.2 x 6.2 cm) |
|---|---|
| Weight | 1.1 lbs (0.5 kg) |
| Water rating | IPX7 |
| Display Type | WVGA, IPS |
| Display Size | 4.3" x 2.6" (10.9 x 6.6 cm) |
| Display resolution | 800 x 480 pixels |
| Mounting Options | Bail or flush |
| Input | yes |
Maps & Memory | |
| Accepts Data Cards | 1 microSD™ card; 32 GB maximum size |
|---|---|
| Waypoints | 5,000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
Sensors | |
| GPS | yes |
|---|---|
| Galileo | yes |
| Has built-in receiver | yes |
| Receiver | 5 Hz |
| Supports WAAS | yes |
Built-in Maps | |
| Built-in Auto Guidance+ | yes (downloadable via ActiveCaptain app) |
|---|---|
| Garmin Navionics+ (inland and coastal) | yes (see Additional) |
| Garmin Navionics+ (coastal) | yes (see Additional) |
| Garmin Navionics+ (inland) | yes (see Additional) |
| Tide tables | yes (see Additional) |
Optional Map Support | |
| BlueChart g3 | yes |
|---|---|
| BlueChart g3 Vision | yes |
| LakeVü g3 | yes |
| LakeVü g3 Ultra | yes |
| Garmin Navionics+™ | yes |
| Garmin Navionics Vision+™ | yes |
| TOPO 100K | yes |
| Standard mapping | yes |
| Garmin Quickdraw Contours | yes |
Chartplotter Features | |
| ActiveCaptain® compatible | yes |
|---|---|
Electrical Features | |
| Power Input | 9 to 18 Vdc |
|---|---|
| Typical current draw at 12 Vdc | 1.0 A |
| Maximum current draw at 12 Vdc | 1.5 A |
| Maximum power usage at 10 Vdc | 18W |
Sonar Features | |
| Displays sonar | yes |
|---|---|
| Power output | 500 W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) |
| ClearVü | Built-in 260/455/800/1000/1200 kHz |
Networking & Connections | |
| 4-pin transducer ports | 1 |
|---|---|
| Garmin Wi-Fi network (local connection) | yes |
Additional | |
| Additional |
|
|---|---|
