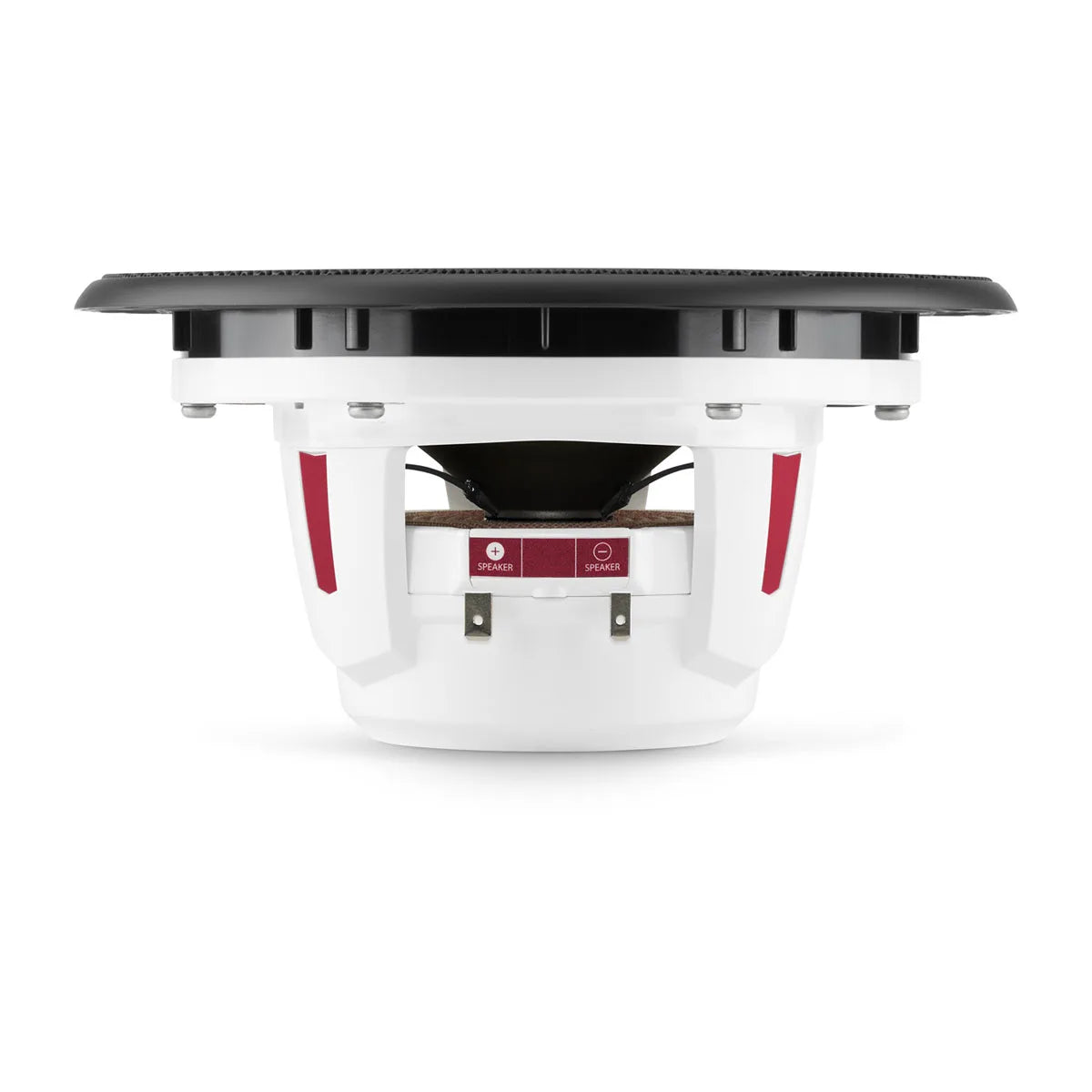

Pavilion™ Outdoor In-Ceiling Speaker
Pavilion™ Outdoor In-Ceiling Speaker
Overview
REMARKABLE SOUND. REFINED LOOKS.
Designed for residential applications, these flush-mount in-ceiling speakers are engineered to deliver outstanding audio performance and durability in overhead outdoor spaces.
6.5-, 7.7- AND 8.8-INCH SIZES
ONBOARD, TRUE TWO-WAY PASSIVE CROSSOVER
REQUIRES 30 TO 120 WATTS OF POWER PER CHANNEL
OUTDOOR-RATED DESIGN
TWO-WAY COAXIAL SPEAKER WITH SILK DOME TWEETER
PAINTABLE, LOW-PROFILE GRILLE
WHAT YOU'LL LOVE
A PERFECT FIT
For ease of installation, all speakers utilize an innovative mounting system that permits a rock-solid installation in a wide range of ceiling materials. The fine-mesh grille securely attaches with embedded magnets and is paintable to further blend in with your décor.
CRYSTAL-CLEAR SOUND
This speaker features a DMA-optimized, long-excursion woofer design to ensure excellent power handling. It also includes a pure silk dome tweeter, treated to withstand the harshest outdoor environments while delivering remarkable high-frequency sound — even at higher volume levels.
DMA-OPTIMIZED
Proprietary motor, suspension and cone modeling systems are used to achieve long, linear excursion capabilities with low distortion and powerful sound output.
REAL-WORLD CERTIFIED
Pavilion speakers meet or exceed ASTM standards for salt fog exposure as well as UV exposure. They utilize marine-grade materials and components specifically designed for harsh environments.

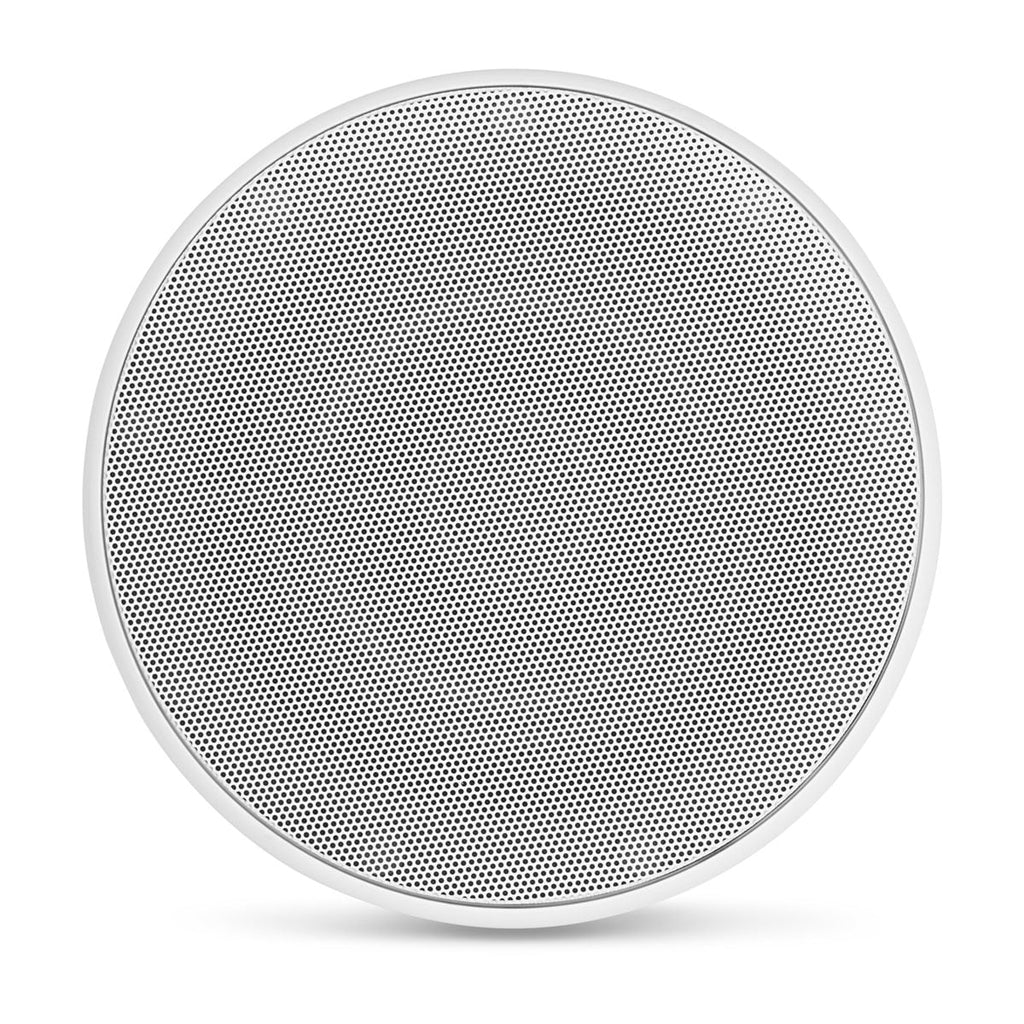

FLUSH-MOUNT GRILLE
The ultrathin fine-mesh design attaches magnetically for a discreet visual appearance. Colors are available in satin white and satin black.
In the Box
- Pavilion coaxial speaker
- Flush-mount grille
- Mounting system
- Paint shield
- Cutout template
Specs
General | |
| Warranty | 5 years |
|---|---|
| Sizes | 6.5"/7.7"/8.8" |
| Color | Satin black or Satin white |
| Physical dimensions (Diameter) | 6.5": 8.34" (212 mm) 7.7": 9.13" (232 mm) 8.8": 10.25" (260 mm) |
| Physical dimensions (Depth) | 6.5": 4.24" (108 mm) 7.7" 4.64" (118 mm) 8.8": 6.78" (172 mm) |
| Weight |
6.5": 3.21 lbs (1.45 kg) 7.7": 5.35 lbs (2.43 kg) |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 60 W 7.7": 80 W 8.8": 100 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5": 89.5 dB 7.7": 91.0 dB 8.8": 90.5 dB |
| Frequency response (+/- 3 dB) | 6.5": 55 Hz-25 kHz 7.7": 45 Hz-25 kHz 8.8": 38 Hz-20 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5": 30-120 W/Channel 7.7": 40-160 W/Channel 8.8": 50-200 W/Channel |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk Dome |
| Tweeter size | 6.5": 0.8" (20 mm) 7.7": 1" (25 mm) 8.8": 1.25" (32 mm) |
Networking & Connections | |
| Speaker connections | Spade Connectors |
|---|---|
| LED connection | Flying Lead with 4-conductor 20 AWG wire (selected Sport models only) |
Mounting Dimensions | |
| Mounting depth clearance | 6.5": 3.87" (98 mm) 7.7": 4.26" (108 mm) 8.8": 6.30" (160 mm) |
|---|---|
| Frontal grille protrusion | 6.5": 0.37" (9 mm) 7.7": 0.38" (10 mm) 8.8": 0.48" (12 mm) |
| Mounting hole | 6.5": 6.875" (175 mm) 7.7": 7.625" (194 mm) 8.8": 8.75" (222 mm) |
| Bolt hole circle | 6.5": 7.39" (188 mm) 7.7": 8.18" (208 mm) 8.8": 9.27" (235 mm) |
